IslandPath Analysis: Rickettsia felis URRWXCal2

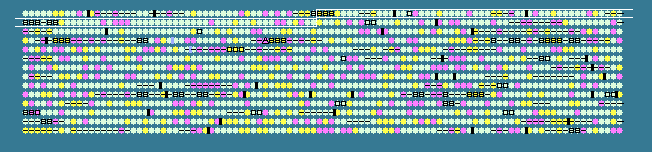

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
50	 36.83	+1	51661..52461	-	266	67458442	-	RF_0050	-	transposase/IS protein
51	 36.71	+1	52458..52901	-	147	67458443	-	RF_0051	-	transposase
52	 35.78	0	52876..53487	-	203	67458444	-	RF_0052	-	transposase
53	 35.91	+1	54547..55866	-	439	67458445	-	RF_0053	-	putative surface antigen
54	 32.80	0	56155..56721	+	188	67458446	dcd	RF_0054	-	deoxycytidine triphosphate deaminase
55	 31.37	0	56930..57388	+	152	67458447	secB	RF_0055	-	preprotein translocase subunit SecB
56	 33.61	0	57613..58326	+	237	67458448	czcR	RF_0056	-	transcriptional activator protein CzcR
57	 29.08	0	58330..59151	+	273	67458449	queF	RF_0057	-	7-cyano-7-deazaguanine reductase
58	 34.22	0	59457..60017	-	186	67458450	-	RF_0058	-	hypothetical protein
59	 37.70	+1	60072..61469	-	465	67458451	pntB	RF_0059	-	NAD(p) transhydrogenase subunit beta
60	 35.24	0	61597..62331	-	244	67458452	ompW	RF_0060	-	OmpW family outer-membrane protein
61	 33.33	0	62487..63371	+	294	67458453	sam	RF_0061	-	S-adenosylmethionine transporter
62	 32.30	0	63358..64614	+	418	67458454	proP1	RF_0062	-	proline/betaine transporter
63	 30.78	0	65057..65761	+	234	67458455	-	RF_0063	-	ankyrin repeat-containing protein
64	 29.98	0	65712..66605	+	297	67458456	-	RF_0064	-	hypothetical protein
65	 33.12	0	66725..67645	+	306	67458457	-	RF_0065	-	transposase
66	 25.89	-1	67629..68300	+	223	67458458	-	RF_0066	-	hypothetical protein
67	 30.13	0	68331..73145	-	1604	67458459	sca2	RF_0067	-	cell surface antigen Sca2
68	 33.62	0	73318..74697	+	459	67458460	cysS	RF_0068	-	cysteinyl-tRNA synthetase
69	 33.11	0	75045..75932	+	295	67458461	rpsB	RF_0069	-	30S ribosomal protein S2
70	 36.13	+1	76101..77030	+	309	67458462	tsf	RF_0070	-	elongation factor Ts
71	 35.31	0	77233..78243	+	336	67458463	-	RF_0071	-	hypothetical protein
72	 33.26	0	78264..79658	-	464	67458464	kdtA	RF_0072	-	3-deoxy-D-manno-octulosonic-acid transferase
73	 30.44	0	79655..80311	-	218	67458465	-	RF_0073	-	hypothetical protein
74	 34.72	0	80419..81648	-	409	67458466	aatA	RF_0074	-	aspartate aminotransferase
75	 24.78	-1	81916..82920	+	334	67458467	-	RF_0075	-	hypothetical protein
76	 35.45	0	82925..83680	+	251	67458468	vacJ	RF_0076	-	VacJ lipoprotein precursor
77	 32.17	0	83700..84299	+	199	67458469	-	RF_0077	-	hypothetical protein
78	 29.37	0	84478..85359	+	293	67458470	prs	RF_0078	-	ribose-phosphate pyrophosphokinase
79	 35.57	0	85356..86744	+	462	67458471	alr	RF_0079	-	alanine racemase
80	 37.18	+1	86878..87657	+	259	67458472	-	RF_0080	-	ABC transporter permease protein
81	 33.07	0	87660..88418	+	252	67458473	mkl	RF_0081	-	ribonucleotide ABC transporter ATP-binding protein
82	 28.11	-1	88420..88668	+	82	67458474	-	RF_0082	-	hypothetical protein
83	 34.69	0	88742..89035	+	97	67458475	rpmB	RF_0083	-	50S ribosomal protein L28
84	 31.65	0	89032..89268	+	78	67458476	rpmE	RF_0084	-	50S ribosomal protein L31
85	 32.08	0	89980..90618	+	212	67458477	-	RF_0085	-	GTPase EngB
86	 27.81	-1	90566..91489	+	307	67458478	argB	RF_0086	-	acetylglutamate kinase
87	 31.25	0	91502..91789	+	95	67458479	virB3	RF_0087	-	Type IV secretory pathway, VirB3-like protein
88	 34.37	0	91953..94370	+	805	67458480	virB4_1	RF_0088	-	type IV secretion/conjugal transfer ATPase
89	 36.41	+1	94545..97961	+	1138	67458481	virB6_1	RF_0089	-	TrbL/VirB6 plasmid conjugative transfer protein
90	 35.07	0	97948..99966	+	672	67458482	virB6_2	RF_0090	-	TrbL/VirB6 plasmid conjugative transfer protein
91	 35.45	0	99973..102906	+	977	67458483	virB6_3	RF_0091	-	TrbL/VirB6 plasmid conjugative transfer protein
92	 32.96	0	103135..105807	+	890	67458484	virB6_4	RF_0092	-	TrbL/VirB6 plasmid conjugative transfer protein
93	 33.85	0	105951..109418	+	1155	67458485	virB6_5	RF_0093	-	TrbL/VirB6 plasmid conjugative transfer protein
94	 31.65	0	109503..109739	+	78	67458486	vapB2	RF_0094	-	antitoxin of toxin-antitoxin system VapB
95	 25.68	-1	109736..110140	+	134	67458487	vapC2	RF_0095	-	toxin of toxin-antitoxin system
96	 39.71	+2	110265..111314	+	349	67458488	pta	RF_0096	-	phosphate acetyltransferase
97	 32.52	0	111250..112473	+	407	67458489	ackA	RF_0097	-	acetate kinase
98	 34.04	0	112672..112956	+	94	67458490	-	RF_0098	-	hypothetical protein
99	 38.01	+1	113044..113748	+	234	67458491	trmD	RF_0099	-	tRNA (guanine-N(1)-)-methyltransferase
100	 34.29	0	113767..114183	+	138	67458492	rplS	RF_0100	-	50S ribosomal protein L19
101	 34.13	0	114492..115244	+	250	67458493	-	RF_0101	-	transposase
102	 29.01	0	115319..115480	+	53	67458494	-	RF_0102	-	transposase
103	 33.92	0	115583..116431	-	282	67458495	-	RF_0103	-	transposase
104	 30.03	0	116930..117232	-	100	67458496	secG	RF_0104	-	preprotein translocase subunit SecG
105	 31.28	0	117487..117729	-	80	67458497	-	RF_0105	-	transposase
106	 33.33	0	117804..118757	-	317	67458498	-	RF_0106	-	transposase
107	 36.63	+1	118779..120992	-	737	67458499	parC	RF_0107	-	DNA topoisomerase IV subunit A
108	 29.93	0	121332..122006	-	224	67458500	-	RF_0108	-	hypothetical protein
109	 34.08	0	122140..123870	-	576	67458501	argS	RF_0109	-	arginyl-tRNA synthetase
110	 33.33	0	123876..125027	-	383	67458502	dgt	RF_0110	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
111	 35.32	0	125133..125585	+	150	67458503	iscA1	RF_0111	-	Iron-sulfur cluster assembly accessory protein
112	 29.75	0	125851..129921	-	1356	67458504	-	RF_0112	-	hypothetical protein
113	 34.91	0	130596..131420	-	274	67458505	kdsA	RF_0113	-	2-dehydro-3-deoxyphosphooctonate aldolase
114	 20.75	-2	131456..131773	-	105	67458506	-	RF_0114	-	hypothetical protein
115	 30.22	0	131776..133443	-	555	67458507	abcT1	RF_0115	-	putative ABC transporter ATP-binding protein
116	 27.76	-1	133635..134495	-	286	67458508	-	RF_0116	-	ParB-like partition proteins
117	 27.99	-1	134482..135249	-	255	67458509	soj	RF_0117	-	ATPase involved in chromosome partitioning
118	 24.35	-1	135246..135824	-	192	67458510	gidB	RF_0118	-	glucose-inhibited division protein B
119	 32.80	0	135805..137673	-	622	67458511	gidA	RF_0119	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
120	 32.39	0	137677..138099	-	140	67458512	ndk	RF_0120	-	nucleoside diphosphate kinase
121	 34.96	0	138129..139418	-	429	67458513	uhpC	RF_0121	-	sugar phosphate permease
122	 31.80	0	139486..140982	-	498	67458514	tlc1	RF_0122	-	ADP,ATP carrier protein
123	 32.11	0	141399..142298	+	299	67458515	dam	RF_0123	-	site-specific DNA adenine methylase
124	 30.52	0	142802..143476	+	224	67458516	def3	RF_0124	-	polypeptide deformylase
125	 34.46	0	143745..143921	-	58	67458517	-	RF_0125	-	hypothetical protein
126	 30.52	0	143902..144648	-	248	67458518	-	RF_0126	-	hypothetical protein
127	 29.54	0	144931..145563	-	210	67458519	-	RF_0127	-	tellurite resistance protein-related protein
128	 32.16	0	145799..146224	+	141	67458520	-	RF_0128	-	hypothetical protein
129	 33.16	0	146328..146906	-	192	67458521	-	RF_0129	-	hypothetical protein
130	 29.49	0	146922..147467	-	181	67458522	pgsA	RF_0130	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
131	 30.66	0	147471..149153	-	560	67458523	yidC	RF_0131	-	putative inner membrane protein translocase component YidC
132	 27.25	-1	149311..150477	-	388	67458524	-	RF_0132	-	hypothetical protein
133	 30.38	0	150719..151498	+	259	67458525	lgt	RF_0133	-	prolipoprotein diacylglyceryl transferase
134	 33.74	0	151477..152700	+	407	67458526	-	RF_0134	-	hypothetical protein
135	 31.89	0	152697..153113	-	138	67458527	-	RF_0135	-	hypothetical protein
136	 38.68	+1	153147..153932	-	261	67458528	sdhB	RF_0136	-	succinate dehydrogenase iron-sulfur subunit
137	 31.78	0	154251..154766	-	171	67458529	-	RF_0137	-	site-specific DNA methylase
138	 32.70	0	154861..155178	-	105	67458530	-	RF_0138	-	site-specific DNA methylase
139	 38.05	+1	155204..157111	-	635	67458531	ftsH	RF_0139	-	ATP-dependent metalloprotease FtsH
140	 29.08	0	157333..158625	-	430	67458532	tilS	RF_0140	-	tRNA(Ile)-lysidine synthetase TilS
141	 30.81	0	158904..159419	-	171	67458533	rplI	RF_0141	-	50S ribosomal protein L9
142	 32.64	0	159431..159718	-	95	67458534	rpsR	RF_0142	-	30S ribosomal protein S18
143	 26.78	-1	159743..160108	-	121	162022125	rpsF	RF_0143	-	30S ribosomal protein S6
144	 24.66	-1	160292..160660	+	122	67458536	-	RF_0144	-	hypothetical protein
145	 30.82	0	161139..162332	+	397	67458537	aco1	RF_0145	-	Acyl-CoA desaturase 1
146	 36.24	+1	162528..163697	+	389	67458538	gcp	RF_0146	-	O-sialoglycoprotein endopeptidase
147	 25.81	-1	163787..164278	+	163	67458539	-	RF_0147	-	hypothetical protein
148	 29.97	0	164347..165120	-	257	67458540	-	RF_0148	-	hypothetical protein
149	 31.65	0	165277..165633	-	118	67458541	-	RF_0149	-	ClpB protein
32.00	MEAN

3.85	STD DEV
