IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

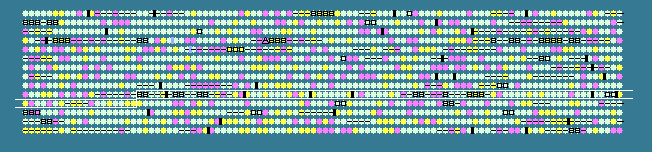

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
920	 33.33	0	981720..982673	+	317	67459312	-	RF_0920	-	transposase
921	 30.45	0	982748..982990	+	80	67459313	-	RF_0921	-	transposase
922	 35.00	0	983033..983572	+	179	67459314	-	RF_0922	-	ankyrin repeat-containing protein
923	 28.74	0	983717..984652	-	311	67459315	-	RF_0923	-	ankyrin repeat-containing protein
924	 40.58	+2	984883..985089	-	68	67459316	-	RF_0924	-	lysozyme
925	 34.47	0	985836..986273	+	145	67459317	-	RF_0925	-	hypothetical protein
926	 30.04	0	986311..986553	-	80	67459318	-	RF_0926	-	transposase
927	 33.54	0	986628..987581	-	317	67459319	-	RF_0927	-	transposase
928	 29.40	0	988224..988757	+	177	67459320	-	RF_0928	-	hypothetical protein
929	 33.62	0	989155..989499	+	114	67459321	-	RF_0929	-	hypothetical protein
930	 33.33	0	990157..991110	+	317	67459322	-	RF_0930	-	transposase
931	 30.45	0	991185..991427	+	80	67459323	-	RF_0931	-	transposase
932	 31.32	0	991464..992207	-	247	67459324	-	RF_0932	-	hypothetical protein
933	 41.29	+2	992495..992695	-	66	67459325	-	RF_0933	-	Phage-related lysozyme
934	 28.09	-1	992745..993011	-	88	67459326	-	RF_0934	-	hypothetical protein
935	 32.65	0	993596..993889	-	97	67459327	-	RF_0935	-	hypothetical protein
936	 37.79	+1	994106..994576	-	156	67459328	-	RF_0936	-	hypothetical protein
937	 28.13	-1	994740..995258	-	172	67459329	-	RF_0937	-	hypothetical protein
938	 39.81	+2	995862..996077	-	71	67459330	-	RF_0938	-	hypothetical protein
939	 33.77	0	996184..996864	-	226	67459331	-	RF_0939	-	ankyrin repeat-containing protein
940	 31.72	0	997104..997973	-	289	67459332	-	RF_0940	-	nucleotidyltransferase/HEPN domain-containing protein
941	 36.02	+1	998319..1001039	-	906	67459333	secA	RF_0941	-	preprotein translocase subunit SecA
942	 30.39	0	1001273..1002121	+	282	67459334	prsA	RF_0942	-	protein export protein PrsA precursor
943	 32.32	0	1002284..1002679	-	131	67459335	acpS	RF_0943	-	4'-phosphopantetheinyl transferase
944	 31.76	0	1002680..1003060	-	126	67459336	rpoZ	RF_0944	-	DNA-directed RNA polymerase subunit omega
945	 36.75	+1	1003234..1004493	-	419	67459337	murA	RF_0945	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
946	 28.35	0	1004592..1004852	-	86	67459338	-	RF_0946	-	excinuclease ABC subunit C
947	 37.29	+1	1004956..1007382	-	808	67459339	gyrB	RF_0947	-	DNA gyrase subunit B
948	 31.13	0	1007625..1008485	+	286	67459340	-	RF_0948	-	HAD family hydrolase
949	 37.04	+1	1008785..1009189	-	134	67459341	-	RF_0949	-	glutamine amidotransferase
950	 33.16	0	1009261..1010448	-	395	67459342	-	RF_0950	-	ankyrin repeat-containing protein
951	 32.90	0	1010680..1012050	+	456	67459343	mgtE	RF_0951	-	magnesium transporter
952	 28.96	0	1012054..1012350	-	98	67459344	-	RF_0952	-	hypothetical protein
953	 30.58	0	1012478..1013167	+	229	67459345	spoT3	RF_0953	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
954	 31.55	0	1013130..1013972	-	280	67459346	-	RF_0954	-	proline/betaine transporter
955	 37.63	+1	1013976..1014440	-	154	67459347	-	RF_0955	-	proline/betaine transporter
956	 28.94	0	1015113..1015385	-	90	67459348	-	RF_0956	-	cytotoxic translational repressor of toxin-antitoxin system RelE
957	 26.84	-1	1015369..1015599	-	76	67459349	-	RF_0957	-	antitoxin of toxin-antitoxin system
958	 32.74	0	1015814..1016317	+	167	67459350	yajC	RF_0958	-	preprotein translocase subunit YajC
959	 35.39	0	1016301..1017857	+	518	67459351	secD	RF_0959	-	preprotein translocase subunit SecD
960	 30.58	0	1018003..1018620	+	205	67459352	-	RF_0960	-	Sco2 protein precursor
961	 32.30	0	1018715..1019101	+	128	67459353	ccmE	RF_0961	-	cytochrome c-type biogenesis protein CcmE
962	 36.59	+1	1019229..1019750	+	173	162022121	ppa	RF_0962	-	inorganic pyrophosphatase
963	 32.26	0	1019942..1021612	+	556	67459355	mviN	RF_0963	-	integral membrane protein MviN
964	 26.61	-1	1021593..1022336	+	247	67459356	traX	RF_0964	-	F pilin acetylation protein TraX
965	 30.02	0	1022421..1023023	+	200	67459357	-	RF_0965	-	hypothetical protein
966	 35.46	0	1023380..1024225	-	281	67459358	-	RF_0966	-	transposase
967	 33.80	0	1024520..1024735	-	71	67459359	-	RF_0967	-	transposase
968	 29.43	0	1024855..1025469	-	204	67459360	spoT10	RF_0968	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
969	 26.24	-1	1025565..1026269	+	234	67459361	-	RF_0969	-	acetyltransferase
970	 26.53	-1	1026387..1029341	+	984	67459362	-	RF_0970	-	Na+/proline symporter, signal transduction histidine kinase
971	 35.46	0	1029461..1030306	+	281	67459363	-	RF_0971	-	transposase
972	 29.15	0	1030734..1032047	+	437	67459364	-	RF_0972	-	hypothetical protein
973	 29.23	0	1032882..1033661	+	259	67459365	-	RF_0973	-	hypothetical protein
974	 31.25	0	1033658..1033945	+	95	67459366	-	RF_0974	-	hypothetical protein
975	 35.78	0	1034014..1034625	+	203	67459367	-	RF_0975	-	transposase
976	 36.71	+1	1034600..1035043	+	147	67459368	-	RF_0976	-	transposase
977	 36.83	+1	1035040..1035840	+	266	67459369	-	RF_0977	-	transposase/IS protein
978	 31.75	0	1035905..1036156	-	83	67459370	-	RF_0978	-	hypothetical protein
979	 39.62	+1	1036470..1038377	+	635	67459371	thrS	RF_0979	-	threonyl-tRNA synthetase
980	 26.19	-1	1038698..1039117	-	139	67459372	-	RF_0980	-	acetyltransferase
981	 34.18	0	1039209..1041092	+	627	67459373	mdlB	RF_0981	-	ABC-type multidrug transport system, ATPase and permease components
982	 28.61	0	1041511..1042314	-	267	67459374	-	RF_0982	-	hypothetical protein
983	 30.68	0	1042443..1042856	-	137	67459375	-	RF_0983	-	hypothetical protein
984	 28.72	0	1042856..1044046	-	396	67459376	-	RF_0984	-	hypothetical protein
985	 36.48	+1	1044264..1045628	+	454	67459377	tolC	RF_0985	-	TolC family type I secretion outer membrane protein
986	 29.32	0	1045630..1046028	+	132	67459378	-	RF_0986	-	hypothetical protein
987	 37.21	+1	1046173..1047873	+	566	67459379	-	RF_0987	-	ankyrin repeat-containing protein
988	 33.99	0	1048243..1050231	+	662	67459380	parE	RF_0988	-	DNA topoisomerase IV subunit B
989	 33.04	0	1050402..1051760	+	452	67459381	ctp	RF_0989	-	carboxyl-terminal protease
990	 28.71	0	1052022..1053515	+	497	67459382	barA	RF_0990	-	histidine kinase sensor protein
991	 32.52	0	1053991..1054728	+	245	67459383	-	RF_0991	-	hypothetical protein
992	 25.04	-1	1054741..1055403	+	220	67459384	-	RF_0992	-	hypothetical protein
993	 29.77	0	1055408..1056670	+	420	67459385	-	RF_0993	-	WD-40 repeat-containing protein
994	 35.47	0	1056764..1057231	+	155	67459386	rplM	RF_0994	-	50S ribosomal protein L13
995	 32.51	0	1057238..1057723	+	161	67459387	rpsI	RF_0995	-	30S ribosomal protein S9
996	 29.44	0	1058481..1059224	+	247	67459388	-	RF_0996	-	D-alanyl-D-alanine dipeptidase
997	 32.73	0	1059378..1059710	+	110	67459389	-	RF_0997	-	putative pterin-4-alpha-carbinolamine dehydratase (PHS)
998	 33.65	0	1059920..1060873	+	317	67459390	-	RF_0998	-	transposase
999	 30.45	0	1060948..1061190	+	80	67459391	-	RF_0999	-	transposase
1000	 39.05	+1	1061492..1063294	-	600	67459392	lepA	RF_1000	-	GTP-binding protein LepA
1001	 39.44	+1	1063533..1064640	+	368	67459393	prfB	RF_1001	-	peptide chain release factor 2
1002	 28.42	0	1064650..1065666	+	338	67459394	-	RF_1002	-	hypothetical protein
1003	 29.20	0	1065752..1066597	+	281	67459395	-	RF_1003	-	hypothetical protein
1004	 30.32	0	1066682..1067146	-	154	67459396	hspC2	RF_1004	-	small heat shock protein
1005	 26.98	-1	1067178..1067618	-	146	67459397	hspC1	RF_1005	-	small heat shock protein
1006	 32.67	0	1067740..1068192	-	150	67459398	-	RF_1006	-	hypothetical protein
1007	 40.48	+2	1068415..1069170	-	251	67459399	fbcH	RF_1007	-	cytochrome c1, heme protein precursor
1008	 29.43	0	1069305..1069739	-	144	67459400	-	RF_1008	-	endo/excinuclease amino terminal domain-containing protein
1009	 38.51	+1	1069787..1070983	-	398	67459401	petB	RF_1009	-	cytochrome b
1010	 43.07	+2	1070990..1071523	-	177	67459402	petA	RF_1010	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1011	 32.68	0	1071545..1072003	-	152	67459403	-	RF_1011	-	hypothetical protein
1012	 24.54	-1	1072080..1072727	-	215	67459404	ccmB	RF_1012	-	Heme exporter protein B
1013	 31.10	0	1072720..1073748	-	342	67459405	mnhB	RF_1013	-	putative monovalent cation/H+ antiporter subunit B
1014	 34.42	0	1073813..1074181	-	122	67459406	-	RF_1014	-	putative monovalent cation/H+ antiporter subunit G
1015	 35.84	0	1074245..1075720	-	491	67459407	icd	RF_1015	-	isocitrate dehydrogenase
1016	 30.78	0	1075863..1076411	-	182	67459408	-	RF_1016	-	hypothetical protein
1017	 29.41	0	1076572..1077183	-	203	67459409	-	RF_1017	-	hypothetical protein
1018	 41.75	+2	1077518..1079347	+	609	67459410	typA	RF_1018	-	GTP-binding protein TypA
1019	 38.63	+1	1079711..1080691	-	326	67459411	pdhB	RF_1019	-	pyruvate dehydrogenase subunit beta
32.00	MEAN

3.85	STD DEV
