IslandPath Analysis: Rickettsia felis URRWXCal2

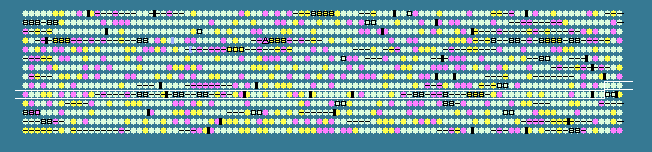

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
898	 29.32	0	962129..962377	-	82	67459290	-	RF_0898	-	cytotoxic translational repressor of toxin-antitoxin system RelE
899	 31.52	0	962370..962645	-	91	67459291	-	RF_0899	-	antitoxin of toxin-antitoxin system
900	 35.01	0	962736..964520	-	594	67459292	pbpA1	RF_0900	-	penicillin-binding protein
901	 22.03	-2	964510..965031	-	173	67459293	-	RF_0901	-	hypothetical protein
902	 34.52	0	965706..967391	-	561	67459294	pbpA2	RF_0902	-	penicillin-binding protein
903	 31.72	0	967521..968078	-	185	67459295	ftsL	RF_0903	-	cell division protein FtsL
904	 36.59	+1	968137..969057	-	306	67459296	mraW	RF_0904	-	S-adenosyl-methyltransferase MraW
905	 39.78	+2	969057..969506	-	149	67459297	mraZ	RF_0905	-	cell division protein MraZ
906	 33.19	0	970343..971779	+	478	67459298	panF	RF_0906	-	Sodium/pantothenate symporter
907	 26.90	-1	971860..972294	-	144	67459299	-	RF_0907	-	hypothetical protein
908	 34.38	0	972420..972803	-	127	67459300	-	RF_0908	-	hypothetical protein
909	 28.07	-1	972781..972951	-	56	67459301	-	RF_0909	-	hypothetical protein
910	 34.14	0	973108..973356	+	82	67459302	-	RF_0910	-	antitoxin of toxin-antitoxin system StbD
911	 24.24	-2	973347..973610	+	87	67459303	-	RF_0911	-	toxin of toxin-antitoxin system
912	 35.56	0	973615..975543	-	642	67459304	uvrC	RF_0912	-	excinuclease ABC subunit C
913	 32.02	0	975672..976202	-	176	67459305	-	RF_0913	-	hypothetical protein
914	 27.13	-1	976393..976650	-	85	67459306	-	RF_0914	-	hypothetical protein
915	 34.94	0	977066..978121	-	351	67459307	-	RF_0915	-	methylated-DNA--protein-cysteine methyltransferase
916	 33.93	0	978211..978717	-	168	67459308	dat	RF_0916	-	methylated-DNA--protein-cysteine methyltransferase
917	 30.36	0	978925..979260	+	111	67459309	-	RF_0917	-	hypothetical protein
918	 26.90	-1	979318..980748	-	476	67459310	-	RF_0918	-	Type I site-specific restriction-modification system, R (restriction) subunit
919	 31.83	0	980943..981809	-	288	67459311	-	RF_0919	-	Type I site-specific restriction-modification system, R (restriction) subunit
920	 33.33	0	981720..982673	+	317	67459312	-	RF_0920	-	transposase
921	 30.45	0	982748..982990	+	80	67459313	-	RF_0921	-	transposase
922	 35.00	0	983033..983572	+	179	67459314	-	RF_0922	-	ankyrin repeat-containing protein
923	 28.74	0	983717..984652	-	311	67459315	-	RF_0923	-	ankyrin repeat-containing protein
924	 40.58	+2	984883..985089	-	68	67459316	-	RF_0924	-	lysozyme
925	 34.47	0	985836..986273	+	145	67459317	-	RF_0925	-	hypothetical protein
926	 30.04	0	986311..986553	-	80	67459318	-	RF_0926	-	transposase
927	 33.54	0	986628..987581	-	317	67459319	-	RF_0927	-	transposase
928	 29.40	0	988224..988757	+	177	67459320	-	RF_0928	-	hypothetical protein
929	 33.62	0	989155..989499	+	114	67459321	-	RF_0929	-	hypothetical protein
930	 33.33	0	990157..991110	+	317	67459322	-	RF_0930	-	transposase
931	 30.45	0	991185..991427	+	80	67459323	-	RF_0931	-	transposase
932	 31.32	0	991464..992207	-	247	67459324	-	RF_0932	-	hypothetical protein
933	 41.29	+2	992495..992695	-	66	67459325	-	RF_0933	-	Phage-related lysozyme
934	 28.09	-1	992745..993011	-	88	67459326	-	RF_0934	-	hypothetical protein
935	 32.65	0	993596..993889	-	97	67459327	-	RF_0935	-	hypothetical protein
936	 37.79	+1	994106..994576	-	156	67459328	-	RF_0936	-	hypothetical protein
937	 28.13	-1	994740..995258	-	172	67459329	-	RF_0937	-	hypothetical protein
938	 39.81	+2	995862..996077	-	71	67459330	-	RF_0938	-	hypothetical protein
939	 33.77	0	996184..996864	-	226	67459331	-	RF_0939	-	ankyrin repeat-containing protein
940	 31.72	0	997104..997973	-	289	67459332	-	RF_0940	-	nucleotidyltransferase/HEPN domain-containing protein
941	 36.02	+1	998319..1001039	-	906	67459333	secA	RF_0941	-	preprotein translocase subunit SecA
942	 30.39	0	1001273..1002121	+	282	67459334	prsA	RF_0942	-	protein export protein PrsA precursor
943	 32.32	0	1002284..1002679	-	131	67459335	acpS	RF_0943	-	4'-phosphopantetheinyl transferase
944	 31.76	0	1002680..1003060	-	126	67459336	rpoZ	RF_0944	-	DNA-directed RNA polymerase subunit omega
945	 36.75	+1	1003234..1004493	-	419	67459337	murA	RF_0945	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
946	 28.35	0	1004592..1004852	-	86	67459338	-	RF_0946	-	excinuclease ABC subunit C
947	 37.29	+1	1004956..1007382	-	808	67459339	gyrB	RF_0947	-	DNA gyrase subunit B
948	 31.13	0	1007625..1008485	+	286	67459340	-	RF_0948	-	HAD family hydrolase
949	 37.04	+1	1008785..1009189	-	134	67459341	-	RF_0949	-	glutamine amidotransferase
950	 33.16	0	1009261..1010448	-	395	67459342	-	RF_0950	-	ankyrin repeat-containing protein
951	 32.90	0	1010680..1012050	+	456	67459343	mgtE	RF_0951	-	magnesium transporter
952	 28.96	0	1012054..1012350	-	98	67459344	-	RF_0952	-	hypothetical protein
953	 30.58	0	1012478..1013167	+	229	67459345	spoT3	RF_0953	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
954	 31.55	0	1013130..1013972	-	280	67459346	-	RF_0954	-	proline/betaine transporter
955	 37.63	+1	1013976..1014440	-	154	67459347	-	RF_0955	-	proline/betaine transporter
956	 28.94	0	1015113..1015385	-	90	67459348	-	RF_0956	-	cytotoxic translational repressor of toxin-antitoxin system RelE
957	 26.84	-1	1015369..1015599	-	76	67459349	-	RF_0957	-	antitoxin of toxin-antitoxin system
958	 32.74	0	1015814..1016317	+	167	67459350	yajC	RF_0958	-	preprotein translocase subunit YajC
959	 35.39	0	1016301..1017857	+	518	67459351	secD	RF_0959	-	preprotein translocase subunit SecD
960	 30.58	0	1018003..1018620	+	205	67459352	-	RF_0960	-	Sco2 protein precursor
961	 32.30	0	1018715..1019101	+	128	67459353	ccmE	RF_0961	-	cytochrome c-type biogenesis protein CcmE
962	 36.59	+1	1019229..1019750	+	173	162022121	ppa	RF_0962	-	inorganic pyrophosphatase
963	 32.26	0	1019942..1021612	+	556	67459355	mviN	RF_0963	-	integral membrane protein MviN
964	 26.61	-1	1021593..1022336	+	247	67459356	traX	RF_0964	-	F pilin acetylation protein TraX
965	 30.02	0	1022421..1023023	+	200	67459357	-	RF_0965	-	hypothetical protein
966	 35.46	0	1023380..1024225	-	281	67459358	-	RF_0966	-	transposase
967	 33.80	0	1024520..1024735	-	71	67459359	-	RF_0967	-	transposase
968	 29.43	0	1024855..1025469	-	204	67459360	spoT10	RF_0968	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
969	 26.24	-1	1025565..1026269	+	234	67459361	-	RF_0969	-	acetyltransferase
970	 26.53	-1	1026387..1029341	+	984	67459362	-	RF_0970	-	Na+/proline symporter, signal transduction histidine kinase
971	 35.46	0	1029461..1030306	+	281	67459363	-	RF_0971	-	transposase
972	 29.15	0	1030734..1032047	+	437	67459364	-	RF_0972	-	hypothetical protein
973	 29.23	0	1032882..1033661	+	259	67459365	-	RF_0973	-	hypothetical protein
974	 31.25	0	1033658..1033945	+	95	67459366	-	RF_0974	-	hypothetical protein
975	 35.78	0	1034014..1034625	+	203	67459367	-	RF_0975	-	transposase
976	 36.71	+1	1034600..1035043	+	147	67459368	-	RF_0976	-	transposase
977	 36.83	+1	1035040..1035840	+	266	67459369	-	RF_0977	-	transposase/IS protein
978	 31.75	0	1035905..1036156	-	83	67459370	-	RF_0978	-	hypothetical protein
979	 39.62	+1	1036470..1038377	+	635	67459371	thrS	RF_0979	-	threonyl-tRNA synthetase
980	 26.19	-1	1038698..1039117	-	139	67459372	-	RF_0980	-	acetyltransferase
981	 34.18	0	1039209..1041092	+	627	67459373	mdlB	RF_0981	-	ABC-type multidrug transport system, ATPase and permease components
982	 28.61	0	1041511..1042314	-	267	67459374	-	RF_0982	-	hypothetical protein
983	 30.68	0	1042443..1042856	-	137	67459375	-	RF_0983	-	hypothetical protein
984	 28.72	0	1042856..1044046	-	396	67459376	-	RF_0984	-	hypothetical protein
985	 36.48	+1	1044264..1045628	+	454	67459377	tolC	RF_0985	-	TolC family type I secretion outer membrane protein
986	 29.32	0	1045630..1046028	+	132	67459378	-	RF_0986	-	hypothetical protein
987	 37.21	+1	1046173..1047873	+	566	67459379	-	RF_0987	-	ankyrin repeat-containing protein
988	 33.99	0	1048243..1050231	+	662	67459380	parE	RF_0988	-	DNA topoisomerase IV subunit B
989	 33.04	0	1050402..1051760	+	452	67459381	ctp	RF_0989	-	carboxyl-terminal protease
990	 28.71	0	1052022..1053515	+	497	67459382	barA	RF_0990	-	histidine kinase sensor protein
991	 32.52	0	1053991..1054728	+	245	67459383	-	RF_0991	-	hypothetical protein
992	 25.04	-1	1054741..1055403	+	220	67459384	-	RF_0992	-	hypothetical protein
993	 29.77	0	1055408..1056670	+	420	67459385	-	RF_0993	-	WD-40 repeat-containing protein
994	 35.47	0	1056764..1057231	+	155	67459386	rplM	RF_0994	-	50S ribosomal protein L13
995	 32.51	0	1057238..1057723	+	161	67459387	rpsI	RF_0995	-	30S ribosomal protein S9
996	 29.44	0	1058481..1059224	+	247	67459388	-	RF_0996	-	D-alanyl-D-alanine dipeptidase
997	 32.73	0	1059378..1059710	+	110	67459389	-	RF_0997	-	putative pterin-4-alpha-carbinolamine dehydratase (PHS)
32.00	MEAN

3.85	STD DEV
