IslandPath Analysis: Rickettsia felis URRWXCal2

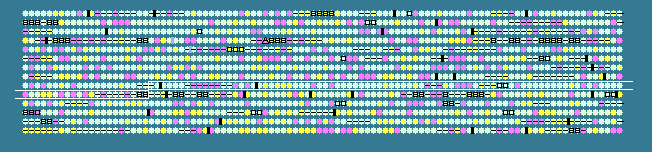

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.00   STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
822	 30.83	0	870001..870639	+	212	67459214	-	RF_0822	-	hypothetical protein
823	 31.46	0	870736..871056	+	106	67459215	-	RF_0823	-	hypothetical protein
824	 32.83	0	871343..872335	-	330	67459216	trpS	RF_0824	-	tryptophanyl-tRNA synthetase
825	 33.47	0	872531..873256	+	241	67459217	plsC	RF_0825	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
826	 35.10	0	873309..873761	+	150	67459218	-	RF_0826	-	hypothetical protein
827	 31.87	0	874049..874321	-	90	67459219	relB2	RF_0827	-	DNA-damage-inducible protein J
828	 34.72	0	874464..875183	+	239	67459220	-	RF_0828	-	hypothetical protein
829	 24.78	-1	875504..876508	-	334	67459221	-	RF_0829	-	hypothetical protein
830	 27.67	-1	876501..877241	-	246	67459222	-	RF_0830	-	hypothetical protein
831	 27.49	-1	877225..878079	-	284	67459223	-	RF_0831	-	hypothetical protein
832	 28.35	0	878027..878668	-	213	67459224	lysE	RF_0832	-	lysine efflux permease
833	 23.28	-2	878669..879076	-	135	67459225	-	RF_0833	-	hypothetical protein
834	 30.17	0	879252..880577	-	441	67459226	ampG1	RF_0834	-	AmpG-related permease
835	 31.63	0	880583..881110	-	175	67459227	-	RF_0835	-	hypothetical protein
836	 28.19	0	881280..882833	+	517	67459228	rfaJ	RF_0836	-	lipopolysaccharide 1,2-glucosyltransferase RfaJ
837	 29.68	0	882902..884407	+	501	67459229	tlc3	RF_0837	-	ADP,ATP carrier protein
838	 24.66	-1	884506..886188	+	560	67459230	-	RF_0838	-	hypothetical protein
839	 32.11	0	886310..887293	+	327	67459231	ispB	RF_0839	-	octaprenyl-diphosphate synthase
840	 34.44	0	887689..889494	-	601	67459232	pepP	RF_0840	-	aminopeptidase P
841	 36.45	+1	889670..890953	-	427	67459233	potE	RF_0841	-	putrescine-ornithine antiporter
842	 31.13	0	891434..891751	-	105	67459234	-	RF_0842	-	hypothetical protein
843	 37.84	+1	891824..892156	-	110	67459235	iscA2	RF_0843	-	Iron-sulfur cluster assembly accessory protein
844	 37.37	+1	892160..892555	-	131	67459236	iscU	RF_0844	-	scaffold protein
845	 37.19	+1	892692..893960	-	422	67459237	iscS	RF_0845	-	cysteine desulfurase
846	 32.43	0	894104..895213	-	369	67459238	spl1	RF_0846	-	NifS protein
847	 31.43	0	895210..895629	-	139	67459239	iscR	RF_0847	-	Iron-sulfur cluster assembly transcription factor IscR
848	 30.63	0	896020..897390	-	456	67459240	-	RF_0848	-	hypothetical protein
849	 24.51	-1	897415..898287	-	290	67459241	-	RF_0849	-	hypothetical protein
850	 28.87	0	899124..901049	-	641	67459242	-	RF_0850	-	hypothetical protein
851	 31.18	0	901319..901735	-	138	67459243	-	RF_0851	-	hypothetical protein
852	 25.53	-1	901771..902244	+	157	67459244	-	RF_0852	-	hypothetical protein
853	 29.24	0	902241..904217	-	658	67459245	-	RF_0853	-	NTPase
854	 29.99	0	904536..905912	+	458	67459246	nuoN1	RF_0854	-	NADH dehydrogenase subunit N
855	 29.67	0	905899..907647	-	582	67459247	-	RF_0855	-	hypothetical protein
856	 35.24	0	907835..908830	-	331	67459248	hemB	RF_0856	-	delta-aminolevulinic acid dehydratase
857	 29.84	0	909006..910037	+	343	67459249	-	RF_0857	-	hypothetical protein
858	 33.38	0	910034..911980	-	648	67459250	priA	RF_0858	-	primosome assembly protein PriA
859	 32.64	0	912044..912619	+	191	67459251	ubiX	RF_0859	-	aromatic acid decarboxylase
860	 33.47	0	912865..914349	+	494	67459252	dnaB	RF_0860	-	replicative DNA helicase
861	 38.46	+1	914393..914665	-	90	67459253	-	RF_0861	-	hypothetical protein
862	 30.33	0	914694..915893	-	399	67459254	-	RF_0862	-	putative to amino acid permeases
863	 31.88	0	916186..916875	+	229	67459255	rluA2	RF_0863	-	ribosomal large subunit pseudouridine synthase
864	 30.69	0	916926..919805	+	959	67459256	-	RF_0864	-	hypothetical protein
865	 31.64	0	919810..920400	+	196	67459257	-	RF_0865	-	N6-adenine-specific methylase
866	 38.18	+1	920527..921867	+	446	67459258	radA	RF_0866	-	DNA repair protein RadA
867	 31.85	0	921864..922199	+	111	67459259	-	RF_0867	-	hypothetical protein
868	 27.73	-1	922291..923004	+	237	67459260	recO	RF_0868	-	DNA repair protein RecO
869	 34.49	0	923532..924224	+	230	67459261	-	RF_0869	-	putative glycoprotein endopeptidase
870	 27.12	-1	924378..925697	-	439	67459262	-	RF_0870	-	hypothetical protein
871	 36.22	+1	926218..928707	-	829	67459263	infB	RF_0871	-	translation initiation factor IF-2
872	 33.20	0	928995..930506	-	503	67459264	nusA	RF_0872	-	transcription elongation factor NusA
873	 27.98	-1	930517..931002	-	161	67459265	-	RF_0873	-	hypothetical protein
874	 28.43	0	931129..932514	-	461	67459266	-	RF_0874	-	hypothetical protein
875	 27.97	-1	932581..933009	+	142	67459267	-	RF_0875	-	putative transcriptional regulator
876	 32.94	0	932988..933752	-	254	67459268	tlyA	RF_0876	-	hemolysin A
877	 37.86	+1	933911..935146	-	411	67459269	tyrS	RF_0877	-	tyrosyl-tRNA synthetase
878	 35.33	0	935411..935860	+	149	67459270	-	RF_0878	-	hypothetical protein
879	 43.57	+2	936672..937013	+	113	67459271	-	RF_0879	-	hypothetical protein
880	 31.28	0	937381..937623	-	80	67459272	-	RF_0880	-	transposase
881	 33.54	0	937698..938651	-	317	67459273	-	RF_0881	-	transposase
882	 29.56	0	938859..939362	-	167	67459274	-	RF_0882	-	hypothetical protein
883	 27.66	-1	939415..940578	-	387	67459275	-	RF_0883	-	hypothetical protein
884	 31.99	0	941605..942276	+	223	67459276	spoT9	RF_0884	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
885	 31.12	0	942233..943588	-	451	67459277	proP8	RF_0885	-	proline/betaine transporter
886	 29.78	0	943794..944468	-	224	67459278	-	RF_0886	-	hypothetical protein
887	 32.28	0	944569..950247	+	1892	67459279	-	RF_0887	-	large extracellular alpha-helical protein
888	 28.75	0	950940..951179	-	79	67459280	-	RF_0888	-	hypothetical protein
889	 29.84	0	951182..951439	-	85	67459281	-	RF_0889	-	hypothetical protein
890	 32.32	0	951544..953706	-	720	67459282	fadB	RF_0890	-	3-hydroxyacyl-CoA dehydrogenase FadB
891	 31.65	0	954211..954567	-	118	67459283	comF	RF_0891	-	competence protein F
892	 39.37	+1	954918..955232	-	104	67459284	-	RF_0892	-	hypothetical protein
893	 30.72	0	955546..956691	-	381	67459285	ubiH	RF_0893	-	2-octaprenyl-6-methoxyphenyl hydroxylase
894	 23.10	-2	956663..956965	-	100	67459286	-	RF_0894	-	putative monovalent cation/H+ antiporter subunit F
895	 31.51	0	957436..958863	+	475	67459287	ntrX	RF_0895	-	nitrogen assimilation regulatory protein NtrX
896	 24.35	-1	958832..960601	+	589	67459288	-	RF_0896	-	hypothetical protein
897	 31.81	0	960768..961817	-	349	67459289	-	RF_0897	-	hypothetical protein
898	 29.32	0	962129..962377	-	82	67459290	-	RF_0898	-	cytotoxic translational repressor of toxin-antitoxin system RelE
899	 31.52	0	962370..962645	-	91	67459291	-	RF_0899	-	antitoxin of toxin-antitoxin system
900	 35.01	0	962736..964520	-	594	67459292	pbpA1	RF_0900	-	penicillin-binding protein
901	 22.03	-2	964510..965031	-	173	67459293	-	RF_0901	-	hypothetical protein
902	 34.52	0	965706..967391	-	561	67459294	pbpA2	RF_0902	-	penicillin-binding protein
903	 31.72	0	967521..968078	-	185	67459295	ftsL	RF_0903	-	cell division protein FtsL
904	 36.59	+1	968137..969057	-	306	67459296	mraW	RF_0904	-	S-adenosyl-methyltransferase MraW
905	 39.78	+2	969057..969506	-	149	67459297	mraZ	RF_0905	-	cell division protein MraZ
906	 33.19	0	970343..971779	+	478	67459298	panF	RF_0906	-	Sodium/pantothenate symporter
907	 26.90	-1	971860..972294	-	144	67459299	-	RF_0907	-	hypothetical protein
908	 34.38	0	972420..972803	-	127	67459300	-	RF_0908	-	hypothetical protein
909	 28.07	-1	972781..972951	-	56	67459301	-	RF_0909	-	hypothetical protein
910	 34.14	0	973108..973356	+	82	67459302	-	RF_0910	-	antitoxin of toxin-antitoxin system StbD
911	 24.24	-2	973347..973610	+	87	67459303	-	RF_0911	-	toxin of toxin-antitoxin system
912	 35.56	0	973615..975543	-	642	67459304	uvrC	RF_0912	-	excinuclease ABC subunit C
913	 32.02	0	975672..976202	-	176	67459305	-	RF_0913	-	hypothetical protein
914	 27.13	-1	976393..976650	-	85	67459306	-	RF_0914	-	hypothetical protein
915	 34.94	0	977066..978121	-	351	67459307	-	RF_0915	-	methylated-DNA--protein-cysteine methyltransferase
916	 33.93	0	978211..978717	-	168	67459308	dat	RF_0916	-	methylated-DNA--protein-cysteine methyltransferase
917	 30.36	0	978925..979260	+	111	67459309	-	RF_0917	-	hypothetical protein
918	 26.90	-1	979318..980748	-	476	67459310	-	RF_0918	-	Type I site-specific restriction-modification system, R (restriction) subunit
919	 31.83	0	980943..981809	-	288	67459311	-	RF_0919	-	Type I site-specific restriction-modification system, R (restriction) subunit
920	 33.33	0	981720..982673	+	317	67459312	-	RF_0920	-	transposase
921	 30.45	0	982748..982990	+	80	67459313	-	RF_0921	-	transposase
32.00	MEAN

3.85	STD DEV
