IslandPath Analysis: Rickettsia felis URRWXCal2

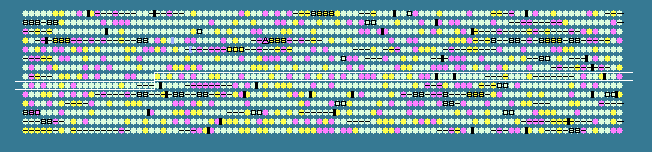

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
723	 35.67	0	781926..782996	-	356	67459115	truB	RF_0723	-	tRNA pseudouridine synthase B
724	 30.01	0	783488..785023	+	511	67459116	tlc4	RF_0724	-	ADP,ATP carrier protein
725	 35.67	0	785179..788298	+	1039	67459117	sca4	RF_0725	-	cell surface antigen
726	 31.30	0	788512..788904	-	130	67459118	hipB	RF_0726	-	transcriptional regulator
727	 27.05	-1	789429..790256	+	275	67459119	rbn	RF_0727	-	ribonuclease BN, putative
728	 28.54	0	790420..791253	-	277	67459120	glnA	RF_0728	-	glutamine synthetase
729	 27.52	-1	791252..791974	+	240	67459121	-	RF_0729	-	hypothetical protein
730	 32.79	0	792146..792697	+	183	67459122	def2	RF_0730	-	polypeptide deformylase
731	 31.37	0	792922..793176	+	84	67459123	-	RF_0731	-	antitoxin of toxin-antitoxin system Phd
732	 37.78	+1	793180..793584	+	134	67459124	-	RF_0732	-	toxin of toxin-antitoxin system
733	 36.00	+1	793585..793884	-	99	67459125	addA	RF_0733	-	erythrocyte adducin alpha subunit
734	 31.07	0	794435..796114	-	559	67459126	-	RF_0734	-	hypothetical protein
735	 34.66	0	796314..798950	-	878	67459127	ppdK	RF_0735	-	pyruvate phosphate dikinase
736	 29.60	0	800080..800748	+	222	67459128	-	RF_0736	-	glutathione S-transferase
737	 27.24	-1	800855..801166	-	103	67459129	-	RF_0737	-	biotin-protein ligase
738	 28.86	0	801338..801538	-	66	67459130	-	RF_0738	-	biotin-protein ligase
739	 33.51	0	801614..802186	+	190	67459131	bioY2	RF_0739	-	BioY family protein
740	 35.28	0	802409..803692	+	427	67459132	folC	RF_0740	-	folylpolyglutamate synthase
741	 33.78	0	803783..804451	+	222	67459133	sodB	RF_0741	-	superoxide dismutase
742	 35.50	0	804456..804824	+	122	67459134	-	RF_0742	-	alpha-beta hydrolase family esterase
743	 31.45	0	804933..806045	+	370	67459135	-	RF_0743	-	alpha-beta hydrolase family esterase
744	 33.71	0	806133..806936	+	267	67459136	birA	RF_0744	-	biotin--protein ligase
745	 28.30	0	807019..807594	+	191	67459137	-	RF_0745	-	hypothetical protein
746	 29.04	0	807815..808210	+	131	67459138	-	RF_0746	-	hypothetical protein
747	 28.63	0	808331..809074	+	247	67459139	-	RF_0747	-	hypothetical protein
748	 27.75	-1	809053..809661	+	202	67459140	-	RF_0748	-	hypothetical protein
749	 34.41	0	809940..811049	+	369	67459141	-	RF_0749	-	HK97 family phage prohead protease/phage major capsid protein
750	 35.52	0	811007..811417	+	136	67459142	-	RF_0750	-	HK97 family phage prohead protease/phage major capsid protein
751	 30.85	0	811541..811741	+	66	67459143	-	RF_0751	-	hypothetical protein
752	 23.63	-2	811870..812271	+	133	67459144	-	RF_0752	-	hypothetical protein
753	 32.32	0	812273..812665	+	130	67459145	-	RF_0753	-	nucleotidyltransferase substrate binding protein
754	 25.61	-1	812652..812936	+	94	67459146	-	RF_0754	-	hypothetical protein
755	 33.17	0	812952..813551	+	199	67459147	-	RF_0755	-	hypothetical protein
756	 28.86	0	813567..813968	+	133	67459148	-	RF_0756	-	hypothetical protein
757	 27.84	-1	814191..814481	+	96	67459149	-	RF_0757	-	hypothetical protein
758	 20.69	-2	814485..814658	+	57	67459150	-	RF_0758	-	hypothetical protein
759	 27.03	-1	814645..814977	+	110	67459151	-	RF_0759	-	hypothetical protein
760	 35.36	0	815155..815598	+	147	67459152	infC	RF_0760	-	translation initiation factor IF-3
761	 35.67	0	815786..817024	+	412	67459153	pdhC	RF_0761	-	branched-chain alpha-keto acid dehydrogenase subunit E2
762	 38.01	+1	817195..818262	+	355	67459154	prfA	RF_0762	-	peptide chain release factor 1
763	 33.62	0	818476..820239	+	587	67459155	recJ	RF_0763	-	single-stranded-DNA-specific exonuclease RecJ
764	 30.14	0	820495..821811	+	438	67459156	-	RF_0764	-	putative methyltransferase
765	 35.80	0	822398..823774	+	458	67459157	rho	RF_0765	-	transcription termination factor Rho
766	 33.66	0	823905..824819	+	304	67459158	sppA2	RF_0766	-	Signal peptide peptidase SppA
767	 27.57	-1	824822..825064	+	80	67459159	himD	RF_0767	-	integration host factor beta-subunit
768	 26.16	-1	825072..825629	+	185	67459160	-	RF_0768	-	hypothetical protein
769	 29.99	0	825901..826647	+	248	67459161	-	RF_0769	-	hypothetical protein
770	 33.18	0	826879..827538	+	219	67459162	cmk	RF_0770	-	cytidylate kinase
771	 33.33	0	827750..829456	+	568	67459163	rpsA	RF_0771	-	30S ribosomal protein S1
772	 35.15	0	829699..830304	+	201	67459164	clpP	RF_0772	-	ATP-dependent Clp protease proteolytic subunit
773	 30.71	0	830960..831454	+	164	67459165	-	RF_0773	-	transcription activator
774	 32.23	0	831458..832276	-	272	67459166	-	RF_0774	-	streptomycin 6-kinase
775	 31.12	0	832291..832833	+	180	67459167	-	RF_0775	-	acetyltransferase
776	 32.51	0	832830..833315	+	161	67459168	-	RF_0776	-	acetyltransferase
777	 31.50	0	833495..834202	+	235	67459169	-	RF_0777	-	metal-dependent hydrolase
778	 30.86	0	834199..834966	+	255	67459170	-	RF_0778	-	hypothetical protein
779	 30.56	0	835156..835407	+	83	67459171	-	RF_0779	-	antitoxin of toxin-antitoxin system Phd
780	 30.98	0	835833..836513	+	226	67459172	-	RF_0780	-	hypothetical protein
781	 35.80	0	836853..837095	+	80	67459173	-	RF_0781	-	hypothetical protein
782	 29.12	0	837539..838084	-	181	67459174	-	RF_0782	-	ankyrin repeat-containing protein
783	 29.32	0	838093..838740	-	215	67459175	-	RF_0783	-	ankyrin repeat-containing protein
784	 31.62	0	838757..839515	-	252	67459176	-	RF_0784	-	acetyltransferase
785	 40.75	+2	839828..840865	+	345	67459177	fni	RF_0785	-	isopentenyl pyrophosphate isomerase
786	 29.08	0	840939..841760	-	273	67459178	traC	RF_0786	-	DNA primase
787	 34.39	0	842150..842434	-	94	67459179	-	RF_0787	-	toxin of toxin-antitoxin system ParE
788	 30.27	0	842427..842687	-	86	67459180	-	RF_0788	-	antitoxin of toxin-antitoxin system Phd
789	 33.33	0	842763..842942	-	59	67459181	-	RF_0789	-	hypothetical protein
790	 32.20	0	842952..843392	-	146	67459182	-	RF_0790	-	hypothetical protein
791	 29.45	0	843842..844510	+	222	67459183	-	RF_0791	-	hypothetical protein
792	 29.50	0	844805..845065	-	86	67459184	-	RF_0792	-	toxin of toxin-antitoxin system
793	 31.62	0	845046..845687	-	213	67459185	-	RF_0793	-	phage-associated protein
794	 27.33	-1	845852..846883	-	343	67459186	-	RF_0794	-	hypothetical protein
795	 35.46	0	847412..847552	-	46	67459187	-	RF_0795	-	rRNA methylase
796	 34.58	0	847560..847961	-	133	67459188	-	RF_0796	-	rRNA methylase
797	 40.00	+2	848043..848192	-	49	67459189	-	RF_0797	-	hypothetical protein
798	 29.99	0	848444..849190	-	248	67459190	glmU	RF_0798	-	UDP-N-acetylglucosamine pyrophosphorylase
799	 34.65	0	849187..849945	-	252	67459191	-	RF_0799	-	hypothetical protein
800	 23.02	-2	850084..850209	-	41	67459192	rpmJ	RF_0800	-	50S ribosomal protein L36
801	 31.18	0	850744..851394	+	216	67459193	-	RF_0801	-	hypothetical protein
802	 28.10	-1	851719..852024	+	101	67459194	-	RF_0802	-	hypothetical protein
803	 34.52	0	852133..852972	+	279	67459195	mltE2	RF_0803	-	putative soluble lytic murein transglycosylase
804	 26.27	-1	852978..853586	+	202	67459196	-	RF_0804	-	hypothetical protein
805	 32.44	0	853769..854104	+	111	67459197	-	RF_0805	-	hypothetical protein
806	 31.53	0	854175..855005	+	276	67459198	bioC	RF_0806	-	biotin synthesis protein BioC
807	 38.99	+1	855267..856646	+	459	67459199	lpdA2	RF_0807	-	dihydrolipoamide dehydrogenase
808	 31.26	0	856871..857305	+	144	67459200	-	RF_0808	-	5-formyltetrahydrofolate cyclo-ligase
809	 27.42	-1	857758..858603	-	281	67459201	rnd	RF_0809	-	ribonuclease D
810	 31.85	0	858613..859491	-	292	67459202	-	RF_0810	-	hypothetical protein
811	 31.92	0	859517..860365	+	282	67459203	gcvT	RF_0811	-	glycine cleavage T-protein
812	 32.55	0	860494..860874	+	126	67459204	-	RF_0812	-	hypothetical protein
813	 30.28	0	860774..862213	+	479	67459205	-	RF_0813	-	hypothetical protein
814	 30.03	0	862557..864281	+	574	67459206	-	RF_0814	-	Na+/proline symporter and signal transduction histidine kinase
815	 31.49	0	864322..865296	+	324	67459207	-	RF_0815	-	Na+/proline symporter and signal transduction histidine kinase
816	 32.23	0	865433..866338	+	301	67459208	mccF2	RF_0816	-	microcin C7 resistance protein
817	 35.76	0	866335..867240	+	301	67459209	hemC	RF_0817	-	porphobilinogen deaminase
818	 31.16	0	867305..867580	+	91	67459210	-	RF_0818	-	hypothetical protein
819	 30.57	0	867690..868484	+	264	67459211	-	RF_0819	-	hypothetical protein
820	 29.35	0	868646..869272	-	208	67459212	-	RF_0820	-	hydrolase or acyltransferase
821	 30.74	0	869232..869501	-	89	67459213	-	RF_0821	-	hypothetical protein
822	 30.83	0	870001..870639	+	212	67459214	-	RF_0822	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
