IslandPath Analysis: Rickettsia felis URRWXCal2

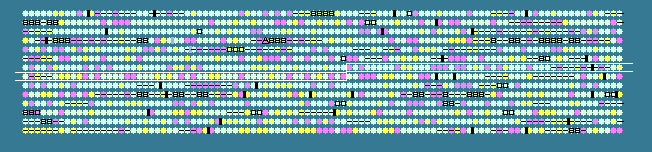

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
655	 28.36	0	703527..704210	-	227	67459047	cdsA	RF_0655	-	phosphatidate cytidylyltransferase
656	 30.37	0	704170..704877	-	235	67459048	uppS	RF_0656	-	undecaprenyl pyrophosphate synthetase
657	 26.56	-1	704991..706304	-	437	67459049	envZ	RF_0657	-	osmolarity sensor protein EnvZ
658	 30.40	0	706279..706959	-	226	67459050	ompR	RF_0658	-	PetR protein
659	 33.91	0	707170..708042	+	290	67459051	ilvE	RF_0659	-	branched-chain amino acid aminotransferase
660	 33.90	0	708190..709074	+	294	67459052	dapA	RF_0660	-	dihydrodipicolinate synthase
661	 31.37	0	709071..709529	+	152	67459053	smpB	RF_0661	-	SsrA-binding protein
662	 30.19	0	709684..710478	+	264	67459054	dsbA	RF_0662	-	Thiol:disulfide interchange protein DsbA
663	 26.67	-1	710644..711078	-	144	67459055	-	RF_0663	-	hypothetical protein
664	 40.50	+2	711766..712644	-	292	67459056	sucD	RF_0664	-	succinyl-CoA synthetase subunit alpha
665	 36.69	+1	712858..714018	-	386	67459057	sucC	RF_0665	-	succinyl-CoA synthetase subunit beta
666	 31.67	0	714256..714858	-	200	67459058	-	RF_0666	-	hypothetical protein
667	 34.07	0	714961..716997	-	678	67459059	-	RF_0667	-	acylamino-acid-releasing protein
668	 29.09	0	717128..717763	-	211	67459060	-	RF_0668	-	hypothetical protein
669	 26.72	-1	718096..718458	-	120	67459061	rbfA	RF_0669	-	ribosome-binding factor A
670	 24.65	-1	718462..718887	-	141	67459062	-	RF_0670	-	hypothetical protein
671	 26.05	-1	719069..719590	+	173	67459063	-	RF_0671	-	hypothetical protein
672	 34.62	0	719650..720273	+	207	67459064	recR	RF_0672	-	recombination protein RecR
673	 27.24	-1	720357..720635	+	92	67459065	-	RF_0673	-	hypothetical protein
674	 22.22	-2	720572..720895	-	107	67459066	-	RF_0674	-	hypothetical protein
675	 33.33	0	721217..721984	-	255	67459067	ppnK	RF_0675	-	inorganic polyphosphate/ATP-NAD kinase
676	 35.71	0	722071..723753	+	560	67459068	-	RF_0676	-	hypothetical protein
677	 32.82	0	723908..724873	+	321	67459069	gpsA	RF_0677	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
678	 24.18	-2	725021..725479	-	152	67459070	-	RF_0678	-	hypothetical protein
679	 30.54	0	725627..726556	+	309	67459071	-	RF_0679	-	permease
680	 27.38	-1	726615..727487	+	290	67459072	-	RF_0680	-	hydrolase or acyltransferase
681	 38.26	+1	727707..728639	+	310	67459073	trxB1	RF_0681	-	thioredoxin reductase
682	 28.76	0	728762..729658	+	298	67459074	-	RF_0682	-	hypothetical protein
683	 31.62	0	729716..730300	+	194	67459075	-	RF_0683	-	hypothetical protein
684	 34.59	0	730466..731737	+	423	67459076	gabD	RF_0684	-	succinate semialdehyde dehydrogenase
685	 27.27	-1	732138..732500	+	120	67459077	-	RF_0685	-	hypothetical protein
686	 31.44	0	732490..733335	+	281	67459078	lgtD	RF_0686	-	glycosyltransferase
687	 33.99	0	733515..735479	+	654	67459079	uvrD	RF_0687	-	DNA helicase II
688	 30.14	0	735570..736886	+	438	67459080	-	RF_0688	-	hypothetical protein
689	 31.33	0	736974..737522	+	182	67459081	-	RF_0689	-	hypothetical protein
690	 27.73	-1	737971..738327	+	118	67459082	-	RF_0690	-	hypothetical protein
691	 34.03	0	738493..739494	-	333	67459083	tdcB	RF_0691	-	threonine dehydratase
692	 34.66	0	739580..741916	+	778	67459084	lon	RF_0692	-	ATP-dependent protease La
693	 36.06	+1	742351..751719	+	3122	67459085	sca3	RF_0693	-	cell surface antigen Sca3
694	 25.42	-1	752069..752485	+	138	67459086	-	RF_0694	-	hypothetical protein
695	 29.23	0	752794..753402	-	202	67459087	-	RF_0695	-	hypothetical protein
696	 31.72	0	754682..754990	+	102	67459088	-	RF_0696	-	hypothetical protein
697	 27.98	-1	755109..755687	+	192	67459089	yhbH	RF_0697	-	sigma(54) modulation protein
698	 31.57	0	755687..756196	+	169	67459090	paaY	RF_0698	-	carbonic anhydrase
699	 32.44	0	756333..757226	-	297	67459091	folD	RF_0699	-	methylenetetrahydrofolate dehydrogenase
700	 35.81	0	757353..758360	-	335	67459092	trxB2	RF_0700	-	thioredoxin reductase
701	 32.16	0	758412..758837	-	141	67459093	-	RF_0701	-	toxin of toxin-antitoxin system
702	 27.27	-1	758824..759054	-	76	67459094	-	RF_0702	-	antitoxin of toxin-antitoxin system Phd
703	 36.93	+1	759261..759761	+	166	67459095	-	RF_0703	-	hypothetical protein
704	 29.22	0	759766..760203	+	145	67459096	-	RF_0704	-	hypothetical protein
705	 34.15	0	760315..761169	+	284	67459097	-	RF_0705	-	P pilus assembly protein FimD
706	 29.94	0	761214..762746	+	510	67459098	-	RF_0706	-	P pilus assembly protein FimD
707	 41.58	+2	762737..763318	+	193	67459099	-	RF_0707	-	hypothetical protein
708	 35.72	0	763715..764383	+	222	67459100	-	RF_0708	-	chitin binding domain-containing protein
709	 35.42	0	764806..766629	+	607	67459101	nrdA	RF_0709	-	ribonucleotide-diphosphate reductase subunit alpha
710	 37.09	+1	766795..767778	+	327	67459102	nrdF	RF_0710	-	ribonucleotide-diphosphate reductase subunit beta
711	 27.26	-1	767966..770815	+	949	67459103	-	RF_0711	-	hypothetical protein
712	 29.28	0	771038..772294	+	418	67459104	-	RF_0712	-	hypothetical protein
713	 27.98	-1	772373..772951	+	192	67459105	-	RF_0713	-	hypothetical protein
714	 31.08	0	773138..774067	-	309	67459106	miaA	RF_0714	-	tRNA delta(2)-isopentenylpyrophosphate transferase
715	 34.50	0	774280..774621	-	113	67459107	-	RF_0715	-	hypothetical protein
716	 34.65	0	774700..776142	-	480	67459108	exoC	RF_0716	-	phosphomannomutase
717	 33.61	0	776284..777015	-	243	67459109	abcT2	RF_0717	-	ABC transporter ATP-binding protein
718	 22.83	-2	777176..777613	-	145	67459110	-	RF_0718	-	hypothetical protein
719	 23.17	-2	777579..778178	-	199	67459111	-	RF_0719	-	hypothetical protein
720	 32.29	0	778184..779143	-	319	67459112	kpsF	RF_0720	-	KpsF protein
721	 35.16	0	779244..781487	-	747	67459113	pnp	RF_0721	-	polynucleotide phosphorylase/polyadenylase
722	 29.71	0	781629..781904	-	91	67459114	rpsO	RF_0722	-	30S ribosomal protein S15
723	 35.67	0	781926..782996	-	356	67459115	truB	RF_0723	-	tRNA pseudouridine synthase B
724	 30.01	0	783488..785023	+	511	67459116	tlc4	RF_0724	-	ADP,ATP carrier protein
725	 35.67	0	785179..788298	+	1039	67459117	sca4	RF_0725	-	cell surface antigen
726	 31.30	0	788512..788904	-	130	67459118	hipB	RF_0726	-	transcriptional regulator
727	 27.05	-1	789429..790256	+	275	67459119	rbn	RF_0727	-	ribonuclease BN, putative
728	 28.54	0	790420..791253	-	277	67459120	glnA	RF_0728	-	glutamine synthetase
729	 27.52	-1	791252..791974	+	240	67459121	-	RF_0729	-	hypothetical protein
730	 32.79	0	792146..792697	+	183	67459122	def2	RF_0730	-	polypeptide deformylase
731	 31.37	0	792922..793176	+	84	67459123	-	RF_0731	-	antitoxin of toxin-antitoxin system Phd
732	 37.78	+1	793180..793584	+	134	67459124	-	RF_0732	-	toxin of toxin-antitoxin system
733	 36.00	+1	793585..793884	-	99	67459125	addA	RF_0733	-	erythrocyte adducin alpha subunit
734	 31.07	0	794435..796114	-	559	67459126	-	RF_0734	-	hypothetical protein
735	 34.66	0	796314..798950	-	878	67459127	ppdK	RF_0735	-	pyruvate phosphate dikinase
736	 29.60	0	800080..800748	+	222	67459128	-	RF_0736	-	glutathione S-transferase
737	 27.24	-1	800855..801166	-	103	67459129	-	RF_0737	-	biotin-protein ligase
738	 28.86	0	801338..801538	-	66	67459130	-	RF_0738	-	biotin-protein ligase
739	 33.51	0	801614..802186	+	190	67459131	bioY2	RF_0739	-	BioY family protein
740	 35.28	0	802409..803692	+	427	67459132	folC	RF_0740	-	folylpolyglutamate synthase
741	 33.78	0	803783..804451	+	222	67459133	sodB	RF_0741	-	superoxide dismutase
742	 35.50	0	804456..804824	+	122	67459134	-	RF_0742	-	alpha-beta hydrolase family esterase
743	 31.45	0	804933..806045	+	370	67459135	-	RF_0743	-	alpha-beta hydrolase family esterase
744	 33.71	0	806133..806936	+	267	67459136	birA	RF_0744	-	biotin--protein ligase
745	 28.30	0	807019..807594	+	191	67459137	-	RF_0745	-	hypothetical protein
746	 29.04	0	807815..808210	+	131	67459138	-	RF_0746	-	hypothetical protein
747	 28.63	0	808331..809074	+	247	67459139	-	RF_0747	-	hypothetical protein
748	 27.75	-1	809053..809661	+	202	67459140	-	RF_0748	-	hypothetical protein
749	 34.41	0	809940..811049	+	369	67459141	-	RF_0749	-	HK97 family phage prohead protease/phage major capsid protein
750	 35.52	0	811007..811417	+	136	67459142	-	RF_0750	-	HK97 family phage prohead protease/phage major capsid protein
751	 30.85	0	811541..811741	+	66	67459143	-	RF_0751	-	hypothetical protein
752	 23.63	-2	811870..812271	+	133	67459144	-	RF_0752	-	hypothetical protein
753	 32.32	0	812273..812665	+	130	67459145	-	RF_0753	-	nucleotidyltransferase substrate binding protein
754	 25.61	-1	812652..812936	+	94	67459146	-	RF_0754	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
