IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

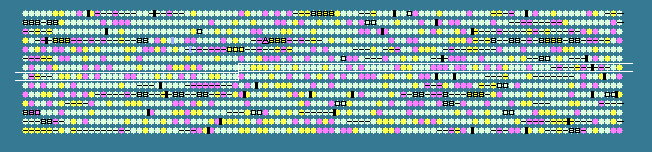

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
637	 31.35	0	681951..682607	+	218	67459029	-	RF_0637	-	hypothetical protein
638	 32.69	0	683055..683519	+	154	67459030	-	RF_0638	-	hypothetical protein
639	 38.60	+1	683658..685118	-	486	67459031	-	RF_0639	-	RND family efflux transporter
640	 37.19	+1	685088..685813	-	241	67459032	-	RF_0640	-	RND family efflux transporter
641	 39.46	+1	685831..686826	-	331	67459033	-	RF_0641	-	RND family efflux transporter
642	 35.48	0	686973..688232	-	419	67459034	mfp	RF_0642	-	RND family transporter membrane-fusion protein
643	 35.70	0	688389..689780	-	463	67459035	-	RF_0643	-	RND efflux system, outer membrane protein
644	 29.30	0	689991..691007	-	338	67459036	-	RF_0644	-	glycosyltransferase
645	 34.32	0	691091..691903	+	270	67459037	dapF	RF_0645	-	diaminopimelate epimerase
646	 37.05	+1	691878..693143	+	421	67459038	-	RF_0646	-	MiaB-like tRNA modifying enzyme
647	 32.95	0	693373..694422	+	349	162022122	pheS	RF_0647	-	phenylalanyl-tRNA synthetase subunit alpha
648	 34.11	0	694419..696875	+	818	67459040	pheT	RF_0648	-	phenylalanyl-tRNA synthetase subunit beta
649	 32.02	0	696880..698019	+	379	67459041	dnaN	RF_0649	-	DNA polymerase III subunit beta
650	 33.93	0	698212..698718	+	168	67459042	-	RF_0650	-	hypothetical protein
651	 36.32	+1	698909..701416	+	835	67459043	leuS	RF_0651	-	leucyl-tRNA synthetase
652	 34.49	0	701601..702119	-	172	67459044	-	RF_0652	-	hypothetical protein
653	 31.05	0	702277..702888	-	203	67459045	rnd2	RF_0653	-	ribonuclease D
654	 29.32	0	703095..703418	-	107	67459046	-	RF_0654	-	hypothetical protein
655	 28.36	0	703527..704210	-	227	67459047	cdsA	RF_0655	-	phosphatidate cytidylyltransferase
656	 30.37	0	704170..704877	-	235	67459048	uppS	RF_0656	-	undecaprenyl pyrophosphate synthetase
657	 26.56	-1	704991..706304	-	437	67459049	envZ	RF_0657	-	osmolarity sensor protein EnvZ
658	 30.40	0	706279..706959	-	226	67459050	ompR	RF_0658	-	PetR protein
659	 33.91	0	707170..708042	+	290	67459051	ilvE	RF_0659	-	branched-chain amino acid aminotransferase
660	 33.90	0	708190..709074	+	294	67459052	dapA	RF_0660	-	dihydrodipicolinate synthase
661	 31.37	0	709071..709529	+	152	67459053	smpB	RF_0661	-	SsrA-binding protein
662	 30.19	0	709684..710478	+	264	67459054	dsbA	RF_0662	-	Thiol:disulfide interchange protein DsbA
663	 26.67	-1	710644..711078	-	144	67459055	-	RF_0663	-	hypothetical protein
664	 40.50	+2	711766..712644	-	292	67459056	sucD	RF_0664	-	succinyl-CoA synthetase subunit alpha
665	 36.69	+1	712858..714018	-	386	67459057	sucC	RF_0665	-	succinyl-CoA synthetase subunit beta
666	 31.67	0	714256..714858	-	200	67459058	-	RF_0666	-	hypothetical protein
667	 34.07	0	714961..716997	-	678	67459059	-	RF_0667	-	acylamino-acid-releasing protein
668	 29.09	0	717128..717763	-	211	67459060	-	RF_0668	-	hypothetical protein
669	 26.72	-1	718096..718458	-	120	67459061	rbfA	RF_0669	-	ribosome-binding factor A
670	 24.65	-1	718462..718887	-	141	67459062	-	RF_0670	-	hypothetical protein
671	 26.05	-1	719069..719590	+	173	67459063	-	RF_0671	-	hypothetical protein
672	 34.62	0	719650..720273	+	207	67459064	recR	RF_0672	-	recombination protein RecR
673	 27.24	-1	720357..720635	+	92	67459065	-	RF_0673	-	hypothetical protein
674	 22.22	-2	720572..720895	-	107	67459066	-	RF_0674	-	hypothetical protein
675	 33.33	0	721217..721984	-	255	67459067	ppnK	RF_0675	-	inorganic polyphosphate/ATP-NAD kinase
676	 35.71	0	722071..723753	+	560	67459068	-	RF_0676	-	hypothetical protein
677	 32.82	0	723908..724873	+	321	67459069	gpsA	RF_0677	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
678	 24.18	-2	725021..725479	-	152	67459070	-	RF_0678	-	hypothetical protein
679	 30.54	0	725627..726556	+	309	67459071	-	RF_0679	-	permease
680	 27.38	-1	726615..727487	+	290	67459072	-	RF_0680	-	hydrolase or acyltransferase
681	 38.26	+1	727707..728639	+	310	67459073	trxB1	RF_0681	-	thioredoxin reductase
682	 28.76	0	728762..729658	+	298	67459074	-	RF_0682	-	hypothetical protein
683	 31.62	0	729716..730300	+	194	67459075	-	RF_0683	-	hypothetical protein
684	 34.59	0	730466..731737	+	423	67459076	gabD	RF_0684	-	succinate semialdehyde dehydrogenase
685	 27.27	-1	732138..732500	+	120	67459077	-	RF_0685	-	hypothetical protein
686	 31.44	0	732490..733335	+	281	67459078	lgtD	RF_0686	-	glycosyltransferase
687	 33.99	0	733515..735479	+	654	67459079	uvrD	RF_0687	-	DNA helicase II
688	 30.14	0	735570..736886	+	438	67459080	-	RF_0688	-	hypothetical protein
689	 31.33	0	736974..737522	+	182	67459081	-	RF_0689	-	hypothetical protein
690	 27.73	-1	737971..738327	+	118	67459082	-	RF_0690	-	hypothetical protein
691	 34.03	0	738493..739494	-	333	67459083	tdcB	RF_0691	-	threonine dehydratase
692	 34.66	0	739580..741916	+	778	67459084	lon	RF_0692	-	ATP-dependent protease La
693	 36.06	+1	742351..751719	+	3122	67459085	sca3	RF_0693	-	cell surface antigen Sca3
694	 25.42	-1	752069..752485	+	138	67459086	-	RF_0694	-	hypothetical protein
695	 29.23	0	752794..753402	-	202	67459087	-	RF_0695	-	hypothetical protein
696	 31.72	0	754682..754990	+	102	67459088	-	RF_0696	-	hypothetical protein
697	 27.98	-1	755109..755687	+	192	67459089	yhbH	RF_0697	-	sigma(54) modulation protein
698	 31.57	0	755687..756196	+	169	67459090	paaY	RF_0698	-	carbonic anhydrase
699	 32.44	0	756333..757226	-	297	67459091	folD	RF_0699	-	methylenetetrahydrofolate dehydrogenase
700	 35.81	0	757353..758360	-	335	67459092	trxB2	RF_0700	-	thioredoxin reductase
701	 32.16	0	758412..758837	-	141	67459093	-	RF_0701	-	toxin of toxin-antitoxin system
702	 27.27	-1	758824..759054	-	76	67459094	-	RF_0702	-	antitoxin of toxin-antitoxin system Phd
703	 36.93	+1	759261..759761	+	166	67459095	-	RF_0703	-	hypothetical protein
704	 29.22	0	759766..760203	+	145	67459096	-	RF_0704	-	hypothetical protein
705	 34.15	0	760315..761169	+	284	67459097	-	RF_0705	-	P pilus assembly protein FimD
706	 29.94	0	761214..762746	+	510	67459098	-	RF_0706	-	P pilus assembly protein FimD
707	 41.58	+2	762737..763318	+	193	67459099	-	RF_0707	-	hypothetical protein
708	 35.72	0	763715..764383	+	222	67459100	-	RF_0708	-	chitin binding domain-containing protein
709	 35.42	0	764806..766629	+	607	67459101	nrdA	RF_0709	-	ribonucleotide-diphosphate reductase subunit alpha
710	 37.09	+1	766795..767778	+	327	67459102	nrdF	RF_0710	-	ribonucleotide-diphosphate reductase subunit beta
711	 27.26	-1	767966..770815	+	949	67459103	-	RF_0711	-	hypothetical protein
712	 29.28	0	771038..772294	+	418	67459104	-	RF_0712	-	hypothetical protein
713	 27.98	-1	772373..772951	+	192	67459105	-	RF_0713	-	hypothetical protein
714	 31.08	0	773138..774067	-	309	67459106	miaA	RF_0714	-	tRNA delta(2)-isopentenylpyrophosphate transferase
715	 34.50	0	774280..774621	-	113	67459107	-	RF_0715	-	hypothetical protein
716	 34.65	0	774700..776142	-	480	67459108	exoC	RF_0716	-	phosphomannomutase
717	 33.61	0	776284..777015	-	243	67459109	abcT2	RF_0717	-	ABC transporter ATP-binding protein
718	 22.83	-2	777176..777613	-	145	67459110	-	RF_0718	-	hypothetical protein
719	 23.17	-2	777579..778178	-	199	67459111	-	RF_0719	-	hypothetical protein
720	 32.29	0	778184..779143	-	319	67459112	kpsF	RF_0720	-	KpsF protein
721	 35.16	0	779244..781487	-	747	67459113	pnp	RF_0721	-	polynucleotide phosphorylase/polyadenylase
722	 29.71	0	781629..781904	-	91	67459114	rpsO	RF_0722	-	30S ribosomal protein S15
723	 35.67	0	781926..782996	-	356	67459115	truB	RF_0723	-	tRNA pseudouridine synthase B
724	 30.01	0	783488..785023	+	511	67459116	tlc4	RF_0724	-	ADP,ATP carrier protein
725	 35.67	0	785179..788298	+	1039	67459117	sca4	RF_0725	-	cell surface antigen
726	 31.30	0	788512..788904	-	130	67459118	hipB	RF_0726	-	transcriptional regulator
727	 27.05	-1	789429..790256	+	275	67459119	rbn	RF_0727	-	ribonuclease BN, putative
728	 28.54	0	790420..791253	-	277	67459120	glnA	RF_0728	-	glutamine synthetase
729	 27.52	-1	791252..791974	+	240	67459121	-	RF_0729	-	hypothetical protein
730	 32.79	0	792146..792697	+	183	67459122	def2	RF_0730	-	polypeptide deformylase
731	 31.37	0	792922..793176	+	84	67459123	-	RF_0731	-	antitoxin of toxin-antitoxin system Phd
732	 37.78	+1	793180..793584	+	134	67459124	-	RF_0732	-	toxin of toxin-antitoxin system
733	 36.00	+1	793585..793884	-	99	67459125	addA	RF_0733	-	erythrocyte adducin alpha subunit
734	 31.07	0	794435..796114	-	559	67459126	-	RF_0734	-	hypothetical protein
735	 34.66	0	796314..798950	-	878	67459127	ppdK	RF_0735	-	pyruvate phosphate dikinase
736	 29.60	0	800080..800748	+	222	67459128	-	RF_0736	-	glutathione S-transferase
32.00	MEAN

3.85	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
