IslandPath Analysis: Rickettsia felis URRWXCal2

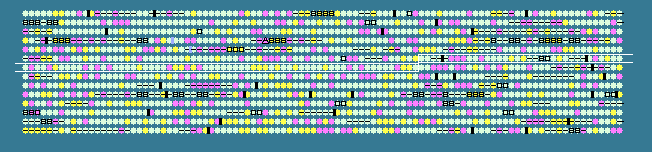

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
567	 32.26	0	603387..603758	-	123	67458959	nuoA	RF_0567	-	NADH dehydrogenase subunit A
568	 32.03	0	603910..605133	-	407	67458960	-	RF_0568	-	hypothetical protein
569	 28.90	0	605134..605607	-	157	67458961	-	RF_0569	-	hypothetical protein
570	 33.73	0	605932..607191	+	419	67458962	-	RF_0570	-	Phage uncharacterized protein
571	 32.68	0	607594..608514	+	306	67458963	xerD	RF_0571	-	site-specific tyrosine recombinase XerD
572	 26.61	-1	608597..609667	+	356	67458964	-	RF_0572	-	hypothetical protein
573	 27.88	-1	609779..609943	+	54	67458965	-	RF_0573	-	hypothetical protein
574	 25.67	-1	610000..610821	+	273	67458966	-	RF_0574	-	hypothetical protein
575	 34.99	0	611288..612070	-	260	67458967	fabI	RF_0575	-	enoyl-(acyl carrier protein) reductase
576	 30.11	0	612146..613636	+	496	67458968	lnt	RF_0576	-	apolipoprotein N-acyltransferase
577	 27.44	-1	613769..614260	+	163	67458969	-	RF_0577	-	hypothetical protein
578	 33.21	0	615504..616301	+	265	67458970	-	RF_0578	-	hypothetical protein
579	 35.13	0	616306..617139	+	277	67458971	-	RF_0579	-	ABC transporter permease protein
580	 28.76	0	617306..618223	-	305	67458972	-	RF_0580	-	ankyrin repeat-containing protein
581	 33.33	0	618383..618925	-	180	67458973	dsbB	RF_0581	-	disulfide bond formation protein DsbB
582	 37.58	+1	619107..620684	+	525	67458974	lysK	RF_0582	-	lysyl-tRNA synthetase
583	 31.62	0	620962..621894	+	310	67458975	-	RF_0583	-	permease
584	 35.94	+1	622072..624375	+	767	67458976	tme	RF_0584	-	malic enzyme
585	 30.26	0	624596..626545	+	649	67458977	-	RF_0585	-	hypothetical protein
586	 30.55	0	626797..628017	+	406	67458978	proP3	RF_0586	-	proline/betaine transporter
587	 30.45	0	628286..628528	-	80	67458979	-	RF_0587	-	transposase
588	 33.33	0	628603..629556	-	317	67458980	-	RF_0588	-	transposase
589	 29.79	0	629738..632983	-	1081	67458981	-	RF_0589	-	hypothetical protein
590	 36.30	+1	633116..634060	-	314	67458982	mdh	RF_0590	-	malate dehydrogenase
591	 30.58	0	634352..635077	+	241	67458983	-	RF_0591	-	ankyrin repeat-containing protein
592	 31.89	0	635368..636891	-	507	67458984	tlc2	RF_0592	-	ADP,ATP carrier protein
593	 32.40	0	637330..638943	-	537	67458985	pyrG	RF_0593	-	CTP synthetase
594	 35.09	0	638950..639690	-	246	67458986	kdsB	RF_0594	-	3-deoxy-manno-octulosonate cytidylyltransferase
595	 32.86	0	640135..640560	-	141	67458987	mutT	RF_0595	-	ADP-ribose pyrophosphatase MutT
596	 25.67	-1	640761..641504	+	247	67458988	-	RF_0596	-	hypothetical protein
597	 30.16	0	641501..642067	+	188	67458989	-	RF_0597	-	alkylated DNA repair protein
598	 36.62	+1	642132..643712	+	526	67458990	-	RF_0598	-	hypothetical protein
599	 35.08	0	643705..644277	+	190	67458991	folE	RF_0599	-	GTP cyclohydrolase I
600	 35.12	0	644449..645732	+	427	67458992	proS	RF_0600	-	prolyl-tRNA synthetase
601	 32.46	0	645796..646023	+	75	67458993	-	RF_0601	-	antitoxin of toxin-antitoxin system StbD
602	 23.26	-2	646166..646294	+	42	67458994	-	RF_0602	-	cytotoxic translational repressor of toxin-antitoxin system RelE
603	 28.75	0	646319..646558	+	79	67458995	-	RF_0603	-	hypothetical protein
604	 34.15	0	646715..647326	+	203	67458996	ruvA	RF_0604	-	Holliday junction DNA helicase motor protein
605	 28.52	0	647425..648297	+	290	67458997	-	RF_0605	-	hypothetical protein
606	 37.71	+1	648360..649388	+	342	67458998	ruvB	RF_0606	-	Holliday junction DNA helicase B
607	 33.39	0	649381..651144	+	587	67458999	msbA1	RF_0607	-	multidrug resistance protein
608	 33.33	0	651320..652564	+	414	67459000	ampG4	RF_0608	-	AmpG protein
609	 34.96	0	652755..653675	+	306	67459001	dacF	RF_0609	-	penicillin-binding protein DacF precursor
610	 33.33	0	653865..653990	-	41	67459002	-	RF_0610	-	hypothetical protein
611	 27.99	-1	654029..654721	-	230	67459003	rlpA	RF_0611	-	rare lipoprotein A precursor
612	 29.27	0	654699..655313	-	204	67459004	-	RF_0612	-	hypothetical protein
613	 28.18	0	655632..656174	-	180	67459005	ispZ	RF_0613	-	intracellular septation protein A
614	 30.86	0	656204..657052	-	282	67459006	-	RF_0614	-	FTR1 family protein
615	 25.72	-1	657062..657442	-	126	67459007	-	RF_0615	-	hypothetical protein
616	 29.72	0	657653..658648	-	331	67459008	-	RF_0616	-	hypothetical protein
617	 30.30	0	658847..659473	+	208	67459009	-	RF_0617	-	protocatechuate-3,4-dioxygenase, beta subunit
618	 28.86	0	659679..660326	+	215	67459010	tlpA	RF_0618	-	Thiol:disulfide interchange protein TlpA
619	 33.11	0	660474..661388	+	304	67459011	sppA1	RF_0619	-	Signal peptide peptidase SppA
620	 40.04	+2	661390..661836	+	148	67459012	dut	RF_0620	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
621	 32.13	0	661993..664068	+	691	67459013	mltE1	RF_0621	-	soluble lytic murein transglycosylase precursor
622	 31.27	0	664144..664869	+	241	67459014	-	RF_0622	-	hypothetical protein
623	 31.97	0	665371..666324	+	317	67459015	mccF	RF_0623	-	microcin C7 self-immunity protein
624	 28.86	0	666446..669016	-	856	67459016	-	RF_0624	-	hypothetical protein
625	 28.09	-1	669168..669434	+	88	67459017	-	RF_0625	-	hypothetical protein
626	 36.06	+1	669573..670451	-	292	67459018	-	RF_0626	-	glutamine amidotransferase
627	 41.21	+2	670636..672234	-	532	67459019	coxA	RF_0627	-	cytochrome c oxidase polypeptide I
628	 22.50	-2	672484..673203	-	239	67459020	-	RF_0628	-	hypothetical protein
629	 36.39	+1	673654..674601	-	315	67459021	coxB	RF_0629	-	cytochrome c oxidase polypeptide II
630	 27.39	-1	674685..675239	-	184	67459022	tagD	RF_0630	-	glycerol-3-phosphate cytidyltransferase TagD
631	 31.65	0	675424..676788	+	454	67459023	nlpD2	RF_0631	-	membrane proteins related to metalloendopeptidase
632	 32.08	0	676817..677533	+	238	67459024	lspA	RF_0632	-	lipoprotein signal peptidase
633	 33.73	0	677676..677924	+	82	67459025	-	RF_0633	-	hypothetical protein
634	 31.63	0	678060..679409	+	449	67459026	murD	RF_0634	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
635	 34.63	0	679469..680623	+	384	67459027	ftsW	RF_0635	-	cell division protein FtsW
636	 30.93	0	680620..681702	+	360	67459028	murG	RF_0636	-	N-acetylglucosaminyl transferase
637	 31.35	0	681951..682607	+	218	67459029	-	RF_0637	-	hypothetical protein
638	 32.69	0	683055..683519	+	154	67459030	-	RF_0638	-	hypothetical protein
639	 38.60	+1	683658..685118	-	486	67459031	-	RF_0639	-	RND family efflux transporter
640	 37.19	+1	685088..685813	-	241	67459032	-	RF_0640	-	RND family efflux transporter
641	 39.46	+1	685831..686826	-	331	67459033	-	RF_0641	-	RND family efflux transporter
642	 35.48	0	686973..688232	-	419	67459034	mfp	RF_0642	-	RND family transporter membrane-fusion protein
643	 35.70	0	688389..689780	-	463	67459035	-	RF_0643	-	RND efflux system, outer membrane protein
644	 29.30	0	689991..691007	-	338	67459036	-	RF_0644	-	glycosyltransferase
645	 34.32	0	691091..691903	+	270	67459037	dapF	RF_0645	-	diaminopimelate epimerase
646	 37.05	+1	691878..693143	+	421	67459038	-	RF_0646	-	MiaB-like tRNA modifying enzyme
647	 32.95	0	693373..694422	+	349	162022122	pheS	RF_0647	-	phenylalanyl-tRNA synthetase subunit alpha
648	 34.11	0	694419..696875	+	818	67459040	pheT	RF_0648	-	phenylalanyl-tRNA synthetase subunit beta
649	 32.02	0	696880..698019	+	379	67459041	dnaN	RF_0649	-	DNA polymerase III subunit beta
650	 33.93	0	698212..698718	+	168	67459042	-	RF_0650	-	hypothetical protein
651	 36.32	+1	698909..701416	+	835	67459043	leuS	RF_0651	-	leucyl-tRNA synthetase
652	 34.49	0	701601..702119	-	172	67459044	-	RF_0652	-	hypothetical protein
653	 31.05	0	702277..702888	-	203	67459045	rnd2	RF_0653	-	ribonuclease D
654	 29.32	0	703095..703418	-	107	67459046	-	RF_0654	-	hypothetical protein
655	 28.36	0	703527..704210	-	227	67459047	cdsA	RF_0655	-	phosphatidate cytidylyltransferase
656	 30.37	0	704170..704877	-	235	67459048	uppS	RF_0656	-	undecaprenyl pyrophosphate synthetase
657	 26.56	-1	704991..706304	-	437	67459049	envZ	RF_0657	-	osmolarity sensor protein EnvZ
658	 30.40	0	706279..706959	-	226	67459050	ompR	RF_0658	-	PetR protein
659	 33.91	0	707170..708042	+	290	67459051	ilvE	RF_0659	-	branched-chain amino acid aminotransferase
660	 33.90	0	708190..709074	+	294	67459052	dapA	RF_0660	-	dihydrodipicolinate synthase
661	 31.37	0	709071..709529	+	152	67459053	smpB	RF_0661	-	SsrA-binding protein
662	 30.19	0	709684..710478	+	264	67459054	dsbA	RF_0662	-	Thiol:disulfide interchange protein DsbA
663	 26.67	-1	710644..711078	-	144	67459055	-	RF_0663	-	hypothetical protein
664	 40.50	+2	711766..712644	-	292	67459056	sucD	RF_0664	-	succinyl-CoA synthetase subunit alpha
665	 36.69	+1	712858..714018	-	386	67459057	sucC	RF_0665	-	succinyl-CoA synthetase subunit beta
666	 31.67	0	714256..714858	-	200	67459058	-	RF_0666	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
