IslandPath Analysis: Rickettsia felis URRWXCal2

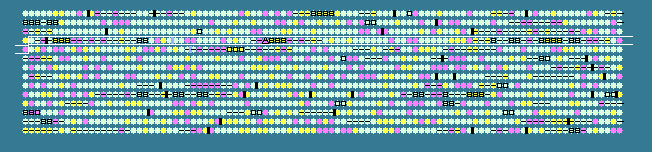

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
302	 31.87	0	317744..318766	+	340	67458694	rpoA	RF_0302	-	DNA-directed RNA polymerase subunit alpha
303	 30.71	0	318779..319159	+	126	67458695	rplQ	RF_0303	-	50S ribosomal protein L17
304	 28.21	0	319208..319480	+	90	67458696	rpsT	RF_0304	-	30S ribosomal protein S20
305	 34.52	0	320871..321293	+	140	67458697	spoT5	RF_0305	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
306	 36.83	+1	321311..322111	-	266	67458698	-	RF_0306	-	transposase/IS protein
307	 36.71	+1	322108..322551	-	147	67458699	-	RF_0307	-	transposase
308	 35.78	0	322526..323137	-	203	67458700	-	RF_0308	-	transposase
309	 28.33	0	323763..325040	+	425	67458701	-	RF_0309	-	MFS type sugar transporter
310	 28.34	0	325405..327525	-	706	67458702	-	RF_0310	-	TPR repeat-containing protein
311	 32.95	0	327859..328122	+	87	67458703	-	RF_0311	-	hypothetical protein
312	 28.42	0	328129..328413	+	94	67458704	-	RF_0312	-	hypothetical protein
313	 35.48	0	328455..328733	-	92	67458705	-	RF_0313	-	hypothetical protein
314	 26.17	-1	329513..330196	-	227	67458706	-	RF_0314	-	ankyrin repeat-containing protein
315	 32.55	0	330585..330965	+	126	67458707	-	RF_0315	-	hypothetical protein
316	 28.68	0	331551..331808	+	85	67458708	-	RF_0316	-	hypothetical protein
317	 37.63	+1	333059..333709	+	216	67458709	-	RF_0317	-	hypothetical protein
318	 32.96	0	333654..334712	+	352	67458710	-	RF_0318	-	hypothetical protein
319	 31.14	0	335000..336001	+	333	67458711	sca11	RF_0319	-	cell surface antigen-like protein Sca11
320	 33.54	0	336125..337078	+	317	67458712	-	RF_0320	-	transposase
321	 30.45	0	337153..337395	+	80	67458713	-	RF_0321	-	transposase
322	 28.89	0	337867..339015	+	382	67458714	-	RF_0322	-	transporter
323	 26.88	-1	339315..339500	+	61	67458715	-	RF_0323	-	hypothetical protein
324	 36.36	+1	339942..340469	+	175	67458716	def	RF_0324	-	peptide deformylase
325	 33.88	0	340466..341377	+	303	67458717	fmt	RF_0325	-	methionyl-tRNA formyltransferase
326	 34.51	0	346352..346606	+	84	67458718	-	RF_0326	-	hypothetical protein
327	 34.67	0	346617..346991	+	124	67458719	-	RF_0327	-	hypothetical protein
328	 27.92	-1	347355..348407	-	350	67458720	n2B	RF_0328	-	putative ATPase n2B
329	 28.23	0	348404..349108	-	234	67458721	-	RF_0329	-	nucleotidyltransferase domain-containing protein
330	 35.33	0	349105..350208	-	367	67458722	queA	RF_0330	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
331	 32.20	0	350581..352350	-	589	67458723	abcT3	RF_0331	-	multidrug ABC transporter ATP-binding protein
332	 28.94	0	352534..352806	+	90	67458724	-	RF_0332	-	hypothetical protein
333	 34.35	0	353016..354386	+	456	67458725	cydA	RF_0333	-	cytochrome d ubiquinol oxidase subunit I
334	 27.41	-1	354395..354664	-	89	67458726	-	RF_0334	-	hypothetical protein
335	 34.87	0	354668..354928	-	86	67458727	relB1	RF_0335	-	DNA-damage-inducible protein J
336	 36.37	+1	355088..356107	+	339	67458728	cydB	RF_0336	-	cytochrome d ubiquinol oxidase subunit II
337	 33.57	0	356452..357303	+	283	67458729	lgtF	RF_0337	-	Beta 1,4 glucosyltransferase
338	 33.82	0	357382..358620	+	412	67458730	mpp	RF_0338	-	Zn-dependent peptidase
339	 32.35	0	358801..359511	+	236	67458731	purC	RF_0339	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
340	 26.78	-1	359753..361354	+	533	67458732	-	RF_0340	-	hypothetical protein
341	 27.16	-1	361731..362054	-	107	67458733	-	RF_0341	-	integrase-like protein
342	 35.78	0	362753..363364	+	203	67458734	-	RF_0342	-	transposase
343	 36.71	+1	363339..363782	+	147	67458735	-	RF_0343	-	transposase
344	 36.83	+1	363779..364579	+	266	67458736	-	RF_0344	-	transposase/IS protein
345	 26.31	-1	364624..365790	+	388	67458737	-	RF_0345	-	hypothetical protein
346	 29.97	0	365976..367403	+	475	67458738	-	RF_0346	-	hypothetical protein
347	 25.77	-1	367899..368255	-	118	67458739	rnpA	RF_0347	-	ribonuclease P
348	 34.81	0	368275..368409	-	44	67458740	rpmH	RF_0348	-	50S ribosomal protein L34
349	 35.88	+1	368562..368915	-	117	67458741	rplT	RF_0349	-	50S ribosomal protein L20
350	 33.82	0	368936..369142	-	68	67458742	rpmI	RF_0350	-	50S ribosomal protein L35
351	 33.33	0	369344..370021	+	225	67458743	nrdG	RF_0351	-	organic radical activating protein
352	 36.27	+1	370434..371045	+	203	67458744	rplY	RF_0352	-	50S ribosomal protein L25/general stress protein Ctc
353	 30.82	0	371329..371886	+	185	67458745	pth	RF_0353	-	peptidyl-tRNA hydrolase
354	 30.77	0	372019..372447	+	142	67458746	-	RF_0354	-	acetyltransferase
355	 36.70	+1	372444..373541	+	365	67458747	ychF	RF_0355	-	translation-associated GTPase
356	 30.98	0	373713..373967	+	84	67458748	-	RF_0356	-	hypothetical protein
357	 29.53	0	374148..374489	+	113	67458749	-	RF_0357	-	hypothetical protein
358	 33.33	0	374871..376088	+	405	67458750	bcr1	RF_0358	-	bicyclomycin resistance protein
359	 28.60	0	376272..377855	+	527	67458751	-	RF_0359	-	site-specific recombinase
360	 34.55	0	377964..379613	-	549	67458752	pat1	RF_0360	-	patatin-like phospholipase
361	 28.97	0	379803..380123	+	106	67458753	-	RF_0361	-	hypothetical protein
362	 26.12	-1	380508..381962	+	484	67458754	-	RF_0362	-	hypothetical protein
363	 31.17	0	381949..382596	-	215	67458755	-	RF_0363	-	hypothetical protein
364	 33.84	0	382683..384074	-	463	67458756	dnaA	RF_0364	-	chromosomal replication initiation protein
365	 28.49	0	384075..384446	-	123	67458757	pspE	RF_0365	-	rhodanese-related sulfurtransferase
366	 27.27	-1	384688..384951	+	87	67458758	-	RF_0366	-	hypothetical protein
367	 32.49	0	384963..388391	+	1142	67458759	mfd	RF_0367	-	transcription-repair coupling factor
368	 33.40	0	388467..390059	+	530	67458760	murE	RF_0368	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
369	 31.11	0	390179..391528	+	449	67458761	murF	RF_0369	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
370	 33.98	0	391722..392807	+	361	67458762	mraY	RF_0370	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
371	 31.38	0	393024..394613	+	529	67458763	rickA	RF_0371	-	Actin polymerization protein RickA
372	 38.41	+1	394865..395455	-	196	67458764	-	RF_0372	-	tryptophan repressor binding protein
373	 36.48	+1	395612..396247	-	211	67458765	scoB	RF_0373	-	succinyl-CoA:3-ketoacid-coenzyme A transferase subunit B
374	 35.62	0	396251..396949	-	232	67458766	scoA	RF_0374	-	succinyl-CoA:3-ketoacid-coenzyme A transferase
375	 28.00	-1	397107..397949	+	280	67458767	-	RF_0375	-	hypothetical protein
376	 38.10	+1	398123..398311	+	62	67458768	-	RF_0376	-	hypothetical protein
377	 29.89	0	398471..399109	-	212	67458769	-	RF_0377	-	hypothetical protein
378	 37.38	+1	399211..401334	+	707	67458770	recG	RF_0378	-	ATP-dependent DNA helicase RecG
379	 35.46	0	402914..403759	+	281	67458771	-	RF_0379	-	transposase
380	 29.17	0	403887..404390	+	167	67458772	spoT6	RF_0380	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
381	 29.86	0	404476..408015	+	1179	67458773	spoT13	RF_0381	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
382	 28.96	0	408615..408980	+	121	67458774	-	RF_0382	-	transposase
383	 30.34	0	409021..409488	+	155	67458775	-	RF_0383	-	transposase
384	 28.53	0	409542..410249	+	235	67458776	spoT15	RF_0384	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
385	 28.44	0	410278..410706	-	142	67458777	-	RF_0385	-	hypothetical protein
386	 30.00	0	410918..411367	-	149	67458778	-	RF_0386	-	hypothetical protein
387	 32.07	0	412009..412245	-	78	67458779	-	RF_0387	-	transposase
388	 36.83	+1	412324..413124	-	266	67458780	-	RF_0388	-	transposase/IS protein
389	 36.71	+1	413121..413564	-	147	67458781	-	RF_0389	-	transposase
390	 35.78	0	413539..414150	-	203	67458782	-	RF_0390	-	transposase
391	 29.15	0	414568..415761	-	397	67458783	proP	RF_0391	-	major facilitator superfamily permease
392	 33.65	0	415778..416731	+	317	67458784	-	RF_0392	-	transposase
393	 30.45	0	416806..417048	+	80	67458785	-	RF_0393	-	transposase
394	 31.88	0	417071..417208	-	45	67458786	-	RF_0394	-	major facilitator transporter
395	 28.36	0	417504..418850	-	448	67458787	-	RF_0395	-	hypothetical protein
396	 25.64	-1	419230..419463	+	77	67458788	-	RF_0396	-	hypothetical protein
397	 30.57	0	419509..420339	-	276	67458789	-	RF_0397	-	MFS type sugar transporter
398	 44.12	+2	420329..420532	-	67	67458790	-	RF_0398	-	MFS type sugar transporter
399	 32.08	0	420584..420823	-	79	67458791	-	RF_0399	-	MFS type sugar transporter
400	 23.32	-2	420889..421557	-	222	67458792	-	RF_0400	-	hypothetical protein
401	 26.70	-1	421791..422846	-	351	67458793	perM	RF_0401	-	permease PerM-like protein
32.00	MEAN

3.85	STD DEV
