IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

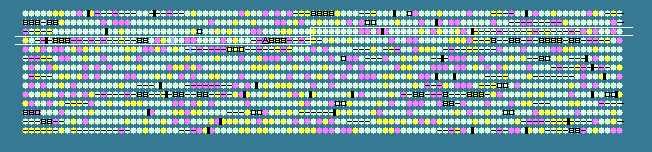

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
249	 35.75	0	277968..278381	-	137	67458641	-	RF_0249	-	hypothetical protein
250	 29.50	0	278385..279167	-	260	67458642	xth2	RF_0250	-	exodeoxyribonuclease III
251	 28.72	0	279164..280246	-	360	67458643	-	RF_0251	-	hypothetical protein
252	 31.26	0	280301..280735	-	144	67458644	-	RF_0252	-	hypothetical protein
253	 31.82	0	280857..282245	-	462	67458645	xseA	RF_0253	-	exodeoxyribonuclease VII large subunit
254	 31.37	0	282464..284605	+	713	67458646	ostA	RF_0254	-	organic solvent tolerance protein
255	 29.74	0	284807..285697	+	296	67458647	-	RF_0255	-	hypothetical protein
256	 33.74	0	285842..286573	+	243	67458648	ksgA	RF_0256	-	dimethyladenosine transferase
257	 24.28	-2	286922..287164	-	80	67458649	-	RF_0257	-	hypothetical protein
258	 24.67	-1	287526..288056	-	176	67458650	-	RF_0258	-	hypothetical protein
259	 34.65	0	288352..289113	+	253	67458651	-	RF_0259	-	protein phosphatase
260	 25.23	-1	289490..290131	-	213	67458652	-	RF_0260	-	TPR repeat-containing protein
261	 27.13	-1	291012..291140	-	42	67458653	-	RF_0261	-	hypothetical protein
262	 34.74	0	291256..291468	+	70	67458654	cspA	RF_0262	-	cold shock-like protein
263	 33.76	0	292119..292355	+	78	67458655	-	RF_0263	-	ATP-dependent RNA helicase RhlE
264	 33.62	0	292303..293364	+	353	67458656	-	RF_0264	-	ATP-dependent RNA helicase RhlE
265	 30.42	0	293766..294725	+	319	67458657	ampG2	RF_0265	-	AmpG protein
266	 28.75	0	294891..296111	-	406	67458658	-	RF_0266	-	ankyrin repeat-containing protein
267	 35.95	+1	296481..297053	+	190	67458659	-	RF_0267	-	NifU-like domain-containing protein
268	 32.11	0	297194..297682	-	162	67458660	ecoT	RF_0268	-	ecotin precursor
269	 24.67	-1	297700..298611	-	303	67458661	-	RF_0269	-	hypothetical protein
270	 37.75	+1	298620..299978	-	452	67458662	ftsZ	RF_0270	-	cell division protein FtsZ
271	 29.11	0	300217..300642	-	141	67458663	-	RF_0271	-	toxin of toxin-antitoxin system
272	 32.13	0	300639..300887	-	82	67458664	-	RF_0272	-	antitoxin of toxin-antitoxin system Phd
273	 35.64	0	300991..302376	-	461	67458665	fumC	RF_0273	-	fumarate hydratase
274	 23.84	-2	302373..302825	-	150	67458666	-	RF_0274	-	hypothetical protein
275	 29.60	0	302936..303658	-	240	67458667	-	RF_0275	-	tRNA/rRNA methyltransferase
276	 38.82	+1	304264..305448	+	394	67458668	tuf	RF_0276	-	elongation factor Tu
277	 32.08	0	305544..305861	+	105	67458669	rpsJ	RF_0277	-	30S ribosomal protein S10
278	 32.41	0	305862..306509	+	215	67458670	rplC	RF_0278	-	50S ribosomal protein L3
279	 32.69	0	306782..307405	+	207	67458671	rplD	RF_0279	-	50S ribosomal protein L4
280	 25.25	-1	307402..307698	+	98	67458672	rplW	RF_0280	-	50S ribosomal protein L23
281	 34.67	0	307699..308520	+	273	67458673	rplB	RF_0281	-	50S ribosomal protein L2
282	 32.26	0	308545..308823	+	92	67458674	rpsS	RF_0282	-	30S ribosomal protein S19
283	 29.17	0	308832..309191	+	119	67458675	rplV	RF_0283	-	50S ribosomal protein L22
284	 30.58	0	309193..309846	+	217	67458676	rpsC	RF_0284	-	30S ribosomal protein S3
285	 38.69	+1	309861..310271	+	136	67458677	rplP	RF_0285	-	50S ribosomal protein L16
286	 23.61	-2	310264..310479	+	71	67458678	rpmC	RF_0286	-	50S ribosomal protein L29
287	 31.33	0	310466..310714	+	82	67458679	rpsQ	RF_0287	-	30S ribosomal protein S17
288	 37.67	+1	310789..311157	+	122	67458680	rplN	RF_0288	-	50S ribosomal protein L14
289	 30.91	0	311158..311487	+	109	67458681	rplX	RF_0289	-	50S ribosomal protein L24
290	 29.63	0	311487..312026	+	179	67458682	rplE	RF_0290	-	50S ribosomal protein L5
291	 31.37	0	312044..312349	+	101	67458683	rpsN	RF_0291	-	30S ribosomal protein S14
292	 27.32	-1	312369..312767	+	132	67458684	rpsH	RF_0292	-	30S ribosomal protein S8
293	 31.27	0	312777..313310	+	177	67458685	rplF	RF_0293	-	50S ribosomal protein L6
294	 28.29	0	313326..313682	+	118	67458686	rplR	RF_0294	-	50S ribosomal protein L18
295	 35.59	0	313700..314230	+	176	67458687	rpsE	RF_0295	-	30S ribosomal protein S5
296	 25.78	-1	314223..314447	+	74	67458688	rpmD	RF_0296	-	50S ribosomal protein L30
297	 29.65	0	314461..314922	+	153	67458689	rplO	RF_0297	-	50S ribosomal protein L15
298	 31.41	0	314926..316227	+	433	67458690	secY	RF_0298	-	preprotein translocase subunit SecY
299	 25.20	-1	316243..316881	+	212	67458691	adk	RF_0299	-	adenylate kinase
300	 34.39	0	316940..317317	+	125	67458692	rpsM	RF_0300	-	30S ribosomal protein S13
301	 36.72	+1	317342..317725	+	127	67458693	rpsK	RF_0301	-	30S ribosomal protein S11
302	 31.87	0	317744..318766	+	340	67458694	rpoA	RF_0302	-	DNA-directed RNA polymerase subunit alpha
303	 30.71	0	318779..319159	+	126	67458695	rplQ	RF_0303	-	50S ribosomal protein L17
304	 28.21	0	319208..319480	+	90	67458696	rpsT	RF_0304	-	30S ribosomal protein S20
305	 34.52	0	320871..321293	+	140	67458697	spoT5	RF_0305	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
306	 36.83	+1	321311..322111	-	266	67458698	-	RF_0306	-	transposase/IS protein
307	 36.71	+1	322108..322551	-	147	67458699	-	RF_0307	-	transposase
308	 35.78	0	322526..323137	-	203	67458700	-	RF_0308	-	transposase
309	 28.33	0	323763..325040	+	425	67458701	-	RF_0309	-	MFS type sugar transporter
310	 28.34	0	325405..327525	-	706	67458702	-	RF_0310	-	TPR repeat-containing protein
311	 32.95	0	327859..328122	+	87	67458703	-	RF_0311	-	hypothetical protein
312	 28.42	0	328129..328413	+	94	67458704	-	RF_0312	-	hypothetical protein
313	 35.48	0	328455..328733	-	92	67458705	-	RF_0313	-	hypothetical protein
314	 26.17	-1	329513..330196	-	227	67458706	-	RF_0314	-	ankyrin repeat-containing protein
315	 32.55	0	330585..330965	+	126	67458707	-	RF_0315	-	hypothetical protein
316	 28.68	0	331551..331808	+	85	67458708	-	RF_0316	-	hypothetical protein
317	 37.63	+1	333059..333709	+	216	67458709	-	RF_0317	-	hypothetical protein
318	 32.96	0	333654..334712	+	352	67458710	-	RF_0318	-	hypothetical protein
319	 31.14	0	335000..336001	+	333	67458711	sca11	RF_0319	-	cell surface antigen-like protein Sca11
320	 33.54	0	336125..337078	+	317	67458712	-	RF_0320	-	transposase
321	 30.45	0	337153..337395	+	80	67458713	-	RF_0321	-	transposase
322	 28.89	0	337867..339015	+	382	67458714	-	RF_0322	-	transporter
323	 26.88	-1	339315..339500	+	61	67458715	-	RF_0323	-	hypothetical protein
324	 36.36	+1	339942..340469	+	175	67458716	def	RF_0324	-	peptide deformylase
325	 33.88	0	340466..341377	+	303	67458717	fmt	RF_0325	-	methionyl-tRNA formyltransferase
326	 34.51	0	346352..346606	+	84	67458718	-	RF_0326	-	hypothetical protein
327	 34.67	0	346617..346991	+	124	67458719	-	RF_0327	-	hypothetical protein
328	 27.92	-1	347355..348407	-	350	67458720	n2B	RF_0328	-	putative ATPase n2B
329	 28.23	0	348404..349108	-	234	67458721	-	RF_0329	-	nucleotidyltransferase domain-containing protein
330	 35.33	0	349105..350208	-	367	67458722	queA	RF_0330	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
331	 32.20	0	350581..352350	-	589	67458723	abcT3	RF_0331	-	multidrug ABC transporter ATP-binding protein
332	 28.94	0	352534..352806	+	90	67458724	-	RF_0332	-	hypothetical protein
333	 34.35	0	353016..354386	+	456	67458725	cydA	RF_0333	-	cytochrome d ubiquinol oxidase subunit I
334	 27.41	-1	354395..354664	-	89	67458726	-	RF_0334	-	hypothetical protein
335	 34.87	0	354668..354928	-	86	67458727	relB1	RF_0335	-	DNA-damage-inducible protein J
336	 36.37	+1	355088..356107	+	339	67458728	cydB	RF_0336	-	cytochrome d ubiquinol oxidase subunit II
337	 33.57	0	356452..357303	+	283	67458729	lgtF	RF_0337	-	Beta 1,4 glucosyltransferase
338	 33.82	0	357382..358620	+	412	67458730	mpp	RF_0338	-	Zn-dependent peptidase
339	 32.35	0	358801..359511	+	236	67458731	purC	RF_0339	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
340	 26.78	-1	359753..361354	+	533	67458732	-	RF_0340	-	hypothetical protein
341	 27.16	-1	361731..362054	-	107	67458733	-	RF_0341	-	integrase-like protein
342	 35.78	0	362753..363364	+	203	67458734	-	RF_0342	-	transposase
343	 36.71	+1	363339..363782	+	147	67458735	-	RF_0343	-	transposase
344	 36.83	+1	363779..364579	+	266	67458736	-	RF_0344	-	transposase/IS protein
345	 26.31	-1	364624..365790	+	388	67458737	-	RF_0345	-	hypothetical protein
346	 29.97	0	365976..367403	+	475	67458738	-	RF_0346	-	hypothetical protein
347	 25.77	-1	367899..368255	-	118	67458739	rnpA	RF_0347	-	ribonuclease P
348	 34.81	0	368275..368409	-	44	67458740	rpmH	RF_0348	-	50S ribosomal protein L34
32.00	MEAN

3.85	STD DEV
