IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

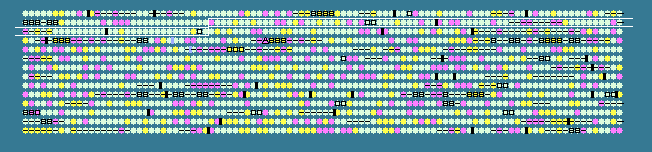

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
132	 27.25	-1	149311..150477	-	388	67458524	-	RF_0132	-	hypothetical protein
133	 30.38	0	150719..151498	+	259	67458525	lgt	RF_0133	-	prolipoprotein diacylglyceryl transferase
134	 33.74	0	151477..152700	+	407	67458526	-	RF_0134	-	hypothetical protein
135	 31.89	0	152697..153113	-	138	67458527	-	RF_0135	-	hypothetical protein
136	 38.68	+1	153147..153932	-	261	67458528	sdhB	RF_0136	-	succinate dehydrogenase iron-sulfur subunit
137	 31.78	0	154251..154766	-	171	67458529	-	RF_0137	-	site-specific DNA methylase
138	 32.70	0	154861..155178	-	105	67458530	-	RF_0138	-	site-specific DNA methylase
139	 38.05	+1	155204..157111	-	635	67458531	ftsH	RF_0139	-	ATP-dependent metalloprotease FtsH
140	 29.08	0	157333..158625	-	430	67458532	tilS	RF_0140	-	tRNA(Ile)-lysidine synthetase TilS
141	 30.81	0	158904..159419	-	171	67458533	rplI	RF_0141	-	50S ribosomal protein L9
142	 32.64	0	159431..159718	-	95	67458534	rpsR	RF_0142	-	30S ribosomal protein S18
143	 26.78	-1	159743..160108	-	121	162022125	rpsF	RF_0143	-	30S ribosomal protein S6
144	 24.66	-1	160292..160660	+	122	67458536	-	RF_0144	-	hypothetical protein
145	 30.82	0	161139..162332	+	397	67458537	aco1	RF_0145	-	Acyl-CoA desaturase 1
146	 36.24	+1	162528..163697	+	389	67458538	gcp	RF_0146	-	O-sialoglycoprotein endopeptidase
147	 25.81	-1	163787..164278	+	163	67458539	-	RF_0147	-	hypothetical protein
148	 29.97	0	164347..165120	-	257	67458540	-	RF_0148	-	hypothetical protein
149	 31.65	0	165277..165633	-	118	67458541	-	RF_0149	-	ClpB protein
150	 38.27	+1	165727..167853	-	708	67458542	-	RF_0150	-	ClpB protein
151	 33.25	0	167966..169132	+	388	67458543	-	RF_0151	-	hypothetical protein
152	 31.55	0	169613..169948	+	111	67458544	-	RF_0152	-	hypothetical protein
153	 37.33	+1	169948..170673	+	241	67458545	phbB	RF_0153	-	acetoacetyl-CoA reductase
154	 30.40	0	170700..172304	+	534	67458546	-	RF_0154	-	hypothetical protein
155	 28.42	0	172226..172612	+	128	67458547	-	RF_0155	-	hypothetical protein
156	 34.39	0	172626..173948	+	440	67458548	-	RF_0156	-	hypothetical protein
157	 28.12	-1	174157..174444	+	95	67458549	-	RF_0157	-	hypothetical protein
158	 33.54	0	174533..175486	+	317	67458550	-	RF_0158	-	transposase
159	 31.28	0	175561..175803	+	80	67458551	-	RF_0159	-	transposase
160	 30.58	0	176012..176338	+	108	67458552	-	RF_0160	-	hypothetical protein
161	 32.93	0	176566..178065	-	499	67458553	tlc5	RF_0161	-	ADP,ATP carrier protein
162	 28.95	0	178289..179338	+	349	67458554	phbC	RF_0162	-	Poly-beta-hydroxybutyrate polymerase
163	 41.22	+2	179335..180513	+	392	67458555	paaJ	RF_0163	-	acetyl-CoA acetyltransferase
164	 29.56	0	180581..181243	-	220	67458556	-	RF_0164	-	hypothetical protein
165	 30.22	0	181625..184711	+	1028	67458557	-	RF_0165	-	superfamily I DNA/RNA helicase
166	 30.12	0	184769..185701	-	310	67458558	-	RF_0166	-	sugar kinase
167	 26.92	-1	186920..187402	+	160	67458559	-	RF_0167	-	hypothetical protein
168	 29.47	0	187685..187969	+	94	67458560	-	RF_0168	-	hypothetical protein
169	 31.56	0	187908..188189	+	93	67458561	-	RF_0169	-	hypothetical protein
170	 26.59	-1	188363..189682	-	439	67458562	-	RF_0170	-	hypothetical protein
171	 35.14	0	189855..190796	-	313	67458563	fabD	RF_0171	-	acyl-carrier-protein S-malonyltransferase
172	 23.58	-2	191256..191573	+	105	67458564	-	RF_0172	-	hypothetical protein
173	 23.29	-2	191748..192215	+	155	67458565	-	RF_0173	-	hypothetical protein
174	 31.25	0	193206..195653	-	815	67458566	-	RF_0174	-	ATP-dependent helicase
175	 32.31	0	195793..196473	-	226	67458567	surf1	RF_0175	-	Surfeit locus protein 1
176	 34.20	0	196606..197295	-	229	67458568	dnaQ	RF_0176	-	DNA polymerase III subunit epsilon
177	 29.69	0	197541..198116	-	191	67458569	coaE	RF_0177	-	dephospho-CoA kinase
178	 29.89	0	198110..198922	-	270	67458570	-	RF_0178	-	hypothetical protein
179	 27.93	-1	199563..200099	+	178	67458571	-	RF_0179	-	hypothetical protein
180	 33.77	0	200109..200567	+	152	67458572	rnhA	RF_0180	-	ribonuclease H
181	 31.33	0	200555..200854	+	99	67458573	-	RF_0181	-	hypothetical protein
182	 30.89	0	200880..201329	+	149	67458574	-	RF_0182	-	ABC transporter substrate binding protein
183	 35.44	0	201491..201775	+	94	67458575	-	RF_0183	-	hypothetical protein
184	 26.71	-1	201784..202236	+	150	67458576	-	RF_0184	-	hypothetical protein
185	 25.24	-1	202588..203118	-	176	67458577	-	RF_0185	-	hypothetical protein
186	 31.43	0	203457..204767	+	436	67458578	proP10	RF_0186	-	proline/betaine transporter
187	 30.25	0	204700..205218	-	172	67458579	-	RF_0187	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein SpoT4
188	 30.99	0	205261..205431	-	56	67458580	-	RF_0188	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein SpoT4
189	 25.83	-1	205556..205795	-	79	67458581	-	RF_0189	-	hypothetical protein
190	 28.11	-1	206476..206877	+	133	67458582	-	RF_0190	-	hypothetical protein
191	 41.07	+2	206923..208008	+	361	67458583	tgt	RF_0191	-	queuine tRNA-ribosyltransferase
192	 35.12	0	208171..210291	+	706	67458584	ligA	RF_0192	-	NAD-dependent DNA ligase LigA
193	 29.93	0	210363..210773	+	136	67458585	-	RF_0193	-	hypothetical protein
194	 31.00	0	211237..212007	+	256	67458586	-	RF_0194	-	hypothetical protein
195	 30.64	0	212154..213008	+	284	67458587	-	RF_0195	-	periplasmic protein
196	 29.75	0	213170..214147	+	325	67458588	lpxK	RF_0196	-	tetraacyldisaccharide 4'-kinase
197	 33.22	0	214110..214982	+	290	67458589	htrB	RF_0197	-	lipid A biosynthesis lauroyl acyltransferase
198	 30.98	0	215125..215592	-	155	67458590	bcp	RF_0198	-	bacterioferritin comigratory protein
199	 26.32	-1	215882..216166	+	94	67458591	-	RF_0199	-	hypothetical protein
200	 31.82	0	216217..216678	+	153	67458592	-	RF_0200	-	hypothetical protein
201	 26.39	-1	216818..217105	+	95	67458593	himA	RF_0201	-	integration host factor alpha-subunit
202	 30.65	0	217095..217541	+	148	67458594	-	RF_0202	-	hypothetical protein
203	 36.18	+1	217545..218528	+	327	67458595	-	RF_0203	-	Beta-glucosidase
204	 30.69	0	218905..219510	+	201	67458596	spoT11	RF_0204	-	guanosine polyphosphate pyrophosphohydrolase/synthetase-like protein
205	 38.05	+1	219976..224940	+	1654	67458597	rompB	RF_0205	-	Outer membrane protein B
206	 28.55	0	225597..227831	+	744	67458598	-	RF_0206	-	hypothetical protein
207	 33.88	0	227828..229849	-	673	67458599	ccmF	RF_0207	-	cytochrome c-type biogenesis protein CcmF
208	 33.41	0	229842..231116	-	424	67458600	-	RF_0208	-	hemolysin-like protein
209	 30.91	0	231378..233237	-	619	67458601	-	RF_0209	-	hypothetical protein
210	 32.88	0	233302..233967	-	221	67458602	lolD	RF_0210	-	lipoprotein releasing system ATP-binding protein LolD
211	 32.05	0	233960..235207	-	415	67458603	-	RF_0211	-	lipoprotein releasing system, transmembrane protein
212	 31.72	0	235334..236509	-	391	67458604	bcr2	RF_0212	-	bicyclomycin resistance protein
213	 35.34	0	237094..237342	-	82	67458605	-	RF_0213	-	hypothetical protein
214	 30.53	0	237670..239415	-	581	67458606	msbA2	RF_0214	-	multidrug resistance protein
215	 30.49	0	239786..240031	+	81	67458607	-	RF_0215	-	hypothetical protein
216	 34.68	0	240012..240383	+	123	67458608	-	RF_0216	-	hypothetical protein
217	 36.00	+1	240358..241032	+	224	67458609	exsB	RF_0217	-	trans-regulatory protein ExsB
218	 29.71	0	241029..241580	+	183	67458610	rimJ	RF_0218	-	ribosomal-protein-alanine acetyltransferase
219	 35.45	0	241731..243008	+	425	67458611	clpX	RF_0219	-	ATP-dependent protease ATP-binding subunit
220	 32.90	0	243353..243817	-	154	67458612	-	RF_0220	-	hypothetical protein
221	 29.78	0	243817..245112	-	431	67458613	-	RF_0221	-	putative oxidoreductase protein
222	 29.39	0	245558..247486	+	642	67458614	-	RF_0222	-	hypothetical protein
223	 30.41	0	247570..248766	+	398	67458615	-	RF_0223	-	hypothetical protein
224	 30.05	0	248777..249691	+	304	67458616	-	RF_0224	-	hypothetical protein
225	 34.27	0	249707..250993	-	428	67458617	-	RF_0225	-	hypothetical protein
226	 31.01	0	251243..252448	+	401	67458618	-	RF_0226	-	ATPase
227	 29.78	0	252508..253239	-	243	67458619	-	RF_0227	-	hypothetical protein
228	 31.37	0	253385..254149	-	254	67458620	-	RF_0228	-	hypothetical protein
229	 35.93	+1	254106..256685	-	859	67458621	valS	RF_0229	-	valyl-tRNA synthetase
230	 30.15	0	256803..257744	-	313	67458622	-	RF_0230	-	transposase
231	 32.38	0	257835..258677	+	280	67458623	ubiA	RF_0231	-	prenyltransferase
32.00	MEAN

3.85	STD DEV
