IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

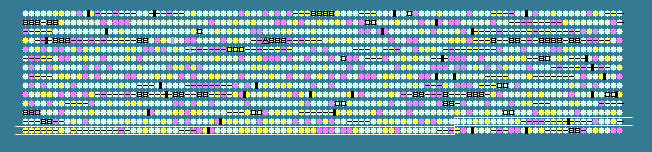

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1273	 32.88	0	1352552..1352770	-	72	67459665	-	RF_1273	-	hypothetical protein
1274	 32.97	0	1352962..1354068	+	368	67459666	-	RF_1274	-	hypothetical protein
1275	 31.09	0	1354149..1354949	-	266	67459667	blaD	RF_1275	-	Beta-lactamase class D
1276	 36.37	+1	1355126..1357498	-	790	67459668	mrcA	RF_1276	-	1A family penicillin-binding protein
1277	 31.27	0	1357514..1358773	-	419	67459669	-	RF_1277	-	ATPase
1278	 37.00	+1	1358842..1360179	-	445	67459670	miaB	RF_1278	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1279	 30.39	0	1360783..1360986	-	67	67459671	-	RF_1279	-	nucleotidyltransferase/HEPN domain-containing protein
1280	 32.20	0	1360955..1361659	-	234	67459672	-	RF_1280	-	nucleotidyltransferase/HEPN domain-containing protein
1281	 29.51	0	1361673..1362509	-	278	67459673	-	RF_1281	-	hypothetical protein
1282	 35.12	0	1362741..1363244	-	167	67459674	-	RF_1282	-	hypothetical protein
1283	 35.65	0	1363213..1364940	-	575	67459675	kefB	RF_1283	-	glutathione-regulated potassium-efflux system protein KefB
1284	 29.66	0	1364937..1365263	-	108	67459676	-	RF_1284	-	Iojap-related protein
1285	 26.67	-1	1365429..1365668	+	79	67459677	bolA2	RF_1285	-	morphology/transcriptional regulatory  protein BolA
1286	 23.29	-2	1366000..1366248	+	82	67459678	-	RF_1286	-	cytotoxic translational repressor of toxin-antitoxin system RelE
1287	 28.33	0	1366257..1366616	+	119	67459679	-	RF_1287	-	Phage-related transcriptional regulator
1288	 29.31	0	1366740..1367186	-	148	67459680	-	RF_1288	-	hypothetical protein
1289	 42.18	+2	1367446..1367886	+	146	67459681	-	RF_1289	-	hypothetical protein
1290	 41.73	+2	1368059..1374658	-	2199	67459682	sca13	RF_1290	-	cell surface antigen-like protein Sca13
1291	 38.89	+1	1375035..1376708	-	557	67459683	sca9	RF_1291	-	cell surface antigen-like protein Sca9
1292	 35.65	0	1377524..1377739	+	71	67459684	infA	RF_1292	-	translation initiation factor IF-1
1293	 34.97	0	1377751..1378362	+	203	67459685	maf	RF_1293	-	Maf-like protein
1294	 32.18	0	1378521..1378952	-	143	67459686	dksA	RF_1294	-	DnaK suppressor protein
1295	 30.17	0	1379060..1379977	-	305	67459687	xerC	RF_1295	-	site-specific tyrosine recombinase XerC
1296	 26.67	-1	1380148..1380612	+	154	67459688	-	RF_1296	-	phasin family protein
1297	 31.84	0	1380825..1381427	-	200	67459689	-	RF_1297	-	phospholipase D (PLD) superfamily protein
1298	 32.02	0	1381573..1383324	-	583	67459690	phaC	RF_1298	-	Poly(3-hydroxyalkanoate) synthetase
1299	 36.51	+1	1383649..1385127	-	492	67459691	ubiD	RF_1299	-	UbiD family decarboxylase
1300	 28.57	0	1385269..1386843	-	524	67459692	surA	RF_1300	-	parvulin-like peptidyl-prolyl isomerase
1301	 38.99	+1	1387254..1387571	-	105	67459693	-	RF_1301	-	Outer memberane protein rOmpA
1302	 40.88	+2	1387513..1388082	-	189	67459694	-	RF_1302	-	Outer memberane protein rOmpA
1303	 41.18	+2	1388526..1389035	+	169	67459695	-	RF_1303	-	hypothetical protein
1304	 37.13	+1	1389066..1389986	-	306	67459696	-	RF_1304	-	Outer memberane protein rOmpA
1305	 40.50	+2	1390010..1391782	-	590	67459697	-	RF_1305	-	Outer memberane protein rOmpA
1306	 32.11	0	1392427..1393569	-	380	67459698	-	RF_1306	-	ankyrin repeat-containing protein
1307	 38.43	+1	1393984..1396221	-	745	67459699	ftsK	RF_1307	-	cell division protein FtsK-like protein
1308	 34.97	0	1396264..1397238	-	324	67459700	fic	RF_1308	-	Fic
1309	 36.67	+1	1397362..1398141	+	259	67459701	map	RF_1309	-	methionine aminopeptidase
1310	 30.13	0	1398522..1398989	+	155	67459702	radC	RF_1310	-	DNA repair protein RadC
1311	 32.11	0	1399093..1400076	+	327	67459703	mraY2	RF_1311	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
1312	 29.63	0	1400073..1400396	+	107	67459704	-	RF_1312	-	hypothetical protein
1313	 34.14	0	1400827..1401696	-	289	67459705	-	RF_1313	-	hypothetical protein
1314	 34.50	0	1401994..1402677	-	227	67459706	-	RF_1314	-	putative outer surface protein
1315	 32.42	0	1402802..1403131	-	109	67459707	fdxA	RF_1315	-	ferredoxin
1316	 29.87	0	1403162..1403479	-	105	67459708	-	RF_1316	-	transcriptional regulator
1317	 27.10	-1	1403492..1403812	-	106	67459709	-	RF_1317	-	hypothetical protein
1318	 31.89	0	1403935..1404627	-	230	67459710	ccmC	RF_1318	-	Heme exporter protein C
1319	 31.87	0	1404844..1405323	-	159	67459711	-	RF_1319	-	cytosine deaminase
1320	 30.84	0	1405304..1406224	-	306	67459712	-	RF_1320	-	cation diffusion facilitator family transporter
1321	 44.17	+2	1406412..1406891	+	159	67459713	omp	RF_1321	-	17 kDa surface antigen precursor
1322	 34.41	0	1407055..1407519	+	154	67459714	-	RF_1322	-	hypothetical protein
1323	 33.05	0	1407755..1408456	+	233	67459715	znuC	RF_1323	-	Zinc ABC transporter ATP-binding protein
1324	 35.95	+1	1408459..1411326	-	955	67459716	uvrA	RF_1324	-	excinuclease ABC subunit A
1325	 34.20	0	1411431..1411889	+	152	67459717	ssb	RF_1325	-	single-strand DNA-binding protein
1326	 34.06	0	1411901..1412731	+	276	67459718	-	RF_1326	-	DAP2-like protein
1327	 32.58	0	1412842..1413765	+	307	67459719	-	RF_1327	-	MFS type sugar transporter
1328	 31.97	0	1413889..1414182	+	97	67459720	-	RF_1328	-	MFS type sugar transporter
1329	 27.18	-1	1414209..1414517	-	102	67459721	-	RF_1329	-	hypothetical protein
1330	 26.22	-1	1414710..1415693	-	327	67459722	-	RF_1330	-	hypothetical protein
1331	 36.76	+1	1415741..1416061	-	106	67459723	-	RF_1331	-	hypothetical protein
1332	 23.90	-2	1416816..1417133	+	105	162022116	-	RF_1332	-	hypothetical protein
1333	 33.49	0	1417388..1419253	+	621	67459725	htpG	RF_1333	-	heat shock protein 90
1334	 34.70	0	1419438..1420682	+	414	67459726	hemA	RF_1334	-	5-aminolevulinate synthase
1335	 30.00	0	1421041..1421460	+	139	67459727	-	RF_1335	-	hypothetical protein
1336	 30.79	0	1421629..1422966	+	445	67459728	tig	RF_1336	-	trigger factor
1337	 37.56	+1	1423188..1424180	-	330	67459729	obgE	RF_1337	-	GTPase ObgE
1338	 36.85	+1	1424392..1425699	-	435	67459730	gltA	RF_1338	-	type II citrate synthase
1339	 30.85	0	1426057..1426338	-	93	67459731	-	RF_1339	-	transcriptional regulator
1340	 35.49	0	1426418..1427206	-	262	67459732	-	RF_1340	-	uracil-DNA glycosylase
1341	 35.75	0	1427223..1428380	+	385	67459733	-	RF_1341	-	ribosomal large subunit pseudouridine synthase D
1342	 30.38	0	1428449..1428685	+	78	67459734	-	RF_1342	-	hypothetical protein
1343	 30.00	0	1428669..1428938	+	89	67459735	-	RF_1343	-	growth inhibitor
1344	 32.58	0	1429027..1430610	+	527	67459736	trmB	RF_1344	-	bifunctional N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase/tRNA (m7G46) methyltransferase
1345	 35.64	0	1430576..1431661	-	361	67459737	-	RF_1345	-	putative translation factor protein
1346	 32.28	0	1431690..1433684	-	664	67459738	glyS	RF_1346	-	glycyl-tRNA synthetase subunit beta
1347	 39.54	+1	1433677..1434546	-	289	67459739	glyQ	RF_1347	-	glycyl-tRNA synthetase subunit alpha
1348	 36.35	+1	1434906..1435535	-	209	67459740	-	RF_1348	-	hypothetical protein
1349	 36.78	+1	1435538..1436785	-	415	67459741	proP6	RF_1349	-	proline/betaine transporter
1350	 25.79	-1	1437005..1437958	-	317	67459742	-	RF_1350	-	hypothetical protein
1351	 24.41	-1	1437968..1438606	-	212	67459743	-	RF_1351	-	hypothetical protein
1352	 24.30	-1	1438756..1440327	-	523	67459744	-	RF_1352	-	hypothetical protein
1353	 35.38	0	1440429..1443065	+	878	67459745	alaS	RF_1353	-	alanyl-tRNA synthetase
1354	 28.23	0	1443948..1444319	-	123	67459746	-	RF_1354	-	hypothetical protein
1355	 26.20	-1	1444910..1445596	-	228	67459747	-	RF_1355	-	hypothetical protein
1356	 36.04	+1	1445733..1446470	-	245	67459748	truA	RF_1356	-	tRNA pseudouridine synthase A
1357	 33.70	0	1446875..1448782	-	635	67459749	rpoD	RF_1357	-	RNA polymerase sigma factor RpoD
1358	 30.26	0	1448827..1450614	-	595	67459750	dnaG	RF_1358	-	DNA primase
1359	 29.59	0	1450619..1451233	-	204	67459751	sec59	RF_1359	-	dolichol kinase
1360	 32.12	0	1451285..1451863	+	192	67459752	greA	RF_1360	-	transcription elongation factor GreA
1361	 36.09	+1	1451977..1452375	-	132	67459753	pntA2	RF_1361	-	NAD(P) transhydrogenase subunit alpha
1362	 36.44	+1	1452372..1453496	-	374	67459754	pntA1	RF_1362	-	NAD(P) transhydrogenase subunit alpha
1363	 25.32	-1	1453565..1454188	+	207	67459755	-	RF_1363	-	hypothetical protein
1364	 31.16	0	1454420..1455985	+	521	67459756	dnaX	RF_1364	-	DNA polymerase III subunits gamma and tau
1365	 34.88	0	1456004..1456327	+	107	67459757	-	RF_1365	-	hypothetical protein
1366	 31.32	0	1456452..1457147	-	231	67459758	-	RF_1366	-	hypothetical protein
1367	 31.19	0	1457162..1458280	-	372	67459759	ampC	RF_1367	-	beta-lactamase AmpC
1368	 32.52	0	1458322..1458444	-	40	67459760	-	RF_1368	-	cytotoxic translational repressor of toxin-antitoxin system RelE
1369	 29.76	0	1458758..1459009	-	83	67459761	-	RF_1369	-	antitoxin of toxin-antitoxin system StbD
1370	 33.06	0	1459079..1459801	-	240	67459762	glnQ	RF_1370	-	glutamine ABC transporter ATP-binding protein
1371	 31.76	0	1459805..1460569	-	254	67459763	phnP	RF_1371	-	beta-lactamase superfamily hydrolase
1372	 25.55	-1	1460581..1461261	+	226	67459764	-	RF_1372	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
