IslandPath Analysis: Rickettsia felis URRWXCal2

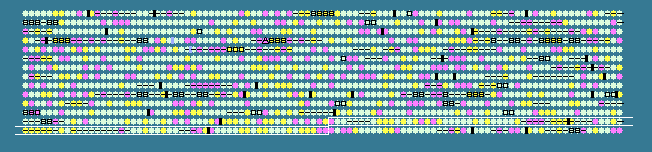

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1252	 26.49	-1	1328532..1329305	+	257	67459644	terC	RF_1252	-	tellurium resistance protein TerC
1253	 31.65	0	1329349..1330062	+	237	67459645	-	RF_1253	-	hypothetical protein
1254	 33.20	0	1330230..1331759	+	509	67459646	-	RF_1254	-	hypothetical protein
1255	 29.45	0	1332023..1332640	+	205	67459647	nuoJ	RF_1255	-	NADH dehydrogenase subunit J
1256	 29.52	0	1332633..1332947	+	104	162022117	nuoK	RF_1256	-	NADH dehydrogenase subunit K
1257	 35.19	0	1332949..1334886	+	645	67459649	nuoL1	RF_1257	-	NADH dehydrogenase subunit L
1258	 33.06	0	1335037..1336518	+	493	67459650	nuoM	RF_1258	-	NADH dehydrogenase subunit M
1259	 33.88	0	1336540..1337265	+	241	67459651	ccmA	RF_1259	-	cytochrome c biogenesis protein CcmA
1260	 39.17	+1	1337687..1338166	-	159	67459652	nuoI	RF_1260	-	NADH dehydrogenase subunit I
1261	 36.67	+1	1338352..1339371	-	339	67459653	nuoH	RF_1261	-	NADH dehydrogenase subunit H
1262	 37.50	+1	1339540..1341555	-	671	67459654	nuoG	RF_1262	-	NADH dehydrogenase subunit G
1263	 33.85	0	1341558..1341947	-	129	67459655	-	RF_1263	-	hypothetical protein
1264	 36.41	+1	1342062..1344698	-	878	67459656	acnA	RF_1264	-	aconitate hydratase
1265	 35.10	0	1344920..1345258	-	112	67459657	atpC	RF_1265	-	F0F1 ATP synthase subunit epsilon
1266	 41.00	+2	1345390..1346916	-	508	67459658	atpD	RF_1266	-	F0F1 ATP synthase subunit beta
1267	 28.37	0	1346945..1347811	-	288	67459659	atpG	RF_1267	-	F0F1 ATP synthase subunit gamma
1268	 38.42	+1	1347991..1349523	-	510	67459660	atpA	RF_1268	-	F0F1 ATP synthase subunit alpha
1269	 24.86	-1	1349711..1350265	-	184	67459661	atpH	RF_1269	-	F0F1 ATP synthase subunit delta
1270	 36.45	+1	1350262..1351641	-	459	67459662	lpdA1	RF_1270	-	dihydrolipoamide dehydrogenase
1271	 33.33	0	1351783..1352211	-	142	67459663	-	RF_1271	-	Strees induced DNA-binding protein
1272	 30.11	0	1352283..1352561	-	92	67459664	-	RF_1272	-	cytotoxic translational repressor of toxin-antitoxin system RelE
1273	 32.88	0	1352552..1352770	-	72	67459665	-	RF_1273	-	hypothetical protein
1274	 32.97	0	1352962..1354068	+	368	67459666	-	RF_1274	-	hypothetical protein
1275	 31.09	0	1354149..1354949	-	266	67459667	blaD	RF_1275	-	Beta-lactamase class D
1276	 36.37	+1	1355126..1357498	-	790	67459668	mrcA	RF_1276	-	1A family penicillin-binding protein
1277	 31.27	0	1357514..1358773	-	419	67459669	-	RF_1277	-	ATPase
1278	 37.00	+1	1358842..1360179	-	445	67459670	miaB	RF_1278	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1279	 30.39	0	1360783..1360986	-	67	67459671	-	RF_1279	-	nucleotidyltransferase/HEPN domain-containing protein
1280	 32.20	0	1360955..1361659	-	234	67459672	-	RF_1280	-	nucleotidyltransferase/HEPN domain-containing protein
1281	 29.51	0	1361673..1362509	-	278	67459673	-	RF_1281	-	hypothetical protein
1282	 35.12	0	1362741..1363244	-	167	67459674	-	RF_1282	-	hypothetical protein
1283	 35.65	0	1363213..1364940	-	575	67459675	kefB	RF_1283	-	glutathione-regulated potassium-efflux system protein KefB
1284	 29.66	0	1364937..1365263	-	108	67459676	-	RF_1284	-	Iojap-related protein
1285	 26.67	-1	1365429..1365668	+	79	67459677	bolA2	RF_1285	-	morphology/transcriptional regulatory  protein BolA
1286	 23.29	-2	1366000..1366248	+	82	67459678	-	RF_1286	-	cytotoxic translational repressor of toxin-antitoxin system RelE
1287	 28.33	0	1366257..1366616	+	119	67459679	-	RF_1287	-	Phage-related transcriptional regulator
1288	 29.31	0	1366740..1367186	-	148	67459680	-	RF_1288	-	hypothetical protein
1289	 42.18	+2	1367446..1367886	+	146	67459681	-	RF_1289	-	hypothetical protein
1290	 41.73	+2	1368059..1374658	-	2199	67459682	sca13	RF_1290	-	cell surface antigen-like protein Sca13
1291	 38.89	+1	1375035..1376708	-	557	67459683	sca9	RF_1291	-	cell surface antigen-like protein Sca9
1292	 35.65	0	1377524..1377739	+	71	67459684	infA	RF_1292	-	translation initiation factor IF-1
1293	 34.97	0	1377751..1378362	+	203	67459685	maf	RF_1293	-	Maf-like protein
1294	 32.18	0	1378521..1378952	-	143	67459686	dksA	RF_1294	-	DnaK suppressor protein
1295	 30.17	0	1379060..1379977	-	305	67459687	xerC	RF_1295	-	site-specific tyrosine recombinase XerC
1296	 26.67	-1	1380148..1380612	+	154	67459688	-	RF_1296	-	phasin family protein
1297	 31.84	0	1380825..1381427	-	200	67459689	-	RF_1297	-	phospholipase D (PLD) superfamily protein
1298	 32.02	0	1381573..1383324	-	583	67459690	phaC	RF_1298	-	Poly(3-hydroxyalkanoate) synthetase
1299	 36.51	+1	1383649..1385127	-	492	67459691	ubiD	RF_1299	-	UbiD family decarboxylase
1300	 28.57	0	1385269..1386843	-	524	67459692	surA	RF_1300	-	parvulin-like peptidyl-prolyl isomerase
1301	 38.99	+1	1387254..1387571	-	105	67459693	-	RF_1301	-	Outer memberane protein rOmpA
1302	 40.88	+2	1387513..1388082	-	189	67459694	-	RF_1302	-	Outer memberane protein rOmpA
1303	 41.18	+2	1388526..1389035	+	169	67459695	-	RF_1303	-	hypothetical protein
1304	 37.13	+1	1389066..1389986	-	306	67459696	-	RF_1304	-	Outer memberane protein rOmpA
1305	 40.50	+2	1390010..1391782	-	590	67459697	-	RF_1305	-	Outer memberane protein rOmpA
1306	 32.11	0	1392427..1393569	-	380	67459698	-	RF_1306	-	ankyrin repeat-containing protein
1307	 38.43	+1	1393984..1396221	-	745	67459699	ftsK	RF_1307	-	cell division protein FtsK-like protein
1308	 34.97	0	1396264..1397238	-	324	67459700	fic	RF_1308	-	Fic
1309	 36.67	+1	1397362..1398141	+	259	67459701	map	RF_1309	-	methionine aminopeptidase
1310	 30.13	0	1398522..1398989	+	155	67459702	radC	RF_1310	-	DNA repair protein RadC
1311	 32.11	0	1399093..1400076	+	327	67459703	mraY2	RF_1311	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
1312	 29.63	0	1400073..1400396	+	107	67459704	-	RF_1312	-	hypothetical protein
1313	 34.14	0	1400827..1401696	-	289	67459705	-	RF_1313	-	hypothetical protein
1314	 34.50	0	1401994..1402677	-	227	67459706	-	RF_1314	-	putative outer surface protein
1315	 32.42	0	1402802..1403131	-	109	67459707	fdxA	RF_1315	-	ferredoxin
1316	 29.87	0	1403162..1403479	-	105	67459708	-	RF_1316	-	transcriptional regulator
1317	 27.10	-1	1403492..1403812	-	106	67459709	-	RF_1317	-	hypothetical protein
1318	 31.89	0	1403935..1404627	-	230	67459710	ccmC	RF_1318	-	Heme exporter protein C
1319	 31.87	0	1404844..1405323	-	159	67459711	-	RF_1319	-	cytosine deaminase
1320	 30.84	0	1405304..1406224	-	306	67459712	-	RF_1320	-	cation diffusion facilitator family transporter
1321	 44.17	+2	1406412..1406891	+	159	67459713	omp	RF_1321	-	17 kDa surface antigen precursor
1322	 34.41	0	1407055..1407519	+	154	67459714	-	RF_1322	-	hypothetical protein
1323	 33.05	0	1407755..1408456	+	233	67459715	znuC	RF_1323	-	Zinc ABC transporter ATP-binding protein
1324	 35.95	+1	1408459..1411326	-	955	67459716	uvrA	RF_1324	-	excinuclease ABC subunit A
1325	 34.20	0	1411431..1411889	+	152	67459717	ssb	RF_1325	-	single-strand DNA-binding protein
1326	 34.06	0	1411901..1412731	+	276	67459718	-	RF_1326	-	DAP2-like protein
1327	 32.58	0	1412842..1413765	+	307	67459719	-	RF_1327	-	MFS type sugar transporter
1328	 31.97	0	1413889..1414182	+	97	67459720	-	RF_1328	-	MFS type sugar transporter
1329	 27.18	-1	1414209..1414517	-	102	67459721	-	RF_1329	-	hypothetical protein
1330	 26.22	-1	1414710..1415693	-	327	67459722	-	RF_1330	-	hypothetical protein
1331	 36.76	+1	1415741..1416061	-	106	67459723	-	RF_1331	-	hypothetical protein
1332	 23.90	-2	1416816..1417133	+	105	162022116	-	RF_1332	-	hypothetical protein
1333	 33.49	0	1417388..1419253	+	621	67459725	htpG	RF_1333	-	heat shock protein 90
1334	 34.70	0	1419438..1420682	+	414	67459726	hemA	RF_1334	-	5-aminolevulinate synthase
1335	 30.00	0	1421041..1421460	+	139	67459727	-	RF_1335	-	hypothetical protein
1336	 30.79	0	1421629..1422966	+	445	67459728	tig	RF_1336	-	trigger factor
1337	 37.56	+1	1423188..1424180	-	330	67459729	obgE	RF_1337	-	GTPase ObgE
1338	 36.85	+1	1424392..1425699	-	435	67459730	gltA	RF_1338	-	type II citrate synthase
1339	 30.85	0	1426057..1426338	-	93	67459731	-	RF_1339	-	transcriptional regulator
1340	 35.49	0	1426418..1427206	-	262	67459732	-	RF_1340	-	uracil-DNA glycosylase
1341	 35.75	0	1427223..1428380	+	385	67459733	-	RF_1341	-	ribosomal large subunit pseudouridine synthase D
1342	 30.38	0	1428449..1428685	+	78	67459734	-	RF_1342	-	hypothetical protein
1343	 30.00	0	1428669..1428938	+	89	67459735	-	RF_1343	-	growth inhibitor
1344	 32.58	0	1429027..1430610	+	527	67459736	trmB	RF_1344	-	bifunctional N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase/tRNA (m7G46) methyltransferase
1345	 35.64	0	1430576..1431661	-	361	67459737	-	RF_1345	-	putative translation factor protein
1346	 32.28	0	1431690..1433684	-	664	67459738	glyS	RF_1346	-	glycyl-tRNA synthetase subunit beta
1347	 39.54	+1	1433677..1434546	-	289	67459739	glyQ	RF_1347	-	glycyl-tRNA synthetase subunit alpha
1348	 36.35	+1	1434906..1435535	-	209	67459740	-	RF_1348	-	hypothetical protein
1349	 36.78	+1	1435538..1436785	-	415	67459741	proP6	RF_1349	-	proline/betaine transporter
1350	 25.79	-1	1437005..1437958	-	317	67459742	-	RF_1350	-	hypothetical protein
1351	 24.41	-1	1437968..1438606	-	212	67459743	-	RF_1351	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
