IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

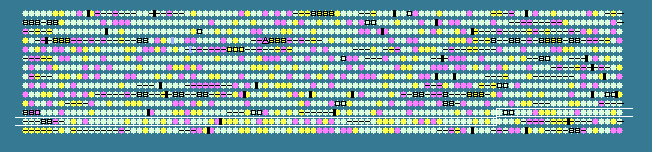

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1180	 28.69	0	1250739..1250975	+	78	67459572	-	RF_1180	-	hypothetical protein
1181	 31.28	0	1251058..1251300	-	80	67459573	-	RF_1181	-	transposase
1182	 33.54	0	1251375..1252328	-	317	67459574	-	RF_1182	-	transposase
1183	 29.26	0	1252388..1252951	-	187	67459575	-	RF_1183	-	(di)nucleoside polyphosphate hydrolase
1184	 33.33	0	1253135..1253398	+	87	67459576	-	RF_1184	-	hypothetical protein
1185	 31.44	0	1253451..1254350	-	299	67459577	tlyC	RF_1185	-	hemolysin C
1186	 25.79	-1	1254367..1254870	-	167	67459578	-	RF_1186	-	putative metalloprotease
1187	 38.40	+1	1255189..1256235	-	348	67459579	lipA	RF_1187	-	lipoyl synthase
1188	 37.91	+1	1256232..1257497	-	421	67459580	glyA	RF_1188	-	serine hydroxymethyltransferase
1189	 37.35	+1	1257757..1258404	-	215	67459581	-	RF_1189	-	Serine esterase
1190	 32.38	0	1258573..1258887	-	104	67459582	grxC2	RF_1190	-	glutaredoxin-like protein grla
1191	 32.40	0	1258940..1259581	+	213	67459583	nth	RF_1191	-	endonuclease III
1192	 31.76	0	1259554..1260507	-	317	67459584	-	RF_1192	-	hypothetical protein
1193	 24.17	-2	1260555..1260947	-	130	67459585	-	RF_1193	-	hypothetical protein
1194	 30.71	0	1261415..1262254	-	279	67459586	-	RF_1194	-	hypothetical protein
1195	 31.90	0	1262279..1263397	+	372	67459587	-	RF_1195	-	ABC-type transport systems periplasmic component
1196	 30.30	0	1263534..1263698	-	54	67459588	tatA	RF_1196	-	twin argininte translocase protein A
1197	 28.81	0	1263776..1264372	+	198	67459589	pgpA	RF_1197	-	phosphatidylglycerophosphatase A
1198	 30.82	0	1264448..1264765	+	105	67459590	rplU	RF_1198	-	50S ribosomal protein L21
1199	 39.85	+2	1264790..1265050	+	86	67459591	rpmA	RF_1199	-	50S ribosomal protein L27
1200	 30.02	0	1265565..1266770	+	401	67459592	lysC	RF_1200	-	aspartate kinase
1201	 31.92	0	1267188..1267682	+	164	67459593	-	RF_1201	-	hypothetical protein
1202	 31.63	0	1267691..1268101	+	136	67459594	-	RF_1202	-	hypothetical protein
1203	 30.60	0	1268101..1268613	+	170	67459595	-	RF_1203	-	hypothetical protein
1204	 33.33	0	1268717..1269670	+	317	67459596	-	RF_1204	-	transposase
1205	 31.28	0	1269745..1269987	+	80	67459597	-	RF_1205	-	transposase
1206	 27.39	-1	1270048..1270434	-	128	67459598	-	RF_1206	-	PilT domain-containing protein
1207	 28.67	0	1270422..1270700	-	92	67459599	-	RF_1207	-	transcriptional regulator
1208	 33.33	0	1270770..1272041	-	423	67459600	proP5	RF_1208	-	proline/betaine transporter
1209	 38.21	+1	1272264..1272386	-	40	67459601	-	RF_1209	-	hypothetical protein
1210	 32.39	0	1272364..1272681	-	105	67459602	-	RF_1210	-	hypothetical protein
1211	 22.06	-2	1272684..1272887	-	67	67459603	-	RF_1211	-	hypothetical protein
1212	 28.77	0	1273032..1273250	-	72	67459604	-	RF_1212	-	hypothetical protein
1213	 30.70	0	1273254..1278038	-	1594	67459605	-	RF_1213	-	NAD-specific glutamate dehydrogenase
1214	 34.10	0	1278102..1279544	+	480	67459606	trmE	RF_1214	-	tRNA modification GTPase TrmE
1215	 30.85	0	1279769..1281418	+	549	67459607	-	RF_1215	-	hypothetical protein
1216	 31.91	0	1282327..1282608	+	93	67459608	-	RF_1216	-	hypothetical protein
1217	 34.61	0	1282820..1283524	-	234	67459609	-	RF_1217	-	hypothetical protein
1218	 36.97	+1	1283490..1283819	-	109	67459610	-	RF_1218	-	hypothetical protein
1219	 28.87	0	1283945..1284280	-	111	67459611	-	RF_1219	-	multidrug ABC transporter
1220	 29.82	0	1284663..1285829	-	388	67459612	-	RF_1220	-	hypothetical protein
1221	 38.66	+1	1285898..1286929	+	343	67459613	recA	RF_1221	-	recombinase A
1222	 35.26	0	1286922..1287647	+	241	67459614	fabG	RF_1222	-	3-ketoacyl-(acyl-carrier-protein) reductase
1223	 32.11	0	1287813..1288058	+	81	162022118	acpP	RF_1223	-	acyl carrier protein
1224	 40.28	+2	1288094..1289374	+	426	67459616	fabF	RF_1224	-	3-oxoacyl-(acyl carrier protein) synthase II
1225	 31.22	0	1289523..1291364	+	613	67459617	uup	RF_1225	-	ABC transporter ATP-binding protein Uup
1226	 27.96	-1	1291445..1292542	+	365	67459618	-	RF_1226	-	hypothetical protein
1227	 30.35	0	1292823..1293425	-	200	67459619	-	RF_1227	-	ATPase
1228	 28.05	-1	1293674..1293976	-	100	67459620	-	RF_1228	-	ATPase
1229	 31.78	0	1294192..1294770	-	192	67459621	gmk	RF_1229	-	guanylate kinase
1230	 29.66	0	1294907..1295233	-	108	67459622	-	RF_1230	-	hypothetical protein
1231	 28.93	0	1295748..1296587	-	279	67459623	mreC	RF_1231	-	rod shape-determining protein MreC
1232	 39.96	+2	1296590..1297630	-	346	67459624	mreB	RF_1232	-	rod shape-determining protein MreB
1233	 22.77	-2	1297841..1298929	-	362	67459625	-	RF_1233	-	permease
1234	 36.31	+1	1299521..1299991	-	156	67459626	pal	RF_1234	-	peptidoglycan-associated lipoprotein precursor
1235	 37.63	+1	1300334..1301287	-	317	67459627	fabH	RF_1235	-	3-oxoacyl-(acyl carrier protein) synthase III
1236	 36.32	+1	1301301..1301501	-	66	67459628	rpmF	RF_1236	-	50S ribosomal protein L32
1237	 31.22	0	1301597..1302070	+	157	67459629	-	RF_1237	-	hypothetical protein
1238	 35.53	0	1302255..1303166	+	303	67459630	ftsY	RF_1238	-	Signal recognition particle-docking protein FtsY
1239	 34.45	0	1303312..1306080	+	922	67459631	polA	RF_1239	-	DNA polymerase I
1240	 27.49	-1	1306384..1306725	+	113	67459632	-	RF_1240	-	HicB family protein
1241	 38.77	+1	1306766..1307317	+	183	67459633	-	RF_1241	-	S-adenosylmethionine synthetase MetK
1242	 41.07	+2	1307508..1307882	+	124	67459634	-	RF_1242	-	S-adenosylmethionine synthetase MetK
1243	 29.00	0	1308002..1310332	+	776	67459635	-	RF_1243	-	hypothetical protein
1244	 35.57	0	1310602..1314225	-	1207	67459636	dnaE	RF_1244	-	DNA polymerase III subunit alpha
1245	 31.33	0	1314369..1315715	-	448	67459637	udg	RF_1245	-	UDP-glucose 6-dehydrogenase
1246	 26.97	-1	1315965..1318478	+	837	67459638	-	RF_1246	-	hypothetical protein
1247	 31.83	0	1318488..1319753	+	421	67459639	ampG3	RF_1247	-	AmpG protein
1248	 28.44	0	1319820..1320575	+	251	67459640	tatC	RF_1248	-	Sec-independent protein translocase protein TatC
1249	 33.80	0	1320553..1321830	+	425	67459641	serS	RF_1249	-	seryl-tRNA synthetase
1250	 27.50	-1	1322075..1324507	+	810	67459642	virB4_2	RF_1250	-	type IV secretion/conjugal transfer ATPase
1251	 35.70	0	1324896..1328396	+	1166	67459643	-	RF_1251	-	hypothetical protein
1252	 26.49	-1	1328532..1329305	+	257	67459644	terC	RF_1252	-	tellurium resistance protein TerC
1253	 31.65	0	1329349..1330062	+	237	67459645	-	RF_1253	-	hypothetical protein
1254	 33.20	0	1330230..1331759	+	509	67459646	-	RF_1254	-	hypothetical protein
1255	 29.45	0	1332023..1332640	+	205	67459647	nuoJ	RF_1255	-	NADH dehydrogenase subunit J
1256	 29.52	0	1332633..1332947	+	104	162022117	nuoK	RF_1256	-	NADH dehydrogenase subunit K
1257	 35.19	0	1332949..1334886	+	645	67459649	nuoL1	RF_1257	-	NADH dehydrogenase subunit L
1258	 33.06	0	1335037..1336518	+	493	67459650	nuoM	RF_1258	-	NADH dehydrogenase subunit M
1259	 33.88	0	1336540..1337265	+	241	67459651	ccmA	RF_1259	-	cytochrome c biogenesis protein CcmA
1260	 39.17	+1	1337687..1338166	-	159	67459652	nuoI	RF_1260	-	NADH dehydrogenase subunit I
1261	 36.67	+1	1338352..1339371	-	339	67459653	nuoH	RF_1261	-	NADH dehydrogenase subunit H
1262	 37.50	+1	1339540..1341555	-	671	67459654	nuoG	RF_1262	-	NADH dehydrogenase subunit G
1263	 33.85	0	1341558..1341947	-	129	67459655	-	RF_1263	-	hypothetical protein
1264	 36.41	+1	1342062..1344698	-	878	67459656	acnA	RF_1264	-	aconitate hydratase
1265	 35.10	0	1344920..1345258	-	112	67459657	atpC	RF_1265	-	F0F1 ATP synthase subunit epsilon
1266	 41.00	+2	1345390..1346916	-	508	67459658	atpD	RF_1266	-	F0F1 ATP synthase subunit beta
1267	 28.37	0	1346945..1347811	-	288	67459659	atpG	RF_1267	-	F0F1 ATP synthase subunit gamma
1268	 38.42	+1	1347991..1349523	-	510	67459660	atpA	RF_1268	-	F0F1 ATP synthase subunit alpha
1269	 24.86	-1	1349711..1350265	-	184	67459661	atpH	RF_1269	-	F0F1 ATP synthase subunit delta
1270	 36.45	+1	1350262..1351641	-	459	67459662	lpdA1	RF_1270	-	dihydrolipoamide dehydrogenase
1271	 33.33	0	1351783..1352211	-	142	67459663	-	RF_1271	-	Strees induced DNA-binding protein
1272	 30.11	0	1352283..1352561	-	92	67459664	-	RF_1272	-	cytotoxic translational repressor of toxin-antitoxin system RelE
1273	 32.88	0	1352552..1352770	-	72	67459665	-	RF_1273	-	hypothetical protein
1274	 32.97	0	1352962..1354068	+	368	67459666	-	RF_1274	-	hypothetical protein
1275	 31.09	0	1354149..1354949	-	266	67459667	blaD	RF_1275	-	Beta-lactamase class D
1276	 36.37	+1	1355126..1357498	-	790	67459668	mrcA	RF_1276	-	1A family penicillin-binding protein
1277	 31.27	0	1357514..1358773	-	419	67459669	-	RF_1277	-	ATPase
1278	 37.00	+1	1358842..1360179	-	445	67459670	miaB	RF_1278	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1279	 30.39	0	1360783..1360986	-	67	67459671	-	RF_1279	-	nucleotidyltransferase/HEPN domain-containing protein
32.00	MEAN

3.85	STD DEV
