IslandPath Analysis: Rickettsia felis URRWXCal2

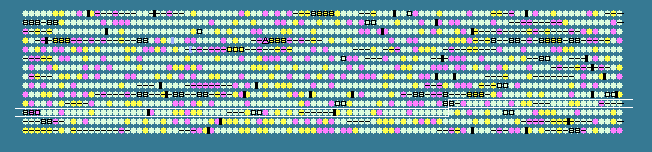

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1072	 33.86	0	1139405..1140157	-	250	67459464	-	RF_1072	-	transposase
1073	 34.79	0	1140508..1141332	-	274	67459465	dapD	RF_1073	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1074	 25.75	-1	1141408..1142040	+	210	67459466	-	RF_1074	-	hypothetical protein
1075	 32.78	0	1142318..1142677	-	119	67459467	trbC	RF_1075	-	VirB2 protein
1076	 33.93	0	1142833..1143669	-	278	67459468	coxC	RF_1076	-	cytochrome c oxidase subunit III
1077	 30.12	0	1144392..1145045	-	217	67459469	coq7	RF_1077	-	ubiquinone biosynthesis protein Coq7
1078	 26.29	-1	1145074..1146039	-	321	67459470	holA	RF_1078	-	DNA polymerase III subunit delta
1079	 29.11	0	1146047..1146520	-	157	67459471	-	RF_1079	-	hypothetical protein
1080	 29.31	0	1146632..1147054	+	140	67459472	-	RF_1080	-	hypothetical protein
1081	 31.94	0	1147207..1147851	-	214	67459473	-	RF_1081	-	ankyrin repeat-containing protein
1082	 28.24	0	1147946..1148338	-	130	67459474	-	RF_1082	-	hypothetical protein
1083	 32.93	0	1148659..1150152	-	497	67459475	-	RF_1083	-	heat shock protease
1084	 38.85	+1	1150216..1152099	+	627	67459476	dnaK	RF_1084	-	molecular chaperone DnaK
1085	 38.80	+1	1152252..1153367	+	371	67459477	dnaJ	RF_1085	-	DnaJ protein
1086	 34.72	0	1153603..1153818	+	71	67459478	chaB	RF_1086	-	cation transport regulator ChaB
1087	 29.07	0	1154205..1154579	+	124	67459479	-	RF_1087	-	ankyrin repeat-containing protein
1088	 35.19	0	1155128..1155883	+	251	67459480	-	RF_1088	-	hypothetical protein
1089	 33.03	0	1156040..1157680	+	546	67459481	recN	RF_1089	-	DNA repair protein RecN
1090	 34.70	0	1157818..1158843	+	341	67459482	-	RF_1090	-	thermostable carboxypeptidase
1091	 31.68	0	1158782..1159327	+	181	67459483	-	RF_1091	-	thermostable carboxypeptidase
1092	 37.36	+1	1159486..1162437	+	983	67459484	kgd	RF_1092	-	alpha-ketoglutarate decarboxylase
1093	 38.06	+1	1162668..1163873	+	401	67459485	sucB	RF_1093	-	dihydrolipoamide acetyltransferase
1094	 33.57	0	1164047..1164463	+	138	67459486	-	RF_1094	-	6-pyruvoyl tetrahydropterin synthase
1095	 32.26	0	1164466..1164930	+	154	67459487	cutA	RF_1095	-	periplasmic divalent cation tolerance protein
1096	 35.17	0	1164971..1166170	+	399	67459488	gltP	RF_1096	-	Na+/H+-dicarboxylate symporters
1097	 27.18	-1	1166444..1167190	+	248	67459489	-	RF_1097	-	hypothetical protein
1098	 31.99	0	1167418..1168161	+	247	67459490	-	RF_1098	-	hypothetical protein
1099	 30.97	0	1168895..1169698	-	267	67459491	-	RF_1099	-	ankyrin repeat-containing protein
1100	 31.70	0	1169695..1170855	-	386	67459492	hemN	RF_1100	-	coproporphyrinogen III oxidase
1101	 30.19	0	1170869..1171027	-	52	67459493	-	RF_1101	-	transposase
1102	 26.80	-1	1171015..1171473	-	152	67459494	-	RF_1102	-	transposase
1103	 28.33	0	1171612..1171911	-	99	67459495	-	RF_1103	-	transposase
1104	 31.84	0	1172143..1173819	+	558	67459496	-	RF_1104	-	prolyl endopeptidase precursor
1105	 33.33	0	1173871..1174299	+	142	67459497	-	RF_1105	-	prolyl endopeptidase precursor
1106	 34.77	0	1174750..1176213	-	487	67459498	ffh	RF_1106	-	Signal recognition particle protein
1107	 26.42	-1	1176477..1177271	-	264	67459499	holB	RF_1107	-	DNA polymerase III subunit delta'
1108	 32.13	0	1177570..1177902	-	110	67459500	hupA	RF_1108	-	DNA-binding protein HU
1109	 32.71	0	1178392..1181418	+	1008	67459501	acrF	RF_1109	-	hydrophobe/amphiphile efflux-1 HAE1 family protein
1110	 29.11	0	1181505..1181741	+	78	67459502	-	RF_1110	-	hypothetical protein
1111	 32.92	0	1181869..1182591	-	240	67459503	-	RF_1111	-	hypothetical protein
1112	 38.82	+1	1182644..1182880	+	78	67459504	-	RF_1112	-	hypothetical protein
1113	 30.84	0	1182880..1183320	+	146	67459505	-	RF_1113	-	hypothetical protein
1114	 32.13	0	1183379..1183627	-	82	67459506	-	RF_1114	-	hypothetical protein
1115	 32.93	0	1183735..1183980	-	81	67459507	-	RF_1115	-	hypothetical protein
1116	 28.74	0	1184069..1184329	-	86	67459508	-	RF_1116	-	hypothetical protein
1117	 29.35	0	1184384..1185562	+	392	67459509	-	RF_1117	-	hypothetical protein
1118	 33.63	0	1185600..1186283	-	227	67459510	rrmJ	RF_1118	-	ribosomal RNA large subunit methyltransferase J
1119	 28.66	0	1186280..1186750	-	156	67459511	nusB	RF_1119	-	transcription antitermination protein NusB
1120	 32.96	0	1187015..1188088	+	357	67459512	-	RF_1120	-	membrane-associated zinc metalloprotease
1121	 32.68	0	1188336..1190642	+	768	67459513	omp1	RF_1121	-	Outer membrane protein omp1
1122	 26.02	-1	1191226..1191963	+	245	67459514	-	RF_1122	-	hypothetical protein
1123	 30.88	0	1192087..1192290	-	67	67459515	-	RF_1123	-	hypothetical protein
1124	 34.10	0	1192534..1194093	+	519	67459516	emrB	RF_1124	-	multidrug resistance protein B
1125	 29.63	0	1194077..1194400	+	107	67459517	mnhE	RF_1125	-	putative monovalent cation/H+ antiporter subunit E
1126	 37.17	+1	1194409..1195137	+	242	67459518	pyrH	RF_1126	-	uridylate kinase
1127	 36.90	+1	1195454..1196014	+	186	67459519	frr	RF_1127	-	ribosome recycling factor
1128	 28.38	0	1196200..1196502	+	100	67459520	gatC	RF_1128	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1129	 38.39	+1	1196505..1197986	+	493	67459521	gatA	RF_1129	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1130	 35.54	0	1197989..1199440	+	483	67459522	gatB	RF_1130	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1131	 31.27	0	1199624..1200349	+	241	67459523	yqiX	RF_1131	-	amino acid ABC transporter substrate-binding protein
1132	 28.99	0	1200334..1200816	+	160	67459524	-	RF_1132	-	hypothetical protein
1133	 31.03	0	1200824..1201561	+	245	67459525	dapB	RF_1133	-	dihydrodipicolinate reductase
1134	 33.76	0	1201607..1202317	+	236	67459526	-	RF_1134	-	integral membrane protein
1135	 34.88	0	1202790..1203953	+	387	67459527	-	RF_1135	-	hypothetical protein
1136	 29.68	0	1204059..1204907	+	282	67459528	-	RF_1136	-	hypothetical protein
1137	 32.10	0	1205230..1206363	+	377	67459529	-	RF_1137	-	penicillin acylase
1138	 37.44	+1	1206421..1208223	-	600	67459530	aspS	RF_1138	-	aspartyl-tRNA synthetase
1139	 33.33	0	1208405..1209358	+	317	67459531	-	RF_1139	-	transposase
1140	 30.86	0	1209433..1209675	+	80	67459532	-	RF_1140	-	transposase
1141	 28.08	-1	1209698..1210078	-	126	67459533	-	RF_1141	-	hypothetical protein
1142	 34.08	0	1210164..1210964	-	266	67459534	-	RF_1142	-	chromosome partitioning protein
1143	 37.51	+1	1211145..1212653	-	502	67459535	pepA	RF_1143	-	leucyl aminopeptidase
1144	 31.96	0	1212811..1213974	+	387	67459536	-	RF_1144	-	hypothetical protein
1145	 36.71	+1	1214318..1218436	-	1372	67459537	rpoC	RF_1145	-	DNA-directed RNA polymerase subunit beta'
1146	 35.13	0	1218639..1222760	-	1373	67459538	rpoB	RF_1146	-	DNA-directed RNA polymerase subunit beta
1147	 38.10	+1	1223704..1224081	-	125	67459539	rplL	RF_1147	-	50S ribosomal protein L7/L12
1148	 34.12	0	1224276..1224785	-	169	67459540	rplJ	RF_1148	-	50S ribosomal protein L10
1149	 33.06	0	1224896..1225615	-	239	67459541	rplA	RF_1149	-	50S ribosomal protein L1
1150	 33.33	0	1225621..1226058	-	145	67459542	rplK	RF_1150	-	50S ribosomal protein L11
1151	 31.95	0	1226264..1226842	-	192	67459543	nusG	RF_1151	-	transcription antitermination protein NusG
1152	 28.96	0	1226858..1227154	-	98	67459544	secE	RF_1152	-	preprotein translocase subunit SecE
1153	 36.62	+1	1227493..1229592	-	699	162022120	fusA	RF_1153	-	elongation factor G
1154	 35.00	0	1229609..1230088	-	159	67459546	rpsG	RF_1154	-	30S ribosomal protein S7
1155	 40.00	+2	1230115..1230504	-	129	162022119	rpsL	RF_1155	-	30S ribosomal protein S12
1156	 30.14	0	1230665..1231321	-	218	67459548	yqiY	RF_1156	-	amino acid ABC transporter permease
1157	 32.22	0	1231547..1231816	-	89	67459549	-	RF_1157	-	hypothetical protein
1158	 34.90	0	1231926..1232372	-	148	67459550	-	RF_1158	-	hypothetical protein
1159	 42.49	+2	1232807..1234597	-	596	67459551	sdhA	RF_1159	-	succinate dehydrogenase flavoprotein subunit
1160	 26.81	-1	1234751..1234888	-	45	67459552	-	RF_1160	-	hypothetical protein
1161	 30.85	0	1234889..1235251	-	120	67459553	sdhD	RF_1161	-	succinate dehydrogenase hydrophobic membrane anchor protein
1162	 30.14	0	1235241..1236116	-	291	67459554	-	RF_1162	-	nucleotidyltransferase/HEPN domain-containing protein
1163	 33.87	0	1236134..1236508	-	124	67459555	sdhC	RF_1163	-	succinate dehydrogenase cytochrome b-556 subunit
1164	 35.00	0	1236685..1237224	-	179	67459556	-	RF_1164	-	hypothetical protein
1165	 27.64	-1	1237290..1237412	-	40	67459557	-	RF_1165	-	sulfurtransferase
1166	 33.01	0	1237553..1239094	-	513	67459558	htrA	RF_1166	-	periplasmic serine protease
1167	 33.33	0	1239096..1239956	-	286	67459559	hflC2	RF_1167	-	membrane protease subunit stomatin/prohibitin-like protein
1168	 33.62	0	1240142..1241182	-	346	67459560	hflK	RF_1168	-	protease activity modulator HflK
1169	 31.87	0	1241282..1242238	+	318	67459561	mrp	RF_1169	-	Mrp protein
1170	 34.43	0	1242238..1243422	+	394	67459562	-	RF_1170	-	hypothetical protein
1171	 28.94	0	1243410..1243682	+	90	67459563	-	RF_1171	-	nucleotidyltransferase substrate binding protein
32.00	MEAN

3.85	STD DEV
