IslandPath Analysis: Rickettsia felis URRWXCal2

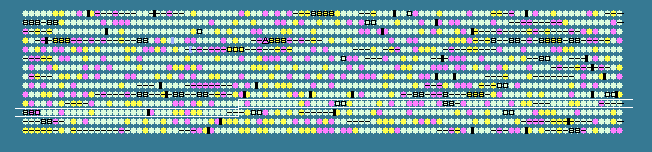

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.00   STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1037	 33.26	0	1099926..1101362	-	478	67459429	murC	RF_1037	-	UDP-N-acetylmuramate--L-alanine ligase
1038	 27.86	-1	1101532..1102755	-	407	67459430	-	RF_1038	-	hypothetical protein
1039	 32.92	0	1102810..1103052	+	80	67459431	bolA1	RF_1039	-	morphology/transcriptional regulatory  protein BolA
1040	 28.92	0	1103049..1103252	+	67	67459432	-	RF_1040	-	hypothetical protein
1041	 30.69	0	1103257..1103445	-	62	67459433	-	RF_1041	-	hypothetical protein
1042	 33.01	0	1103414..1103719	-	101	67459434	-	RF_1042	-	hypothetical protein
1043	 29.29	0	1103692..1104087	-	131	67459435	-	RF_1043	-	hypothetical protein
1044	 31.93	0	1104190..1105257	-	355	67459436	emrA	RF_1044	-	multidrug resistance protein A
1045	 32.03	0	1105251..1106018	-	255	67459437	pssA	RF_1045	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1046	 34.34	0	1106335..1107030	-	231	67459438	psd	RF_1046	-	phosphatidylserine decarboxylase
1047	 40.88	+2	1107063..1107380	-	105	67459439	-	RF_1047	-	hypothetical protein
1048	 27.44	-1	1107620..1108366	-	248	67459440	suhB	RF_1048	-	extragenic suppressor protein SuhB
1049	 31.22	0	1108556..1109122	-	188	67459441	efp	RF_1049	-	elongation factor P
1050	 31.56	0	1109198..1110550	+	450	67459442	pleD	RF_1050	-	response regulator PleD
1051	 35.39	0	1110575..1111060	+	161	67459443	nudH	RF_1051	-	dinucleoside polyphosphate hydrolase
1052	 28.28	0	1111222..1111755	-	177	67459444	-	RF_1052	-	hypothetical protein
1053	 31.28	0	1112045..1112287	-	80	67459445	-	RF_1053	-	transposase
1054	 34.13	0	1112362..1113114	-	250	67459446	-	RF_1054	-	transposase
1055	 38.52	+1	1113461..1116181	-	906	67459447	gyrA	RF_1055	-	DNA gyrase subunit A
1056	 29.94	0	1117744..1118097	-	117	67459448	-	RF_1056	-	hypothetical protein
1057	 35.16	0	1118141..1119943	-	600	67459449	atm1	RF_1057	-	multidrug resistance protein Atm1
1058	 30.36	0	1119972..1120274	-	100	67459450	-	RF_1058	-	excinuclease ABC subunit C
1059	 34.95	0	1120433..1120741	-	102	67459451	grxC1	RF_1059	-	GrxC family glutaredoxin
1060	 38.37	+1	1120812..1122797	+	661	67459452	uvrB	RF_1060	-	excinuclease ABC subunit B
1061	 33.16	0	1122962..1123543	-	193	67459453	rnhB	RF_1061	-	ribonuclease HII
1062	 28.14	-1	1123754..1124254	+	166	67459454	hscB	RF_1062	-	co-chaperone HscB
1063	 32.34	0	1124245..1126158	+	637	67459455	hscA	RF_1063	-	chaperone protein HscA
1064	 35.10	0	1126223..1126561	+	112	67459456	fdxB	RF_1064	-	ferredoxin
1065	 25.21	-1	1126574..1127644	+	356	67459457	-	RF_1065	-	hypothetical protein
1066	 28.41	0	1127601..1128575	+	324	67459458	imp	RF_1066	-	TRAP-type uncharacterized transport system
1067	 27.74	-1	1128599..1129045	+	148	67459459	uspA	RF_1067	-	universal stress protein UspA
1068	 34.55	0	1129497..1134005	-	1502	67459460	sca8	RF_1068	-	cell surface antigen-like protein Sca8
1069	 34.11	0	1134697..1137021	+	774	67459461	pbpC	RF_1069	-	bifunctional penicillin-binding protein 1C
1070	 28.29	0	1137036..1138919	+	627	67459462	-	RF_1070	-	hypothetical protein
1071	 30.45	0	1139088..1139330	-	80	67459463	-	RF_1071	-	transposase
1072	 33.86	0	1139405..1140157	-	250	67459464	-	RF_1072	-	transposase
1073	 34.79	0	1140508..1141332	-	274	67459465	dapD	RF_1073	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1074	 25.75	-1	1141408..1142040	+	210	67459466	-	RF_1074	-	hypothetical protein
1075	 32.78	0	1142318..1142677	-	119	67459467	trbC	RF_1075	-	VirB2 protein
1076	 33.93	0	1142833..1143669	-	278	67459468	coxC	RF_1076	-	cytochrome c oxidase subunit III
1077	 30.12	0	1144392..1145045	-	217	67459469	coq7	RF_1077	-	ubiquinone biosynthesis protein Coq7
1078	 26.29	-1	1145074..1146039	-	321	67459470	holA	RF_1078	-	DNA polymerase III subunit delta
1079	 29.11	0	1146047..1146520	-	157	67459471	-	RF_1079	-	hypothetical protein
1080	 29.31	0	1146632..1147054	+	140	67459472	-	RF_1080	-	hypothetical protein
1081	 31.94	0	1147207..1147851	-	214	67459473	-	RF_1081	-	ankyrin repeat-containing protein
1082	 28.24	0	1147946..1148338	-	130	67459474	-	RF_1082	-	hypothetical protein
1083	 32.93	0	1148659..1150152	-	497	67459475	-	RF_1083	-	heat shock protease
1084	 38.85	+1	1150216..1152099	+	627	67459476	dnaK	RF_1084	-	molecular chaperone DnaK
1085	 38.80	+1	1152252..1153367	+	371	67459477	dnaJ	RF_1085	-	DnaJ protein
1086	 34.72	0	1153603..1153818	+	71	67459478	chaB	RF_1086	-	cation transport regulator ChaB
1087	 29.07	0	1154205..1154579	+	124	67459479	-	RF_1087	-	ankyrin repeat-containing protein
1088	 35.19	0	1155128..1155883	+	251	67459480	-	RF_1088	-	hypothetical protein
1089	 33.03	0	1156040..1157680	+	546	67459481	recN	RF_1089	-	DNA repair protein RecN
1090	 34.70	0	1157818..1158843	+	341	67459482	-	RF_1090	-	thermostable carboxypeptidase
1091	 31.68	0	1158782..1159327	+	181	67459483	-	RF_1091	-	thermostable carboxypeptidase
1092	 37.36	+1	1159486..1162437	+	983	67459484	kgd	RF_1092	-	alpha-ketoglutarate decarboxylase
1093	 38.06	+1	1162668..1163873	+	401	67459485	sucB	RF_1093	-	dihydrolipoamide acetyltransferase
1094	 33.57	0	1164047..1164463	+	138	67459486	-	RF_1094	-	6-pyruvoyl tetrahydropterin synthase
1095	 32.26	0	1164466..1164930	+	154	67459487	cutA	RF_1095	-	periplasmic divalent cation tolerance protein
1096	 35.17	0	1164971..1166170	+	399	67459488	gltP	RF_1096	-	Na+/H+-dicarboxylate symporters
1097	 27.18	-1	1166444..1167190	+	248	67459489	-	RF_1097	-	hypothetical protein
1098	 31.99	0	1167418..1168161	+	247	67459490	-	RF_1098	-	hypothetical protein
1099	 30.97	0	1168895..1169698	-	267	67459491	-	RF_1099	-	ankyrin repeat-containing protein
1100	 31.70	0	1169695..1170855	-	386	67459492	hemN	RF_1100	-	coproporphyrinogen III oxidase
1101	 30.19	0	1170869..1171027	-	52	67459493	-	RF_1101	-	transposase
1102	 26.80	-1	1171015..1171473	-	152	67459494	-	RF_1102	-	transposase
1103	 28.33	0	1171612..1171911	-	99	67459495	-	RF_1103	-	transposase
1104	 31.84	0	1172143..1173819	+	558	67459496	-	RF_1104	-	prolyl endopeptidase precursor
1105	 33.33	0	1173871..1174299	+	142	67459497	-	RF_1105	-	prolyl endopeptidase precursor
1106	 34.77	0	1174750..1176213	-	487	67459498	ffh	RF_1106	-	Signal recognition particle protein
1107	 26.42	-1	1176477..1177271	-	264	67459499	holB	RF_1107	-	DNA polymerase III subunit delta'
1108	 32.13	0	1177570..1177902	-	110	67459500	hupA	RF_1108	-	DNA-binding protein HU
1109	 32.71	0	1178392..1181418	+	1008	67459501	acrF	RF_1109	-	hydrophobe/amphiphile efflux-1 HAE1 family protein
1110	 29.11	0	1181505..1181741	+	78	67459502	-	RF_1110	-	hypothetical protein
1111	 32.92	0	1181869..1182591	-	240	67459503	-	RF_1111	-	hypothetical protein
1112	 38.82	+1	1182644..1182880	+	78	67459504	-	RF_1112	-	hypothetical protein
1113	 30.84	0	1182880..1183320	+	146	67459505	-	RF_1113	-	hypothetical protein
1114	 32.13	0	1183379..1183627	-	82	67459506	-	RF_1114	-	hypothetical protein
1115	 32.93	0	1183735..1183980	-	81	67459507	-	RF_1115	-	hypothetical protein
1116	 28.74	0	1184069..1184329	-	86	67459508	-	RF_1116	-	hypothetical protein
1117	 29.35	0	1184384..1185562	+	392	67459509	-	RF_1117	-	hypothetical protein
1118	 33.63	0	1185600..1186283	-	227	67459510	rrmJ	RF_1118	-	ribosomal RNA large subunit methyltransferase J
1119	 28.66	0	1186280..1186750	-	156	67459511	nusB	RF_1119	-	transcription antitermination protein NusB
1120	 32.96	0	1187015..1188088	+	357	67459512	-	RF_1120	-	membrane-associated zinc metalloprotease
1121	 32.68	0	1188336..1190642	+	768	67459513	omp1	RF_1121	-	Outer membrane protein omp1
1122	 26.02	-1	1191226..1191963	+	245	67459514	-	RF_1122	-	hypothetical protein
1123	 30.88	0	1192087..1192290	-	67	67459515	-	RF_1123	-	hypothetical protein
1124	 34.10	0	1192534..1194093	+	519	67459516	emrB	RF_1124	-	multidrug resistance protein B
1125	 29.63	0	1194077..1194400	+	107	67459517	mnhE	RF_1125	-	putative monovalent cation/H+ antiporter subunit E
1126	 37.17	+1	1194409..1195137	+	242	67459518	pyrH	RF_1126	-	uridylate kinase
1127	 36.90	+1	1195454..1196014	+	186	67459519	frr	RF_1127	-	ribosome recycling factor
1128	 28.38	0	1196200..1196502	+	100	67459520	gatC	RF_1128	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1129	 38.39	+1	1196505..1197986	+	493	67459521	gatA	RF_1129	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1130	 35.54	0	1197989..1199440	+	483	67459522	gatB	RF_1130	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1131	 31.27	0	1199624..1200349	+	241	67459523	yqiX	RF_1131	-	amino acid ABC transporter substrate-binding protein
1132	 28.99	0	1200334..1200816	+	160	67459524	-	RF_1132	-	hypothetical protein
1133	 31.03	0	1200824..1201561	+	245	67459525	dapB	RF_1133	-	dihydrodipicolinate reductase
1134	 33.76	0	1201607..1202317	+	236	67459526	-	RF_1134	-	integral membrane protein
1135	 34.88	0	1202790..1203953	+	387	67459527	-	RF_1135	-	hypothetical protein
1136	 29.68	0	1204059..1204907	+	282	67459528	-	RF_1136	-	hypothetical protein
32.00	MEAN

3.85	STD DEV
