IslandPathversion 1.0

IslandPath Analysis: Rickettsia felis URRWXCal2

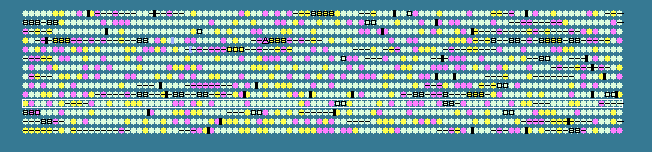

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.00 STD DEV: 3.85
Rickettsia felis URRWXCal2, complete genome - 1..1485148
1400 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1001	 39.44	+1	1063533..1064640	+	368	67459393	prfB	RF_1001	-	peptide chain release factor 2
1002	 28.42	0	1064650..1065666	+	338	67459394	-	RF_1002	-	hypothetical protein
1003	 29.20	0	1065752..1066597	+	281	67459395	-	RF_1003	-	hypothetical protein
1004	 30.32	0	1066682..1067146	-	154	67459396	hspC2	RF_1004	-	small heat shock protein
1005	 26.98	-1	1067178..1067618	-	146	67459397	hspC1	RF_1005	-	small heat shock protein
1006	 32.67	0	1067740..1068192	-	150	67459398	-	RF_1006	-	hypothetical protein
1007	 40.48	+2	1068415..1069170	-	251	67459399	fbcH	RF_1007	-	cytochrome c1, heme protein precursor
1008	 29.43	0	1069305..1069739	-	144	67459400	-	RF_1008	-	endo/excinuclease amino terminal domain-containing protein
1009	 38.51	+1	1069787..1070983	-	398	67459401	petB	RF_1009	-	cytochrome b
1010	 43.07	+2	1070990..1071523	-	177	67459402	petA	RF_1010	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1011	 32.68	0	1071545..1072003	-	152	67459403	-	RF_1011	-	hypothetical protein
1012	 24.54	-1	1072080..1072727	-	215	67459404	ccmB	RF_1012	-	Heme exporter protein B
1013	 31.10	0	1072720..1073748	-	342	67459405	mnhB	RF_1013	-	putative monovalent cation/H+ antiporter subunit B
1014	 34.42	0	1073813..1074181	-	122	67459406	-	RF_1014	-	putative monovalent cation/H+ antiporter subunit G
1015	 35.84	0	1074245..1075720	-	491	67459407	icd	RF_1015	-	isocitrate dehydrogenase
1016	 30.78	0	1075863..1076411	-	182	67459408	-	RF_1016	-	hypothetical protein
1017	 29.41	0	1076572..1077183	-	203	67459409	-	RF_1017	-	hypothetical protein
1018	 41.75	+2	1077518..1079347	+	609	67459410	typA	RF_1018	-	GTP-binding protein TypA
1019	 38.63	+1	1079711..1080691	-	326	67459411	pdhB	RF_1019	-	pyruvate dehydrogenase subunit beta
1020	 37.61	+1	1080826..1081806	-	326	67459412	pdhA	RF_1020	-	pyruvate dehydrogenase e1 component, alpha subunit precursor
1021	 32.96	0	1081982..1082785	-	267	67459413	xth1	RF_1021	-	exodeoxyribonuclease III
1022	 29.20	0	1082799..1083983	-	394	67459414	pbpE	RF_1022	-	penicillin-binding protein 4*
1023	 28.98	0	1083988..1084905	-	305	67459415	rluA1	RF_1023	-	ribosomal large subunit pseudouridine synthase
1024	 30.77	0	1085135..1086148	-	337	67459416	coxW	RF_1024	-	cytochrome c oxidase assembly protein
1025	 31.76	0	1086391..1088427	-	678	67459417	rne	RF_1025	-	ribonuclease E
1026	 18.66	-2	1088854..1089255	+	133	67459418	-	RF_1026	-	hypothetical protein
1027	 27.91	-1	1089264..1090001	+	245	67459419	-	RF_1027	-	hypothetical protein
1028	 32.99	0	1090184..1091050	+	288	67459420	lpxC	RF_1028	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1029	 26.83	-1	1091059..1092135	-	358	67459421	-	RF_1029	-	hypothetical protein
1030	 37.50	+1	1092248..1092775	+	175	67459422	cycM	RF_1030	-	cytochrome c
1031	 32.91	0	1092759..1093232	+	157	67459423	-	RF_1031	-	hypothetical protein
1032	 27.63	-1	1093465..1095183	+	572	67459424	-	RF_1032	-	hypothetical protein
1033	 30.91	0	1095442..1096677	-	411	67459425	ftsA	RF_1033	-	cell division protein FtsA
1034	 28.61	0	1096805..1097608	-	267	67459426	ftsQ	RF_1034	-	cell division protein FtsQ
1035	 34.68	0	1097605..1098570	-	321	67459427	ddl	RF_1035	-	D-alanine--D-alanine ligase
1036	 33.67	0	1098696..1099583	-	295	67459428	murB	RF_1036	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1037	 33.26	0	1099926..1101362	-	478	67459429	murC	RF_1037	-	UDP-N-acetylmuramate--L-alanine ligase
1038	 27.86	-1	1101532..1102755	-	407	67459430	-	RF_1038	-	hypothetical protein
1039	 32.92	0	1102810..1103052	+	80	67459431	bolA1	RF_1039	-	morphology/transcriptional regulatory  protein BolA
1040	 28.92	0	1103049..1103252	+	67	67459432	-	RF_1040	-	hypothetical protein
1041	 30.69	0	1103257..1103445	-	62	67459433	-	RF_1041	-	hypothetical protein
1042	 33.01	0	1103414..1103719	-	101	67459434	-	RF_1042	-	hypothetical protein
1043	 29.29	0	1103692..1104087	-	131	67459435	-	RF_1043	-	hypothetical protein
1044	 31.93	0	1104190..1105257	-	355	67459436	emrA	RF_1044	-	multidrug resistance protein A
1045	 32.03	0	1105251..1106018	-	255	67459437	pssA	RF_1045	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1046	 34.34	0	1106335..1107030	-	231	67459438	psd	RF_1046	-	phosphatidylserine decarboxylase
1047	 40.88	+2	1107063..1107380	-	105	67459439	-	RF_1047	-	hypothetical protein
1048	 27.44	-1	1107620..1108366	-	248	67459440	suhB	RF_1048	-	extragenic suppressor protein SuhB
1049	 31.22	0	1108556..1109122	-	188	67459441	efp	RF_1049	-	elongation factor P
1050	 31.56	0	1109198..1110550	+	450	67459442	pleD	RF_1050	-	response regulator PleD
1051	 35.39	0	1110575..1111060	+	161	67459443	nudH	RF_1051	-	dinucleoside polyphosphate hydrolase
1052	 28.28	0	1111222..1111755	-	177	67459444	-	RF_1052	-	hypothetical protein
1053	 31.28	0	1112045..1112287	-	80	67459445	-	RF_1053	-	transposase
1054	 34.13	0	1112362..1113114	-	250	67459446	-	RF_1054	-	transposase
1055	 38.52	+1	1113461..1116181	-	906	67459447	gyrA	RF_1055	-	DNA gyrase subunit A
1056	 29.94	0	1117744..1118097	-	117	67459448	-	RF_1056	-	hypothetical protein
1057	 35.16	0	1118141..1119943	-	600	67459449	atm1	RF_1057	-	multidrug resistance protein Atm1
1058	 30.36	0	1119972..1120274	-	100	67459450	-	RF_1058	-	excinuclease ABC subunit C
1059	 34.95	0	1120433..1120741	-	102	67459451	grxC1	RF_1059	-	GrxC family glutaredoxin
1060	 38.37	+1	1120812..1122797	+	661	67459452	uvrB	RF_1060	-	excinuclease ABC subunit B
1061	 33.16	0	1122962..1123543	-	193	67459453	rnhB	RF_1061	-	ribonuclease HII
1062	 28.14	-1	1123754..1124254	+	166	67459454	hscB	RF_1062	-	co-chaperone HscB
1063	 32.34	0	1124245..1126158	+	637	67459455	hscA	RF_1063	-	chaperone protein HscA
1064	 35.10	0	1126223..1126561	+	112	67459456	fdxB	RF_1064	-	ferredoxin
1065	 25.21	-1	1126574..1127644	+	356	67459457	-	RF_1065	-	hypothetical protein
1066	 28.41	0	1127601..1128575	+	324	67459458	imp	RF_1066	-	TRAP-type uncharacterized transport system
1067	 27.74	-1	1128599..1129045	+	148	67459459	uspA	RF_1067	-	universal stress protein UspA
1068	 34.55	0	1129497..1134005	-	1502	67459460	sca8	RF_1068	-	cell surface antigen-like protein Sca8
1069	 34.11	0	1134697..1137021	+	774	67459461	pbpC	RF_1069	-	bifunctional penicillin-binding protein 1C
1070	 28.29	0	1137036..1138919	+	627	67459462	-	RF_1070	-	hypothetical protein
1071	 30.45	0	1139088..1139330	-	80	67459463	-	RF_1071	-	transposase
1072	 33.86	0	1139405..1140157	-	250	67459464	-	RF_1072	-	transposase
1073	 34.79	0	1140508..1141332	-	274	67459465	dapD	RF_1073	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1074	 25.75	-1	1141408..1142040	+	210	67459466	-	RF_1074	-	hypothetical protein
1075	 32.78	0	1142318..1142677	-	119	67459467	trbC	RF_1075	-	VirB2 protein
1076	 33.93	0	1142833..1143669	-	278	67459468	coxC	RF_1076	-	cytochrome c oxidase subunit III
1077	 30.12	0	1144392..1145045	-	217	67459469	coq7	RF_1077	-	ubiquinone biosynthesis protein Coq7
1078	 26.29	-1	1145074..1146039	-	321	67459470	holA	RF_1078	-	DNA polymerase III subunit delta
1079	 29.11	0	1146047..1146520	-	157	67459471	-	RF_1079	-	hypothetical protein
1080	 29.31	0	1146632..1147054	+	140	67459472	-	RF_1080	-	hypothetical protein
1081	 31.94	0	1147207..1147851	-	214	67459473	-	RF_1081	-	ankyrin repeat-containing protein
1082	 28.24	0	1147946..1148338	-	130	67459474	-	RF_1082	-	hypothetical protein
1083	 32.93	0	1148659..1150152	-	497	67459475	-	RF_1083	-	heat shock protease
1084	 38.85	+1	1150216..1152099	+	627	67459476	dnaK	RF_1084	-	molecular chaperone DnaK
1085	 38.80	+1	1152252..1153367	+	371	67459477	dnaJ	RF_1085	-	DnaJ protein
1086	 34.72	0	1153603..1153818	+	71	67459478	chaB	RF_1086	-	cation transport regulator ChaB
1087	 29.07	0	1154205..1154579	+	124	67459479	-	RF_1087	-	ankyrin repeat-containing protein
1088	 35.19	0	1155128..1155883	+	251	67459480	-	RF_1088	-	hypothetical protein
1089	 33.03	0	1156040..1157680	+	546	67459481	recN	RF_1089	-	DNA repair protein RecN
1090	 34.70	0	1157818..1158843	+	341	67459482	-	RF_1090	-	thermostable carboxypeptidase
1091	 31.68	0	1158782..1159327	+	181	67459483	-	RF_1091	-	thermostable carboxypeptidase
1092	 37.36	+1	1159486..1162437	+	983	67459484	kgd	RF_1092	-	alpha-ketoglutarate decarboxylase
1093	 38.06	+1	1162668..1163873	+	401	67459485	sucB	RF_1093	-	dihydrolipoamide acetyltransferase
1094	 33.57	0	1164047..1164463	+	138	67459486	-	RF_1094	-	6-pyruvoyl tetrahydropterin synthase
1095	 32.26	0	1164466..1164930	+	154	67459487	cutA	RF_1095	-	periplasmic divalent cation tolerance protein
1096	 35.17	0	1164971..1166170	+	399	67459488	gltP	RF_1096	-	Na+/H+-dicarboxylate symporters
1097	 27.18	-1	1166444..1167190	+	248	67459489	-	RF_1097	-	hypothetical protein
1098	 31.99	0	1167418..1168161	+	247	67459490	-	RF_1098	-	hypothetical protein
1099	 30.97	0	1168895..1169698	-	267	67459491	-	RF_1099	-	ankyrin repeat-containing protein
1100	 31.70	0	1169695..1170855	-	386	67459492	hemN	RF_1100	-	coproporphyrinogen III oxidase
32.00	MEAN

3.85	STD DEV
