IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

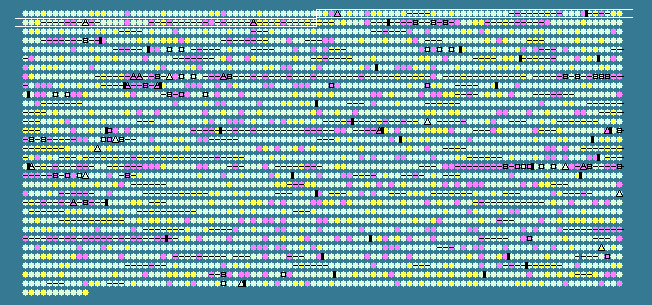

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
50	 70.75	0	57105..59357	+	750	146276108	-	Rsph17025_0050	-	ribonuclease R
51	 73.30	+1	59542..60807	+	421	146276109	-	Rsph17025_0051	-	lytic murein transglycosylase
52	 61.41	-1	60935..62380	+	481	146276110	-	Rsph17025_0052	-	hypothetical protein
53	 60.94	-2	62387..63346	-	319	146276111	-	Rsph17025_0053	-	integrase catalytic subunit
54	 66.67	0	63450..63587	+	45	146276112	-	Rsph17025_0054	-	hypothetical protein
55	 74.98	+1	63639..65249	-	536	146276113	-	Rsph17025_0055	-	hypothetical protein
56	 67.77	0	65319..65591	-	90	146276114	-	Rsph17025_0056	-	hypothetical protein
57	 67.34	0	65804..66544	+	246	146276115	-	Rsph17025_0057	-	hypothetical protein
58	 63.82	-1	66633..66878	+	81	146276116	-	Rsph17025_0058	-	hypothetical protein
59	 73.65	+1	66891..68078	+	395	146276117	-	Rsph17025_0059	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
60	 74.67	+1	68078..69076	+	332	146276118	-	Rsph17025_0060	-	tetraacyldisaccharide 4'-kinase
61	 70.77	0	69087..70232	-	381	146276119	-	Rsph17025_0061	-	L-carnitine dehydratase/bile acid-inducible protein F
62	 64.88	0	70229..70900	-	223	146276120	-	Rsph17025_0062	-	DSBA oxidoreductase
63	 71.00	0	70912..71442	-	176	146276121	-	Rsph17025_0063	-	hypothetical protein
64	 72.61	+1	71524..72633	+	369	146276122	-	Rsph17025_0064	-	A/G-specific adenine glycosylase
65	 67.61	0	72670..73947	+	425	146276123	-	Rsph17025_0065	-	alkane 1-monooxygenase
66	 66.22	0	74102..75220	-	372	146276124	-	Rsph17025_0066	-	DNA methylase N-4/N-6 domain-containing protein
67	 67.29	0	75309..75947	-	212	146276125	-	Rsph17025_0067	-	ribonuclease H
68	 74.51	+1	76173..76427	-	84	146276126	-	Rsph17025_0068	-	hypothetical protein
69	 73.43	+1	76424..76837	-	137	146276127	-	Rsph17025_0069	-	ribonuclease P protein component
70	 69.63	0	76859..76993	-	44	146276128	-	Rsph17025_0070	-	ribosomal protein L34
71	 70.30	0	77243..77902	+	219	146276129	-	Rsph17025_0071	-	ribosomal protein S16
72	 72.19	+1	77902..79314	+	470	146276130	-	Rsph17025_0072	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
73	 69.38	0	79371..80768	+	465	146276131	-	Rsph17025_0073	-	integral membrane sensor signal transduction histidine kinase
74	 66.59	0	80830..82218	-	462	146276132	-	Rsph17025_0074	-	dihydrolipoamide dehydrogenase
75	 68.44	0	82782..84302	-	506	146276133	-	Rsph17025_0076	-	dihydrolipoamide acetyltransferase
76	 65.05	0	84305..87268	-	987	146276134	kgd	Rsph17025_0077	-	alpha-ketoglutarate decarboxylase
77	 66.89	0	87324..88208	-	294	146276135	-	Rsph17025_0078	-	succinyl-CoA synthetase, alpha subunit
78	 64.99	0	88213..89406	-	397	146276136	sucC	Rsph17025_0079	-	succinyl-CoA synthetase subunit beta
79	 67.29	0	89636..90598	-	320	146276137	-	Rsph17025_0080	-	malate dehydrogenase
80	 67.07	0	90800..91537	+	245	146276138	-	Rsph17025_0081	-	hypothetical protein
81	 67.02	0	91624..92481	+	285	146276139	-	Rsph17025_0082	-	citrate (pro-3S)-lyase
82	 66.49	0	92490..93044	+	184	146276140	-	Rsph17025_0083	-	NnrU family protein
83	 64.22	-1	93041..93244	+	67	146276141	-	Rsph17025_0084	-	hypothetical protein
84	 66.86	0	93245..94276	+	343	146276142	-	Rsph17025_0085	-	dehydratase
85	 65.62	0	94492..94875	+	127	146276143	-	Rsph17025_0086	-	succinate dehydrogenase, cytochrome b subunit
86	 65.05	0	94887..95258	+	123	146276144	-	Rsph17025_0087	-	hypothetical protein
87	 68.05	0	95269..97071	+	600	146276145	sdhA	Rsph17025_0088	-	succinate dehydrogenase flavoprotein subunit
88	 73.83	+1	97071..97391	+	106	146276146	-	Rsph17025_0089	-	hypothetical protein
89	 70.33	0	97395..97667	+	90	146276147	-	Rsph17025_0090	-	hypothetical protein
90	 63.45	-1	97686..98462	+	258	146276148	sdhB	Rsph17025_0091	-	succinate dehydrogenase iron-sulfur subunit
91	 65.56	0	98514..98876	-	120	146276149	-	Rsph17025_0092	-	hypothetical protein
92	 71.58	0	98970..99620	-	216	146276150	-	Rsph17025_0093	-	GntR family transcriptional regulator
93	 70.45	0	99653..100339	-	228	146276151	-	Rsph17025_0094	-	hypothetical protein
94	 61.15	-2	100453..100833	+	126	146276152	-	Rsph17025_0095	-	hypothetical protein
95	 65.00	0	101961..102260	-	99	146276153	-	Rsph17025_0096	-	hypothetical protein
96	 73.92	+1	102650..103228	-	192	146276154	-	Rsph17025_0097	-	hypothetical protein
97	 61.90	-1	103498..104148	+	216	146276155	-	Rsph17025_0098	-	hypothetical protein
98	 70.83	0	104316..104771	-	151	146276156	-	Rsph17025_0099	-	hypothetical protein
99	 72.51	+1	104749..105159	-	136	146276157	-	Rsph17025_0100	-	hypothetical protein
100	 73.88	+1	105143..105655	-	170	146276158	-	Rsph17025_0101	-	hypothetical protein
101	 70.87	0	105663..106043	-	126	146276159	-	Rsph17025_0102	-	hypothetical protein
102	 66.27	0	106103..107122	-	339	146276160	-	Rsph17025_0103	-	hypothetical protein
103	 72.44	+1	107139..108524	-	461	146276161	-	Rsph17025_0104	-	peptidase S49
104	 69.06	0	108980..109522	-	180	146276162	-	Rsph17025_0105	-	hypothetical protein
105	 71.20	0	109519..109893	-	124	146276163	-	Rsph17025_0106	-	hypothetical protein
106	 69.86	0	110109..110672	-	187	146276164	-	Rsph17025_0107	-	hypothetical protein
107	 69.67	0	110665..110997	-	110	146276165	-	Rsph17025_0108	-	hypothetical protein
108	 62.54	-1	111019..111648	-	209	146276166	-	Rsph17025_0109	-	hypothetical protein
109	 63.01	-1	111658..112368	-	236	146276167	-	Rsph17025_0110	-	hypothetical protein
110	 70.15	0	112861..113577	-	238	146276168	-	Rsph17025_0111	-	hypothetical protein
111	 69.24	0	113577..114818	-	413	146276169	-	Rsph17025_0112	-	phage integrase family protein
112	 62.34	-1	114970..115431	-	153	146276170	-	Rsph17025_0113	-	hypothetical protein
113	 65.98	0	115782..117083	-	433	146276171	-	Rsph17025_0114	-	HlyD family type I secretion membrane fusion protein
114	 67.53	0	117080..118816	-	578	146276172	-	Rsph17025_0115	-	type I secretion system ATPase
115	 65.14	0	119025..119810	+	261	146276173	-	Rsph17025_0116	-	VacJ family lipoprotein
116	 66.99	0	119800..120423	+	207	146276174	-	Rsph17025_0117	-	toluene tolerance family protein
117	 69.37	0	120533..122899	-	788	146276175	-	Rsph17025_0118	-	1A family penicillin-binding protein
118	 61.06	-2	123062..123400	+	112	146276176	-	Rsph17025_0119	-	nitrogen regulatory protein P-II
119	 65.85	0	123428..124780	+	450	146276177	-	Rsph17025_0120	-	ammonium transporter
120	 66.75	0	124942..126162	-	406	146276178	-	Rsph17025_0121	-	aromatic amino acid aminotransferase
121	 69.49	0	126134..126982	-	282	146276179	-	Rsph17025_0122	-	rhodanese domain-containing protein
122	 62.45	-1	127075..127548	-	157	146276180	smpB	Rsph17025_0123	-	SsrA-binding protein
123	 68.38	0	127678..128550	-	290	146276181	-	Rsph17025_0124	-	dihydrodipicolinate synthase
124	 72.00	+1	128630..130672	+	680	146276182	-	Rsph17025_0125	-	lytic transglycosylase, catalytic
125	 64.67	-1	130812..131261	+	149	146276183	-	Rsph17025_0126	-	hypothetical protein
126	 65.73	0	131258..132427	+	389	146276184	-	Rsph17025_0127	-	ATPase-like protein
127	 66.30	0	132408..132959	-	183	146276185	-	Rsph17025_0128	-	hypothetical protein
128	 65.88	0	133040..133294	+	84	146276186	-	Rsph17025_0129	-	hypothetical protein
129	 71.75	0	133389..133880	+	163	146276187	-	Rsph17025_0130	-	Phage DNA packaging protein Nu1 subunit of terminase-like protein
130	 71.11	0	133867..135645	+	592	146276188	-	Rsph17025_0131	-	phage terminase GpA
131	 61.42	-1	135923..136189	-	88	146276189	-	Rsph17025_0132	-	XRE family transcriptional regulator
132	 63.37	-1	136248..136490	+	80	146276190	-	Rsph17025_0133	-	hypothetical protein
133	 69.44	0	136480..136839	+	119	146276191	-	Rsph17025_0134	-	hypothetical protein
134	 61.33	-2	136934..137458	+	174	146276192	-	Rsph17025_0135	-	hypothetical protein
135	 71.25	0	137455..138786	+	443	146276193	-	Rsph17025_0136	-	lambda family phage portal protein
136	 69.73	0	138783..140543	+	586	146276194	-	Rsph17025_0137	-	peptidase U35, phage prohead HK97
137	 66.21	0	140543..140761	+	72	146276195	-	Rsph17025_0138	-	hypothetical protein
138	 66.97	0	140763..141092	+	109	146276196	-	Rsph17025_0139	-	hypothetical protein
139	 59.66	-2	141340..142467	+	375	146276197	-	Rsph17025_0140	-	phage integrase family protein
140	 72.88	+1	142619..143680	-	353	146276198	-	Rsph17025_0141	-	FAD dependent oxidoreductase
141	 72.29	+1	143735..144463	+	242	146276199	-	Rsph17025_0142	-	hypothetical protein
142	 67.91	0	144460..145344	+	294	146276200	-	Rsph17025_0143	-	hypothetical protein
143	 73.53	+1	145523..149035	+	1170	146276201	-	Rsph17025_0144	-	chromosome segregation protein SMC
144	 61.98	-1	149533..149895	+	120	146276202	-	Rsph17025_0145	-	response regulator receiver protein
145	 66.38	0	150007..150357	+	116	146276203	-	Rsph17025_0146	-	hypothetical protein
146	 67.69	0	150358..151530	-	390	146276204	-	Rsph17025_0147	-	aminotransferase, class I and II
147	 66.48	0	151674..152207	+	177	146276205	-	Rsph17025_0148	-	peptide deformylase
148	 72.36	+1	152207..152698	+	163	146276206	-	Rsph17025_0149	-	peptide deformylase
149	 66.07	0	152695..153198	+	167	146276207	-	Rsph17025_0150	-	peptide deformylase
68.34	MEAN

3.47	STD DEV
