IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

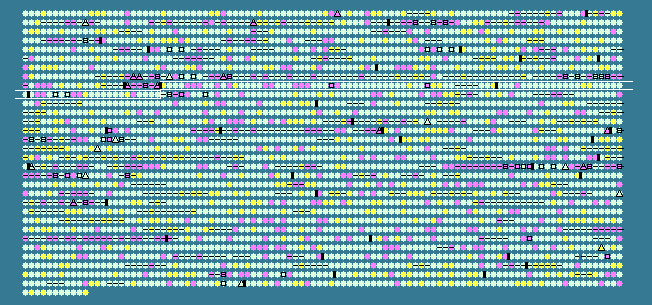

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
824	 74.09	+1	849065..850816	-	583	146276882	-	Rsph17025_0832	-	single-stranded-DNA-specific exonuclease RecJ
825	 69.46	0	850813..851778	-	321	146276883	glpX	Rsph17025_0833	-	fructose 1,6-bisphosphatase II
826	 70.94	0	851840..853126	-	428	146276884	-	Rsph17025_0834	-	homoserine dehydrogenase
827	 69.31	0	853580..854185	+	201	146276885	-	Rsph17025_0835	-	TetR family transcriptional regulator
828	 63.19	-1	854166..854741	-	191	146276886	-	Rsph17025_0836	-	hypothetical protein
829	 63.92	-1	854738..855283	-	181	146276887	-	Rsph17025_0837	-	hypothetical protein
830	 62.53	-1	855280..856971	-	563	146276888	-	Rsph17025_0838	-	hypothetical protein
831	 67.09	0	857292..858719	+	475	146276889	-	Rsph17025_0839	-	Glu/Leu/Phe/Val dehydrogenase, C terminal
832	 71.04	0	858875..860839	+	654	146276890	dnaG	Rsph17025_0840	-	DNA primase
833	 64.42	-1	860981..862984	+	667	146276891	-	Rsph17025_0841	-	RNA polymerase sigma factor RpoD
834	 70.60	0	862996..863376	+	126	146276892	-	Rsph17025_0842	-	hypothetical protein
835	 63.89	-1	863647..864114	+	155	146276893	-	Rsph17025_0843	-	transcriptional regulator NrdR
836	 76.19	+2	864129..865199	+	356	146276894	-	Rsph17025_0844	-	riboflavin biosynthesis protein RibD
837	 65.97	0	865236..865664	-	142	146276895	-	Rsph17025_0845	-	glyoxalase/bleomycin resistance protein/dioxygenase
838	 66.89	0	865872..866768	+	298	146276896	-	Rsph17025_0846	-	thymidylate synthase
839	 70.21	0	866768..867247	+	159	146276897	-	Rsph17025_0847	-	dihydrofolate reductase
840	 65.68	0	867285..867689	+	134	146276898	-	Rsph17025_0848	-	membrane protein-like protein
841	 64.83	-1	867755..868081	+	108	146276899	-	Rsph17025_0849	-	arsenate reductase
842	 62.80	-1	868137..868343	-	68	146276900	-	Rsph17025_0850	-	cold-shock DNA-binding domain-containing protein
843	 65.48	0	868840..870780	-	646	146276901	-	Rsph17025_0851	-	threonyl-tRNA synthetase
844	 68.27	0	870934..871680	+	248	146276902	-	Rsph17025_0852	-	alpha/beta fold family hydrolase/acetyltransferase-like protein
845	 65.25	0	871733..873004	-	423	146276903	-	Rsph17025_0853	-	polyhydroxyalkanoate depolymerase, intracellular
846	 64.68	-1	873106..874914	+	602	146276904	-	Rsph17025_0854	-	poly(R)-hydroxyalkanoic acid synthase, class I
847	 63.73	-1	875040..875516	+	158	146276905	-	Rsph17025_0855	-	hypothetical protein
848	 63.24	-1	875643..876197	+	184	146276906	-	Rsph17025_0856	-	polyhydroxyalkonate synthesis repressor, PhaR
849	 66.30	0	876247..877614	-	455	146276907	-	Rsph17025_0857	-	aminotransferase class-III
850	 70.00	0	878160..878279	-	39	146276908	-	Rsph17025_0859	-	hypothetical protein
851	 67.34	0	878451..878747	-	98	146276909	-	Rsph17025_0860	-	hypothetical protein
852	 64.57	-1	878947..879519	+	190	146276910	-	Rsph17025_0861	-	transposase, IS4 family protein
853	 64.52	-1	879514..879792	-	92	146276911	-	Rsph17025_0862	-	hypothetical protein
854	 69.43	0	879850..881151	-	433	146276912	-	Rsph17025_0863	-	FAD dependent oxidoreductase
855	 66.89	0	881148..882503	-	451	146276913	-	Rsph17025_0864	-	glutamate--putrescine ligase
856	 67.70	0	882508..883185	-	225	146276914	-	Rsph17025_0865	-	glutamine amidotransferase class-I
857	 68.24	0	883246..884583	-	445	146276915	-	Rsph17025_0866	-	glutamate--putrescine ligase
858	 65.22	0	884588..885415	-	275	146276916	-	Rsph17025_0867	-	binding-protein-dependent transport systems inner membrane component
859	 66.33	0	885412..886293	-	293	146276917	-	Rsph17025_0868	-	binding-protein-dependent transport systems inner membrane component
860	 65.29	0	886334..887059	-	241	146276918	-	Rsph17025_0869	-	extracellular solute-binding protein
861	 68.77	0	887097..887906	-	269	146276919	-	Rsph17025_0870	-	ABC transporter related
862	 71.81	+1	888042..888527	-	161	146276920	-	Rsph17025_0871	-	hypothetical protein
863	 70.67	0	888547..889320	-	257	146276921	-	Rsph17025_0872	-	hypothetical protein
864	 65.27	0	889482..891125	-	547	146276922	-	Rsph17025_0873	-	CTP synthetase
865	 73.88	+1	891288..891911	-	207	146276923	secG	Rsph17025_0874	-	preprotein translocase subunit SecG
866	 69.68	0	892152..893444	+	430	146276924	-	Rsph17025_0875	-	adenylosuccinate synthetase
867	 65.04	0	893497..893742	+	81	146276925	-	Rsph17025_0876	-	hypothetical protein
868	 64.40	-1	893884..894456	-	190	146276926	-	Rsph17025_0877	-	transposase, IS4 family protein
869	 73.67	+1	894689..895816	-	375	146276927	-	Rsph17025_0878	-	hypothetical protein
870	 72.48	+1	895951..896655	+	234	146276928	-	Rsph17025_0879	-	thiamine pyrophosphokinase
871	 69.37	0	896597..897520	-	307	146276929	-	Rsph17025_0880	-	hypothetical protein
872	 70.72	0	897648..899027	-	459	146276930	-	Rsph17025_0881	-	L-serine dehydratase 1
873	 69.64	0	899145..899312	-	55	146276931	-	Rsph17025_0882	-	hypothetical protein
874	 67.86	0	899497..900249	+	250	146276932	-	Rsph17025_0883	-	ribose 5-phosphate isomerase
875	 69.46	0	900252..901610	+	452	146276933	-	Rsph17025_0884	-	glutathione-disulfide reductase
876	 67.68	0	901667..902851	+	394	146276934	-	Rsph17025_0885	-	HflK protein
877	 70.67	0	902851..903873	+	340	146276935	-	Rsph17025_0886	-	HflC protein
878	 68.15	0	904019..905500	+	493	146276936	-	Rsph17025_0887	-	protease Do
879	 73.42	+1	905577..906035	-	152	146276937	-	Rsph17025_0888	-	hypothetical protein
880	 68.99	0	906545..908563	-	672	146276938	-	Rsph17025_0889	-	transketolase
881	 70.73	0	908819..909286	+	155	146276939	-	Rsph17025_0890	-	hypothetical protein
882	 71.20	0	909279..909653	+	124	146276940	-	Rsph17025_0891	-	hypothetical protein
883	 61.20	-2	909841..910206	-	121	146276941	-	Rsph17025_0892	-	glutaredoxin-like protein
884	 65.84	0	910266..910508	-	80	146276942	-	Rsph17025_0893	-	BolA family protein
885	 68.33	0	910624..912783	-	719	146276943	-	Rsph17025_0894	-	phosphoribosylformylglycinamidine synthase II
886	 65.55	0	913222..914115	-	297	146276944	-	Rsph17025_0895	-	LysR family transcriptional regulator
887	 69.21	0	914272..917658	+	1128	146276945	-	Rsph17025_0896	-	indolepyruvate ferredoxin oxidoreductase
888	 68.88	0	917815..918627	+	270	146276946	-	Rsph17025_0897	-	glutamate racemase
889	 66.76	0	918652..919680	+	342	146276947	argC	Rsph17025_0898	-	N-acetyl-gamma-glutamyl-phosphate reductase
890	 67.11	0	919705..920160	+	151	146276948	-	Rsph17025_0899	-	cytochrome c-type biogenesis protein CcmE
891	 68.14	0	920334..920945	+	203	146276949	-	Rsph17025_0900	-	hypothetical protein
892	 69.74	0	920975..921430	+	151	146276950	-	Rsph17025_0901	-	hypothetical protein
893	 66.84	0	921505..923247	+	580	146276951	-	Rsph17025_0902	-	arginyl-tRNA synthetase
894	 72.10	+1	923318..924274	+	318	146276952	-	Rsph17025_0903	-	sporulation domain-containing protein
895	 73.16	+1	924271..925287	+	338	146276953	-	Rsph17025_0904	-	Beta-N-acetylhexosaminidase
896	 67.93	0	925274..926065	+	263	146276954	-	Rsph17025_0905	-	chromosome segregation and condensation protein ScpA
897	 69.81	0	926065..926700	+	211	146276955	-	Rsph17025_0906	-	putative transcriptional regulator
898	 71.66	0	927035..927475	+	146	146276956	-	Rsph17025_0907	-	hypothetical protein
899	 70.42	0	927480..928172	-	230	146276957	-	Rsph17025_0908	-	hypothetical protein
900	 69.68	0	928241..928705	-	154	146276958	-	Rsph17025_0909	-	disulphide bond formation protein DsbB
901	 70.36	0	928832..929671	+	279	146276959	-	Rsph17025_0910	-	protein of unknown function, zinc metallopeptidase putative
902	 67.53	0	930424..931122	+	232	146276960	-	Rsph17025_0911	-	hypothetical protein
903	 55.39	-2	931296..931889	+	197	146276961	-	Rsph17025_0912	-	hypothetical protein
904	 63.64	-1	932048..933271	-	407	146276962	-	Rsph17025_0913	-	hypothetical protein
905	 66.13	0	933636..934010	-	124	146276963	-	Rsph17025_0914	-	hypothetical protein
906	 68.38	0	934072..935643	-	523	146276964	-	Rsph17025_0915	-	transposase IS66
907	 68.08	0	935712..936065	-	117	146276965	-	Rsph17025_0916	-	IS66 Orf2 family protein
908	 67.61	0	936062..936484	-	140	146276966	-	Rsph17025_0917	-	transposase IS3/IS911 family protein
909	 57.33	-2	937630..938079	+	149	146276967	-	Rsph17025_0919	-	hypothetical protein
910	 61.11	-2	938351..940816	+	821	146276968	-	Rsph17025_0920	-	hypothetical protein
911	 76.95	+2	940945..941547	-	200	146276969	-	Rsph17025_0921	-	molybdopterin-guanine dinucleotide biosynthesis protein A-like protein
912	 69.29	0	941549..942844	-	431	146276970	-	Rsph17025_0922	-	inner-membrane translocator
913	 66.07	0	942841..943851	-	336	146276971	-	Rsph17025_0923	-	inner-membrane translocator
914	 68.73	0	943855..944580	-	241	146276972	-	Rsph17025_0924	-	ABC transporter related
915	 65.01	0	944658..945440	-	260	146276973	-	Rsph17025_0925	-	ABC transporter related
916	 67.76	0	945569..946753	-	394	146276974	-	Rsph17025_0926	-	extracellular ligand-binding receptor
917	 66.11	0	947000..948250	-	416	146276975	-	Rsph17025_0927	-	tyrosyl-tRNA synthetase
918	 74.64	+1	948326..949441	+	371	146276976	anmK	Rsph17025_0928	-	anhydro-N-acetylmuramic acid kinase
919	 63.46	-1	949731..949886	+	51	146276977	-	Rsph17025_0929	-	hypothetical protein
920	 66.35	0	950004..951281	-	425	146276978	-	Rsph17025_0930	-	phosphopyruvate hydratase
921	 70.28	0	951318..952202	-	294	146276979	-	Rsph17025_0931	-	hypothetical protein
922	 67.39	0	952294..952707	-	137	146276980	-	Rsph17025_0932	-	ferric uptake regulator family protein
923	 66.16	0	953223..956942	+	1239	146276981	-	Rsph17025_0933	-	ribonucleotide-diphosphate reductase subunit alpha
68.34	MEAN

3.47	STD DEV
