IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

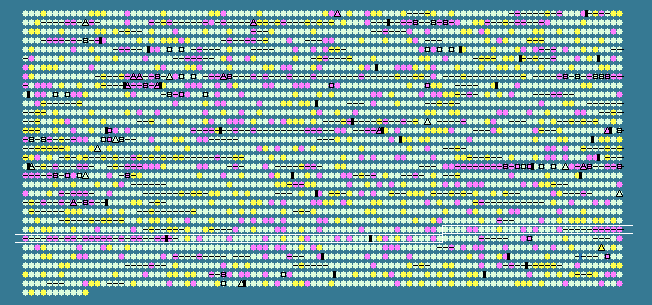

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2471	 71.53	0	2543823..2544665	-	280	146278529	-	Rsph17025_2495	-	pantoate--beta-alanine ligase
2472	 68.94	0	2544662..2545495	-	277	146278530	panB	Rsph17025_2496	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2473	 68.91	0	2545620..2546423	-	267	146278531	-	Rsph17025_2497	-	ErfK/YbiS/YcfS/YnhG family protein
2474	 65.92	0	2546549..2547754	-	401	146278532	-	Rsph17025_2498	-	peptidase M24
2475	 62.60	-1	2547993..2548361	-	122	146278533	-	Rsph17025_2499	-	ferredoxin
2476	 62.23	-1	2548595..2549383	-	262	146278534	-	Rsph17025_2500	-	ABC transporter related
2477	 66.33	0	2549393..2550571	-	392	146278535	-	Rsph17025_2501	-	polar amino acid ABC transporter, inner membrane subunit
2478	 65.08	0	2550724..2551986	-	420	146278536	-	Rsph17025_2502	-	polar amino acid ABC transporter, inner membrane subunit
2479	 66.76	0	2552130..2553146	-	338	146278537	-	Rsph17025_2503	-	cationic amino acid ABC transporter, periplasmic binding protein
2480	 71.89	+1	2553376..2554083	-	235	146278538	-	Rsph17025_2504	-	ATP12 ATPase
2481	 68.49	0	2554083..2555123	-	346	146278539	-	Rsph17025_2505	-	RluA family pseudouridine synthase
2482	 68.72	0	2555337..2556650	-	437	146278540	-	Rsph17025_2506	-	recombination factor protein RarA
2483	 69.70	0	2556689..2558074	-	461	146278541	-	Rsph17025_2507	-	protease Do
2484	 62.25	-1	2558128..2558739	-	203	146278542	-	Rsph17025_2508	-	response regulator receiver protein
2485	 67.38	0	2559006..2559425	-	139	146278543	rplQ	Rsph17025_2509	-	50S ribosomal protein L17
2486	 63.82	-1	2559523..2560539	-	338	146278544	-	Rsph17025_2510	-	DNA-directed RNA polymerase subunit alpha
2487	 65.13	0	2560655..2561044	-	129	146278545	-	Rsph17025_2511	-	30S ribosomal protein S11
2488	 65.04	0	2561059..2561427	-	122	146278546	rpsM	Rsph17025_2512	-	30S ribosomal protein S13
2489	 65.75	0	2561604..2562257	-	217	146278547	-	Rsph17025_2513	-	adenylate kinase
2490	 63.28	-1	2562268..2563626	-	452	146278548	secY	Rsph17025_2514	-	preprotein translocase subunit SecY
2491	 68.12	0	2563727..2564209	-	160	146278549	rplO	Rsph17025_2515	-	50S ribosomal protein L15
2492	 65.61	0	2564366..2564554	-	62	146278550	rpmD	Rsph17025_2516	-	50S ribosomal protein L30
2493	 67.20	0	2564567..2565130	-	187	146278551	rpsE	Rsph17025_2517	-	30S ribosomal protein S5
2494	 65.56	0	2565142..2565501	-	119	146278552	rplR	Rsph17025_2518	-	50S ribosomal protein L18
2495	 65.54	0	2565513..2566046	-	177	146278553	rplF	Rsph17025_2519	-	50S ribosomal protein L6
2496	 64.66	-1	2566057..2566455	-	132	146278554	rpsH	Rsph17025_2520	-	30S ribosomal protein S8
2497	 60.78	-2	2566468..2566773	-	101	146278555	rpsN	Rsph17025_2521	-	30S ribosomal protein S14
2498	 61.68	-1	2566793..2567353	-	186	146278556	rplE	Rsph17025_2522	-	50S ribosomal protein L5
2499	 64.38	-1	2567353..2567658	-	101	146278557	rplX	Rsph17025_2523	-	50S ribosomal protein L24
2500	 63.14	-1	2567658..2568026	-	122	146278558	rplN	Rsph17025_2524	-	50S ribosomal protein L14
2501	 61.73	-1	2568100..2568342	-	80	146278559	rpsQ	Rsph17025_2525	-	30S ribosomal protein S17
2502	 66.67	0	2568356..2568559	-	67	146278560	-	Rsph17025_2526	-	50S ribosomal protein L29
2503	 65.46	0	2568798..2569211	-	137	146278561	rplP	Rsph17025_2527	-	50S ribosomal protein L16
2504	 66.11	0	2569224..2569940	-	238	146278562	rpsC	Rsph17025_2528	-	30S ribosomal protein S3
2505	 62.20	-1	2569940..2570320	-	126	146278563	rplV	Rsph17025_2529	-	50S ribosomal protein L22
2506	 57.71	-2	2570324..2570602	-	92	146278564	rpsS	Rsph17025_2530	-	30S ribosomal protein S19
2507	 67.02	0	2570606..2571445	-	279	146278565	rplB	Rsph17025_2531	-	50S ribosomal protein L2
2508	 60.61	-2	2571568..2571864	-	98	146278566	rplW	Rsph17025_2532	-	50S ribosomal protein L23
2509	 64.57	-1	2571861..2572481	-	206	146278567	rplD	Rsph17025_2533	-	50S ribosomal protein L4
2510	 66.39	0	2572471..2573190	-	239	146278568	rplC	Rsph17025_2534	-	50S ribosomal protein L3
2511	 62.14	-1	2573204..2573512	-	102	146278569	rpsJ	Rsph17025_2535	-	30S ribosomal protein S10
2512	 64.46	-1	2573585..2574760	-	391	146278570	-	Rsph17025_2536	-	elongation factor Tu
2513	 64.21	-1	2574835..2576952	-	705	146278571	-	Rsph17025_2537	-	elongation factor G
2514	 63.91	-1	2576978..2577448	-	156	146278572	-	Rsph17025_2538	-	30S ribosomal protein S7
2515	 62.10	-1	2577461..2577832	-	123	146278573	rpsL	Rsph17025_2539	-	30S ribosomal protein S12
2516	 68.50	0	2578045..2578971	-	308	146278574	-	Rsph17025_2540	-	hypothetical protein
2517	 64.81	-1	2579147..2583394	-	1415	146278575	-	Rsph17025_2541	-	DNA-directed RNA polymerase subunit beta'
2518	 65.26	0	2583476..2587609	-	1377	146278576	rpoB	Rsph17025_2542	-	DNA-directed RNA polymerase subunit beta
2519	 61.60	-1	2587855..2588229	-	124	146278577	rplL	Rsph17025_2543	-	50S ribosomal protein L7/L12
2520	 63.76	-1	2588299..2588814	-	171	146278578	rplJ	Rsph17025_2544	-	50S ribosomal protein L10
2521	 66.95	0	2589051..2589749	-	232	146278579	rplA	Rsph17025_2545	-	50S ribosomal protein L1
2522	 65.12	0	2589753..2590205	-	150	146278580	rplK	Rsph17025_2546	-	50S ribosomal protein L11
2523	 63.50	-1	2590298..2590834	-	178	146278581	-	Rsph17025_2547	-	NusG antitermination factor
2524	 62.56	-1	2590996..2591190	-	64	146278582	secE	Rsph17025_2548	-	preprotein translocase subunit SecE
2525	 64.46	-1	2591531..2592706	-	391	146278583	-	Rsph17025_2549	-	elongation factor Tu
2526	 66.15	0	2592808..2593383	-	191	146278584	-	Rsph17025_2550	-	hypothetical protein
2527	 68.27	0	2593532..2595835	-	767	146278585	-	Rsph17025_2551	-	DNA topoisomerase IV subunit A
2528	 73.93	+1	2595968..2596504	+	178	146278586	-	Rsph17025_2552	-	SH3 type 3 domain-containing protein
2529	 69.98	0	2596593..2597408	+	271	146278587	-	Rsph17025_2553	-	short-chain dehydrogenase/reductase SDR
2530	 62.86	-1	2597535..2597744	+	69	146278588	-	Rsph17025_2554	-	hypothetical protein
2531	 69.08	0	2597745..2598323	+	192	146278589	-	Rsph17025_2555	-	ATP--cobalamin adenosyltransferase
2532	 65.49	0	2598454..2599215	+	253	146278590	-	Rsph17025_2556	-	electron transfer flavoprotein beta-subunit
2533	 69.36	0	2599215..2600141	+	308	146278591	-	Rsph17025_2557	-	electron transfer flavoprotein, alpha subunit
2534	 67.03	0	2600190..2601014	-	274	146278592	-	Rsph17025_2558	-	hypothetical protein
2535	 63.81	-1	2601183..2602058	+	291	146278593	-	Rsph17025_2559	-	3-hydroxybutyryl-CoA dehydrogenase
2536	 65.19	0	2602071..2602340	-	89	146278594	-	Rsph17025_2560	-	phosphotransferase system, phosphocarrier protein HPr
2537	 67.42	0	2602337..2602735	-	132	146278595	-	Rsph17025_2561	-	PTS system fructose subfamily IIA component
2538	 67.55	0	2602732..2603640	-	302	146278596	-	Rsph17025_2562	-	hypothetical protein
2539	 67.60	0	2603662..2604090	-	142	146278597	-	Rsph17025_2563	-	HPr kinase
2540	 67.57	0	2604087..2605739	-	550	146278598	-	Rsph17025_2564	-	integral membrane sensor signal transduction histidine kinase
2541	 62.70	-1	2605927..2606556	+	209	146278599	-	Rsph17025_2565	-	hypothetical protein
2542	 65.23	0	2606871..2608469	+	532	146278600	-	Rsph17025_2566	-	phosphoenolpyruvate carboxykinase
2543	 67.57	0	2608635..2610302	+	555	146278601	-	Rsph17025_2567	-	acyl-CoA dehydrogenase domain-containing protein
2544	 72.97	+1	2610335..2611048	-	237	146278602	recO	Rsph17025_2568	-	DNA repair protein RecO
2545	 71.73	0	2611073..2611408	-	111	146278603	-	Rsph17025_2569	-	hypothetical protein
2546	 68.74	0	2611405..2612319	-	304	146278604	era	Rsph17025_2570	-	GTP-binding protein Era
2547	 72.32	+1	2612312..2613001	-	229	146278605	-	Rsph17025_2571	-	ribonuclease III
2548	 63.88	-1	2612998..2613786	-	262	146278606	-	Rsph17025_2572	-	signal peptidase I
2549	 69.32	0	2613856..2614269	-	137	146278607	acpS	Rsph17025_2573	-	4'-phosphopantetheinyl transferase
2550	 71.20	0	2614292..2615041	-	249	146278608	-	Rsph17025_2574	-	pyridoxal phosphate biosynthetic protein PdxJ
2551	 65.60	0	2615087..2615743	-	218	146278609	-	Rsph17025_2575	-	hypothetical protein
2552	 65.44	0	2615762..2617879	-	705	146278610	-	Rsph17025_2576	-	(p)ppGpp synthetase I, SpoT/RelA
2553	 64.69	-1	2617910..2618263	-	117	146278611	-	Rsph17025_2577	-	DNA-directed RNA polymerase subunit omega
2554	 65.92	0	2618347..2618883	-	178	146278612	-	Rsph17025_2578	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2555	 62.83	-1	2619074..2619646	+	190	146278613	-	Rsph17025_2579	-	hypothetical protein
2556	 68.12	0	2619775..2620734	+	319	146278614	-	Rsph17025_2580	-	hydroxymethylbutenyl pyrophosphate reductase
2557	 67.33	0	2620752..2621204	+	150	146278615	-	Rsph17025_2581	-	hypothetical protein
2558	 67.92	0	2621211..2622248	-	345	146278616	-	Rsph17025_2582	-	alanine racemase
2559	 68.55	0	2622959..2623330	+	123	146278617	-	Rsph17025_2583	-	hypothetical protein
2560	 75.81	+2	2623327..2624310	+	327	146278618	-	Rsph17025_2584	-	peptidase S49
2561	 58.50	-2	2624372..2624824	-	150	146278619	-	Rsph17025_2585	-	GCN5-related N-acetyltransferase
2562	 68.40	0	2625468..2625698	+	76	146278620	-	Rsph17025_2586	-	hypothetical protein
2563	 72.03	+1	2626307..2626567	+	86	146278621	-	Rsph17025_2587	-	hypothetical protein
2564	 69.92	0	2626569..2628473	+	634	146278622	-	Rsph17025_2588	-	Ig family protein
2565	 64.24	-1	2628657..2628944	+	95	146278623	-	Rsph17025_2589	-	hypothetical protein
2566	 69.02	0	2628935..2631358	+	807	146278624	-	Rsph17025_2590	-	hypothetical protein
2567	 65.77	0	2631387..2632163	-	258	146278625	-	Rsph17025_2591	-	enoyl-CoA hydratase/isomerase
2568	 70.42	0	2632224..2633075	-	283	146278626	-	Rsph17025_2592	-	formamidopyrimidine-DNA glycosylase
2569	 63.61	-1	2633169..2633921	+	250	146278627	-	Rsph17025_2593	-	ubiquinone/menaquinone biosynthesis methyltransferase
2570	 68.04	0	2633923..2635452	+	509	146278628	-	Rsph17025_2594	-	2-polyprenylphenol 6-hydroxylase
68.34	MEAN

3.47	STD DEV
