IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

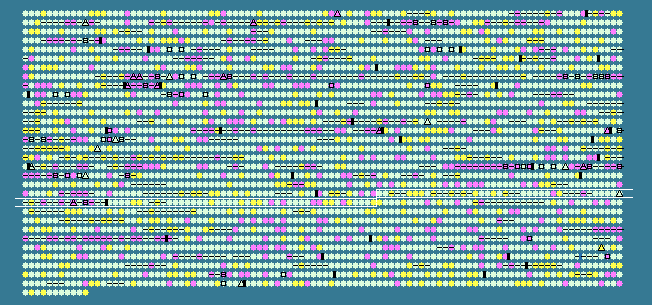

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2060	 69.04	0	2122462..2123514	-	350	146278118	-	Rsph17025_2081	-	hypothetical protein
2061	 66.07	0	2123514..2123846	-	110	146278119	-	Rsph17025_2082	-	hypothetical protein
2062	 74.74	+1	2123855..2125093	-	412	146278120	-	Rsph17025_2083	-	hypothetical protein
2063	 65.82	0	2125144..2125737	-	197	146278121	-	Rsph17025_2084	-	hypothetical protein
2064	 68.33	0	2125737..2129402	-	1221	146278122	-	Rsph17025_2085	-	hypothetical protein
2065	 73.04	+1	2129399..2129806	-	135	146278123	-	Rsph17025_2086	-	hypothetical protein
2066	 73.36	+1	2129803..2130459	-	218	146278124	-	Rsph17025_2087	-	hypothetical protein
2067	 73.67	+1	2130464..2131120	-	218	146278125	-	Rsph17025_2088	-	hypothetical protein
2068	 69.75	0	2131120..2133327	-	735	146278126	-	Rsph17025_2089	-	hypothetical protein
2069	 72.22	+1	2133324..2133611	-	95	146278127	-	Rsph17025_2090	-	hypothetical protein
2070	 70.30	0	2133677..2134006	-	109	146278128	-	Rsph17025_2091	-	hypothetical protein
2071	 70.42	0	2134026..2134958	-	310	146278129	-	Rsph17025_2092	-	hypothetical protein
2072	 73.84	+1	2135100..2135531	-	143	146278130	-	Rsph17025_2093	-	hypothetical protein
2073	 71.33	0	2135531..2135959	-	142	146278131	-	Rsph17025_2094	-	hypothetical protein
2074	 76.52	+2	2136063..2136458	-	131	146278132	-	Rsph17025_2095	-	hypothetical protein
2075	 65.55	0	2136468..2137364	-	298	146278133	-	Rsph17025_2096	-	Mu-like prophage major head subunit gpT-like protein
2076	 73.15	+1	2137376..2137822	-	148	146278134	-	Rsph17025_2097	-	hypothetical protein
2077	 70.21	0	2137822..2138865	-	347	146278135	-	Rsph17025_2098	-	Mu-like prophage I protein-like protein
2078	 71.08	0	2138979..2139476	-	165	146278136	-	Rsph17025_2099	-	phage virion morphogenesis protein
2079	 73.15	+1	2139473..2140690	-	405	146278137	-	Rsph17025_2100	-	phage putative head morphogenesis protein, SPP1 gp7
2080	 70.04	0	2140683..2142314	-	543	146278138	-	Rsph17025_2101	-	hypothetical protein
2081	 73.33	+1	2142316..2142660	-	114	146278139	-	Rsph17025_2102	-	hypothetical protein
2082	 69.60	0	2142660..2144090	-	476	146278140	-	Rsph17025_2103	-	hypothetical protein
2083	 65.02	0	2144087..2144752	-	221	146278141	-	Rsph17025_2104	-	hypothetical protein
2084	 65.93	0	2144752..2145291	-	179	146278142	-	Rsph17025_2105	-	hypothetical protein
2085	 70.59	0	2145293..2145598	-	101	146278143	-	Rsph17025_2106	-	hypothetical protein
2086	 66.95	0	2145595..2145945	-	116	146278144	-	Rsph17025_2107	-	hypothetical protein
2087	 70.83	0	2145942..2146373	-	143	146278145	-	Rsph17025_2108	-	hypothetical protein
2088	 68.38	0	2146386..2147258	-	290	146278146	-	Rsph17025_2109	-	N-acetylmuramoyl-L-alanine amidase
2089	 58.45	-2	2147447..2148493	+	348	146278147	-	Rsph17025_2110	-	hypothetical protein
2090	 72.04	+1	2148517..2148888	-	123	146278148	-	Rsph17025_2111	-	hypothetical protein
2091	 68.98	0	2148885..2149490	-	201	146278149	-	Rsph17025_2112	-	MT-A70 family protein
2092	 68.27	0	2149487..2149798	-	103	146278150	-	Rsph17025_2113	-	hypothetical protein
2093	 68.49	0	2149795..2150232	-	145	146278151	-	Rsph17025_2114	-	hypothetical protein
2094	 62.96	-1	2150292..2150696	+	134	146278152	-	Rsph17025_2115	-	hypothetical protein
2095	 66.37	0	2150671..2151333	-	220	146278153	-	Rsph17025_2116	-	hypothetical protein
2096	 69.05	0	2151514..2151975	-	153	146278154	-	Rsph17025_2117	-	chromosomal replication initiator DnaA domain-containing protein
2097	 70.34	0	2151972..2152352	-	126	146278155	-	Rsph17025_2118	-	hypothetical protein
2098	 71.13	0	2152349..2152930	-	193	146278156	-	Rsph17025_2119	-	hypothetical protein
2099	 69.48	0	2152933..2153715	-	260	146278157	-	Rsph17025_2120	-	hypothetical protein
2100	 70.16	0	2153760..2155877	-	705	146278158	-	Rsph17025_2121	-	integrase catalytic subunit
2101	 68.17	0	2155874..2156740	-	288	146278159	-	Rsph17025_2122	-	nuclease
2102	 72.98	+1	2156742..2157026	-	94	146278160	-	Rsph17025_2123	-	hypothetical protein
2103	 68.48	0	2157026..2157301	-	91	146278161	-	Rsph17025_2124	-	hypothetical protein
2104	 64.15	-1	2157298..2157654	-	118	146278162	-	Rsph17025_2125	-	hypothetical protein
2105	 69.96	0	2157986..2158258	-	90	146278163	-	Rsph17025_2126	-	histone family protein DNA-binding protein
2106	 68.33	0	2158270..2158569	-	99	146278164	-	Rsph17025_2127	-	hypothetical protein
2107	 62.07	-1	2158656..2159351	+	231	146278165	-	Rsph17025_2128	-	putative phage repressor
2108	 66.19	0	2160686..2161105	+	139	146278166	-	Rsph17025_2129	-	HNH endonuclease
2109	 62.47	-1	2161300..2161704	-	134	146278167	-	Rsph17025_2130	-	integrase catalytic subunit
2110	 65.48	0	2163560..2164483	+	307	146278168	-	Rsph17025_2132	-	IstB ATP binding domain-containing protein
2111	 63.08	-1	2164504..2164893	+	129	146278169	-	Rsph17025_2133	-	transposase, IS4 family protein
2112	 63.14	-1	2164890..2165201	+	103	146278170	-	Rsph17025_2134	-	IstB ATP binding domain-containing protein
2113	 66.67	0	2165374..2165568	-	64	146278171	-	Rsph17025_2135	-	DNA replication protein-like protein
2114	 65.08	0	2165664..2165852	-	62	146278172	-	Rsph17025_2136	-	prevent-host-death family protein
2115	 71.26	0	2166588..2167196	-	202	146278173	-	Rsph17025_2137	-	lysine exporter protein LysE/YggA
2116	 66.44	0	2167193..2167636	-	147	146278174	-	Rsph17025_2138	-	AsnC family transcriptional regulator
2117	 67.51	0	2167775..2168368	-	197	146278175	-	Rsph17025_2139	-	hypothetical protein
2118	 69.81	0	2168584..2170395	-	603	146278176	-	Rsph17025_2140	-	ABC transporter related
2119	 73.28	+1	2170453..2171616	-	387	146278177	-	Rsph17025_2141	-	lipid-A-disaccharide synthase
2120	 75.55	+2	2171613..2172434	-	273	146278178	-	Rsph17025_2142	-	hypothetical protein
2121	 70.50	0	2172431..2173213	-	260	146278179	-	Rsph17025_2143	-	UDP-N-acetylglucosamine acyltransferase
2122	 65.17	0	2173217..2173684	-	155	146278180	-	Rsph17025_2144	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
2123	 75.31	+2	2173770..2174417	-	215	146278181	-	Rsph17025_2145	-	outer membrane chaperone Skp (OmpH)
2124	 65.20	0	2174417..2176795	-	792	146278182	-	Rsph17025_2146	-	surface antigen (D15)
2125	 68.72	0	2176907..2177101	-	64	146278183	-	Rsph17025_2147	-	hypothetical protein
2126	 68.76	0	2177213..2178547	-	444	146278184	-	Rsph17025_2148	-	putative membrane-associated zinc metalloprotease
2127	 68.61	0	2178554..2179738	-	394	146278185	-	Rsph17025_2149	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2128	 69.10	0	2179747..2180568	-	273	146278186	-	Rsph17025_2150	-	phosphatidate cytidylyltransferase
2129	 69.51	0	2180565..2181302	-	245	146278187	-	Rsph17025_2151	-	undecaprenyl diphosphate synthase
2130	 65.43	0	2181375..2181941	-	188	146278188	-	Rsph17025_2152	-	ribosome recycling factor
2131	 67.07	0	2182028..2182768	-	246	146278189	-	Rsph17025_2153	-	uridylate kinase
2132	 72.37	+1	2182917..2183792	+	291	146278190	-	Rsph17025_2154	-	tRNA delta(2)-isopentenylpyrophosphate transferase
2133	 71.59	0	2183868..2184659	+	263	146278191	-	Rsph17025_2155	-	helix-turn-helix domain-containing protein
2134	 68.75	0	2184746..2186377	+	543	146278192	-	Rsph17025_2156	-	extracellular solute-binding protein
2135	 69.71	0	2186421..2187407	+	328	146278193	-	Rsph17025_2157	-	binding-protein-dependent transport systems inner membrane component
2136	 69.70	0	2187407..2188561	+	384	146278194	-	Rsph17025_2158	-	binding-protein-dependent transport systems inner membrane component
2137	 74.21	+1	2188554..2190608	+	684	146278195	-	Rsph17025_2159	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
2138	 68.58	0	2190580..2192043	-	487	146278196	engA	Rsph17025_2160	-	GTP-binding protein EngA
2139	 72.67	+1	2192102..2193466	-	454	146278197	-	Rsph17025_2161	-	Pyrrolo-quinoline quinone
2140	 73.92	+1	2193495..2194142	-	215	146278198	-	Rsph17025_2162	-	hypothetical protein
2141	 67.23	0	2194376..2195263	+	295	146278199	-	Rsph17025_2163	-	hypothetical protein
2142	 63.71	-1	2195315..2196463	+	382	146278200	-	Rsph17025_2164	-	membrane protein involved in aromatic hydrocarbon degradation
2143	 65.86	0	2196636..2197505	+	289	146278201	-	Rsph17025_2165	-	hypothetical protein
2144	 63.07	-1	2197533..2198450	+	305	146278202	-	Rsph17025_2166	-	homoserine O-succinyltransferase
2145	 70.65	0	2198440..2199393	+	317	146278203	-	Rsph17025_2167	-	alpha/beta hydrolase fold
2146	 66.89	0	2199435..2200319	+	294	146278204	-	Rsph17025_2168	-	hypothetical protein
2147	 69.58	0	2200316..2200933	+	205	146278205	-	Rsph17025_2169	-	TetR family transcriptional regulator
2148	 68.03	0	2201053..2202150	-	365	146278206	-	Rsph17025_2170	-	spermidine/putrescine ABC transporter ATPase subunit
2149	 64.44	-1	2202147..2202953	-	268	146278207	-	Rsph17025_2171	-	binding-protein-dependent transport systems inner membrane component
2150	 63.29	-1	2202950..2203837	-	295	146278208	-	Rsph17025_2172	-	binding-protein-dependent transport systems inner membrane component
2151	 72.29	+1	2203916..2205319	-	467	146278209	-	Rsph17025_2173	-	GntR family transcriptional regulator
2152	 73.33	+1	2205404..2205628	+	74	146278210	-	Rsph17025_2174	-	hypothetical protein
2153	 67.70	0	2205754..2206236	-	160	146278211	rpsI	Rsph17025_2175	-	30S ribosomal protein S9
2154	 63.87	-1	2206240..2206704	-	154	146278212	rplM	Rsph17025_2176	-	50S ribosomal protein L13
2155	 72.62	+1	2206916..2207704	-	262	146278213	-	Rsph17025_2177	-	hypothetical protein
2156	 65.54	0	2208273..2208806	+	177	146278214	-	Rsph17025_2178	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2157	 68.00	0	2208846..2210195	-	449	146278215	-	Rsph17025_2179	-	SAF domain-containing protein
2158	 66.29	0	2210192..2211247	-	351	146278216	-	Rsph17025_2180	-	NAD-dependent epimerase/dehydratase
2159	 74.49	+1	2211437..2212228	-	263	146278217	-	Rsph17025_2181	-	hypothetical protein
68.34	MEAN

3.47	STD DEV
