IslandPathversion 1.0

IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

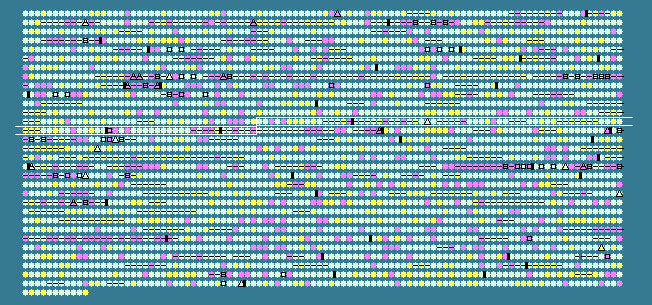

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1240	 68.57	0	1294288..1294761	+	157	146277298	-	Rsph17025_1251	-	nitrogen fixation protein NifX
1241	 65.82	0	1294761..1295231	+	156	146277299	-	Rsph17025_1252	-	hypothetical protein
1242	 62.09	-1	1295310..1295615	+	101	146277300	-	Rsph17025_1253	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1243	 70.56	0	1295596..1296135	+	179	146277301	-	Rsph17025_1254	-	NifQ family protein
1244	 63.86	-1	1296303..1296623	+	106	146277302	-	Rsph17025_1255	-	iron-sulfur cluster assembly accessory protein
1245	 72.31	+1	1296633..1297358	+	241	146277303	-	Rsph17025_1256	-	NifU domain-containing protein
1246	 72.08	+1	1297358..1298521	+	387	146277304	-	Rsph17025_1257	-	aminotransferase, class V
1247	 73.49	+1	1298521..1299693	+	390	146277305	-	Rsph17025_1258	-	homocitrate synthase
1248	 66.06	0	1299705..1300031	+	108	146277306	nifW	Rsph17025_1259	-	nitrogenase stabilizing/protective protein
1249	 71.88	+1	1300110..1301414	+	434	146277307	-	Rsph17025_1260	-	RNA polymerase, sigma 54 subunit, RpoN
1250	 66.20	0	1301422..1301853	-	143	146277308	-	Rsph17025_1261	-	hypothetical protein
1251	 66.36	0	1301864..1302523	-	219	146277309	-	Rsph17025_1262	-	Hly-III family protein
1252	 68.53	0	1302674..1303477	+	267	146277310	-	Rsph17025_1263	-	Ku domain-containing protein
1253	 69.82	0	1303687..1304511	+	274	146277311	-	Rsph17025_1264	-	hypothetical protein
1254	 74.34	+1	1304805..1305299	-	164	146277312	-	Rsph17025_1265	-	hypothetical protein
1255	 61.58	-1	1305371..1305547	+	58	146277313	-	Rsph17025_1266	-	hypothetical protein
1256	 65.08	0	1306661..1308745	+	694	146277314	-	Rsph17025_1267	-	hypothetical protein
1257	 66.67	0	1308742..1309401	+	219	146277315	-	Rsph17025_1268	-	hypothetical protein
1258	 70.87	0	1309398..1309778	+	126	146277316	-	Rsph17025_1269	-	hypothetical protein
1259	 69.49	0	1309790..1310179	+	129	146277317	-	Rsph17025_1270	-	hypothetical protein
1260	 72.87	+1	1310339..1312063	-	574	146277318	-	Rsph17025_1271	-	hypothetical protein
1261	 59.85	-2	1313514..1314305	-	263	146277319	-	Rsph17025_1272	-	putative phage repressor
1262	 69.66	0	1314329..1314595	+	88	146277320	-	Rsph17025_1273	-	hypothetical protein
1263	 69.96	0	1314607..1314879	+	90	146277321	-	Rsph17025_1274	-	histone family protein DNA-binding protein
1264	 64.15	-1	1315211..1315567	+	118	146277322	-	Rsph17025_1275	-	hypothetical protein
1265	 68.48	0	1315564..1315839	+	91	146277323	-	Rsph17025_1276	-	hypothetical protein
1266	 72.98	+1	1315839..1316123	+	94	146277324	-	Rsph17025_1277	-	hypothetical protein
1267	 68.17	0	1316125..1316991	+	288	146277325	-	Rsph17025_1278	-	nuclease
1268	 70.16	0	1316988..1319105	+	705	146277326	-	Rsph17025_1279	-	integrase catalytic subunit
1269	 69.48	0	1319150..1319932	+	260	146277327	-	Rsph17025_1280	-	hypothetical protein
1270	 71.13	0	1319935..1320516	+	193	146277328	-	Rsph17025_1281	-	hypothetical protein
1271	 70.34	0	1320513..1320893	+	126	146277329	-	Rsph17025_1282	-	hypothetical protein
1272	 69.05	0	1320890..1321351	+	153	146277330	-	Rsph17025_1283	-	chromosomal replication initiator DnaA domain-containing protein
1273	 66.37	0	1321532..1322194	+	220	146277331	-	Rsph17025_1284	-	hypothetical protein
1274	 62.96	-1	1322169..1322573	-	134	146277332	-	Rsph17025_1285	-	hypothetical protein
1275	 68.49	0	1322633..1323070	+	145	146277333	-	Rsph17025_1286	-	hypothetical protein
1276	 68.27	0	1323067..1323378	+	103	146277334	-	Rsph17025_1287	-	hypothetical protein
1277	 68.98	0	1323375..1323980	+	201	146277335	-	Rsph17025_1288	-	MT-A70 family protein
1278	 72.04	+1	1323977..1324348	+	123	146277336	-	Rsph17025_1289	-	hypothetical protein
1279	 58.45	-2	1324372..1325418	-	348	146277337	-	Rsph17025_1290	-	hypothetical protein
1280	 68.38	0	1325607..1326479	+	290	146277338	-	Rsph17025_1291	-	N-acetylmuramoyl-L-alanine amidase
1281	 70.83	0	1326492..1326923	+	143	146277339	-	Rsph17025_1292	-	hypothetical protein
1282	 66.95	0	1326920..1327270	+	116	146277340	-	Rsph17025_1293	-	hypothetical protein
1283	 70.59	0	1327267..1327572	+	101	146277341	-	Rsph17025_1294	-	hypothetical protein
1284	 65.93	0	1327574..1328113	+	179	146277342	-	Rsph17025_1295	-	hypothetical protein
1285	 65.02	0	1328113..1328778	+	221	146277343	-	Rsph17025_1296	-	hypothetical protein
1286	 69.60	0	1328775..1330205	+	476	146277344	-	Rsph17025_1297	-	hypothetical protein
1287	 73.33	+1	1330205..1330549	+	114	146277345	-	Rsph17025_1298	-	hypothetical protein
1288	 70.04	0	1330551..1332182	+	543	146277346	-	Rsph17025_1299	-	hypothetical protein
1289	 73.15	+1	1332175..1333392	+	405	146277347	-	Rsph17025_1300	-	phage putative head morphogenesis protein, SPP1 gp7
1290	 71.08	0	1333389..1333886	+	165	146277348	-	Rsph17025_1301	-	phage virion morphogenesis protein
1291	 70.21	0	1334000..1335043	+	347	146277349	-	Rsph17025_1302	-	Mu-like prophage I protein-like protein
1292	 73.15	+1	1335043..1335489	+	148	146277350	-	Rsph17025_1303	-	hypothetical protein
1293	 65.55	0	1335501..1336397	+	298	146277351	-	Rsph17025_1304	-	Mu-like prophage major head subunit gpT-like protein
1294	 76.52	+2	1336407..1336802	+	131	146277352	-	Rsph17025_1305	-	hypothetical protein
1295	 71.33	0	1336906..1337334	+	142	146277353	-	Rsph17025_1306	-	hypothetical protein
1296	 73.84	+1	1337334..1337765	+	143	146277354	-	Rsph17025_1307	-	hypothetical protein
1297	 70.42	0	1337907..1338839	+	310	146277355	-	Rsph17025_1308	-	hypothetical protein
1298	 70.30	0	1338859..1339188	+	109	146277356	-	Rsph17025_1309	-	hypothetical protein
1299	 72.22	+1	1339254..1339541	+	95	146277357	-	Rsph17025_1310	-	hypothetical protein
1300	 69.75	0	1339538..1341745	+	735	146277358	-	Rsph17025_1311	-	hypothetical protein
1301	 73.67	+1	1341745..1342401	+	218	146277359	-	Rsph17025_1312	-	hypothetical protein
1302	 73.36	+1	1342406..1343062	+	218	146277360	-	Rsph17025_1313	-	hypothetical protein
1303	 73.04	+1	1343059..1343466	+	135	146277361	-	Rsph17025_1314	-	hypothetical protein
1304	 68.33	0	1343463..1347128	+	1221	146277362	-	Rsph17025_1315	-	hypothetical protein
1305	 65.82	0	1347128..1347721	+	197	146277363	-	Rsph17025_1316	-	hypothetical protein
1306	 74.74	+1	1347772..1349010	+	412	146277364	-	Rsph17025_1317	-	hypothetical protein
1307	 66.07	0	1349019..1349351	+	110	146277365	-	Rsph17025_1318	-	hypothetical protein
1308	 69.04	0	1349351..1350403	+	350	146277366	-	Rsph17025_1319	-	hypothetical protein
1309	 61.25	-2	1350471..1350821	+	116	146277367	-	Rsph17025_1320	-	hypothetical protein
1310	 66.30	0	1351110..1352210	+	366	146277368	-	Rsph17025_1321	-	RNA-directed DNA polymerase (Reverse transcriptase)
1311	 65.48	0	1352483..1352986	+	167	146277369	-	Rsph17025_1322	-	hypothetical protein
1312	 72.75	+1	1353014..1353835	+	273	146277370	-	Rsph17025_1323	-	pyrroline-5-carboxylate reductase
1313	 68.77	0	1353832..1354164	+	110	146277371	-	Rsph17025_1324	-	export-related chaperone CsaA
1314	 70.25	0	1354161..1355108	+	315	146277372	-	Rsph17025_1325	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1315	 64.40	-1	1359635..1360207	+	190	146277373	-	Rsph17025_1327	-	transposase, IS4 family protein
1316	 61.46	-1	1361632..1361823	-	63	146277374	-	Rsph17025_1329	-	hypothetical protein
1317	 66.30	0	1362036..1363112	-	358	146277375	-	Rsph17025_1330	-	spermidine/putrescine-binding periplasmic protein-like protein
1318	 64.45	-1	1363693..1364730	+	345	146277376	-	Rsph17025_1331	-	NAD-dependent epimerase/dehydratase
1319	 71.50	0	1364723..1365715	+	330	146277377	-	Rsph17025_1332	-	UDP-glucose 4-epimerase
1320	 69.64	0	1365699..1367582	+	627	146277378	-	Rsph17025_1333	-	cell wall biosynthesis glycosyltransferase-like protein
1321	 67.21	0	1367586..1368509	+	307	146277379	-	Rsph17025_1334	-	Beta-mannanase-like protein
1322	 69.12	0	1369115..1370254	+	379	146277380	-	Rsph17025_1335	-	acyl-CoA dehydrogenase domain-containing protein
1323	 69.57	0	1370251..1371285	+	344	146277381	-	Rsph17025_1336	-	enoyl-CoA hydratase/isomerase
1324	 70.90	0	1371282..1372154	+	290	146277382	-	Rsph17025_1337	-	3-hydroxyisobutyrate dehydrogenase
1325	 69.03	0	1372342..1373019	+	225	146277383	-	Rsph17025_1338	-	hypothetical protein
1326	 70.86	0	1373132..1374442	-	436	146277384	-	Rsph17025_1339	-	hypothetical protein
1327	 67.65	0	1374439..1375557	-	372	146277385	-	Rsph17025_1340	-	ATPase
1328	 67.54	0	1375868..1377355	+	495	146277386	-	Rsph17025_1341	-	multi-sensor signal transduction histidine kinase
1329	 60.27	-2	1377352..1377789	+	145	146277387	-	Rsph17025_1342	-	response regulator receiver protein
1330	 69.90	0	1377786..1378838	+	350	146277388	-	Rsph17025_1343	-	signal transduction histidine kinase
1331	 63.48	-1	1378921..1380330	-	469	146277389	-	Rsph17025_1344	-	glutamine synthetase, type I
1332	 64.31	-1	1380412..1380750	-	112	146277390	-	Rsph17025_1345	-	nitrogen regulatory protein P-II
1333	 73.46	+1	1382464..1382934	-	156	146277391	-	Rsph17025_1348	-	hypothetical protein
1334	 65.54	0	1383244..1384578	+	444	146277392	tig	Rsph17025_1349	-	trigger factor
1335	 66.14	0	1384781..1385350	-	189	146277393	rplI	Rsph17025_1350	-	50S ribosomal protein L9
1336	 64.04	-1	1385361..1385588	-	75	146277394	rpsR	Rsph17025_1351	-	30S ribosomal protein S18
1337	 64.91	0	1385609..1386007	-	132	146277395	rpsF	Rsph17025_1352	-	30S ribosomal protein S6
1338	 68.07	0	1386543..1386827	+	94	146277396	-	Rsph17025_1353	-	hypothetical protein
1339	 63.55	-1	1386824..1388236	+	470	146277397	-	Rsph17025_1354	-	P4 family phage/plasmid primase
68.34	MEAN

3.47	STD DEV
