IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

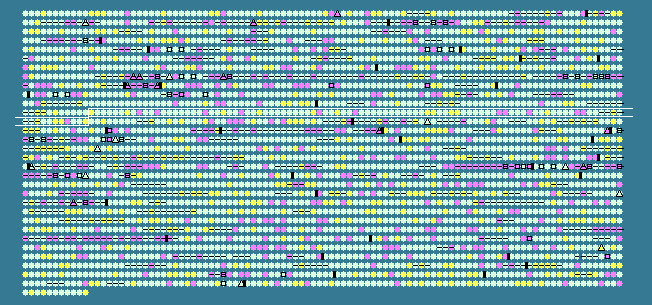

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1112	 74.63	+1	1149918..1150394	+	158	146277170	-	Rsph17025_1123	-	DNA polymerase III subunit chi
1113	 69.27	0	1150416..1150991	-	191	146277171	-	Rsph17025_1124	-	aspartyl protease-like protein
1114	 69.55	0	1151084..1151707	-	207	146277172	-	Rsph17025_1125	-	multiple antibiotic resistance (MarC)-related protein
1115	 69.00	0	1151711..1153639	-	642	146277173	-	Rsph17025_1126	-	ABC transporter related
1116	 65.01	0	1153687..1154109	+	140	146277174	-	Rsph17025_1127	-	nucleoside-diphosphate kinase
1117	 68.12	0	1154745..1154951	-	68	146277175	-	Rsph17025_1128	-	hypothetical protein
1118	 73.44	+1	1155048..1157570	+	840	146277176	-	Rsph17025_1129	-	heavy metal translocating P-type ATPase
1119	 69.27	0	1157605..1158027	+	140	146277177	-	Rsph17025_1130	-	MerR family transcriptional regulator
1120	 64.14	-1	1158014..1158448	-	144	146277178	-	Rsph17025_1131	-	BadM/Rrf2 family transcriptional regulator
1121	 66.75	0	1158963..1161368	+	801	146277179	-	Rsph17025_1132	-	glycogen/starch/alpha-glucan phosphorylase
1122	 67.68	0	1161381..1163558	+	725	146277180	-	Rsph17025_1133	-	glycogen branching enzyme
1123	 64.78	-1	1163634..1164905	+	423	146277181	glgC	Rsph17025_1134	-	glucose-1-phosphate adenylyltransferase
1124	 70.35	0	1165014..1166450	+	478	146277182	-	Rsph17025_1135	-	glycogen/starch synthase, ADP-glucose type
1125	 69.27	0	1166447..1168561	+	704	146277183	-	Rsph17025_1136	-	glycogen debranching enzyme GlgX
1126	 67.22	0	1168558..1170192	+	544	146277184	-	Rsph17025_1137	-	phosphoglucomutase
1127	 68.72	0	1170372..1171052	+	226	146277185	-	Rsph17025_1138	-	two component LuxR family transcriptional regulator
1128	 71.50	0	1171163..1172341	+	392	146277186	-	Rsph17025_1139	-	hypothetical protein
1129	 69.89	0	1172338..1174539	+	733	146277187	-	Rsph17025_1140	-	PAS/PAC sensor hybrid histidine kinase
1130	 68.72	0	1174646..1175182	+	178	146277188	-	Rsph17025_1141	-	carbon monoxide dehydrogenase subunit G
1131	 64.39	-1	1175211..1175693	+	160	146277189	-	Rsph17025_1142	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
1132	 66.88	0	1175723..1178095	+	790	146277190	-	Rsph17025_1143	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
1133	 71.76	0	1178106..1178891	+	261	146277191	-	Rsph17025_1144	-	molybdopterin dehydrogenase, FAD-binding
1134	 72.64	+1	1179036..1179989	-	317	146277192	-	Rsph17025_1145	-	glucokinase
1135	 69.46	0	1180008..1181330	-	440	146277193	-	Rsph17025_1146	-	Beta-glucosidase
1136	 67.95	0	1181348..1182982	+	544	146277194	-	Rsph17025_1147	-	extracellular solute-binding protein
1137	 64.56	-1	1183131..1184126	+	331	146277195	-	Rsph17025_1148	-	binding-protein-dependent transport systems inner membrane component
1138	 68.63	0	1184126..1185247	+	373	146277196	-	Rsph17025_1149	-	binding-protein-dependent transport systems inner membrane component
1139	 68.63	0	1185278..1186396	+	372	146277197	-	Rsph17025_1150	-	ABC transporter related
1140	 74.87	+1	1186766..1187740	+	324	146277198	-	Rsph17025_1151	-	tellurite resistance protein and related permease-like protein
1141	 69.08	0	1187863..1189311	+	482	146277199	-	Rsph17025_1152	-	inosine-5'-monophosphate dehydrogenase
1142	 70.88	0	1189360..1189929	-	189	146277200	-	Rsph17025_1153	-	TetR family transcriptional regulator
1143	 69.41	0	1190076..1191203	+	375	146277201	-	Rsph17025_1154	-	RND family efflux transporter MFP subunit
1144	 66.37	0	1191211..1194288	+	1025	146277202	-	Rsph17025_1155	-	acriflavin resistance protein
1145	 69.32	0	1194420..1195586	+	388	146277203	-	Rsph17025_1156	-	queuine tRNA-ribosyltransferase
1146	 69.79	0	1195681..1196769	+	362	146277204	-	Rsph17025_1157	-	NADH:flavin oxidoreductase/NADH oxidase
1147	 65.59	0	1197055..1199463	+	802	146277205	-	Rsph17025_1158	-	ATP-dependent protease La
1148	 70.69	0	1199683..1201797	+	704	146277206	-	Rsph17025_1159	-	DNA ligase, NAD-dependent
1149	 72.37	+1	1201794..1203881	+	695	146277207	-	Rsph17025_1160	-	DEAD/DEAH box helicase domain-containing protein
1150	 59.35	-2	1204065..1204187	+	40	146277208	-	Rsph17025_1161	-	hypothetical protein
1151	 71.43	0	1204330..1204770	-	146	146277209	-	Rsph17025_1162	-	NifU-like protein
1152	 68.61	0	1204835..1205194	+	119	146277210	-	Rsph17025_1163	-	phosphoribosyl-AMP cyclohydrolase
1153	 72.68	+1	1205198..1206028	-	276	146277211	-	Rsph17025_1164	-	glutamate--tRNA ligase
1154	 65.92	0	1206013..1207347	-	444	146277212	-	Rsph17025_1165	-	tRNA (uracil-5-)-methyltransferase Gid
1155	 66.81	0	1207351..1210065	-	904	146277213	-	Rsph17025_1166	-	DNA gyrase subunit A
1156	 60.98	-2	1210307..1210570	+	87	146277214	-	Rsph17025_1167	-	Usg family protein
1157	 70.33	0	1210583..1211509	-	308	146277215	-	Rsph17025_1168	-	arginase
1158	 69.15	0	1211751..1213721	+	656	146277216	-	Rsph17025_1169	-	cytochrome c-type biogenesis protein CcmF
1159	 70.61	0	1213718..1214173	+	151	146277217	-	Rsph17025_1170	-	cytochrome C biogenesis protein
1160	 71.30	0	1214238..1215014	+	258	146277218	-	Rsph17025_1171	-	enoyl-CoA hydratase/isomerase
1161	 68.09	0	1215050..1215610	-	186	146277219	ilvH	Rsph17025_1172	-	acetolactate synthase 3 regulatory subunit
1162	 66.61	0	1215693..1217447	-	584	146277220	-	Rsph17025_1173	-	acetolactate synthase 3 catalytic subunit
1163	 66.34	0	1217751..1218665	-	304	146277221	-	Rsph17025_1174	-	CaCA family Na(+)/Ca(+) antiporter
1164	 66.90	0	1218895..1219737	-	280	146277222	-	Rsph17025_1175	-	arginyl-tRNA-protein transferase
1165	 67.77	0	1219840..1220292	-	150	146277223	-	Rsph17025_1176	-	RDD domain-containing protein
1166	 69.59	0	1220368..1220778	-	136	146277224	-	Rsph17025_1177	-	hypothetical protein
1167	 71.78	0	1221018..1223831	+	937	146277225	-	Rsph17025_1178	-	(glutamate--ammonia-ligase) adenylyltransferase
1168	 72.22	+1	1223818..1224087	+	89	146277226	-	Rsph17025_1179	-	hypothetical protein
1169	 74.18	+1	1224107..1224745	-	212	146277227	-	Rsph17025_1180	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
1170	 71.37	0	1225003..1226808	-	601	146277228	-	Rsph17025_1181	-	phosphogluconate dehydratase
1171	 67.35	0	1226971..1227261	-	96	146277229	-	Rsph17025_1182	-	hypothetical protein
1172	 72.35	+1	1227321..1228604	+	427	146277230	-	Rsph17025_1183	-	putative RNA methylase
1173	 74.40	+1	1228601..1229143	+	180	146277231	-	Rsph17025_1184	-	hypothetical protein
1174	 68.56	0	1229182..1229868	-	228	146277232	-	Rsph17025_1185	-	peptidase M48, Ste24p
1175	 67.97	0	1229978..1230361	-	127	146277233	-	Rsph17025_1186	-	hypothetical protein
1176	 67.59	0	1230563..1231747	-	394	146277234	-	Rsph17025_1187	-	hypothetical protein
1177	 66.67	0	1231770..1231934	-	54	146277235	-	Rsph17025_1188	-	hypothetical protein
1178	 71.68	0	1231931..1233325	-	464	146277236	-	Rsph17025_1189	-	hypothetical protein
1179	 69.09	0	1233325..1233777	-	150	146277237	-	Rsph17025_1190	-	GCN5-related N-acetyltransferase
1180	 64.29	-1	1233801..1234640	-	279	146277238	-	Rsph17025_1191	-	ATPase
1181	 64.15	-1	1234773..1235249	+	158	146277239	-	Rsph17025_1192	-	TraR/DksA family transcriptional regulator
1182	 71.53	0	1235347..1236519	+	390	146277240	-	Rsph17025_1193	-	monooxygenase, FAD-binding
1183	 70.78	0	1236531..1236992	-	153	146277241	-	Rsph17025_1194	-	thioesterase superfamily protein
1184	 68.46	0	1237067..1237846	-	259	146277242	-	Rsph17025_1195	-	exodeoxyribonuclease III Xth
1185	 64.22	-1	1237919..1238245	-	108	146277243	-	Rsph17025_1196	-	iron-sulfur cluster assembly accessory protein
1186	 67.37	0	1238320..1239456	+	378	146277244	-	Rsph17025_1197	-	putative deoxyguanosinetriphosphate triphosphohydrolase
1187	 67.70	0	1239562..1240530	+	322	146277245	-	Rsph17025_1198	-	putative ribonuclease BN
1188	 76.55	+2	1240539..1241681	-	380	146277246	-	Rsph17025_1199	-	iron-containing alcohol dehydrogenase
1189	 71.59	0	1241678..1243159	-	493	146277247	-	Rsph17025_1200	-	glycerol kinase
1190	 66.43	0	1243317..1245035	-	572	146277248	-	Rsph17025_1201	-	extracellular solute-binding protein
1191	 68.86	0	1245094..1245366	-	90	146277249	-	Rsph17025_1202	-	small integral membrane protein-like protein
1192	 68.52	0	1245379..1245702	-	107	146277250	-	Rsph17025_1203	-	hypothetical protein
1193	 62.44	-1	1245702..1246505	-	267	146277251	-	Rsph17025_1204	-	binding-protein-dependent transport systems inner membrane component
1194	 62.66	-1	1246543..1247415	-	290	146277252	-	Rsph17025_1205	-	binding-protein-dependent transport systems inner membrane component
1195	 68.97	0	1247415..1248500	-	361	146277253	-	Rsph17025_1206	-	ABC transporter related
1196	 69.61	0	1248511..1249599	-	362	146277254	-	Rsph17025_1207	-	ABC transporter related
1197	 71.28	0	1249721..1251325	-	534	146277255	glpD	Rsph17025_1208	-	glycerol-3-phosphate dehydrogenase
1198	 70.65	0	1251473..1251748	-	91	146277256	-	Rsph17025_1209	-	hypothetical protein
1199	 73.28	+1	1251939..1252316	+	125	146277257	-	Rsph17025_1210	-	hypothetical protein
1200	 68.21	0	1252358..1254691	-	777	146277258	-	Rsph17025_1211	-	quinoprotein glucose dehydrogenase
1201	 64.95	0	1254844..1255485	-	213	146277259	-	Rsph17025_1212	-	PRC-barrel domain-containing protein
1202	 71.50	0	1255906..1256733	-	275	146277260	-	Rsph17025_1213	-	hypothetical protein
1203	 72.26	+1	1256798..1257745	-	315	146277261	-	Rsph17025_1214	-	transport-associated
1204	 66.40	0	1258546..1258920	-	124	146277262	-	Rsph17025_1215	-	response regulator receiver protein
1205	 70.12	0	1259063..1259815	+	250	146277263	-	Rsph17025_1216	-	MgtC/SapB transporter
1206	 72.48	+1	1259841..1260098	-	85	146277264	-	Rsph17025_1217	-	hypothetical protein
1207	 71.94	+1	1260095..1262635	-	846	146277265	-	Rsph17025_1218	-	ATP dependent DNA ligase
1208	 63.85	-1	1263283..1263495	-	70	146277266	-	Rsph17025_1219	-	hypothetical protein
1209	 66.67	0	1263622..1264125	+	167	146277267	-	Rsph17025_1220	-	ECF subfamily RNA polymerase sigma-24 factor
1210	 71.81	+1	1264433..1265365	+	310	146277268	-	Rsph17025_1221	-	malonyl CoA-acyl carrier protein transacylase
1211	 74.05	+1	1265473..1266393	-	306	146277269	xerC	Rsph17025_1222	-	site-specific tyrosine recombinase XerC
68.34	MEAN

3.47	STD DEV
