IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

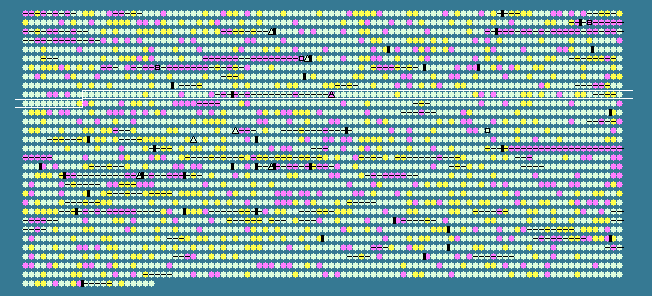

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
911	 66.14	0	948123..949262	-	379	77462876	rodA	RSP_2325	-	RodA, rod cell shape determining protein
912	 69.18	0	949270..951216	-	648	77462877	pbpA	RSP_2326	-	peptidoglycan glycosyltransferase
913	 71.30	0	951213..951752	-	179	77462878	-	RSP_2327	-	hypothetical protein
914	 69.44	0	951745..952647	-	300	77462879	mreC	RSP_2328	-	rod shape-determining protein MreC
915	 67.63	0	952681..953718	-	345	77462880	mreB	RSP_2329	-	rod shape-determining protein MreB
916	 66.98	0	954067..955023	+	318	77462881	-	RSP_6044	-	Serine/alanine racemase VanTc3
917	 66.23	0	955210..956799	-	529	77462882	leuA	RSP_2330	-	2-isopropylmalate synthase
918	 67.76	0	957264..957722	+	152	77462883	ppaZ	RSP_2331	-	PpaZ, a novel pseudoazurin precursor (blue copper protein)
919	 69.85	0	958220..959725	-	501	77462884	-	RSP_2332	-	hypothetical protein
920	 69.73	0	959907..961571	+	554	77462885	nadE	RSP_2333	-	NAD synthetase
921	 75.66	+1	961677..962621	-	314	77462886	pfkB	RSP_2334	-	6-phosphofructokinase
922	 69.36	0	962768..963361	+	197	77462887	wrbA	RSP_2335	-	trp repressor binding protein WrbA, putative
923	 65.42	0	963386..963625	-	79	77462888	-	RSP_6045	-	hypothetical protein
924	 70.63	0	963757..964488	+	243	77462889	-	RSP_2336	-	hypothetical protein
925	 71.43	0	964563..964814	+	83	77462890	-	RSP_2337	-	hypothetical protein
926	 66.12	0	964900..965262	+	120	77462891	-	RSP_2338	-	hypothetical protein
927	 63.56	-1	965250..965828	-	192	77462892	-	RSP_2339	-	hypothetical protein
928	 68.34	0	965892..967202	-	436	77462893	-	RSP_2340	-	MiaB-like radical SAM protein
929	 71.84	0	967364..968542	-	392	77462894	-	RSP_2341	-	hypothetical protein
930	 66.47	0	968571..969074	-	167	77462895	gpt	RSP_2342	-	xanthine-guanine phosphoribosyltransferase
931	 68.62	0	969084..969698	-	204	77462896	-	RSP_2343	-	RhtB family threonine efflux protein
932	 65.09	0	969700..970524	-	274	77462897	fabI1	RSP_2344	-	enoyl-(acyl carrier protein) reductase
933	 68.82	0	970667..971269	+	200	77462898	pdxH	RSP_2345	-	pyridoxamine 5'-phosphate oxidase
934	 64.64	0	971386..971928	+	180	77462899	-	RSP_2346	-	cold-shock DNA-binding protein family protein
935	 71.00	0	971943..972404	+	153	77462900	-	RSP_2347	-	hypothetical protein
936	 61.89	-1	973054..973848	-	264	77462901	-	RSP_2348	-	hypothetical protein
937	 68.52	0	973975..974136	-	53	77462902	-	RSP_6223	-	hypothetical protein
938	 64.77	0	974266..974898	-	210	77462903	-	RSP_2349	-	hypothetical protein
939	 69.03	0	974973..975437	-	154	77462904	-	RSP_2350	-	hypothetical protein
940	 67.56	0	976154..978163	-	669	77462905	-	RSP_2351	-	hypothetical protein
941	 68.62	0	978176..979708	-	510	77462906	-	RSP_2352	-	putative terminase large subunit / phage terminase
942	 71.97	0	979786..980181	-	131	77462907	-	RSP_2353	-	hypothetical protein
943	 71.11	0	980178..980492	-	104	77462908	-	RSP_6046	-	hypothetical protein
944	 68.82	0	980495..980911	-	138	77462909	-	RSP_6047	-	hypothetical protein
945	 71.87	0	980904..981326	-	140	77462910	-	RSP_2354	-	hypothetical protein
946	 48.34	-2	981816..983288	+	490	77462911	-	RSP_2356	-	hypothetical protein
947	 66.38	0	983273..983623	-	116	77462912	-	RSP_2355	-	HNH nuclease / phage phi-105 holin-like protein
948	 69.51	0	983626..984222	-	198	77462913	-	RSP_2357	-	hypothetical protein
949	 66.83	0	984222..985484	-	420	77462914	-	RSP_2358	-	phage phi-C31 gp36-like protein /HK97 family  major capsid protein
950	 68.85	0	985754..986074	-	106	77462915	-	RSP_2359	-	hypothetical protein
951	 68.59	0	986071..987264	-	397	77462916	-	RSP_2360	-	head HK97 family portal protein
952	 62.60	-1	987339..989156	-	605	77462917	-	RSP_2361	-	putative integrase/resolvase recombinase protein phage-related integrase
953	 66.79	0	989506..990288	+	260	77462918	-	RSP_2362	-	GntR family transcriptional regulator
954	 71.11	0	990482..991246	+	254	77462919	-	RSP_2363	-	Short-chain dehydrogenase/reductase
955	 65.91	0	991251..991907	+	218	77462920	fucA	RSP_2364	-	L-fuculose phosphate aldolase (class II)
956	 65.32	0	991973..992935	+	320	77462921	-	RSP_2365	-	ABC sugar (ribose) transporter, periplasmic substrate-binding subunit
957	 69.45	0	993119..994627	+	502	77462922	-	RSP_2366	-	ABC sugar (ribose) transporter, fused ATPase subunits
958	 70.15	0	994634..995638	+	334	77462923	-	RSP_2368	-	ABC sugar (ribose) transporter, inner membrane subunit
959	 68.92	0	995642..996619	+	325	77462924	-	RSP_2367	-	ABC sugar (ribose) transporter, inner membrane subunit
960	 69.72	0	996635..997585	+	316	77462925	-	RSP_2370	-	putative sugar kinase
961	 70.28	0	997596..998342	+	248	77462926	-	RSP_2371	-	3-oxoacyl-(acyl-carrier protein) reductase / Short-chain dehydrogenase/reductase SDR
962	 71.04	0	998596..1000014	+	472	77462927	-	RSP_2372	-	aldehyde dehydrogenase (NAD-dependent)
963	 74.53	+1	1000011..1001180	+	389	77462928	-	RSP_2373	-	MFS family transporter
964	 71.62	0	1001413..1001937	+	174	77462929	-	RSP_2374	-	hypothetical protein
965	 71.92	0	1002024..1003469	+	481	77462930	-	RSP_2375	-	hypothetical protein
966	 69.77	0	1003514..1004704	+	396	77462931	kbl	RSP_2376	-	2-amino-3-ketobutyrate coenzyme A ligase
967	 67.74	0	1004704..1005729	+	341	77462932	tdh	RSP_2377	-	L-threonine 3-dehydrogenase
968	 70.22	0	1005921..1007243	-	440	77462933	cypC	RSP_2378	-	putative fatty acid beta hydroxylase (cytochrome P450)
969	 70.59	0	1007354..1007608	-	84	77462934	-	RSP_2379	-	hypothetical protein
970	 66.20	0	1007644..1009776	-	710	77462935	catC	RSP_2380	-	catalase
971	 68.56	0	1009898..1010425	-	175	77462936	-	RSP_6048	-	hypothetical protein
972	 72.25	0	1010544..1011098	+	184	77462937	-	RSP_2381	-	3-methyladenine DNA glycosylase
973	 67.90	0	1011171..1011332	+	53	77462938	-	RSP_6049	-	hypothetical protein
974	 70.00	0	1011405..1012514	-	369	77462939	-	RSP_2382	-	hypothetical protein
975	 69.65	0	1012514..1012915	-	133	77462940	-	RSP_2383	-	putative integral membrane protein
976	 72.61	0	1012902..1013726	-	274	77462941	-	RSP_6050	-	hypothetical protein
977	 64.17	-1	1013866..1014426	+	186	77462942	-	RSP_2384	-	hypothetical protein
978	 68.60	0	1014506..1014868	-	120	77462943	-	RSP_2385	-	hypothetical protein
979	 64.30	-1	1015271..1015651	+	126	77462944	-	RSP_6224	-	hypothetical protein
980	 70.68	0	1015654..1016748	-	364	77462945	mtnA	RSP_2386	-	methylthioribose-1-phosphate isomerase
981	 69.66	0	1016860..1017294	-	144	77462946	-	RSP_2387	-	hypothetical protein
982	 69.86	0	1017366..1017866	-	166	77462947	-	RSP_2388	-	hypothetical protein
983	 69.11	0	1018151..1018681	+	176	77462948	-	RSP_2389	-	putative glutathione peroxidase
984	 74.41	+1	1018710..1019819	+	369	77462949	acuC1	RSP_2390	-	putative acetoin utilization protein
985	 74.41	+1	1019816..1020370	+	184	77462950	-	RSP_2391	-	2'-5' RNA ligase
986	 65.41	0	1020381..1020938	-	185	77462951	-	RSP_2392	-	putative membrane protein, periplasmic nitrate reductase NnuR
987	 75.00	+1	1021231..1022454	-	407	77462952	kdtA	RSP_2394	-	putative 3-deoxy-D-manno-octulosonic-acid transferase (KDO transferase)
988	 68.77	0	1022619..1023662	+	347	77462953	-	RSP_2395	-	BCCP, cytochrome c peroxidase
989	 70.06	0	1023737..1024738	-	333	77462954	-	RSP_2396	-	hypothetical protein
990	 65.10	0	1025030..1026049	-	339	77462955	-	RSP_2397	-	ABC putrescine transporter, periplasmic substrate-binding subunit
991	 66.54	0	1026077..1026877	-	266	77462956	-	RSP_2398	-	ABC putrescine transporter, inner membrane subunit
992	 65.77	0	1026870..1027763	-	297	77462957	-	RSP_2399	-	ABC putrescine transporter, inner membrane subunit
993	 72.44	0	1027765..1028769	-	334	77462958	-	RSP_2400	-	ABC putrescine transporter, ATPase subunit
994	 74.07	+1	1028860..1030317	-	485	77462959	-	RSP_2401	-	putative 6-aminohexanoate-cyclic-dimer hydrolase
995	 69.50	0	1030777..1032612	+	611	77462960	-	RSP_2402	-	putative TonB dependent vitamin B12 outer membrane receptor
996	 71.54	0	1032599..1033459	+	286	77462961	-	RSP_2403	-	ABC cobalamin/Fe3+-siderophore transporter, periplasmic substrate-binding subunit
997	 72.12	0	1033456..1034445	+	329	77462962	-	RSP_2404	-	ABC cobalamin/Fe3+-siderophore transporter, inner membrane subunit
998	 74.10	+1	1034442..1035194	+	250	77462963	-	RSP_2405	-	ABC cobalamin/Fe3+-siderophore transporter, ATPase subunit
999	 75.76	+1	1035191..1035850	+	219	77462964	-	RSP_2406	-	hypothetical protein
1000	 71.51	0	1035995..1037728	-	577	77462965	-	RSP_2407	-	periplasmic sensor hybrid histidine kinase
1001	 70.73	0	1037772..1038017	-	81	77462966	-	RSP_2408	-	hypothetical protein
1002	 71.33	0	1038091..1039140	+	349	77462967	rluD	RSP_2409	-	ribosomal large subunit pseudouridine synthase D
1003	 66.11	0	1039301..1040197	+	298	77462968	rpoH1	RSP_2410	-	RNA polymerase factor sigma-32
1004	 70.79	0	1040755..1041555	-	266	77462969	-	RSP_2411	-	hypothetical protein
1005	 66.06	0	1041640..1043460	-	606	77462970	pepF	RSP_2412	-	oligoendopeptidase F
1006	 70.35	0	1043632..1045233	-	533	77462971	lig2	RSP_2413	-	ATP-dependent DNA ligase
1007	 71.88	0	1045230..1046381	-	383	77462972	-	RSP_2414	-	hypothetical protein
1008	 66.24	0	1046578..1047969	+	463	77462973	-	RSP_2415	-	hypothetical protein
1009	 65.93	0	1047977..1048927	+	316	77462974	-	RSP_2416	-	hypothetical protein
1010	 72.47	0	1048924..1049733	+	269	77462975	-	RSP_2417	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
