IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

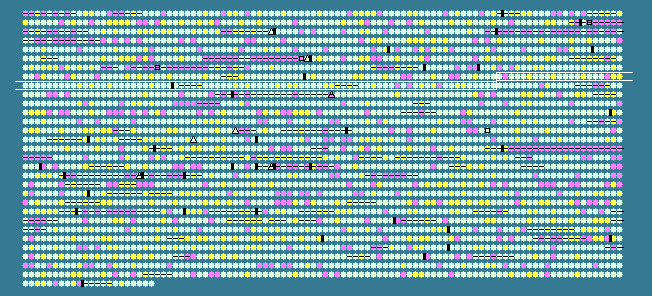

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.78   STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
780	 72.22	0	804825..805958	+	377	77462745	gcvT	RSP_2193	-	glycine cleavage system aminomethyltransferase T
781	 62.18	-1	805967..806323	+	118	77462746	gcvH	RSP_2194	-	glycine cleavage system protein H
782	 69.00	0	806327..809197	+	956	77462747	gcvP	RSP_2195	-	glycine dehydrogenase
783	 69.30	0	809387..811588	-	733	77462748	-	RSP_2196	-	3-hydroxyacyl-CoA dehydrogenase
784	 69.72	0	811603..812814	-	403	77462749	-	RSP_2197	-	acetyl-CoA acetyltransferase
785	 72.75	0	812885..813328	-	147	77462750	-	RSP_2198	-	hypothetical protein
786	 67.00	0	813355..815130	-	591	77462751	-	RSP_2199	-	putative acyl-CoA dehydrogenase
787	 67.17	0	815149..815547	-	132	77462752	-	RSP_2200	-	MerR family transcriptional regulator
788	 66.40	0	815669..816049	-	126	77462753	-	RSP_2201	-	MerR family transcriptional regulator
789	 75.20	+1	816157..816648	+	163	77462754	-	RSP_2202	-	hypothetical protein
790	 69.23	0	816645..817151	+	168	77462755	-	RSP_2203	-	hypothetical protein
791	 71.84	0	817144..818478	+	444	77462756	-	RSP_2204	-	multidrug efflux pump, MATE family
792	 68.38	0	818490..819248	-	252	77462757	-	RSP_2205	-	hypothetical protein
793	 66.12	0	819245..820165	-	306	77462758	-	RSP_2206	-	hypothetical protein
794	 72.66	0	820251..821051	-	266	77462759	deoD	RSP_2207	-	purine nucleoside phosphorylase
795	 69.25	0	821053..822021	-	322	77462760	-	RSP_2208	-	ABC sugar transporter, inner membrane subunit
796	 68.40	0	822018..823112	-	364	77462761	-	RSP_2209	-	ABC sugar transporter, inner membrane subunit
797	 69.26	0	823112..824689	-	525	77462762	-	RSP_2210	-	ABC sugar transporter, fused ATPase subunits
798	 64.66	0	824690..825685	-	331	77462763	-	RSP_2211	-	ABC transporter, periplasmic substrate-binding protein
799	 75.36	+1	825839..826321	-	160	77462764	rimI	RSP_2212	-	putative acetyltransferase
800	 76.03	+1	826318..826926	-	202	77462765	-	RSP_2213	-	hypothetical protein
801	 67.74	0	826916..827476	-	186	77462766	-	RSP_2214	-	nitrogen-fixing NifU
802	 68.15	0	827623..828027	-	134	77462767	-	RSP_2215	-	hypothetical protein
803	 68.52	0	828137..829000	-	287	77462768	ilvE	RSP_2216	-	aminotransferase
804	 71.25	0	829071..829550	-	159	77462769	-	RSP_2217	-	hypothetical protein
805	 70.53	0	829813..830355	+	180	77462770	-	RSP_2218	-	hypothetical protein
806	 71.09	0	830390..831271	-	293	77462771	-	RSP_2219	-	putative lipid A biosynthesis lauroyl acyltransferase
807	 70.76	0	831570..832643	-	357	77462772	-	RSP_2220	-	flagellar motor switch protein (fliG)
808	 69.23	0	832703..832858	-	51	77462773	-	RSP_6042	-	hypothetical protein
809	 66.74	0	832985..834289	-	434	77462774	purB	RSP_2221	-	adenylosuccinate lyase
810	 72.38	0	834397..834711	-	104	77462775	-	RSP_2222	-	hypothetical protein
811	 69.69	0	834809..837955	-	1048	77462776	-	RSP_2223	-	AcrB/AcrD/AcrF multidrug efflux pump
812	 74.72	+1	837959..839125	-	388	77462777	-	RSP_2224	-	multidrug efflux pump, membrane fusion protein
813	 68.45	0	839367..840038	+	223	77462778	-	RSP_2225	-	hypothetical protein
814	 67.48	0	840316..842400	-	694	77462779	glgX	RSP_2226	-	glycosidase
815	 72.28	0	842397..843626	-	409	77462780	glgC	RSP_2227	-	ADP-glucose pyrophosphorylase
816	 68.17	0	844096..844626	-	176	77462781	-	RSP_2228	-	PAS domain-containing protein
817	 67.81	0	844698..848210	+	1170	77462782	-	RSP_2229	-	methylesterase CheB/methylase CheR
818	 68.57	0	848230..848544	+	104	77462783	-	RSP_2230	-	response regulator receiver domain-containing protein
819	 65.88	0	848771..849025	+	84	77462784	-	RSP_2231	-	hypothetical protein
820	 72.00	0	849420..850844	-	474	77462785	-	RSP_2232	-	putative uracil-DNA glycosylase
821	 67.65	0	850877..852097	-	406	77462786	-	RSP_2234	-	DNA-binding protein
822	 73.29	+1	852180..853220	-	346	77462787	-	RSP_2235	-	hypothetical protein
823	 69.23	0	853322..853789	+	155	77462788	-	RSP_2236	-	MarR family transcriptional regulator
824	 71.64	0	853786..854892	+	368	77462789	-	RSP_2237	-	membrane fusion protein (MFP) family protein
825	 66.99	0	854906..856429	+	507	77462790	-	RSP_2238	-	major facilitator superfamily multidrug-efflux transporter
826	 70.74	0	857218..858003	+	261	77462791	-	RSP_2239	-	tRNA/rRNA metyltransferase
827	 70.02	0	858192..858638	+	148	77462792	-	RSP_2240	-	hypothetical protein
828	 70.51	0	858840..859151	-	103	77462793	hisE	RSP_2241	-	phosphoribosyl-ATP pyrophosphatase
829	 69.95	0	859148..859909	-	253	77462794	hisF	RSP_2242	-	imidazole glycerol phosphate synthase subunit HisF
830	 73.19	+1	860044..860763	-	239	77462795	hisA	RSP_2243	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
831	 70.87	0	860903..861283	+	126	77462796	-	RSP_2244	-	hypothetical protein
832	 68.70	0	861508..862146	-	212	77462797	hisH	RSP_2245	-	imidazole glycerol phosphate synthase subunit HisH
833	 68.03	0	862146..862733	-	195	77462798	hisB	RSP_2246	-	imidazoleglycerol-phosphate dehydratase
834	 69.60	0	862970..864979	+	669	77462799	fusA	RSP_2247	-	elongation factor G
835	 71.33	0	865112..866332	-	406	77462800	-	RSP_2249	-	major facilitator superfamily multidrug-efflux transporter
836	 72.84	0	866363..867091	-	242	77462801	-	RSP_2250	-	hypothetical protein
837	 70.72	0	867084..867872	-	262	77462802	-	RSP_2251	-	3-oxoadipate enol-lactonase
838	 74.85	+1	868100..869077	-	325	77462803	-	RSP_2252	-	L-threonine ammonia-lyase
839	 71.76	0	869074..869898	-	274	77462804	-	RSP_2253	-	hydrolase or acyltransferase
840	 69.55	0	870307..872043	+	578	77462805	-	RSP_2254	-	ABC efflux transporter, fused ATPase and inner membrane subunits
841	 68.20	0	872149..874038	+	629	77462806	-	RSP_2255	-	acyl-CoA synthetase
842	 71.92	0	874411..874848	-	145	77462807	dtd	RSP_2256	-	D-tyrosyl-tRNA deacylase
843	 73.29	+1	874848..875768	-	306	77462808	-	RSP_2257	-	putative fructokinase
844	 68.65	0	875782..876741	-	319	77462809	hemH	RSP_2258	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
845	 74.89	+1	876808..877245	-	145	77462810	-	RSP_2259	-	transmembrane protein
846	 72.50	0	877250..878347	-	365	77462811	ydjG	RSP_2260	-	hypothetical protein
847	 69.01	0	878349..879458	-	369	77462812	ydjI	RSP_2261	-	antifreeze protein, type I
848	 66.35	0	879639..880277	-	212	77462813	-	RSP_2262	-	hypothetical protein
849	 70.39	0	880293..881258	-	321	77462814	-	RSP_2263	-	hypothetical protein
850	 69.19	0	881271..882461	-	396	77462815	telA	RSP_2264	-	tellurite resistance protein
851	 72.92	0	882610..883488	-	292	77462816	-	RSP_2265	-	hypothetical protein
852	 75.77	+1	883673..885199	-	508	77462817	rluB	RSP_2266	-	pseudouridine synthase,
853	 75.06	+1	885533..885985	+	150	77462818	-	RSP_2267	-	hypothetical protein
854	 66.09	0	885996..886688	-	230	77462819	-	RSP_2268	-	metallo beta lactamase superfamily protein
855	 73.06	+1	886751..887407	+	218	77462820	-	RSP_6222	-	hypothetical protein
856	 67.36	0	887451..887738	+	95	77462821	gatC	RSP_6043	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit C
857	 69.04	0	887735..889210	+	491	77462822	gatA	RSP_2270	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
858	 71.16	0	889158..890048	+	296	77462823	-	RSP_2271	-	hypothetical protein
859	 73.96	+1	890052..890723	+	223	77462824	ampD	RSP_2272	-	N-acetylmuramoyl-L-alanine amidase
860	 70.56	0	891211..892443	-	410	77462825	-	RSP_2273	-	putative anaerobic phenylacetate CoA ligase
861	 66.06	0	892440..893270	-	276	77462826	-	RSP_2274	-	branched chain amino acid ABC transporter ATPase
862	 66.98	0	893357..894646	-	429	77462827	-	RSP_2275	-	branched chain amino acid ABC transporter periplasmic substrate-binding protein
863	 64.90	0	894707..895783	-	358	77462828	-	RSP_2276	-	branched chain amino acid ABC transporter inner membrane protein
864	 65.86	0	895787..896776	-	329	77462829	-	RSP_2277	-	branched chain amino acid ABC transporter inner membrane protein
865	 64.40	-1	896911..897750	-	279	77462830	-	RSP_2278	-	branched chain amino acid ABC transporter ATPase
866	 66.16	0	898039..900000	-	653	77462831	-	RSP_2279	-	long chain acyl-CoA synthetase
867	 72.33	0	900561..902483	+	640	77462832	-	RSP_2280	-	PAS sensor hybrid histidine kinase
868	 70.76	0	902480..903187	+	235	77462833	-	RSP_2281	-	two-component transcriptional regulator
869	 75.57	+1	903198..904376	-	392	77462834	chrA	RSP_2282	-	chromate efflux pump, ChrA
870	 63.77	-1	904801..905421	+	206	77462835	rpsD	RSP_2283	-	30S ribosomal protein S4
871	 68.23	0	905665..906750	+	361	77462836	-	RSP_2284	-	histidinol-phosphate aminotransferase
872	 69.12	0	906750..907685	+	311	77462837	-	RSP_6215	-	cyclohexadienyl dehydrogenase
873	 72.49	0	907691..908548	+	285	77462838	-	RSP_2285	-	hypothetical protein
874	 72.59	0	908551..909546	-	331	77462839	-	RSP_2286	-	hypothetical protein
875	 68.12	0	909607..910155	+	182	77462840	-	RSP_2287	-	ChaC-like protein
876	 69.13	0	910229..911404	+	391	77462841	-	RSP_2288	-	hypothetical protein
877	 71.55	0	911408..912985	+	525	77462842	-	RSP_2289	-	hypothetical protein
878	 70.46	0	913317..913817	+	166	77462843	-	RSP_2291	-	hypothetical protein
879	 65.67	0	914730..917045	-	771	77462844	clpA	RSP_2293	-	chaperonin clpA/B
68.78	MEAN

4.15	STD DEV
