IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

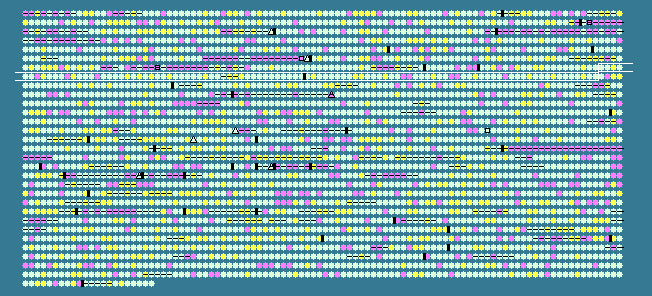

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
697	 70.01	0	710657..711583	+	308	77462662	murB	RSP_2110	-	UDP-N-acetylmuramate dehydrogenase
698	 69.16	0	711623..712546	+	307	77462663	ddlA	RSP_2111	-	D-alanine--D-alanine ligase
699	 72.71	0	712534..713460	+	308	77462664	ftsQ	RSP_2112	-	cell division septal protein FtsQ
700	 68.99	0	713457..714791	+	444	77462665	ftsA	RSP_2113	-	cell division protein FtsA
701	 70.95	0	714971..716629	+	552	77462666	ftsZ1	RSP_2114	-	cell division protein FtsZ
702	 69.71	0	716857..717777	+	306	77462667	lpxC	RSP_2115	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
703	 64.40	-1	717892..718728	+	278	77462668	comL	RSP_2117	-	putative ComL lipoprotein
704	 73.86	+1	718756..720396	+	546	77462669	recN	RSP_2118	-	DNA repair protein RecN
705	 72.26	0	720407..720799	-	130	77462670	-	RSP_2119	-	hypothetical protein
706	 71.54	0	720796..722169	-	457	77462671	-	RSP_2120	-	putative D-lactate dehydrogenase (cytochrome), FAD/FMN-containing oxidoreductase
707	 69.52	0	722305..722934	-	209	77462672	-	RSP_2121	-	hypothetical protein
708	 63.23	-1	723139..723837	-	232	77462673	mtbC	RSP_2122	-	putative dimethylamine corrinoid protein
709	 72.82	0	723994..725082	+	362	77462674	-	RSP_2123	-	radical SAM domain-containing protein
710	 71.43	0	725180..726187	-	335	77462675	-	RSP_2124	-	methionine synthase I
711	 67.29	0	726399..726719	-	106	77462676	-	RSP_2125	-	hypothetical protein
712	 66.53	0	726902..727654	+	250	77462677	purC	RSP_2126	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
713	 63.75	-1	727669..727908	+	79	77462678	purS	RSP_2127	-	component of phosphoribosylformylglycinamidine (FGAM) synthetase
714	 70.85	0	728140..728808	+	222	77462679	purQ	RSP_2128	-	phosphoribosylformylglycinamidine synthase I (FGAM) synthase
715	 68.14	0	728856..730619	+	587	77462680	-	RSP_2129	-	sensor histidine kinase
716	 66.37	0	730629..731957	+	442	77462681	-	RSP_2130	-	two component, sigma54 specific, Fis family transcriptional regulator
717	 69.65	0	732464..735274	+	936	77462682	rne	RSP_2131	-	RNAse E
718	 72.81	0	735283..735510	-	75	77462683	-	RSP_2132	-	hypothetical protein
719	 68.01	0	735655..736401	+	248	77462684	ccdA	RSP_2134	-	putative cytochrome c-type biogenesis protein CcdA
720	 75.14	+1	736430..737644	+	404	77462685	-	RSP_2136	-	hypothetical protein
721	 72.07	0	737626..737847	-	73	77462686	-	RSP_2135	-	hypothetical protein
722	 73.04	+1	737844..738047	-	67	77462687	-	RSP_2137	-	hypothetical protein
723	 65.52	0	738047..739441	-	464	77462688	fumC	RSP_2138	-	fumarate hydratase
724	 66.45	0	739608..740066	-	152	77462689	-	RSP_2139	-	hypothetical protein
725	 74.58	+1	740169..740825	-	218	77462690	-	RSP_2140	-	hypothetical protein
726	 66.28	0	741747..742793	-	348	77462691	-	RSP_2141	-	ABC polyamine transporter, periplasmic substrate-binding protein
727	 71.43	0	743132..744370	+	412	77462692	-	RSP_2142	-	NifS-related protein
728	 72.18	0	744522..745937	+	471	77462693	-	RSP_2143	-	deoxyribodipyrimidine photo-lyase type I
729	 66.58	0	745971..747182	+	403	77462694	cfaS	RSP_2144	-	cyclopropane-fatty-acyl-phospholipid synthase
730	 70.98	0	747208..747648	+	146	77462695	trgA	RSP_2145	-	tellurite resistance protein
731	 74.22	+1	747648..748733	+	361	77462696	trgB	RSP_2146	-	tellurite resistance protein
732	 68.31	0	749066..750100	+	344	77462697	cysK	RSP_2147	-	cysteine synthase A
733	 70.32	0	750104..752647	+	847	77462698	-	RSP_2148	-	small conductance mechanosensitive Ion channel
734	 71.67	0	752647..753366	+	239	77462699	-	RSP_2149	-	Ala-tRNA(Pro) hydrolase
735	 74.37	+1	753492..754205	-	237	77462700	-	RSP_2150	-	glycosyl transferase
736	 73.91	+1	754202..754753	-	183	77462701	yohD	RSP_2151	-	DedA family, membrane protein
737	 75.02	+1	754750..755838	-	362	77462702	-	RSP_2152	-	ceramide glucosyltransferase
738	 71.00	0	755838..756644	-	268	77462703	-	RSP_2153	-	metallo-phosphoesterase
739	 71.89	0	756778..758079	-	433	77462704	-	RSP_2154	-	hypothetical protein
740	 71.57	0	758081..759406	-	441	77462705	hisD	RSP_2155	-	histidinol dehydrogenase
741	 66.17	0	759416..760213	-	265	77462706	-	RSP_2156	-	ABC transporter, inner membrane subunit
742	 70.09	0	760210..761145	-	311	77462707	-	RSP_2157	-	ABC transporter, inner membrane subunit
743	 67.94	0	761705..762802	-	365	77462708	-	RSP_2158	-	ABC transporter, periplasmic solute-binding protein
744	 71.52	0	762822..763955	-	377	77462709	-	RSP_2159	-	ABC transporter, ATPase subunit
745	 71.63	0	764032..764796	-	254	77462710	gno	RSP_2160	-	Short-chain dehydrogenase/reductase
746	 68.22	0	764992..765699	-	235	77462711	bcrC	RSP_2161	-	efflux channel
747	 68.28	0	765995..766798	+	267	77462712	-	RSP_2163	-	lytic murein transglycosylase, putative
748	 67.98	0	767169..767624	-	151	77462713	putR	RSP_2165	-	AsnC family transcriptional regulator
749	 73.23	+1	767735..771376	+	1213	77462714	putA	RSP_2166	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
750	 66.67	0	771407..772147	+	246	77462715	-	RSP_2167	-	hypothetical protein
751	 68.91	0	772144..772500	+	118	77462716	-	RSP_2168	-	hypothetical protein
752	 70.48	0	772736..773521	-	261	77462717	suhB	RSP_2169	-	inositol monophosphatase family protein
753	 70.22	0	773653..775170	-	505	77462718	-	RSP_2170	-	inorganic phosphate transporter
754	 67.00	0	775298..776203	-	301	77462719	metR	RSP_2171	-	LysR family transcriptional regulator
755	 68.28	0	776298..777164	+	288	77462720	metF	RSP_2172	-	5,10-methylenetetrahydrofolate reductase
756	 72.89	0	777316..777861	-	181	77462721	-	RSP_2173	-	hypothetical protein
757	 73.94	+1	777875..778465	-	196	77462722	-	RSP_2174	-	ABC transporter inner membrane protein
758	 71.39	0	778440..779180	-	246	77462723	-	RSP_2175	-	ABC transporter, ATPase subunit
759	 71.88	0	779483..780058	-	191	77462724	gabT	RSP_2176C	-	aminotransferase
760	 68.09	0	780055..780759	-	234	77462725	gabT	RSP_2176N	-	aminotransferase
761	 76.23	+1	781012..782130	+	372	77462726	-	RSP_2177	-	hypothetical protein
762	 68.21	0	782378..785032	+	884	77462727	topA	RSP_2178	-	DNA topoisomerase I
763	 69.78	0	785081..786109	-	342	77462728	proV	RSP_2179	-	ABC glycine betaine/L-proline tranporter, ATPase subunit, ProV
764	 65.03	0	786106..786960	-	284	77462729	proW	RSP_2180	-	ABC glycine betaine/L-proline transporter, inner membrane subunit
765	 64.72	0	787065..787991	-	308	77462730	proX	RSP_2181	-	ABC glycine betaine/L-proline transporter, periplasmic substrate-binding subunit
766	 68.21	0	788078..788662	+	194	77462731	betI	RSP_2182	-	transcriptional regulator BetI
767	 71.14	0	788659..790110	+	483	77462732	betB	RSP_2183	-	betaine aldehyde dehydrogenase
768	 69.28	0	790120..791766	+	548	77462733	betA	RSP_2184	-	choline dehydrogenase
769	 73.72	+1	791845..792525	+	226	77462734	-	RSP_2185	-	nuclease (SNase-like)
770	 70.27	0	792833..794218	-	461	77462735	-	RSP_2186	-	MerR family transcriptional regulator
771	 68.55	0	794280..795500	-	406	77462736	-	RSP_2187	-	major facilitator superfamily multidrug-efflux transporter
772	 59.32	-2	795537..795890	-	117	77462737	-	RSP_2188	-	hypothetical protein
773	 64.91	0	796019..797551	+	510	77462738	pccB	RSP_2189	-	propionyl-CoA carboxylase beta chain
774	 67.53	0	797703..798050	+	115	77462739	-	RSP_6040	-	hypothetical protein
775	 70.18	0	798472..798870	+	132	77462740	-	RSP_2190	-	hypothetical protein
776	 72.37	0	799185..799412	+	75	77462741	-	RSP_6221	-	hypothetical protein
777	 66.43	0	799508..801595	+	695	77462742	pccA	RSP_2191	-	propionyl-CoA carboxylase alpha subunit
778	 66.22	0	801597..802040	-	147	77462743	-	RSP_6041	-	hypothetical protein
779	 66.71	0	802132..804261	+	709	77462744	mcmA	RSP_2192	-	methylmalonyl-CoA mutase
780	 72.22	0	804825..805958	+	377	77462745	gcvT	RSP_2193	-	glycine cleavage system aminomethyltransferase T
781	 62.18	-1	805967..806323	+	118	77462746	gcvH	RSP_2194	-	glycine cleavage system protein H
782	 69.00	0	806327..809197	+	956	77462747	gcvP	RSP_2195	-	glycine dehydrogenase
783	 69.30	0	809387..811588	-	733	77462748	-	RSP_2196	-	3-hydroxyacyl-CoA dehydrogenase
784	 69.72	0	811603..812814	-	403	77462749	-	RSP_2197	-	acetyl-CoA acetyltransferase
785	 72.75	0	812885..813328	-	147	77462750	-	RSP_2198	-	hypothetical protein
786	 67.00	0	813355..815130	-	591	77462751	-	RSP_2199	-	putative acyl-CoA dehydrogenase
787	 67.17	0	815149..815547	-	132	77462752	-	RSP_2200	-	MerR family transcriptional regulator
788	 66.40	0	815669..816049	-	126	77462753	-	RSP_2201	-	MerR family transcriptional regulator
789	 75.20	+1	816157..816648	+	163	77462754	-	RSP_2202	-	hypothetical protein
790	 69.23	0	816645..817151	+	168	77462755	-	RSP_2203	-	hypothetical protein
791	 71.84	0	817144..818478	+	444	77462756	-	RSP_2204	-	multidrug efflux pump, MATE family
792	 68.38	0	818490..819248	-	252	77462757	-	RSP_2205	-	hypothetical protein
793	 66.12	0	819245..820165	-	306	77462758	-	RSP_2206	-	hypothetical protein
794	 72.66	0	820251..821051	-	266	77462759	deoD	RSP_2207	-	purine nucleoside phosphorylase
795	 69.25	0	821053..822021	-	322	77462760	-	RSP_2208	-	ABC sugar transporter, inner membrane subunit
796	 68.40	0	822018..823112	-	364	77462761	-	RSP_2209	-	ABC sugar transporter, inner membrane subunit
68.78	MEAN

4.15	STD DEV
