IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

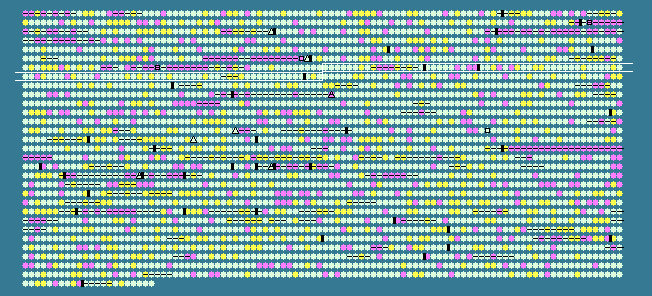

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.78   STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
651	 68.81	0	661551..662390	-	279	77462616	-	RSP_2068	-	putative ClpP-like protease
652	 67.15	0	662387..663637	-	416	77462617	-	RSP_2069	-	HK97 family phage portal protein
653	 66.02	0	663637..665346	-	569	77462618	-	RSP_2070	-	putative Phage-related terminase
654	 66.67	0	665348..665824	-	158	77462619	-	RSP_2071	-	hypothetical protein
655	 71.33	0	665867..666766	-	299	77462620	-	RSP_2072	-	putative Phage-related holin protein
656	 71.49	0	666873..667535	-	220	77462621	-	RSP_6033	-	hypothetical protein
657	 73.12	+1	667532..668104	-	190	77462622	-	RSP_2073	-	hypothetical protein
658	 70.18	0	668308..668991	-	227	77462623	-	RSP_2074	-	hypothetical protein
659	 73.27	+1	668998..669633	-	211	77462624	-	RSP_6034	-	hypothetical protein
660	 63.13	-1	669791..670129	-	112	77462625	-	RSP_6035	-	hypothetical protein
661	 54.70	-2	670405..670755	+	116	77462626	-	RSP_2075	-	putative transcriptional regulator
662	 57.76	-2	670762..671064	-	100	77462627	-	RSP_2076	-	hypothetical protein
663	 74.77	+1	671395..671727	+	110	77462628	-	RSP_2077	-	hypothetical protein
664	 70.43	0	671724..672122	+	132	77462629	-	RSP_2078	-	hypothetical protein
665	 72.52	0	672245..674056	+	603	77462630	-	RSP_2079	-	ParB family protein
666	 65.80	0	674132..674362	+	76	77462631	-	RSP_6036	-	hypothetical protein
667	 68.81	0	674362..675387	+	341	77462632	-	RSP_2080	-	putative tyrosine recombinase
668	 69.00	0	675541..676011	-	156	77462633	-	RSP_2081	-	GNAT family acetyltransferase
669	 68.27	0	676328..676639	-	103	77462634	-	RSP_2082	-	putative NADH-ubiquinone oxidoreductase-related protein
670	 66.62	0	676895..679078	+	727	77462635	uvrB	RSP_2083	-	excinuclease ABC subunit B
671	 70.73	0	679417..680130	+	237	77462636	-	RSP_2084	-	hypothetical protein
672	 68.13	0	680136..680408	-	90	77462637	-	RSP_2085	-	hypothetical protein
673	 64.78	0	680509..680826	-	105	77462638	-	RSP_2086	-	putative antibiotic biosynthesis monooxygenase
674	 68.20	0	680949..681209	+	86	77462639	-	RSP_2087	-	hypothetical protein
675	 64.58	-1	681463..681606	+	47	77462640	-	RSP_6220	-	hypothetical protein
676	 64.44	-1	681644..683443	-	599	77462641	lepA	RSP_2088	-	GTP-binding protein LepA
677	 67.16	0	684379..687843	-	1154	77462642	pycA	RSP_2090	-	pyruvate carboxylase
678	 67.60	0	688026..690377	+	783	77462643	-	RSP_2092	-	ATP-dependent DNA helicase Rep
679	 74.69	+1	690398..691543	-	381	77462644	-	RSP_2091	-	putative benzoate transporter, BenE
680	 63.89	-1	692464..692679	-	71	77462645	-	RSP_6037	-	hypothetical protein
681	 71.47	0	692949..694010	+	353	77462646	-	RSP_2093	-	putative Mrp (multidrug resistance-associated proteins) family protein
682	 65.09	0	694911..695417	+	168	77462647	-	RSP_2095	-	cell division protein MraZ
683	 72.39	0	695421..696416	+	331	77462648	-	RSP_6038	-	methyltransferase MraW/YabC
684	 68.33	0	696417..696776	+	119	77462649	-	RSP_2097	-	putative FtsL
685	 69.12	0	696773..698566	+	597	77462650	ftsI	RSP_2098	-	cell division protein FtsI/penicillin-binding protein 2
686	 73.72	+1	698581..700068	+	495	77462651	murE	RSP_2099	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
687	 74.20	+1	700157..701590	+	477	77462652	murF	RSP_2100	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
688	 65.84	0	701603..702685	+	360	77462653	mraY	RSP_2101	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
689	 72.16	0	702782..703363	+	193	77462654	-	RSP_2102	-	hypothetical protein
690	 70.67	0	703796..705193	+	465	77462655	murD	RSP_2103	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
691	 69.21	0	705250..705720	+	156	77462656	-	RSP_2104	-	hypothetical protein
692	 71.60	0	706074..706580	-	168	77462657	-	RSP_2105	-	hypothetical protein
693	 67.10	0	706721..707887	+	388	77462658	ftsW	RSP_2106	-	cell division protein FtsW
694	 72.51	0	707889..708983	+	364	77462659	murG	RSP_2107	-	N-acetylglucosaminyl transferase
695	 68.65	0	708980..710392	+	470	77462660	murC	RSP_2108	-	UDP-N-acetylmuramate--L-alanine ligase
696	 71.76	0	710406..710660	+	84	77462661	-	RSP_2109	-	hypothetical protein
697	 70.01	0	710657..711583	+	308	77462662	murB	RSP_2110	-	UDP-N-acetylmuramate dehydrogenase
698	 69.16	0	711623..712546	+	307	77462663	ddlA	RSP_2111	-	D-alanine--D-alanine ligase
699	 72.71	0	712534..713460	+	308	77462664	ftsQ	RSP_2112	-	cell division septal protein FtsQ
700	 68.99	0	713457..714791	+	444	77462665	ftsA	RSP_2113	-	cell division protein FtsA
701	 70.95	0	714971..716629	+	552	77462666	ftsZ1	RSP_2114	-	cell division protein FtsZ
702	 69.71	0	716857..717777	+	306	77462667	lpxC	RSP_2115	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
703	 64.40	-1	717892..718728	+	278	77462668	comL	RSP_2117	-	putative ComL lipoprotein
704	 73.86	+1	718756..720396	+	546	77462669	recN	RSP_2118	-	DNA repair protein RecN
705	 72.26	0	720407..720799	-	130	77462670	-	RSP_2119	-	hypothetical protein
706	 71.54	0	720796..722169	-	457	77462671	-	RSP_2120	-	putative D-lactate dehydrogenase (cytochrome), FAD/FMN-containing oxidoreductase
707	 69.52	0	722305..722934	-	209	77462672	-	RSP_2121	-	hypothetical protein
708	 63.23	-1	723139..723837	-	232	77462673	mtbC	RSP_2122	-	putative dimethylamine corrinoid protein
709	 72.82	0	723994..725082	+	362	77462674	-	RSP_2123	-	radical SAM domain-containing protein
710	 71.43	0	725180..726187	-	335	77462675	-	RSP_2124	-	methionine synthase I
711	 67.29	0	726399..726719	-	106	77462676	-	RSP_2125	-	hypothetical protein
712	 66.53	0	726902..727654	+	250	77462677	purC	RSP_2126	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
713	 63.75	-1	727669..727908	+	79	77462678	purS	RSP_2127	-	component of phosphoribosylformylglycinamidine (FGAM) synthetase
714	 70.85	0	728140..728808	+	222	77462679	purQ	RSP_2128	-	phosphoribosylformylglycinamidine synthase I (FGAM) synthase
715	 68.14	0	728856..730619	+	587	77462680	-	RSP_2129	-	sensor histidine kinase
716	 66.37	0	730629..731957	+	442	77462681	-	RSP_2130	-	two component, sigma54 specific, Fis family transcriptional regulator
717	 69.65	0	732464..735274	+	936	77462682	rne	RSP_2131	-	RNAse E
718	 72.81	0	735283..735510	-	75	77462683	-	RSP_2132	-	hypothetical protein
719	 68.01	0	735655..736401	+	248	77462684	ccdA	RSP_2134	-	putative cytochrome c-type biogenesis protein CcdA
720	 75.14	+1	736430..737644	+	404	77462685	-	RSP_2136	-	hypothetical protein
721	 72.07	0	737626..737847	-	73	77462686	-	RSP_2135	-	hypothetical protein
722	 73.04	+1	737844..738047	-	67	77462687	-	RSP_2137	-	hypothetical protein
723	 65.52	0	738047..739441	-	464	77462688	fumC	RSP_2138	-	fumarate hydratase
724	 66.45	0	739608..740066	-	152	77462689	-	RSP_2139	-	hypothetical protein
725	 74.58	+1	740169..740825	-	218	77462690	-	RSP_2140	-	hypothetical protein
726	 66.28	0	741747..742793	-	348	77462691	-	RSP_2141	-	ABC polyamine transporter, periplasmic substrate-binding protein
727	 71.43	0	743132..744370	+	412	77462692	-	RSP_2142	-	NifS-related protein
728	 72.18	0	744522..745937	+	471	77462693	-	RSP_2143	-	deoxyribodipyrimidine photo-lyase type I
729	 66.58	0	745971..747182	+	403	77462694	cfaS	RSP_2144	-	cyclopropane-fatty-acyl-phospholipid synthase
730	 70.98	0	747208..747648	+	146	77462695	trgA	RSP_2145	-	tellurite resistance protein
731	 74.22	+1	747648..748733	+	361	77462696	trgB	RSP_2146	-	tellurite resistance protein
732	 68.31	0	749066..750100	+	344	77462697	cysK	RSP_2147	-	cysteine synthase A
733	 70.32	0	750104..752647	+	847	77462698	-	RSP_2148	-	small conductance mechanosensitive Ion channel
734	 71.67	0	752647..753366	+	239	77462699	-	RSP_2149	-	Ala-tRNA(Pro) hydrolase
735	 74.37	+1	753492..754205	-	237	77462700	-	RSP_2150	-	glycosyl transferase
736	 73.91	+1	754202..754753	-	183	77462701	yohD	RSP_2151	-	DedA family, membrane protein
737	 75.02	+1	754750..755838	-	362	77462702	-	RSP_2152	-	ceramide glucosyltransferase
738	 71.00	0	755838..756644	-	268	77462703	-	RSP_2153	-	metallo-phosphoesterase
739	 71.89	0	756778..758079	-	433	77462704	-	RSP_2154	-	hypothetical protein
740	 71.57	0	758081..759406	-	441	77462705	hisD	RSP_2155	-	histidinol dehydrogenase
741	 66.17	0	759416..760213	-	265	77462706	-	RSP_2156	-	ABC transporter, inner membrane subunit
742	 70.09	0	760210..761145	-	311	77462707	-	RSP_2157	-	ABC transporter, inner membrane subunit
743	 67.94	0	761705..762802	-	365	77462708	-	RSP_2158	-	ABC transporter, periplasmic solute-binding protein
744	 71.52	0	762822..763955	-	377	77462709	-	RSP_2159	-	ABC transporter, ATPase subunit
745	 71.63	0	764032..764796	-	254	77462710	gno	RSP_2160	-	Short-chain dehydrogenase/reductase
746	 68.22	0	764992..765699	-	235	77462711	bcrC	RSP_2161	-	efflux channel
747	 68.28	0	765995..766798	+	267	77462712	-	RSP_2163	-	lytic murein transglycosylase, putative
748	 67.98	0	767169..767624	-	151	77462713	putR	RSP_2165	-	AsnC family transcriptional regulator
749	 73.23	+1	767735..771376	+	1213	77462714	putA	RSP_2166	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
750	 66.67	0	771407..772147	+	246	77462715	-	RSP_2167	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
