IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

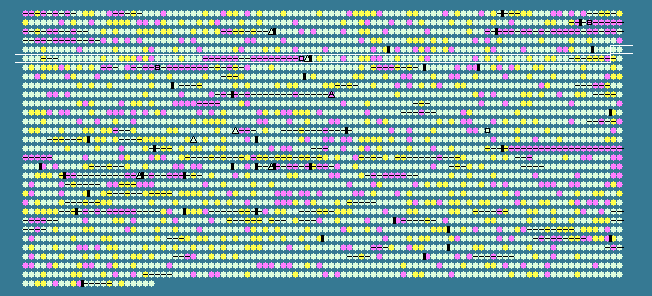

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
499	 68.21	0	515166..515684	-	172	77462464	-	RSP_1917	-	hypothetical protein
500	 69.43	0	515824..516801	+	325	77462465	-	RSP_1918	-	alpha/beta hydrolase
501	 65.93	0	516829..517374	+	181	77462466	-	RSP_1919	-	hypothetical protein
502	 72.06	0	517418..518233	-	271	77462467	-	RSP_1920	-	pyridoxal kinase
503	 71.07	0	518284..518964	-	226	77462468	-	RSP_1921	-	MOSC domain-containing protein
504	 75.44	+1	519356..520768	+	470	77462469	-	RSP_1922	-	GntR family transcriptional regulator
505	 69.81	0	520770..521756	-	328	77462470	bioB	RSP_1923	-	biotin synthase
506	 71.69	0	521753..522190	-	145	77462471	-	RSP_1924	-	BioY family protein
507	 68.16	0	522394..523062	-	222	77462472	-	RSP_1925	-	GntR family transcriptional regulator
508	 70.81	0	523580..524521	+	313	77462473	-	RSP_1926	-	tRNA-dihydrouridine synthase A
509	 69.72	0	524602..525420	+	272	77462474	-	RSP_1927	-	hypothetical protein
510	 67.87	0	525735..527225	-	496	77462475	dnaB	RSP_1928	-	replicative DNA helicase
511	 67.38	0	527494..528192	-	232	77462476	pyrE	RSP_1929	-	orotate phosphoribosyltransferase
512	 71.66	0	528235..529275	-	346	77462477	pyrC	RSP_1930	-	dihydroorotase
513	 70.05	0	529420..530334	+	304	77462478	-	RSP_1931	-	AAA family ATPase
514	 72.35	0	530439..531635	+	398	77462479	-	RSP_1932	-	hypothetical protein
515	 69.81	0	531708..532184	+	158	77462480	-	RSP_6241	-	hypothetical protein
516	 71.51	0	532399..534504	+	701	77462481	-	RSP_1933	-	OmpA/MotB family outer membrane protein
517	 73.63	+1	534620..535021	+	133	77462482	-	RSP_1934	-	sulfurylase small subunit, molybdopterin cytosine dinucleotide biosynthesis
518	 73.07	+1	535062..535592	+	176	77462483	-	RSP_1935	-	sulfurylase large subunit, molybdopterin cytosine dinucleotide biosynthesis
519	 73.03	+1	535592..536596	+	334	77462484	-	RSP_1936	-	molybdopterin biosynthesis protein
520	 62.05	-1	536668..537252	-	194	77462485	infC	RSP_1937	-	translation initiation factor IF-3
521	 73.80	+1	537327..538013	+	228	77462486	-	RSP_1938	-	hypothetical protein
522	 64.19	-1	538127..538933	-	268	77462487	-	RSP_1939	-	NADPH-ferredoxin reductase
523	 67.16	0	538996..539403	-	135	77462488	-	RSP_1940	-	hypothetical protein
524	 67.36	0	539400..540116	-	238	77462489	cysH	RSP_1941	-	phosphoadenosine phosphosulfate reductase
525	 67.74	0	540145..541815	-	556	77462490	-	RSP_1942	-	sulfite/nitrite reductase hemoprotein subunit
526	 70.26	0	541842..542147	-	101	77462491	-	RSP_1943	-	hypothetical protein
527	 72.94	+1	542144..542908	-	254	77462492	-	RSP_1944	-	uroporphyrinogen-III C-methyltransferase
528	 65.37	0	543051..543512	+	153	77462493	-	RSP_1945	-	AsnC family transcriptional regulator
529	 71.32	0	543683..544864	-	393	77462494	-	RSP_1946	-	cytochrome P450 hydroxylase
530	 71.27	0	545193..545930	-	245	77462495	cbbJ	RSP_1947	-	triosephosphate isomerase
531	 62.18	-1	546042..546398	-	118	77462496	-	RSP_1948	-	hypothetical protein
532	 64.74	0	546482..546844	-	120	77462497	-	RSP_1949	-	hypothetical protein
533	 63.93	-1	547132..547935	+	267	77462498	-	RSP_1950	-	hypothetical protein
534	 61.25	-1	548205..548555	-	116	77462499	-	RSP_1951	-	hypothetical protein
535	 61.97	-1	548589..548822	-	77	77462500	-	RSP_1952	-	cold-shock DNA-binding protein family protein
536	 65.05	0	549413..550153	-	246	77462501	-	RSP_1953	-	Crp/FNR family transcriptional regulator
537	 67.79	0	550280..550546	+	88	77462502	-	RSP_1954	-	hypothetical protein
538	 67.55	0	550603..551391	+	262	77462503	-	RSP_1955	-	hypothetical protein
539	 64.00	-1	551878..552252	+	124	77462504	-	RSP_1956	-	hypothetical protein
540	 63.14	-1	552259..552570	-	103	77462505	-	RSP_1957	-	hypothetical protein
541	 59.52	-2	554166..554417	+	83	77462506	-	RSP_1961	-	hypothetical protein
542	 55.48	-2	554720..555148	+	142	77462507	-	RSP_1962	-	hypothetical protein
543	 49.32	-2	555305..555742	-	145	77462508	-	RSP_1963	-	hypothetical protein
544	 65.29	0	555770..556060	-	96	77462509	-	RSP_1964	-	hypothetical protein
545	 61.88	-1	556550..557740	+	396	77462510	-	RSP_1965	-	putative membrane fusion protein family member
546	 63.67	-1	558385..558684	+	99	77462511	-	RSP_1967	-	hypothetical protein
547	 63.47	-1	558661..559536	-	291	77462512	-	RSP_1966	-	ISSod13, transposase
548	 67.23	0	559600..560490	+	296	77462513	-	RSP_1968	-	integrase/recombinase
549	 69.72	0	560737..561783	+	348	77462514	purM	RSP_1969	-	phosphoribosylaminoimidazole synthetase
550	 73.04	+1	561822..562370	+	182	77462515	-	RSP_1970	-	phosphoribosylglycinamide formyltransferase
551	 66.93	0	562467..563624	+	385	77462516	rnd	RSP_1971	-	ribonuclease D
552	 72.19	0	563661..564113	-	150	77462517	-	RSP_1972	-	hypothetical protein
553	 68.07	0	564243..564671	+	142	77462518	-	RSP_1973	-	SufE protein
554	 62.07	-1	564694..565041	-	115	77462519	-	RSP_1974	-	hypothetical protein
555	 70.23	0	565102..566898	-	598	77462520	-	RSP_1975	-	aminopeptidase P
556	 68.71	0	566898..568757	-	619	77462521	cobT	RSP_1976	-	aerobic cobalt chelatase, CobT subunit
557	 73.33	+1	568809..569138	-	109	77462522	-	RSP_6027	-	hypothetical protein
558	 73.94	+1	569140..569469	-	109	77462523	-	RSP_6028	-	hypothetical protein
559	 63.29	-1	569466..570560	-	364	77462524	cobS	RSP_1977	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
560	 64.15	-1	570606..571241	-	211	77462525	-	RSP_1978	-	DnaJ family molecular chaperone
561	 68.22	0	571316..571573	+	85	77462526	-	RSP_1979	-	stress induced morphogen, BolA
562	 69.24	0	571682..573898	-	738	77462527	glcB	RSP_1980	-	malate synthase G
563	 75.38	+1	573941..575305	-	454	77462528	-	RSP_1981	-	deoxyribodipyrimidine photo-lyase type I
564	 69.91	0	575763..578318	+	851	77462529	-	RSP_1982	-	aminopeptidase N
565	 66.67	0	578452..579336	+	294	77462530	sqdA	RSP_1983	-	phospholipid/glycerol acyltransferase
566	 72.16	0	579524..580669	+	381	77462531	-	RSP_1984	-	histidinol-phosphate aminotransferase
567	 72.30	0	580691..581134	-	147	77462532	-	RSP_1985	-	hypothetical protein
568	 65.08	0	581296..582807	-	503	77462533	gatB	RSP_1986	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
569	 71.69	0	582976..583572	+	198	77462534	-	RSP_1987	-	hypothetical protein
570	 71.30	0	583576..583920	-	114	77462535	-	RSP_1988	-	hypothetical protein
571	 67.41	0	583987..586950	-	987	77462536	valS	RSP_1989	-	valyl-tRNA synthetase
572	 68.06	0	587069..587500	-	143	77462537	-	RSP_1990	-	AsnC family transcriptional regulator
573	 68.59	0	587720..588865	+	381	77462538	-	RSP_1991	-	putative ornithine decarboxylase
574	 70.30	0	588944..590125	+	393	77462539	-	RSP_1992	-	hypothetical protein
575	 69.18	0	590153..590629	-	158	77462540	-	RSP_1993	-	hypothetical protein
576	 64.10	-1	590962..592248	-	428	77462541	gltA	RSP_1994	-	citrate synthase
577	 66.60	0	592355..593770	-	471	77462542	gltX	RSP_1995	-	glutamyl-tRNA synthetase
578	 72.51	0	593904..595958	+	684	77462543	-	RSP_1996	-	putative competence protein
579	 67.25	0	596014..596700	-	228	77462544	lexA	RSP_1997	-	LexA repressor
580	 72.32	0	596757..597941	-	394	77462545	-	RSP_1998	-	molybdopterin molybdochelatase
581	 70.00	0	597938..598417	-	159	77462546	moaC	RSP_2000	-	molybdenum cofactor biosynthesis protein C
582	 69.62	0	598417..599229	-	270	77462547	trpC	RSP_6214	-	indole-3-glycerol-phosphate synthase
583	 71.78	0	599260..600276	-	338	77462548	trpD	RSP_2001	-	anthranilate phosphoribosyltransferase
584	 68.88	0	600273..600860	-	195	77462549	trpG	RSP_2002	-	anthranilate synthase component II
585	 77.34	+2	601039..602472	+	477	77462550	yibQ	RSP_2003	-	YibQ protein
586	 68.98	0	602636..604147	-	503	77462551	trpE	RSP_2004	-	anthranilate synthase component I
587	 71.11	0	604158..606023	-	621	77462552	ybaU	RSP_2005	-	peptidyl-prolyl cis-trans isomerse
588	 74.03	+1	606221..608203	+	660	77462553	amsA	RSP_2006	-	hypothetical protein
589	 75.64	+1	608386..609009	-	207	77462554	-	RSP_2007	-	hypothetical protein
590	 70.22	0	609595..610776	+	393	77462555	argD	RSP_2008	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
591	 67.21	0	610890..611816	+	308	77462556	argF	RSP_2009	-	ornithine carbamoyltransferase
592	 67.63	0	612040..612246	-	68	77462557	-	RSP_2010	-	hypothetical protein
593	 75.35	+1	612424..612918	-	164	77462558	-	RSP_2011	-	putative transcription elongation factor
594	 70.86	0	612944..613420	-	158	77462559	-	RSP_2012	-	NUDIX hydrolase, MutT
595	 75.69	+1	613899..616325	-	808	77462560	-	RSP_2013	-	DEAD/DEAH box helicase
596	 73.81	+1	616371..617084	-	237	77462561	-	RSP_2014	-	hypothetical protein
597	 74.07	+1	617221..618192	+	323	77462562	argK	RSP_2015	-	arginine/ornithine transport system ATPase
598	 65.29	0	618406..618696	+	96	77462563	rpmB	RSP_2016	-	50S ribosomal protein L28
68.78	MEAN

4.15	STD DEV
