IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

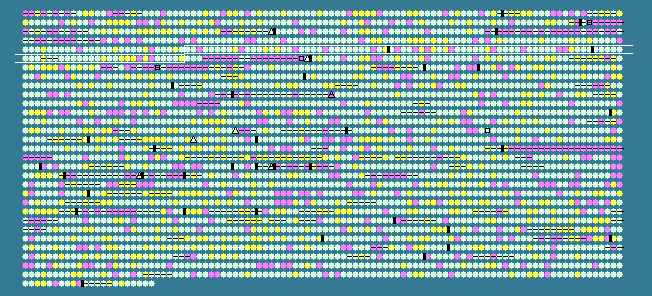

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
428	 72.13	0	438151..439413	+	420	77462393	PurD	RSP_1847	-	phosphoribosylamine--glycine ligase
429	 72.04	0	439615..441141	-	508	77462394	-	RSP_1848	-	pyruvate kinase
430	 64.44	-1	441351..442610	+	419	77462395	-	RSP_1849	-	aspartate kinase
431	 68.72	0	442635..444878	+	747	77462396	ptsI	RSP_1850	-	phosphoenolpyruvate-protein phosphotransferase, PtsI(Ntr)
432	 67.33	0	445037..446251	+	404	77462397	metZ	RSP_1851	-	O-succinylhomoserine sulfhydrylase
433	 66.11	0	446347..447426	+	359	77462398	-	RSP_1852	-	putative GTP cyclohydrolase
434	 67.84	0	447477..448925	+	482	77462399	TrkH2	RSP_1853	-	potassium uptake transporter, transmembrane component, TrkH
435	 67.35	0	448968..450422	+	484	77462400	trkH3	RSP_1854	-	potassium uptake transporter, transmembrane component, TrkH
436	 73.91	+1	450492..452273	-	593	77462401	-	RSP_1855	-	hypothetical protein
437	 64.94	0	452398..453321	+	307	77462402	glyQ	RSP_1856	-	glycyl-tRNA synthetase subunit alpha
438	 67.52	0	453318..453788	+	156	77462403	-	RSP_1857	-	hypothetical protein
439	 69.48	0	453792..455885	+	697	77462404	glyS	RSP_1858	-	glycyl-tRNA synthetase subunit beta
440	 71.50	0	456004..458550	+	848	77462405	ppdK	RSP_1859	-	pyruvate phosphate dikinase
441	 72.34	0	458768..459490	+	240	77462406	-	RSP_1860	-	hypothetical protein
442	 72.09	0	459590..460492	+	300	77462407	-	RSP_1861	-	dihydroneopterin aldolase
443	 73.31	+1	460538..461575	+	345	77462408	-	RSP_1862	-	dihydropteroate synthase
444	 71.28	0	461572..462915	+	447	77462409	-	RSP_1863	-	phosphoglucosamine mutase
445	 67.58	0	463014..463232	+	72	77462410	-	RSP_1864	-	hypothetical protein
446	 63.64	-1	463305..464327	-	340	77462411	-	RSP_1865	-	ketol-acid reductoisomerase
447	 69.30	0	464457..464912	+	151	77462412	-	RSP_1866	-	AsnC family transcriptional regulator
448	 72.11	0	464909..465367	+	152	77462413	-	RSP_1867	-	AsnC family transcriptional regulator
449	 70.74	0	465545..466672	+	375	77462414	-	RSP_1868	-	serine-pyruvate aminotransferase
450	 72.17	0	466677..467876	-	399	77462415	-	RSP_1869	-	2-octaprenyl-6-methoxyphenyl hydroxylase
451	 63.64	-1	467928..468158	-	76	77462416	-	RSP_6022	-	hypothetical protein
452	 68.36	0	468239..468886	-	215	77462417	-	RSP_1870	-	hydrolase
453	 69.97	0	469002..469637	+	211	77462418	-	RSP_1871	-	GntR family transcriptional regulator
454	 72.12	0	469645..471459	-	604	77462419	-	RSP_1872	-	glycosyl transferase family protein
455	 69.61	0	471693..472574	-	293	77462420	-	RSP_1873	-	hypothetical protein
456	 69.85	0	472656..473819	-	387	77462421	carA	RSP_1874	-	carbamoyl phosphate synthase small subunit
457	 67.97	0	473997..474455	+	152	77462422	-	RSP_1875	-	hypothetical protein
458	 71.00	0	474764..475294	-	176	77462423	-	RSP_1876	-	hypothetical protein
459	 63.32	-1	475308..477008	-	566	77462424	coxI	RSP_1877	-	cytochrome c oxidase, aa3 type, subunit I
460	 70.47	0	477423..478079	-	218	77462425	lipB	RSP_1878	-	lipoyltransferase
461	 72.44	0	478176..479735	+	519	77462426	-	RSP_1880	-	hypothetical protein
462	 65.31	0	480233..481336	+	367	77462427	-	RSP_1882	-	ABC polyamine/opine transporter, ATPase subunit
463	 65.11	0	481391..482482	+	363	77462428	-	RSP_1883	-	ABC polyamine/opine transporter, periplasmic substrate-binding protein
464	 68.24	0	482534..483808	+	424	77462429	-	RSP_1884	-	ABC polyamine/opine transporter, inner membrane subunit
465	 65.79	0	483887..484795	+	302	77462430	-	RSP_1886	-	ABC polyamine/opine transporter, inner membrane subunit
466	 57.14	-2	484975..485142	+	55	77462431	rpmG	RSP_1887	-	50S ribosomal protein L33
467	 74.07	+1	485217..485702	+	161	77462432	-	RSP_1888	-	acetyltransferase
468	 63.56	-1	485753..486493	-	246	77462433	-	RSP_1889	-	hypothetical protein
469	 74.46	+1	486624..486854	-	76	77462434	-	RSP_6024	-	hypothetical protein
470	 69.35	0	486939..487907	+	322	77462435	-	RSP_1890	-	LysR family transcriptional regulator
471	 73.12	+1	487915..488874	-	319	77462436	-	RSP_1891	-	Zinc-binding dehydrogenase
472	 64.19	-1	489235..489597	+	120	77462437	-	RSP_1892	-	XRE family transcriptional regulator
473	 70.91	0	489686..490486	+	266	77462438	-	RSP_1893	-	inositol monophosphatase family protein
474	 67.18	0	490925..491314	+	129	77462439	-	RSP_1894	-	hypothetical protein
475	 69.33	0	491614..493977	+	787	77462440	-	RSP_1895	-	small-conductance mechanosensitive ion channel
476	 70.81	0	494021..495322	-	433	77462441	-	RSP_1896	-	guanine deaminase
477	 68.91	0	495484..496818	+	444	77462442	mgtE	RSP_1897	-	Mg/Co/Ni transporter, MgtE
478	 73.69	+1	496815..497369	+	184	77462443	-	RSP_1898	-	putative 5-formyltetrahydrofolate cyclo-ligase
479	 64.53	-1	497371..498681	-	436	77462444	-	RSP_1899	-	ATPase
480	 69.64	0	498697..499200	-	167	77462445	-	RSP_1900	-	hypothetical protein
481	 68.20	0	499203..500051	-	282	77462446	-	RSP_1901	-	TPR repeat-containing protein
482	 71.08	0	500089..500655	-	188	77462447	-	RSP_1902	-	TPR repeat-containing protein
483	 66.77	0	500662..501642	-	326	77462448	-	RSP_1903	-	putative Flp pilus assembly protein TadC
484	 64.91	0	501646..502614	-	322	77462449	-	RSP_1904	-	putative Flp pilus assembly protein TadB
485	 68.18	0	502622..504079	-	485	77462450	-	RSP_1905	-	putative Flp pilus assembly protein ATPase CpaF
486	 67.37	0	504100..505371	-	423	77462451	-	RSP_1907	-	putative Flp pilus assembly protein ATPase CpaE
487	 69.78	0	505718..506359	-	213	77462452	-	RSP_1908	-	OmpA/MotB family outer membrane protein
488	 67.10	0	506365..507750	-	461	77462453	-	RSP_1909	-	Outer membrane general secretion pathway protein, secretin
489	 67.39	0	508004..508828	-	274	77462454	-	RSP_1910	-	putative Flp pilus assembly protein CpaB
490	 62.75	-1	508898..509101	-	67	77462455	-	RSP_6219	-	hypothetical protein
491	 63.52	-1	509291..509608	-	105	77462456	-	RSP_6025	-	hypothetical protein
492	 72.95	+1	509868..510758	+	296	77462457	-	RSP_1911	-	soluble lytic murein transglycosylase
493	 71.67	0	510817..511056	-	79	77462458	-	RSP_1912	-	hypothetical protein
494	 66.03	0	511100..511729	-	209	77462459	-	RSP_1913	-	butyryl-CoA:acetate CoA transferase
495	 66.81	0	511745..512443	-	232	77462460	-	RSP_1914	-	3-ketoacid CoA transferase alpha subunit
496	 71.32	0	512992..513915	+	307	77462461	-	RSP_1915	-	LysR family transcriptional regulator
497	 71.46	0	514055..514576	-	173	77462462	-	RSP_6026	-	putative acetyltransferase
498	 68.00	0	514570..515169	-	199	77462463	-	RSP_1916	-	2-hydroxychromene-2-carboxylate isomerase
499	 68.21	0	515166..515684	-	172	77462464	-	RSP_1917	-	hypothetical protein
500	 69.43	0	515824..516801	+	325	77462465	-	RSP_1918	-	alpha/beta hydrolase
501	 65.93	0	516829..517374	+	181	77462466	-	RSP_1919	-	hypothetical protein
502	 72.06	0	517418..518233	-	271	77462467	-	RSP_1920	-	pyridoxal kinase
503	 71.07	0	518284..518964	-	226	77462468	-	RSP_1921	-	MOSC domain-containing protein
504	 75.44	+1	519356..520768	+	470	77462469	-	RSP_1922	-	GntR family transcriptional regulator
505	 69.81	0	520770..521756	-	328	77462470	bioB	RSP_1923	-	biotin synthase
506	 71.69	0	521753..522190	-	145	77462471	-	RSP_1924	-	BioY family protein
507	 68.16	0	522394..523062	-	222	77462472	-	RSP_1925	-	GntR family transcriptional regulator
508	 70.81	0	523580..524521	+	313	77462473	-	RSP_1926	-	tRNA-dihydrouridine synthase A
509	 69.72	0	524602..525420	+	272	77462474	-	RSP_1927	-	hypothetical protein
510	 67.87	0	525735..527225	-	496	77462475	dnaB	RSP_1928	-	replicative DNA helicase
511	 67.38	0	527494..528192	-	232	77462476	pyrE	RSP_1929	-	orotate phosphoribosyltransferase
512	 71.66	0	528235..529275	-	346	77462477	pyrC	RSP_1930	-	dihydroorotase
513	 70.05	0	529420..530334	+	304	77462478	-	RSP_1931	-	AAA family ATPase
514	 72.35	0	530439..531635	+	398	77462479	-	RSP_1932	-	hypothetical protein
515	 69.81	0	531708..532184	+	158	77462480	-	RSP_6241	-	hypothetical protein
516	 71.51	0	532399..534504	+	701	77462481	-	RSP_1933	-	OmpA/MotB family outer membrane protein
517	 73.63	+1	534620..535021	+	133	77462482	-	RSP_1934	-	sulfurylase small subunit, molybdopterin cytosine dinucleotide biosynthesis
518	 73.07	+1	535062..535592	+	176	77462483	-	RSP_1935	-	sulfurylase large subunit, molybdopterin cytosine dinucleotide biosynthesis
519	 73.03	+1	535592..536596	+	334	77462484	-	RSP_1936	-	molybdopterin biosynthesis protein
520	 62.05	-1	536668..537252	-	194	77462485	infC	RSP_1937	-	translation initiation factor IF-3
521	 73.80	+1	537327..538013	+	228	77462486	-	RSP_1938	-	hypothetical protein
522	 64.19	-1	538127..538933	-	268	77462487	-	RSP_1939	-	NADPH-ferredoxin reductase
523	 67.16	0	538996..539403	-	135	77462488	-	RSP_1940	-	hypothetical protein
524	 67.36	0	539400..540116	-	238	77462489	cysH	RSP_1941	-	phosphoadenosine phosphosulfate reductase
525	 67.74	0	540145..541815	-	556	77462490	-	RSP_1942	-	sulfite/nitrite reductase hemoprotein subunit
526	 70.26	0	541842..542147	-	101	77462491	-	RSP_1943	-	hypothetical protein
527	 72.94	+1	542144..542908	-	254	77462492	-	RSP_1944	-	uroporphyrinogen-III C-methyltransferase
68.78	MEAN

4.15	STD DEV
