IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

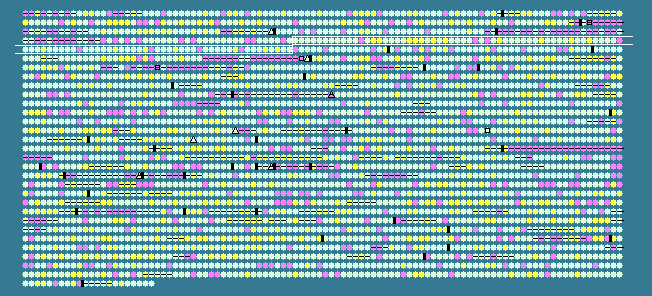

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
346	 70.46	0	350457..351194	+	245	77462311	-	RSP_1767	-	N-formylglutamate amidohydrolase
347	 66.09	0	351538..352398	-	286	77462312	-	RSP_1768	-	branched chain amino acid: 2-keto-4-methylthiobutyrate aminotransferase
348	 70.92	0	352401..353363	-	320	77462313	-	RSP_1769	-	mandelate racemase/muconate lactonizing protein
349	 68.26	0	353474..354475	-	333	77462314	-	RSP_1770	-	hypothetical protein
350	 65.94	0	354743..355699	+	318	77462315	-	RSP_1771	-	beta subunit of citrate lyase
351	 67.52	0	355790..356260	-	156	77462316	-	RSP_6018	-	hypothetical protein
352	 66.77	0	356475..357434	+	319	77462317	accA	RSP_1772	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
353	 69.21	0	357431..357745	+	104	77462318	-	RSP_1773	-	DMT superfamily multidrug efflux pump
354	 70.57	0	357884..359062	+	392	77462319	-	RSP_1774	-	putative glucose dehydrogenase B
355	 70.94	0	359087..360046	-	319	77462320	-	RSP_1775	-	hypothetical protein
356	 65.82	0	360057..360527	-	156	77462321	greA	RSP_1776	-	transcription elongation factor greA
357	 65.04	0	360800..362455	+	551	77462322	-	RSP_1777	-	putative electron transfer flavoprotein-ubiquinone oxidoreductase precursor
358	 67.76	0	362979..364256	+	425	77462323	-	RSP_1778	-	TPR domain-containing protein
359	 74.19	+1	364249..365085	+	278	77462324	ispE	RSP_1779	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
360	 73.25	+1	365227..365712	+	161	77462325	-	RSP_1780	-	hypothetical protein
361	 70.99	0	365720..367177	-	485	77462326	-	RSP_1781	-	putative membrane-anchored oxidoreductase, L-sorbosone dehydrogenase
362	 69.52	0	367170..367625	-	151	77462327	-	RSP_1782	-	hypothetical protein
363	 71.51	0	367772..368866	+	364	77462328	-	RSP_1783	-	hypothetical protein
364	 68.27	0	368894..369268	-	124	77462329	-	RSP_1784	-	response regulator receiver domain-containing protein
365	 72.84	0	369641..370645	-	334	77462330	-	RSP_1785	-	LacI family transcription regulator
366	 72.82	0	370813..373329	+	838	77462331	fruB	RSP_1786	-	phosphoenolpyruvate--protein phosphotransferase
367	 74.87	+1	373326..374312	+	328	77462332	fruK	RSP_1787	-	1-phosphofructokinase
368	 72.16	0	374309..376054	+	581	77462333	fruA	RSP_1788	-	PTS system fructose-specific II BC component
369	 75.23	+1	376158..376484	-	108	77462334	-	RSP_1789	-	hypothetical protein
370	 71.36	0	376484..376909	-	141	77462335	-	RSP_1790	-	transcriptional regulator
371	 74.40	+1	376993..379215	+	740	77462336	-	RSP_1791	-	heavy metal-(Cd/Co/Hg/Pb/Zn)-translocating P-type ATPase
372	 69.92	0	379339..379860	-	173	77462337	-	RSP_1793	-	single-strand DNA binding protein
373	 65.85	0	380074..380688	+	204	77462338	-	RSP_1794	-	putative lytic transglycosylase
374	 68.99	0	380801..382093	-	430	77462339	serS	RSP_1795	-	seryl-tRNA synthetase
375	 68.82	0	382200..382757	-	185	77462340	sodC	RSP_1796	-	putative copper/Zinc superoxide dismutase
376	 59.63	-2	383049..383375	+	108	77462341	YajC	RSP_1797	-	protein translocase subunit yajC
377	 68.59	0	383391..385055	+	554	77462342	secD	RSP_1798	-	preprotein translocase subunit SecD
378	 63.90	-1	385065..386039	+	324	77462343	secF	RSP_1799	-	preprotein translocase subunit SecF
379	 71.47	0	386215..386568	+	117	77462344	-	RSP_1800	-	hypothetical protein
380	 73.30	+1	386636..387268	+	210	77462345	ccmA	RSP_1801	-	cytochrome c biogenesis protein CcmA
381	 71.23	0	387265..387921	+	218	77462346	ccmB	RSP_1802	-	ABC heme exporter, inner membrane subunit CcmB
382	 66.26	0	387970..388698	+	242	77462347	ccmC	RSP_1803	-	ABC heme exporter, inner membrane subunit CcmC
383	 69.75	0	388695..388856	+	53	77462348	ccmD	RSP_1804	-	Heme exporter protein D
384	 70.19	0	388849..389388	+	179	77462349	ccmG	RSP_1805	-	thiol-disulfide interchange protein
385	 66.07	0	389587..392271	-	894	161723329	-	RSP_1806	-	aconitate hydratase
386	 70.48	0	392493..393200	+	235	77462351	-	RSP_1807	-	hypothetical protein
387	 76.39	+1	393375..394433	-	352	77462352	-	RSP_6019	-	hypothetical protein
388	 65.83	0	394430..395503	-	357	77462353	trpS	RSP_1808	-	tryptophanyl-tRNA synthetase
389	 70.43	0	396284..397825	-	513	77462354	mviN	RSP_1810	-	putative virulence factor, MviN
390	 68.13	0	397822..400614	-	930	77462355	glnD	RSP_1811	-	PII uridylyl-transferase
391	 72.11	0	400598..401773	-	391	77462356	-	RSP_1812	-	hypothetical protein
392	 73.20	+1	401856..402743	+	295	77462357	-	RSP_1813	-	hypothetical protein
393	 71.19	0	402740..403093	+	117	77462358	-	RSP_1814	-	hypothetical protein
394	 65.93	0	403146..404096	+	316	77462359	gshB	RSP_1815	-	glutathione synthetase
395	 73.03	+1	404461..405999	-	512	77462360	-	RSP_1816	-	Mg chelatase-related protein
396	 70.89	0	406088..406324	-	78	77462361	-	RSP_1817	-	hypothetical protein
397	 69.61	0	406331..408643	-	770	77462362	feoB	RSP_1818	-	Fe2+ transport system protein B
398	 71.67	0	408640..408879	-	79	77462363	feoA1	RSP_1819	-	ferrous iron transport protein A
399	 67.07	0	408886..409134	-	82	77462364	feoA2	RSP_6020	-	ferrous iron transport protein A
400	 64.51	-1	409736..410245	-	169	77462365	-	RSP_1820	-	hypothetical protein
401	 67.14	0	410429..412729	-	766	77462366	-	RSP_1821	-	molybdopterin-containing oxidoreductase, formate dehydrogenase
402	 70.49	0	412976..414520	+	514	77462367	-	RSP_1822	-	NH(3)-dependent NAD(+) synthetase
403	 71.79	0	414543..415088	-	181	77462368	mogA	RSP_1823	-	molybdenum cofactor biosynthesis protein
404	 73.07	+1	415379..416503	+	374	77462369	adh	RSP_1824	-	Zinc-containing alcohol dehydrogenase
405	 69.83	0	416542..417963	-	473	77462370	tldD	RSP_1825	-	microcin-processing peptidase 2
406	 66.56	0	418133..419044	+	303	77462371	coxII	RSP_1826	-	cytochrome c oxidase polypeptide II precursor (cytochrome AA3 subunit 2)
407	 67.63	0	419115..420047	+	310	77462372	cox10	RSP_1827	-	protoheme IX farnesyltransferase
408	 70.62	0	420049..420225	+	58	77462373	-	RSP_6021	-	hypothetical protein
409	 68.40	0	420222..420797	+	191	77462374	cox11	RSP_1828	-	cytochrome C oxidase assembly protein
410	 63.80	-1	420825..421625	+	266	77462375	coxIII	RSP_1829	-	cytochrome c oxidase, aa3-type, subunit III
411	 70.24	0	421826..422497	+	223	77462376	surf-1	RSP_1830	-	Surf1 protein
412	 69.26	0	422509..423894	+	461	77462377	thrC	RSP_1831	-	threonine synthase
413	 69.44	0	423891..425150	+	419	77462378	-	RSP_1832	-	M16 family peptidase
414	 71.28	0	425150..425734	+	194	77462379	-	RSP_1833	-	putative ribosomal-protein-alanine acetyltransferase
415	 69.02	0	426069..426875	+	268	77462380	-	RSP_1834	-	hypothetical protein
416	 73.21	+1	426908..428329	+	473	77462381	-	RSP_1835	-	putative FAD dependent oxidoreductase
417	 67.97	0	428458..428994	-	178	77462382	apt	RSP_1836	-	adenine phosphoribosyltransferase
418	 69.99	0	428999..429871	-	290	77462383	-	RSP_1837	-	5'-methylthioadenosine phosphorylase
419	 69.23	0	430176..430760	-	194	77462384	-	RSP_1838	-	hypothetical protein
420	 72.22	0	430841..431326	+	161	77462385	-	RSP_1839	-	GNAT family acetyltransferase
421	 73.20	+1	431545..432309	+	254	77462386	-	RSP_1840	-	hypothetical protein
422	 63.35	-1	432357..432959	-	200	77462387	-	RSP_1841	-	intracellular septation protein
423	 69.43	0	432971..433876	-	301	77462388	-	RSP_1842	-	drug/metabolite exporter (DME) family protein
424	 71.24	0	433992..435173	-	393	77462389	ftsY	RSP_1843	-	Signal recognition particle-docking protein FtsY
425	 68.92	0	435329..435727	+	132	77462390	-	RSP_1844	-	hypothetical protein
426	 74.42	+1	435848..437407	-	519	77462391	xseA	RSP_1845	-	exodeoxyribonuclease VII large subunit
427	 70.06	0	437638..437991	-	117	77462392	-	RSP_1846	-	hypothetical protein
428	 72.13	0	438151..439413	+	420	77462393	PurD	RSP_1847	-	phosphoribosylamine--glycine ligase
429	 72.04	0	439615..441141	-	508	77462394	-	RSP_1848	-	pyruvate kinase
430	 64.44	-1	441351..442610	+	419	77462395	-	RSP_1849	-	aspartate kinase
431	 68.72	0	442635..444878	+	747	77462396	ptsI	RSP_1850	-	phosphoenolpyruvate-protein phosphotransferase, PtsI(Ntr)
432	 67.33	0	445037..446251	+	404	77462397	metZ	RSP_1851	-	O-succinylhomoserine sulfhydrylase
433	 66.11	0	446347..447426	+	359	77462398	-	RSP_1852	-	putative GTP cyclohydrolase
434	 67.84	0	447477..448925	+	482	77462399	TrkH2	RSP_1853	-	potassium uptake transporter, transmembrane component, TrkH
435	 67.35	0	448968..450422	+	484	77462400	trkH3	RSP_1854	-	potassium uptake transporter, transmembrane component, TrkH
436	 73.91	+1	450492..452273	-	593	77462401	-	RSP_1855	-	hypothetical protein
437	 64.94	0	452398..453321	+	307	77462402	glyQ	RSP_1856	-	glycyl-tRNA synthetase subunit alpha
438	 67.52	0	453318..453788	+	156	77462403	-	RSP_1857	-	hypothetical protein
439	 69.48	0	453792..455885	+	697	77462404	glyS	RSP_1858	-	glycyl-tRNA synthetase subunit beta
440	 71.50	0	456004..458550	+	848	77462405	ppdK	RSP_1859	-	pyruvate phosphate dikinase
441	 72.34	0	458768..459490	+	240	77462406	-	RSP_1860	-	hypothetical protein
442	 72.09	0	459590..460492	+	300	77462407	-	RSP_1861	-	dihydroneopterin aldolase
443	 73.31	+1	460538..461575	+	345	77462408	-	RSP_1862	-	dihydropteroate synthase
444	 71.28	0	461572..462915	+	447	77462409	-	RSP_1863	-	phosphoglucosamine mutase
445	 67.58	0	463014..463232	+	72	77462410	-	RSP_1864	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
