IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

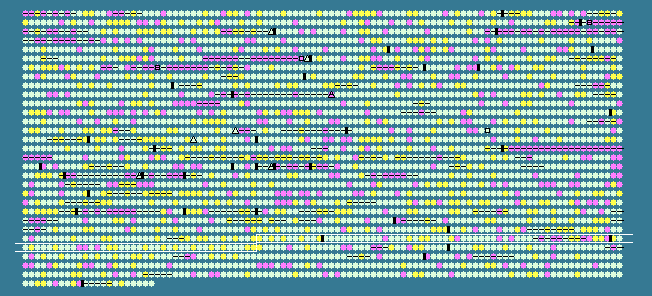

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2540	 73.31	+1	2674975..2675907	+	310	77464505	-	RSP_0926	-	OmpA/MotB family protein
2541	 67.62	0	2675930..2676871	-	313	77464506	lyrS	RSP_0927	-	LysR family transcriptional regulator
2542	 72.76	0	2677461..2677985	-	174	77464507	-	RSP_0928	-	hypothetical protein
2543	 67.82	0	2678351..2679304	+	317	77464508	accD	RSP_0929	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2544	 72.39	0	2679301..2680575	+	424	77464509	folC	RSP_0930	-	folylpolyglutamate synthetase
2545	 67.48	0	2680710..2681198	-	162	77464510	ialA	RSP_0931	-	NUDIX hydrolase
2546	 68.30	0	2681206..2682552	-	448	77464511	ctpA	RSP_0932	-	S41 family peptidase
2547	 73.41	+1	2682560..2683672	-	370	77464512	-	RSP_0933	-	hypothetical protein
2548	 69.36	0	2683669..2685189	-	506	77464513	gpmI	RSP_0934	-	phosphoglyceromutase
2549	 69.87	0	2685220..2686497	-	425	77464514	-	RSP_0935	-	MiaB-like radical SAM protein
2550	 72.92	0	2686494..2687324	-	276	77464515	dapF	RSP_0936	-	diaminopimelate epimerase
2551	 66.61	0	2687731..2689377	+	548	77464516	-	RSP_0937	-	alpha amylase domain-containing protein
2552	 65.79	0	2689471..2689698	+	75	77464517	-	RSP_0938	-	hypothetical protein
2553	 70.64	0	2689898..2690677	+	259	77464518	-	RSP_0939	-	hypothetical protein
2554	 68.85	0	2690826..2691833	+	335	77464519	-	RSP_0940	-	ABC transporter, periplasmic substrate binding protein
2555	 70.69	0	2691891..2692784	+	297	77464520	-	RSP_0941	-	ABC transporter, ATPase subunit
2556	 65.75	0	2692784..2693548	+	254	77464521	-	RSP_0942	-	ABC transporter, inner membrane subunit
2557	 66.02	0	2693657..2695039	+	460	77464522	yhxA	RSP_0943	-	aminotransferase
2558	 65.99	0	2695350..2696234	+	294	77464523	purU	RSP_0944	-	formyltetrahydrofolate deformylase
2559	 71.34	0	2696305..2697930	-	541	77464524	-	RSP_0945	-	major facilitator transporter
2560	 71.30	0	2698229..2699263	+	344	77464525	-	RSP_0946	-	putative DNA topoisomerase I protein
2561	 63.44	-1	2699398..2699583	-	61	77464526	-	RSP_0947	-	hypothetical protein
2562	 71.43	0	2699839..2700363	+	174	77464527	-	RSP_6141	-	hypothetical protein
2563	 67.23	0	2700416..2701828	-	470	77464528	otsA	RSP_0948	-	OtsA trehalose-6-phosphate synthase
2564	 71.52	0	2701825..2702607	-	260	77464529	ostB	RSP_0949	-	putative trehalose-6-phosphate phosphatase
2565	 74.92	+1	2702774..2704384	-	536	77464530	-	RSP_0950	-	arginine utilization protein RocB
2566	 68.47	0	2704729..2704950	-	73	77464531	-	RSP_0951	-	hypothetical protein
2567	 72.66	0	2704982..2705866	-	294	77464532	-	RSP_0952	-	transglutaminase-like protein
2568	 72.62	0	2705867..2708251	-	794	77464533	-	RSP_0953	-	hypothetical protein
2569	 70.67	0	2708251..2711772	-	1173	77464534	-	RSP_0954	-	transglutaminase-like domain-containing protein
2570	 66.79	0	2711808..2713379	-	523	77464535	-	RSP_0955	-	5'-nucleotidase
2571	 65.78	0	2713538..2713876	+	112	77464536	-	RSP_0956	-	hypothetical protein
2572	 73.43	+1	2713873..2714937	+	354	77464537	pyrD	RSP_0957	-	dihydroorotate dehydrogenase 2
2573	 60.34	-2	2715109..2715345	-	78	77464538	-	RSP_0958	-	AsnC family transcriptional regulator
2574	 70.72	0	2715617..2717317	-	566	77464539	-	RSP_0959	-	ATPase
2575	 65.35	0	2717534..2718826	-	430	77464540	-	RSP_0960	-	alcohol dehydrogenase
2576	 68.91	0	2719198..2721156	+	652	77464541	MeaA	RSP_0961	-	methylmalonyl-CoA mutase
2577	 67.31	0	2721358..2722746	-	462	77464542	-	RSP_0962	-	dihydrolipoamide dehydrogenase
2578	 68.18	0	2722861..2723256	-	131	77464543	-	RSP_0963	-	inner membrane protein
2579	 68.75	0	2723312..2724844	-	510	77464544	sucB	RSP_0964	-	dihydrolipoamide acetyltransferase
2580	 65.25	0	2724844..2727807	-	987	161723326	kgd	RSP_0965	-	alpha-ketoglutarate decarboxylase
2581	 66.89	0	2727862..2728746	-	294	77464546	sucD	RSP_0966	-	succinyl-CoA synthetase (ADP-forming) alpha subunit
2582	 64.99	0	2728751..2729944	-	397	77464547	sucC	RSP_0967	-	succinyl-CoA synthetase subunit beta
2583	 66.15	0	2730174..2731136	-	320	161723325	mdh	RSP_0968	-	malate dehydrogenase
2584	 67.75	0	2731339..2732076	+	245	77464549	-	RSP_0969	-	putative integral membrane protein
2585	 68.07	0	2732163..2733020	+	285	77464550	-	RSP_0970	-	putative citrate lyase beta chain
2586	 65.59	0	2733029..2733583	+	184	77464551	-	RSP_0971	-	hypothetical protein
2587	 65.20	0	2733580..2733783	+	67	77464552	-	RSP_0972	-	hypothetical protein
2588	 68.60	0	2733784..2734815	+	343	77464553	-	RSP_0973	-	MaoC family protein
2589	 65.10	0	2735026..2735409	+	127	77464554	-	RSP_0974	-	succinate dehydrogenase subunit C
2590	 64.52	-1	2735421..2735792	+	123	77464555	-	RSP_0975	-	succinate dehydrogenase subunit D
2591	 68.55	0	2735804..2737606	+	600	77464556	sdhA	RSP_0976	-	succinate dehydrogenase flavoprotein subunit
2592	 73.52	+1	2737606..2737926	+	106	77464557	-	RSP_0977	-	hypothetical protein
2593	 73.12	+1	2737930..2738208	+	92	77464558	-	RSP_0978	-	hypothetical protein
2594	 63.33	-1	2738227..2739006	+	259	77464559	sdhB	RSP_0979	-	succinate dehydrogenase iron-sulfur subunit
2595	 65.29	0	2739292..2739654	-	120	77464560	-	RSP_6142	-	hypothetical protein
2596	 72.78	0	2739750..2740436	-	228	77464561	-	RSP_0981	-	GntR family transcriptional regulator
2597	 72.63	0	2740433..2741119	-	228	77464562	-	RSP_0982	-	zinc metallopeptidase-like protein
2598	 62.99	-1	2741231..2741611	+	126	77464563	-	RSP_0983	-	hypothetical protein
2599	 73.33	+1	2742068..2742322	+	84	77464564	-	RSP_6143	-	hypothetical protein
2600	 68.90	0	2742390..2744087	-	565	77464565	-	RSP_0985	-	adenine deaminase
2601	 68.13	0	2744222..2745178	+	318	77464566	-	RSP_0987	-	RarD family transporter
2602	 73.20	+1	2745175..2745771	-	198	77464567	frcK	RSP_0986	-	putative fructose transport system kinase
2603	 67.18	0	2745768..2746544	-	258	77464568	-	RSP_0988	-	ABC sugar transporter, ATPase subunit
2604	 66.85	0	2746544..2747635	-	363	77464569	-	RSP_0989	-	ABC sugar transporter, inner membrane subunit
2605	 68.04	0	2747810..2748832	-	340	77464570	-	RSP_0990	-	ABC sugar transporter, periplasmic sugar binding subunit
2606	 72.39	0	2749030..2750253	+	407	77464571	-	RSP_0991	-	ROK family transcriptional regulator
2607	 68.14	0	2750378..2753227	+	949	77464572	phaA/B	RSP_0992	-	putative monovalent cation/H+ antiporter subunit A
2608	 66.96	0	2753227..2753562	+	111	77464573	phaC	RSP_0993	-	putative monovalent cation/H+ antiporter subunit C
2609	 69.91	0	2753559..2755070	+	503	77464574	phaD	RSP_0994	-	putative monovalent cation/H+ antiporter subunit D
2610	 65.24	0	2755067..2755558	+	163	77464575	phaE	RSP_0995	-	putative monovalent cation/H+ antiporter subunit E
2611	 64.81	0	2755555..2755824	+	89	77464576	phaF	RSP_0996	-	pH adaption potassium efflux system, PhaF subunit
2612	 66.15	0	2755830..2756216	+	128	77464577	phaG	RSP_0997	-	pH adaption potassium efflux system, PhaG subunit
2613	 64.74	0	2756350..2757648	+	432	77464578	nhaD	RSP_0998	-	Na+/H+ antiporter, NhaD
2614	 66.85	0	2757701..2758255	-	184	77464579	-	RSP_0999	-	hypothetical protein
2615	 73.18	+1	2758394..2759191	+	265	77464580	-	RSP_1000	-	hypothetical protein
2616	 73.82	+1	2759368..2760150	-	260	77464581	-	RSP_1001	-	hypothetical protein
2617	 66.77	0	2760267..2761229	+	320	77464582	pyrB	RSP_1002	-	aspartate carbamoyltransferase catalytic subunit
2618	 71.60	0	2761226..2762503	+	425	77464583	pyrC	RSP_1003	-	dihydroorotase
2619	 70.13	0	2762724..2763329	+	201	77464584	-	RSP_1004	-	acyl-phosphate glycerol-3-phosphate acyltransferase
2620	 69.67	0	2763433..2764797	-	454	77464585	gshA	RSP_1005	-	putative glutathione synthetase
2621	 74.07	+1	2764850..2765416	-	188	77464586	-	RSP_1006	-	hypothetical protein
2622	 71.96	0	2765413..2766186	-	257	77464587	-	RSP_1007	-	hypothetical protein
2623	 71.26	0	2766198..2767199	+	333	77464588	ubiA	RSP_1008	-	prenyltransferase
2624	 73.00	+1	2767269..2769227	+	652	77464589	-	RSP_1009	-	OmpA family outer membrane protein
2625	 67.59	0	2769347..2769670	+	107	77464590	-	RSP_1011	-	hypothetical protein
2626	 73.45	+1	2769657..2770511	-	284	77464591	-	RSP_1010	-	esterase/lipase/thioesterase
2627	 67.84	0	2770541..2772076	+	511	77464592	gabD4	RSP_1012	-	succinate semialdehyde dehydrogenase
2628	 70.82	0	2772141..2773415	+	424	77464593	-	RSP_1013	-	hemolysin
2629	 73.33	+1	2773458..2773997	+	179	77464594	-	RSP_1014	-	sigma24
2630	 72.14	0	2773994..2775949	+	651	77464595	-	RSP_1015	-	von Willebrand (VWA) domain-containing protein
2631	 67.51	0	2776202..2776678	-	158	77464596	-	RSP_1016	-	small heat shock protein
2632	 72.28	0	2776973..2777791	-	272	77464597	-	RSP_1017	-	hypothetical protein
2633	 70.28	0	2777825..2779126	-	433	77464598	-	RSP_1018	-	glycolate oxidase iron-sulfur subunit
2634	 75.95	+1	2779139..2780215	-	358	77464599	-	RSP_1019	-	putative glycolate oxidase subunit protein
2635	 69.46	0	2780280..2781713	-	477	77464600	glcD	RSP_1020	-	putative glycolate oxidase subunit protein
2636	 69.31	0	2781795..2782550	+	251	77464601	-	RSP_1021	-	hypothetical protein
2637	 71.86	0	2782444..2784618	-	724	77464602	-	RSP_6144	-	hypothetical protein
2638	 73.22	+1	2784615..2787392	-	925	77464603	-	RSP_1022	-	hypothetical protein
2639	 73.54	+1	2787392..2788264	-	290	77464604	-	RSP_1023	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
