IslandPathversion 1.0

IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

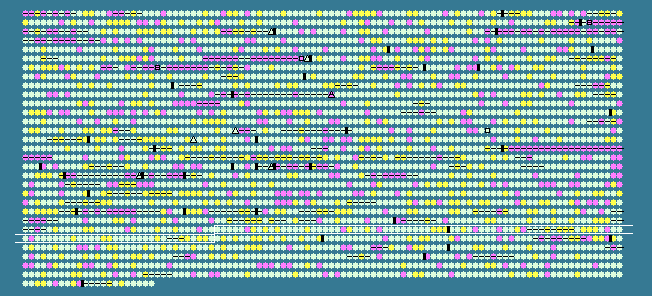

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2433	 70.37	0	2567790..2568167	+	125	77464398	-	RSP_0822	-	hypothetical protein
2434	 68.13	0	2568235..2569530	-	431	77464399	SHMT	RSP_0823	-	serine hydroxymethyltransferase
2435	 70.20	0	2569697..2570461	+	254	77464400	ppnK	RSP_0825	-	inorganic polyphosphate/ATP-NAD kinase
2436	 70.06	0	2570458..2571135	-	225	77464401	pth	RSP_0824	-	peptidyl-tRNA hydrolase
2437	 67.30	0	2571267..2571581	+	104	77464402	-	RSP_0826	-	hypothetical protein
2438	 63.56	-1	2571882..2572493	-	203	77464403	-	RSP_0827	-	50S ribosomal protein L25/general stress protein Ctc
2439	 76.34	+1	2572791..2573948	+	385	77464404	-	RSP_0828	-	major facilitator transporter
2440	 67.53	0	2573953..2575116	-	387	77464405	lctB	RSP_0829	-	lactate dehydrogenase
2441	 74.39	+1	2575463..2576563	-	366	77464406	-	RSP_0830	-	CBS domain-containing protein
2442	 70.83	0	2576608..2577399	-	263	77464407	trpA	RSP_0831	-	tryptophan synthase subunit alpha
2443	 79.63	+2	2577453..2577668	-	71	77464408	thi	RSP_6135	-	thiamine biosynthetic protein
2444	 69.03	0	2577892..2578989	+	365	77464409	-	RSP_0832	-	translation-associated GTPase
2445	 70.79	0	2579330..2580784	+	484	77464410	xanB	RSP_0834	-	mannose-1-phosphate guanylyltransferase (GDP)
2446	 71.31	0	2580781..2582157	+	458	77464411	manB	RSP_0835	-	phosphomannomutase
2447	 71.03	0	2582403..2584784	+	793	77464412	-	RSP_6136	-	hypothetical protein
2448	 75.23	+1	2584944..2586122	+	392	77464413	-	RSP_0836	-	putative flavoprotein
2449	 67.24	0	2586097..2586792	-	231	77464414	-	RSP_0837	-	hypothetical protein
2450	 71.80	0	2586898..2587890	-	330	77464415	-	RSP_0838	-	DNA polymerase III, delta subunit
2451	 68.71	0	2587887..2588375	-	162	77464416	-	RSP_0839	-	secreted periplasmic protein
2452	 67.41	0	2588362..2590905	-	847	77464417	leuS	RSP_0840	-	leucyl-tRNA synthetase
2453	 71.77	0	2590937..2591563	-	208	77464418	-	RSP_0841	-	hypothetical protein
2454	 64.25	-1	2591847..2592839	+	330	77464419	-	RSP_0842	-	putative porin
2455	 78.10	+2	2592961..2594010	-	349	77464420	-	RSP_6212	-	hypothetical protein
2456	 68.63	0	2594180..2595148	+	322	77464421	-	RSP_0843	-	hypothetical protein
2457	 71.92	0	2595141..2595806	+	221	77464422	-	RSP_0844	-	hypothetical protein
2458	 73.74	+1	2595826..2596320	-	164	77464423	-	RSP_0845	-	hypothetical protein
2459	 72.08	0	2596317..2597405	-	362	77464424	ribA	RSP_0846	-	GTP cyclohydrolase II
2460	 60.84	-1	2597558..2598244	+	228	77464425	-	RSP_0847	-	two component transcriptional regulator
2461	 66.29	0	2598593..2599381	+	262	77464426	xthA1	RSP_0848	-	exodeoxyribonuclease III
2462	 70.19	0	2599412..2600035	-	207	77464427	-	RSP_6137	-	TetR family transcriptional regulator
2463	 69.77	0	2600087..2600215	-	42	77464428	-	RSP_6138	-	hypothetical protein
2464	 70.25	0	2600381..2601358	+	325	77464429	-	RSP_0850	-	hypothetical protein
2465	 68.82	0	2601717..2602646	+	309	77464430	-	RSP_0851	-	AEC family transporter
2466	 66.55	0	2602662..2603492	+	276	77464431	fghA	RSP_0852	-	S-formylglutathione hydrolase
2467	 70.35	0	2603485..2603973	+	162	77464432	-	RSP_0853	-	hypothetical protein
2468	 68.97	0	2603970..2604881	+	303	77464433	-	RSP_0854	-	ornithine cyclodeaminase
2469	 74.57	+1	2604886..2605530	-	214	77464434	-	RSP_0855	-	hypothetical protein
2470	 72.82	0	2605905..2607155	+	416	77464435	btaA	RSP_0856	-	S-adenosylmethionine-diacylglycerol 3-amino-3-carboxypropyl transferase
2471	 73.78	+1	2607152..2607784	+	210	77464436	btaB	RSP_0857	-	S-adenosylmethionine-diacylgycerolhomoserine-N-methlytransferase
2472	 67.82	0	2608190..2609143	-	317	77464437	-	RSP_0858	-	RhaT family transporter
2473	 67.99	0	2609508..2610563	-	351	77464438	leuB	RSP_0859	-	3-isopropylmalate dehydrogenase
2474	 75.59	+1	2610714..2611643	-	309	77464439	-	RSP_0860	-	hypothetical protein
2475	 69.16	0	2611724..2612647	-	307	77464440	-	RSP_0861	-	hypothetical protein
2476	 62.38	-1	2612799..2613404	-	201	77464441	leuD	RSP_0862	-	isopropylmalate isomerase small subunit
2477	 68.57	0	2613408..2613932	-	174	77464442	-	RSP_6139	-	hypothetical protein
2478	 67.79	0	2613996..2615423	-	475	77464443	leuC	RSP_0863	-	isopropylmalate isomerase large subunit
2479	 69.70	0	2615616..2616209	+	197	77464444	-	RSP_0864	-	hypothetical protein
2480	 65.11	0	2616422..2616742	+	106	77464445	-	RSP_0865	-	hypothetical protein
2481	 71.58	0	2616742..2617209	+	155	77464446	-	RSP_0866	-	hypothetical protein
2482	 68.94	0	2617237..2617764	+	175	77464447	rnhA	RSP_0867	-	ribonuclease H
2483	 75.41	+1	2617797..2618288	+	163	77464448	-	RSP_0868	-	putative transcriptional regulator
2484	 63.64	-1	2618532..2618894	+	120	77464449	osp	RSP_0869	-	response regulator receive protein
2485	 68.09	0	2619006..2619356	+	116	77464450	-	RSP_0870	-	hypothetical protein
2486	 67.52	0	2619363..2620535	-	390	77464451	patB	RSP_0871	-	putative aminotransferase
2487	 67.23	0	2620676..2621209	+	177	77464452	def1	RSP_0872	-	peptide deformylase
2488	 73.37	+1	2621209..2621700	+	163	77464453	-	RSP_0873	-	N-formylmethionyl tRNA deformylase
2489	 66.27	0	2621697..2622200	+	167	77464454	-	RSP_0874	-	formylmethionine deformylase
2490	 73.05	+1	2622204..2623112	+	302	77464455	fmt	RSP_0875	-	methionyl-tRNA formyltransferase
2491	 74.54	+1	2623205..2626660	-	1151	77464456	-	RSP_0876	-	chromosome segregation protein SMC2
2492	 73.05	+1	2626798..2627283	+	161	77464457	-	RSP_0878	-	putative acetyltransferase protein
2493	 70.17	0	2627234..2628118	-	294	77464458	-	RSP_0877	-	RhaT family transporter
2494	 73.53	+1	2628115..2628915	-	266	77464459	-	RSP_0879	-	hypothetical protein
2495	 73.92	+1	2628970..2630031	+	353	77464460	dadA	RSP_0880	-	oxidoreductase
2496	 74.82	+1	2630264..2632225	-	653	77464461	-	RSP_0881	-	putative soluble lytic transglycosylase
2497	 68.69	0	2632363..2633250	+	295	77464462	dapA	RSP_0882	-	dihydrodipicolinate synthase
2498	 63.50	-1	2633511..2633984	+	157	77464463	smpB	RSP_0883	-	SsrA-binding protein
2499	 69.26	0	2634274..2635122	+	282	77464464	SseA	RSP_0885	-	thiosulfate sulfurtransferase, rhodanese-like
2500	 69.11	0	2635130..2636314	+	394	77464465	TyrB	RSP_0886	-	aromatic amino acid aminotransferase
2501	 66.15	0	2636500..2637852	-	450	77464466	amtB	RSP_0888	-	ammonium transporter
2502	 63.72	-1	2637879..2638217	-	112	77464467	glnK	RSP_0889	-	nitrogen regulatory protein P-II
2503	 69.91	0	2638379..2640874	+	831	77464468	MrcB	RSP_0887	-	glycosyl transferase family protein
2504	 68.59	0	2640924..2641547	-	207	77464469	-	RSP_0890	-	hypothetical protein
2505	 66.54	0	2641537..2642325	-	262	77464470	vacJ	RSP_0891	-	putative lipoprotein
2506	 70.41	0	2642535..2644271	+	578	77464471	-	RSP_0892	-	protein toxin ABC transporter ATPase and inner membrane subunit
2507	 68.82	0	2644268..2645569	+	433	77464472	-	RSP_0893	-	RTX secretion protein D
2508	 70.37	0	2645693..2646151	+	152	77464473	-	RSP_0894	-	hypothetical protein
2509	 74.19	+1	2646151..2646921	+	256	77464474	-	RSP_0895	-	phosphodiesterase-like
2510	 71.00	0	2646991..2648235	+	414	77464475	-	RSP_0896	-	hypothetical protein
2511	 70.14	0	2648232..2648864	+	210	77464476	-	RSP_0897	-	glutathione S-transferase
2512	 67.38	0	2648857..2649135	+	92	77464477	DCOHM	RSP_0898	-	pterin-4-alpha-carbinolamine dehydratase
2513	 68.92	0	2649289..2649777	-	162	77464478	-	RSP_0899	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
2514	 72.89	0	2649878..2651083	+	401	77464479	-	RSP_0900	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2515	 73.15	+1	2651080..2651634	+	184	77464480	-	RSP_0901	-	N-6 adenine-specific DNA methylase
2516	 71.78	0	2651631..2652275	+	214	77464481	-	RSP_0902	-	hydrolase, haloacid dehalogenase-like hydrolase
2517	 70.46	0	2652348..2653427	+	359	77464482	-	RSP_0903	-	catalase
2518	 69.35	0	2653510..2654403	+	297	77464483	sitA	RSP_0904	-	ABC Mn+2/Fe+2 transporter, periplasmic substrate-binding protein SitA
2519	 71.03	0	2654400..2655293	+	297	77464484	sitB	RSP_0905	-	ABC Mn+2/Fe+2 transporter, ATPase subunit SitB
2520	 67.60	0	2655280..2656140	+	286	77464485	sitC	RSP_0906	-	ABC Mn+2/Fe+2 transporter, inner membrane subunit SitC
2521	 69.02	0	2656137..2656985	+	282	77464486	sitD	RSP_0908	-	ABC Mn+2/Fe+2 transporter, inner membrane subunit SitD
2522	 71.26	0	2656960..2657568	-	202	77464487	dctR	RSP_0907	-	two component LuxR family transcriptional regulator
2523	 73.16	+1	2657565..2659550	-	661	77464488	dctS	RSP_0909	-	PAS/PAC sensor signal transduction histidine kinase
2524	 65.47	0	2659690..2660694	+	334	77464489	dctP	RSP_0910	-	TRAP dicarboxylate family transporter DctP subunit
2525	 65.50	0	2660780..2661463	+	227	77464490	dctQ	RSP_0911	-	TRAP dicarboxylate family transporter DctQ subunit
2526	 65.91	0	2661465..2662790	+	441	77464491	dctM	RSP_0912	-	TRAP dicarboxylate family transporter DctM subunit
2527	 74.07	+1	2662916..2663536	-	206	77464492	crt	RSP_0913	-	enoyl-CoA hydratase
2528	 72.38	0	2663533..2664285	-	250	77464493	-	RSP_0914	-	Short-chain dehydrogenase/reductase SDR
2529	 67.91	0	2664409..2665938	+	509	77464494	-	RSP_0915	-	hypothetical protein
2530	 73.21	+1	2666209..2667552	+	447	77464495	pmbA	RSP_0916	-	microcin-processing peptidase 1
2531	 72.59	0	2667539..2668315	+	258	77464496	-	RSP_0917	-	inositol monophosphatase
2532	 65.66	0	2668563..2668760	-	65	77464497	-	RSP_0918	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
