IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

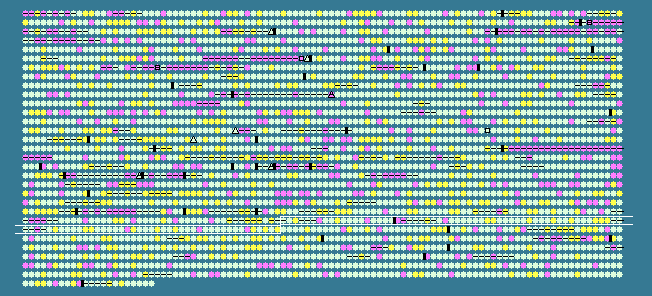

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2344	 72.25	0	2480161..2480751	-	196	77464309	mobC	RSP_0736	-	MobC protein
2345	 71.96	0	2480748..2482106	-	452	77464310	mobB	RSP_0737	-	molybdopterin guanine dinucleotide synthesis
2346	 74.91	+1	2482103..2482684	-	193	77464311	mobA	RSP_0738	-	molybdenum cofactor guanylyltransferase
2347	 68.36	0	2482760..2483467	+	235	77464312	-	RSP_0739	-	branched chain amino acid efflux pump, large (AzlC) subunit
2348	 70.27	0	2483464..2483796	+	110	77464313	-	RSP_6126	-	putative transmembrane protein
2349	 68.63	0	2483821..2484432	-	203	77464314	-	RSP_6127	-	hypothetical protein
2350	 63.98	-1	2484467..2484652	-	61	77464315	-	RSP_6128	-	Aa3-type cytochrome c oxidase subunit IV
2351	 71.79	0	2484712..2485746	-	344	77464316	-	RSP_0741	-	putative metallo-beta-lactamase family protein
2352	 71.34	0	2485743..2487431	-	562	77464317	-	RSP_0742	-	acyl-CoA dehydrogenase
2353	 75.93	+1	2487540..2488478	+	312	77464318	-	RSP_0743	-	translation factor SUA5
2354	 68.88	0	2488629..2489216	-	195	77464319	-	RSP_0744	-	DNA-3-methyladenine glycosylase I
2355	 69.15	0	2489502..2490668	+	388	77464320	-	RSP_0745	-	acetyl-CoA acetyltransferase
2356	 65.56	0	2490768..2491490	+	240	77464321	-	RSP_0747	-	3-oxoacyl-[acyl-carrier-protein] reductase
2357	 71.92	0	2491899..2492660	-	253	77464322	-	RSP_0748	-	N-6 adenine-specific DNA methylase
2358	 62.50	-1	2492660..2492875	-	71	77464323	-	RSP_0749	-	hypothetical protein
2359	 68.76	0	2492944..2493945	+	333	77464324	-	RSP_0750	-	geranylgeranyl pyrophosphate synthase/polyprenyl synthetase
2360	 69.64	0	2494236..2494739	+	167	77464325	-	RSP_0751	-	hypothetical protein
2361	 68.02	0	2494740..2494961	-	73	77464326	-	RSP_6129	-	hypothetical protein
2362	 67.90	0	2495077..2495562	+	161	77464327	-	RSP_0752	-	acetyltransferase
2363	 63.57	-1	2496345..2497217	-	290	77464328	SspA	RSP_0753	-	Salt-stress induced outer membrane protein
2364	 63.86	-1	2497425..2497745	-	106	77464329	-	RSP_0754	-	hypothetical protein
2365	 66.88	0	2498062..2498529	-	155	77464330	nusB	RSP_0755	-	NusB antitermination factor
2366	 69.65	0	2498532..2499068	-	178	77464331	ribH1	RSP_0756	-	6,7-dimethyl-8-ribityllumazine synthase
2367	 67.30	0	2499072..2500175	-	367	77464332	ribBA	RSP_0757	-	GTP cyclohydrolase II / 3,4-dihydroxy-2-butanone 4-phosphate synthase
2368	 74.33	+1	2500488..2501048	-	186	77464333	-	RSP_6130	-	hypothetical protein
2369	 68.17	0	2501050..2501646	-	198	77464334	-	RSP_0758	-	riboflavin synthase subunit alpha
2370	 69.13	0	2501868..2503004	+	378	77464335	-	RSP_0759	-	putative capsule polysaccharide exporter
2371	 61.76	-1	2503434..2503943	-	169	77464336	mucS	RSP_0760	-	MarR family transcriptional regulator
2372	 68.89	0	2504021..2504290	-	89	77464337	-	RSP_0761	-	hypothetical protein
2373	 69.67	0	2504287..2504685	-	132	77464338	-	RSP_0762	-	XRE family transcriptional regulator
2374	 67.66	0	2504800..2506002	+	400	77464339	aatA	RSP_0763	-	aspartate aminotransferase
2375	 69.62	0	2506086..2507441	-	451	77464340	-	RSP_0764	-	MATE family efflux pump NorM
2376	 71.34	0	2507492..2508133	-	213	77464341	-	RSP_0765	-	SAM-dependent methyltransferase
2377	 66.77	0	2508130..2509140	-	336	77464342	-	RSP_0766	-	hypothetical protein
2378	 75.04	+1	2509378..2510082	-	234	77464343	-	RSP_6131	-	hypothetical protein
2379	 75.16	+1	2510174..2511115	-	313	77464344	-	RSP_0768	-	LuxR family transcriptional regulator
2380	 71.97	0	2511204..2511863	+	219	77464345	-	RSP_0769	-	glutathione S-transferase
2381	 66.37	0	2511924..2513915	+	663	77464346	parE	RSP_0772	-	DNA topoisomerase IV subunit B
2382	 70.35	0	2514134..2515354	-	406	77464347	-	RSP_0773	-	mannonate dehydratase
2383	 71.19	0	2515853..2518174	-	773	77464348	-	RSP_0774	-	RNA binding protein
2384	 69.52	0	2518258..2518677	-	139	77464349	-	RSP_0775	-	class I monoheme cytochrome c
2385	 73.19	+1	2518706..2519380	-	224	77464350	LolD	RSP_0776	-	ABC lipoprotein efflux transporter, ATPase subunit, LolD
2386	 68.53	0	2519373..2520659	-	428	77464351	LolE	RSP_0777	-	ABC lipoprotein efflux transporter, inner membrane subunit, LolE
2387	 66.14	0	2520775..2522112	-	445	77464352	ProS	RSP_0778	-	prolyl-tRNA synthetase
2388	 67.46	0	2522512..2523639	+	375	77464353	perM	RSP_0779	-	Lipocalin-related protein and Bos/Can/Equ allergen
2389	 73.57	+1	2523636..2524316	+	226	77464354	-	RSP_0780	-	hypothetical protein
2390	 67.40	0	2524376..2526562	+	728	77464355	-	RSP_0781	-	polyphosphate kinase
2391	 69.65	0	2526699..2528240	+	513	77464356	-	RSP_0782	-	Ppx/GppA phosphatase
2392	 73.96	+1	2528237..2528839	+	200	77464357	-	RSP_0783	-	hypothetical protein
2393	 69.39	0	2528862..2529338	+	158	77464358	-	RSP_0784	-	GNAT family acetyltransferase
2394	 70.61	0	2529370..2530053	+	227	77464359	-	RSP_0785	-	putative heat shock protein DnaJ
2395	 68.04	0	2530054..2531073	+	339	77464360	-	RSP_0786	-	endonuclease/exonuclease/phosphatase fa
2396	 72.42	0	2531589..2532005	+	138	77464361	-	RSP_0787	-	hypothetical protein
2397	 78.54	+2	2532002..2532835	+	277	77464362	-	RSP_0788	-	hypothetical protein
2398	 74.67	+1	2532845..2533819	+	324	77464363	cobC	RSP_0789	-	aminotransferase
2399	 71.30	0	2533887..2535029	-	380	77464364	pqqE	RSP_0790	-	pyrroloquinoline quinone biosynthesis protein PqqE
2400	 68.69	0	2535029..2535325	-	98	77464365	pqqD	RSP_0791	-	putative pyrroloquinoline quinone synthesis protein D
2401	 67.97	0	2535322..2536089	-	255	77464366	pqqC	RSP_0792	-	pyrroloquinoline quinone biosynthesis protein PqqC
2402	 71.76	0	2536086..2536988	-	300	77464367	pqqB	RSP_0793	-	pyrroloquinoline quinone biosynthesis protein PqqB
2403	 56.79	-2	2537007..2537087	-	26	77464368	pqqA	RSP_6132	-	putative coenzyme PQQ synthesis protein A
2404	 71.91	0	2537318..2538499	-	393	77464369	catR	RSP_0794	-	LysR family transcriptional regulator
2405	 69.52	0	2538620..2539039	-	139	77464370	-	RSP_0795	-	hypothetical protein
2406	 73.17	+1	2539186..2540631	+	481	77464371	cobQ	RSP_0796	-	cobyric acid synthase
2407	 70.83	0	2540682..2541065	+	127	77464372	-	RSP_6229	-	hypothetical protein
2408	 68.02	0	2541066..2542391	-	441	77464373	gltX	RSP_0797	-	glutamyl-tRNA synthetase
2409	 67.15	0	2542704..2543114	+	136	77464374	-	RSP_0798	-	neutral zinc metallopeptidase
2410	 70.22	0	2543202..2544131	+	309	77464375	-	RSP_0799	-	hypothetical protein
2411	 74.42	+1	2544351..2544608	-	85	77464376	-	RSP_0800	-	hypothetical protein
2412	 72.81	0	2544668..2545807	+	379	77464377	-	RSP_0801	-	deacetylase / acetylpolyamine aminohydrolase
2413	 69.76	0	2546149..2547216	-	355	77464378	-	RSP_0802	-	dipeptidase AC
2414	 71.03	0	2547213..2547968	-	251	77464379	DppF	RSP_0803	-	ABC dipeptide transporter, ATPase subunit DppF
2415	 72.12	0	2547968..2548792	-	274	77464380	DppD	RSP_0804	-	ABC dipeptide transporter, ATPase subunit DppD
2416	 71.32	0	2548893..2549795	-	300	77464381	DppC	RSP_0805	-	ABC dipeptide transporter, inner membrane subunit DppC
2417	 68.25	0	2549792..2550862	-	356	77464382	DppB	RSP_0806	-	ABC dipeptide transporter, inner membrane subunit DppB
2418	 64.01	-1	2550863..2552479	-	538	77464383	DdpA	RSP_0807	-	ABC dipeptide transporter, substrate-binding subunit DdpA
2419	 72.88	0	2552780..2553358	+	192	77464384	-	RSP_0809	-	hypothetical protein
2420	 67.10	0	2553355..2554047	+	230	77464385	-	RSP_0810	-	hypothetical protein
2421	 68.44	0	2554062..2554343	-	93	77464386	-	RSP_0811	-	hypothetical protein
2422	 67.65	0	2554340..2554744	-	134	77464387	-	RSP_0812	-	methylmalonyl-CoA epimerase
2423	 74.93	+1	2555003..2555704	+	233	77464388	-	RSP_0813	-	response regulator receiver protein
2424	 70.73	0	2555865..2556578	-	237	77464389	-	RSP_0814	-	acetyltransferase
2425	 67.12	0	2556582..2558357	-	591	77464390	aspS	RSP_0815	-	aspartyl-tRNA synthetase
2426	 75.73	+1	2558573..2559157	-	194	77464391	-	RSP_0816	-	hypothetical protein
2427	 71.36	0	2559166..2560338	-	390	77464392	-	RSP_0817	-	para-aminobenzoate synthase component I
2428	 67.99	0	2560500..2563829	+	1109	161723327	carB	RSP_0818	-	carbamoyl phosphate synthase large subunit
2429	 70.85	0	2564430..2565815	+	461	77464394	rhlE2	RSP_0819	-	DEAD/DEAH box helicase
2430	 62.15	-1	2566177..2566353	+	58	77464395	-	RSP_6134	-	hypothetical protein
2431	 67.25	0	2566383..2566892	+	169	77464396	-	RSP_0820	-	putative cytochrome B561
2432	 70.82	0	2566932..2567702	-	256	77464397	-	RSP_0821	-	esterase/lipase/thioesterase
2433	 70.37	0	2567790..2568167	+	125	77464398	-	RSP_0822	-	hypothetical protein
2434	 68.13	0	2568235..2569530	-	431	77464399	SHMT	RSP_0823	-	serine hydroxymethyltransferase
2435	 70.20	0	2569697..2570461	+	254	77464400	ppnK	RSP_0825	-	inorganic polyphosphate/ATP-NAD kinase
2436	 70.06	0	2570458..2571135	-	225	77464401	pth	RSP_0824	-	peptidyl-tRNA hydrolase
2437	 67.30	0	2571267..2571581	+	104	77464402	-	RSP_0826	-	hypothetical protein
2438	 63.56	-1	2571882..2572493	-	203	77464403	-	RSP_0827	-	50S ribosomal protein L25/general stress protein Ctc
2439	 76.34	+1	2572791..2573948	+	385	77464404	-	RSP_0828	-	major facilitator transporter
2440	 67.53	0	2573953..2575116	-	387	77464405	lctB	RSP_0829	-	lactate dehydrogenase
2441	 74.39	+1	2575463..2576563	-	366	77464406	-	RSP_0830	-	CBS domain-containing protein
2442	 70.83	0	2576608..2577399	-	263	77464407	trpA	RSP_0831	-	tryptophan synthase subunit alpha
2443	 79.63	+2	2577453..2577668	-	71	77464408	thi	RSP_6135	-	thiamine biosynthetic protein
68.78	MEAN

4.15	STD DEV
