IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

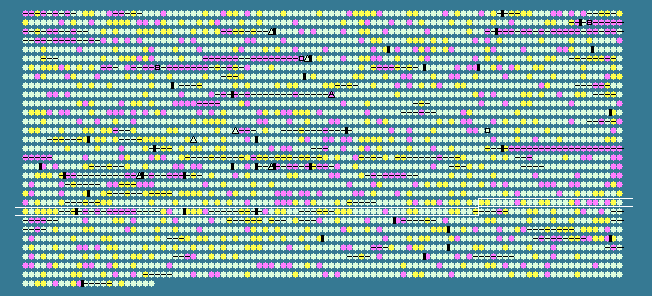

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2177	 72.53	0	2310595..2311362	+	255	77464142	truA	RSP_0571	-	tRNA pseudouridine synthase A
2178	 72.41	0	2311564..2313651	-	695	77464143	-	RSP_0572	-	putative exonuclease
2179	 67.44	0	2313655..2314044	-	129	77464144	phoB	RSP_0573	-	response regulator receiver protein
2180	 71.07	0	2314046..2314567	-	173	77464145	-	RSP_0574	-	hypothetical protein
2181	 69.19	0	2314578..2316398	-	606	77464146	-	RSP_0575	-	signal transduction protein
2182	 65.68	0	2316462..2318279	-	605	77464147	-	RSP_0576	-	Na+/solute symporter
2183	 62.45	-1	2318295..2318555	-	86	77464148	-	RSP_0577	-	hypothetical protein
2184	 73.09	+1	2318643..2319296	-	217	77464149	-	RSP_0578	-	adenylate kinase
2185	 66.26	0	2319336..2321297	-	653	77464150	-	RSP_0579	-	Acetyl-coenzyme A synthetase
2186	 69.14	0	2321390..2323288	-	632	77464151	-	RSP_0580	-	SulP family sulfate transporter
2187	 74.95	+1	2323361..2323855	+	164	77464152	-	RSP_0581	-	hypothetical protein
2188	 74.01	+1	2324005..2325462	+	485	77464153	-	RSP_0582	-	penicillin binding protein
2189	 68.32	0	2325622..2326044	-	140	77464154	-	RSP_0583	-	hypothetical protein
2190	 65.97	0	2326302..2327882	+	526	77464155	lysK	RSP_0584	-	lysyl-tRNA synthetase
2191	 66.67	0	2328340..2328762	+	140	77464156	osmC	RSP_0585	-	osmotically inducible protein OsmC
2192	 74.21	+1	2329105..2329674	-	189	77464157	nadD	RSP_0586	-	nicotinic acid mononucleotide adenylyltransferase
2193	 64.25	-1	2329855..2331510	+	551	77464158	-	RSP_0587	-	putative ABC transporter ATP-binding protein
2194	 69.72	0	2331507..2331866	+	119	77464159	-	RSP_0588	-	hypothetical protein
2195	 63.73	-1	2332005..2332208	-	67	77464160	-	RSP_0589	-	hypothetical protein
2196	 64.71	0	2332354..2332506	+	50	77464161	-	RSP_6120	-	hypothetical protein
2197	 70.10	0	2332597..2332887	-	96	77464162	-	RSP_0590	-	hypothetical protein
2198	 63.77	-1	2333138..2333344	+	68	77464163	-	RSP_0591	-	cold-shock DNA-binding protein family protein
2199	 75.44	+1	2333438..2334406	+	322	77464164	-	RSP_0592	-	putative lipase/esterase
2200	 66.40	0	2334500..2336005	+	501	77464165	-	RSP_0594	-	putative choline sulfatase
2201	 72.48	0	2336088..2336603	-	171	77464166	-	RSP_0595	-	hypothetical protein
2202	 69.89	0	2336687..2338705	-	672	77464167	-	RSP_0596	-	peptidyl-dipeptidase Dcp
2203	 73.90	+1	2338792..2339841	-	349	77464168	-	RSP_0597	-	molybdopterin biosynthesis protein
2204	 73.93	+1	2339838..2340305	-	155	77464169	-	RSP_0598	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
2205	 72.71	0	2340411..2341601	-	396	77464170	-	RSP_0599	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
2206	 75.24	+1	2341664..2342491	-	275	77464171	-	RSP_0600	-	hypothetical protein
2207	 66.10	0	2342488..2343366	-	292	77464172	rpoH2	RSP_0601	-	RNA polymerase factor sigma-32
2208	 66.13	0	2343421..2343975	+	184	77464173	-	RSP_0602	-	adenosylcobinamide kinase
2209	 72.37	0	2343972..2344550	+	192	77464174	-	RSP_0603	-	hypothetical protein
2210	 67.76	0	2344845..2346215	-	456	77464175	-	RSP_0604	-	hypothetical protein
2211	 63.73	-1	2346456..2346761	+	101	77464176	-	RSP_0605	-	hypothetical protein
2212	 66.03	0	2347274..2347747	+	157	77464177	-	RSP_0606	-	putative redox protein
2213	 65.04	0	2347737..2348597	+	286	77464178	-	RSP_0607	-	RNA polymerase sigma factor SigJ
2214	 67.19	0	2348723..2349103	+	126	77464179	-	RSP_0609	-	hypothetical protein
2215	 59.11	-2	2349051..2349434	-	127	77464180	-	RSP_0608	-	hypothetical protein
2216	 65.18	0	2349479..2350285	-	268	77464181	-	RSP_0610	-	putative 3-oxoacyl-(acyl-carrier-protein) reductase
2217	 61.20	-1	2350328..2350711	+	127	77464182	-	RSP_0611	-	ArsR family transcriptional regulator
2218	 60.95	-1	2350985..2351614	-	209	77464183	-	RSP_0612	-	RhtB family transporter
2219	 54.58	-2	2351902..2352414	+	170	77464184	-	RSP_0613	-	hypothetical protein
2220	 65.66	0	2352461..2352757	+	98	77464185	-	RSP_0614	-	hypothetical protein
2221	 65.90	0	2352823..2353740	-	305	77464186	-	RSP_0615	-	putative oxidoreductase
2222	 70.70	0	2353834..2354577	+	247	77464187	-	RSP_0616	-	AraC family transcriptional regulator
2223	 65.59	0	2354634..2355188	+	184	77464188	-	RSP_0617	-	hypothetical protein
2224	 73.77	+1	2355164..2355346	-	60	77464189	-	RSP_0618	-	hypothetical protein
2225	 58.91	-2	2355658..2356044	+	128	77464190	-	RSP_0619	-	hypothetical protein
2226	 68.09	0	2356138..2356488	+	116	77464191	-	RSP_0620	-	hypothetical protein
2227	 68.08	0	2356523..2361670	+	1715	77464192	-	RSP_0621	-	DNA helicase
2228	 72.68	0	2362113..2362295	-	60	77464193	-	RSP_0623	-	hypothetical protein
2229	 73.47	+1	2362292..2363335	-	347	77464194	-	RSP_0624	-	hypothetical protein
2230	 72.37	0	2363332..2363910	-	192	77464195	-	RSP_0625	-	putative Maf-like protein
2231	 56.16	-2	2363911..2364129	-	72	77464196	infA	RSP_0626	-	translation initiation factor IF-1
2232	 70.89	0	2364304..2365179	-	291	77464197	-	RSP_0627	-	putative amidohydrolase
2233	 69.90	0	2365199..2365786	-	195	77464198	-	RSP_0628	-	hypothetical protein
2234	 66.67	0	2365783..2366184	-	133	77464199	-	RSP_0629	-	hypothetical protein
2235	 65.85	0	2366171..2366662	-	163	77464200	-	RSP_0630	-	hypothetical protein
2236	 66.04	0	2366659..2367135	-	158	77464201	-	RSP_0631	-	hypothetical protein
2237	 72.80	0	2367139..2368443	-	434	77464202	hisD	RSP_0632	-	histidinol dehydrogenase
2238	 72.71	0	2368665..2369144	-	159	77464203	-	RSP_6122	-	hypothetical protein
2239	 70.06	0	2369144..2370412	-	422	77464204	-	RSP_0633	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2240	 66.82	0	2371214..2372521	-	435	77464205	-	RSP_0634	-	TRAP dicarboxylate family transporter DctM subunit
2241	 60.69	-1	2372531..2373049	-	172	77464206	-	RSP_0635	-	TRAP dicarboxylate family transporter DctQ subunit
2242	 66.22	0	2373108..2374232	-	374	77464207	-	RSP_0636	-	TRAP dicarboxylate family transporter DctP subunit
2243	 74.38	+1	2374319..2375044	-	241	77464208	-	RSP_0637	-	hypothetical protein
2244	 72.93	0	2375041..2376333	-	430	77464209	-	RSP_0638	-	putative FAD dependent oxidoreductase protein
2245	 68.34	0	2376335..2378011	-	558	77464210	-	RSP_0639	-	putative N-methylhydantoinase B
2246	 70.58	0	2378015..2380033	-	672	77464211	-	RSP_0640	-	putative N-methylhydantoinase A
2247	 68.40	0	2380273..2380908	+	211	77464212	-	RSP_0641	-	XRE family transcriptional regulator
2248	 71.64	0	2380915..2381859	+	314	77464213	-	RSP_0642	-	RhaT family protein
2249	 70.88	0	2382164..2384014	+	616	77464214	-	RSP_0643	-	periplasmic sensor signal transduction histidine kinase
2250	 73.64	+1	2384018..2384734	-	238	77464215	-	RSP_0644	-	ABC transporter, inner membrane subunit
2251	 76.21	+1	2384731..2385411	-	226	77464216	-	RSP_0645	-	ABC transporter, ATPase subunit
2252	 69.02	0	2385411..2386346	-	311	77464217	-	RSP_0646	-	ABC transporter, substrate-binding protein
2253	 72.76	0	2386343..2387146	-	267	77464218	thiD	RSP_0647	-	phosphomethylpyrimidine kinase
2254	 75.65	+1	2387143..2387754	-	203	77464219	thiE	RSP_0648	-	thiamine-phosphate pyrophosphorylase
2255	 73.38	+1	2387751..2388539	-	262	77464220	thiM	RSP_0649	-	putative hydoxyethylthiazole kinase
2256	 66.89	0	2388918..2389370	-	150	77464221	-	RSP_0650	-	transglycosylase
2257	 71.07	0	2389367..2390161	-	264	77464222	-	RSP_0651	-	putative inositol monophosphatase protein
2258	 68.69	0	2390172..2391158	-	328	77464223	-	RSP_0652	-	UDP-galactose 4-epimerase
2259	 66.67	0	2391168..2392472	-	434	77464224	-	RSP_0653	-	UDP-glucose 6-dehydrogenase
2260	 70.29	0	2392540..2393451	-	303	77464225	-	RSP_0654	-	DMT family permease
2261	 63.99	-1	2393628..2394374	-	248	77464226	-	RSP_0655	-	hypothetical protein
2262	 67.45	0	2394469..2396247	-	592	77464227	-	RSP_0656	-	sodium/sulphate symporter
2263	 69.26	0	2396360..2397169	-	269	77464228	-	RSP_0657	-	hypothetical protein
2264	 71.96	0	2397254..2399653	+	799	77464229	-	RSP_0658	-	ATP-dependent helicase
2265	 73.07	+1	2399759..2400445	+	228	77464230	-	RSP_0659	-	putative metallo-phosphoesterase
2266	 72.36	0	2400409..2401128	-	239	77464231	-	RSP_0660	-	hypothetical protein
2267	 70.48	0	2401243..2402133	-	296	77464232	-	RSP_0661	-	methenyltetrahydrofolate cyclohydrolase
2268	 67.30	0	2402130..2402447	-	105	77464233	-	RSP_0662	-	chorismate mutase
2269	 67.74	0	2402522..2404195	-	557	77464234	-	RSP_0663	-	formate--tetrahydrofolate ligase
2270	 66.25	0	2404276..2405241	-	321	77464235	-	RSP_0664	-	hypothetical protein
2271	 65.62	0	2405469..2407370	-	633	77464236	ftsH	RSP_0665	-	membrane protease FtsH catalytic subunit
2272	 74.25	+1	2407449..2408687	-	412	77464237	-	RSP_0666	-	cell cycle protein
2273	 72.73	0	2408687..2409511	-	274	77464238	-	RSP_0667	-	hypothetical protein
2274	 69.58	0	2409516..2410064	-	182	77464239	-	RSP_0668	-	OmpA/MotB family protein
2275	 70.64	0	2410149..2411483	-	444	77464240	tolB	RSP_0669	-	translocation protein TolB
2276	 74.20	+1	2411553..2412800	-	415	77464241	-	RSP_0670	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
