IslandPathversion 1.0

IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

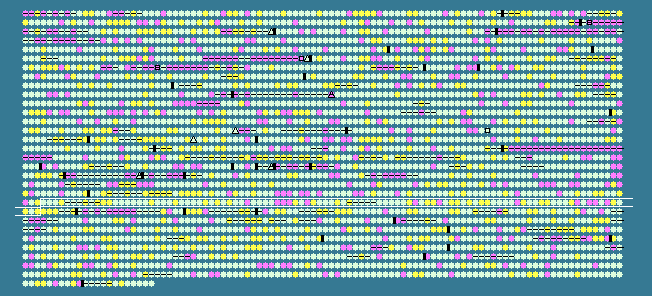

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2104	 71.58	0	2237085..2237471	+	128	77464069	hupG	RSP_0501	-	HupG hydrogenase expression/formation protein
2105	 69.72	0	2237483..2238301	+	272	77464070	hupH	RSP_0502	-	HupH hydrogenase expression/formation protein
2106	 68.38	0	2238298..2239056	+	252	77464071	hupJ	RSP_0503	-	hypothetical protein
2107	 74.78	+1	2239053..2239865	+	270	77464072	hupK	RSP_0504	-	HupK
2108	 68.13	0	2239858..2240199	+	113	77464073	hypA	RSP_0505	-	hydrogenase expression/synthesis, HypA family
2109	 66.09	0	2240199..2241068	+	289	77464074	hypB	RSP_0506	-	NI2+-binding GTPase protein HypB
2110	 70.05	0	2241068..2242543	+	491	77464075	-	RSP_0507	-	HupR response regulator
2111	 73.54	+1	2242545..2242835	+	96	77464076	hypC	RSP_0508	-	hydrogenase expression/formation protein HypC
2112	 69.65	0	2242832..2243971	+	379	77464077	hypD	RSP_0509	-	hydrogenase isoenzyme formation protein HypD
2113	 73.61	+1	2244022..2245044	+	340	77464078	hypE	RSP_0510	-	hydrogenase expression/formation protein HypE
2114	 73.99	+1	2245112..2245507	+	131	77464079	-	RSP_6117	-	hypothetical protein
2115	 73.61	+1	2245560..2246135	+	191	77464080	-	RSP_0511	-	two component LuxR family transcriptional regulator
2116	 72.20	0	2246349..2249186	+	945	77464081	-	RSP_0512	-	PAS/PAC sensor hybrid histidine kinase
2117	 69.19	0	2249199..2250626	-	475	77464082	-	RSP_0513	-	hypothetical protein
2118	 70.41	0	2250807..2251820	-	337	77464083	-	RSP_0514	-	dTDP-glucose 4,6-dehydratase protein
2119	 71.31	0	2251882..2252958	-	358	77464084	-	RSP_0515	-	hypothetical protein
2120	 71.52	0	2252955..2254046	-	363	77464085	-	RSP_0516	-	hypothetical protein
2121	 70.54	0	2254046..2255155	-	369	77464086	-	RSP_0517	-	hypothetical protein
2122	 73.93	+1	2255157..2256257	-	366	77464087	-	RSP_0518	-	putative glycosyltransferase protein
2123	 70.68	0	2256254..2258272	-	672	77464088	-	RSP_0519	-	NAD-dependent epimerase/dehydratase
2124	 69.56	0	2258269..2259375	-	368	77464089	-	RSP_0520	-	NAD-dependent dehydratase/epimerase
2125	 71.67	0	2259613..2260611	+	332	77464090	-	RSP_0521	-	putative Zn-containing dehydrogenase
2126	 74.27	+1	2260602..2261627	+	341	77464091	-	RSP_0522	-	putative oxidoreductase
2127	 67.17	0	2261634..2262422	+	262	77464092	-	RSP_0523	-	hypothetical protein
2128	 68.28	0	2262525..2263328	-	267	77464093	-	RSP_0524	-	hypothetical protein
2129	 70.15	0	2263490..2264149	+	219	77464094	-	RSP_0525	-	hypothetical protein
2130	 70.14	0	2264159..2264590	+	143	77464095	-	RSP_0526	-	hypothetical protein
2131	 72.34	0	2264623..2265927	-	434	77464096	rpoN	RSP_0527	-	sigma-54, RpoN
2132	 68.50	0	2266028..2266354	-	108	77464097	nifW	RSP_0528	-	nitrogenase stabilizing/protective protein
2133	 74.74	+1	2266463..2267539	-	358	77464098	nifV	RSP_0529	-	homocitrate synthase
2134	 71.99	0	2267539..2268702	-	387	77464099	nifS	RSP_0530	-	cysteine desulfurase
2135	 75.98	+1	2268702..2269442	-	246	77464100	nifU	RSP_0531	-	nitrogen fixation protein
2136	 66.04	0	2269452..2269772	-	106	77464101	-	RSP_0532	-	hypothetical protein
2137	 72.22	0	2270336..2270875	-	179	77464102	nifQ	RSP_0533	-	putative nitrogen fixation protein nifQ
2138	 61.72	-1	2270856..2271158	-	100	77464103	-	RSP_0534	-	putative dimeric ferredoxin (FdIII)
2139	 67.73	0	2271272..2271742	-	156	77464104	-	RSP_0535	-	hypothetical protein
2140	 69.18	0	2271739..2272215	-	158	77464105	nifX	RSP_0536	-	putative nitrogenase molybdenum-iron protein NifX
2141	 70.54	0	2272187..2273554	-	455	77464106	nifN	RSP_0537	-	nitrogenase molybdenum-iron protein beta chain, nifN
2142	 69.19	0	2273554..2275017	-	487	77464107	nifE	RSP_0538	-	nifE, nitrogenase molybdenum-cofactor synthesis protein
2143	 64.30	-1	2275264..2276784	-	506	77464108	nifK	RSP_0539	-	nitrogenase molybdenum-iron protein beta chain
2144	 62.69	-1	2276885..2278366	-	493	77464109	nifD	RSP_0540	-	nitrogenase iron-molybdenum protein, alpha chain
2145	 63.93	-1	2278428..2279303	-	291	77464110	nifH	RSP_0541	-	nitrogenase reductase
2146	 73.04	+1	2279747..2280577	-	276	77464111	-	RSP_0542	-	hypothetical protein
2147	 66.67	0	2280582..2280797	-	71	77464112	fixU	RSP_0543	-	hypothetical protein
2148	 62.11	-1	2280794..2281078	-	94	77464113	nifZ	RSP_0544	-	nitrogen fixation protein NifZ
2149	 76.43	+1	2281065..2281832	-	255	77464114	-	RSP_0545	-	hypothetical protein
2150	 69.04	0	2282039..2283514	-	491	77464115	nifB	RSP_0546	-	NifB family--FeMo cofactor biosynthesis protein
2151	 71.02	0	2283761..2285506	-	581	77464116	nifA	RSP_0547	-	NifA subfamily transcriptional regulator
2152	 68.43	0	2285786..2286181	-	131	77464117	-	RSP_0548	-	hypothetical protein
2153	 73.95	+1	2286494..2287276	+	260	77464118	-	RSP_0549	-	hypothetical protein
2154	 68.35	0	2287395..2288462	+	355	77464119	-	RSP_0550	-	putative D-alanyl-D-alanine carboxypeptidase
2155	 74.01	+1	2288475..2289128	+	217	77464120	-	RSP_0551	-	thymidylate kinase
2156	 71.14	0	2289308..2289955	-	215	77464121	-	RSP_6118	-	hypothetical protein
2157	 66.08	0	2290223..2290564	+	113	77464122	-	RSP_0552	-	multidrug ABC transporter
2158	 71.25	0	2290834..2291859	-	341	77464123	ruvB	RSP_0553	-	Holliday junction DNA helicase B
2159	 70.21	0	2291924..2292826	-	300	77464124	htpx	RSP_0554	-	heat shock protein HtpX
2160	 72.15	0	2292945..2293619	-	224	77464125	ruvA	RSP_0555	-	Holliday junction DNA helicase motor protein
2161	 68.05	0	2293616..2294122	-	168	77464126	ruvC	RSP_0556	-	Holliday junction resolvase
2162	 69.95	0	2294442..2294654	+	70	77464127	-	RSP_0557	-	hypothetical protein
2163	 70.09	0	2295006..2295881	-	291	77464128	-	RSP_0558	-	50S ribosomal protein L11P methyltransferase
2164	 68.44	0	2295945..2296619	-	224	77464129	msrA	RSP_0559	-	peptide methionine sulfoxide reductase
2165	 73.73	+1	2296841..2299033	-	730	77464130	priA	RSP_0560	-	primosome assembly protein PriA
2166	 64.70	0	2299128..2299787	+	219	77464131	-	RSP_0561	-	putative translaldolase
2167	 69.28	0	2299810..2300499	+	229	77464132	-	RSP_0562	-	hypothetical protein
2168	 74.38	+1	2300496..2301416	+	306	77464133	xerC	RSP_0563	-	site-specific tyrosine recombinase XerC
2169	 74.31	+1	2301525..2302244	+	239	77464134	-	RSP_0564	-	hypothetical protein
2170	 63.88	-1	2302340..2303056	+	238	77464135	-	RSP_0565	-	CDP-diacylglycerol-choline O-phosphatidyltransferase
2171	 70.61	0	2303064..2303900	-	278	77464136	-	RSP_0566	-	DMT family permease
2172	 73.87	+1	2303964..2304407	-	147	77464137	-	RSP_0567	-	methylated-DNA-(protein)-cysteine S-methyltransferase
2173	 74.80	+1	2304404..2304649	-	81	77464138	-	RSP_6119	-	hypothetical protein
2174	 66.02	0	2304633..2307587	-	984	77464139	ileS	RSP_0568	-	isoleucyl-tRNA synthetase
2175	 72.82	0	2307782..2308837	-	351	77464140	-	RSP_0569	-	hypothetical protein
2176	 70.65	0	2308938..2310368	-	476	77464141	-	RSP_0570	-	hypothetical protein
2177	 72.53	0	2310595..2311362	+	255	77464142	truA	RSP_0571	-	tRNA pseudouridine synthase A
2178	 72.41	0	2311564..2313651	-	695	77464143	-	RSP_0572	-	putative exonuclease
2179	 67.44	0	2313655..2314044	-	129	77464144	phoB	RSP_0573	-	response regulator receiver protein
2180	 71.07	0	2314046..2314567	-	173	77464145	-	RSP_0574	-	hypothetical protein
2181	 69.19	0	2314578..2316398	-	606	77464146	-	RSP_0575	-	signal transduction protein
2182	 65.68	0	2316462..2318279	-	605	77464147	-	RSP_0576	-	Na+/solute symporter
2183	 62.45	-1	2318295..2318555	-	86	77464148	-	RSP_0577	-	hypothetical protein
2184	 73.09	+1	2318643..2319296	-	217	77464149	-	RSP_0578	-	adenylate kinase
2185	 66.26	0	2319336..2321297	-	653	77464150	-	RSP_0579	-	Acetyl-coenzyme A synthetase
2186	 69.14	0	2321390..2323288	-	632	77464151	-	RSP_0580	-	SulP family sulfate transporter
2187	 74.95	+1	2323361..2323855	+	164	77464152	-	RSP_0581	-	hypothetical protein
2188	 74.01	+1	2324005..2325462	+	485	77464153	-	RSP_0582	-	penicillin binding protein
2189	 68.32	0	2325622..2326044	-	140	77464154	-	RSP_0583	-	hypothetical protein
2190	 65.97	0	2326302..2327882	+	526	77464155	lysK	RSP_0584	-	lysyl-tRNA synthetase
2191	 66.67	0	2328340..2328762	+	140	77464156	osmC	RSP_0585	-	osmotically inducible protein OsmC
2192	 74.21	+1	2329105..2329674	-	189	77464157	nadD	RSP_0586	-	nicotinic acid mononucleotide adenylyltransferase
2193	 64.25	-1	2329855..2331510	+	551	77464158	-	RSP_0587	-	putative ABC transporter ATP-binding protein
2194	 69.72	0	2331507..2331866	+	119	77464159	-	RSP_0588	-	hypothetical protein
2195	 63.73	-1	2332005..2332208	-	67	77464160	-	RSP_0589	-	hypothetical protein
2196	 64.71	0	2332354..2332506	+	50	77464161	-	RSP_6120	-	hypothetical protein
2197	 70.10	0	2332597..2332887	-	96	77464162	-	RSP_0590	-	hypothetical protein
2198	 63.77	-1	2333138..2333344	+	68	77464163	-	RSP_0591	-	cold-shock DNA-binding protein family protein
2199	 75.44	+1	2333438..2334406	+	322	77464164	-	RSP_0592	-	putative lipase/esterase
2200	 66.40	0	2334500..2336005	+	501	77464165	-	RSP_0594	-	putative choline sulfatase
2201	 72.48	0	2336088..2336603	-	171	77464166	-	RSP_0595	-	hypothetical protein
2202	 69.89	0	2336687..2338705	-	672	77464167	-	RSP_0596	-	peptidyl-dipeptidase Dcp
2203	 73.90	+1	2338792..2339841	-	349	77464168	-	RSP_0597	-	molybdopterin biosynthesis protein
68.78	MEAN

4.15	STD DEV
