IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

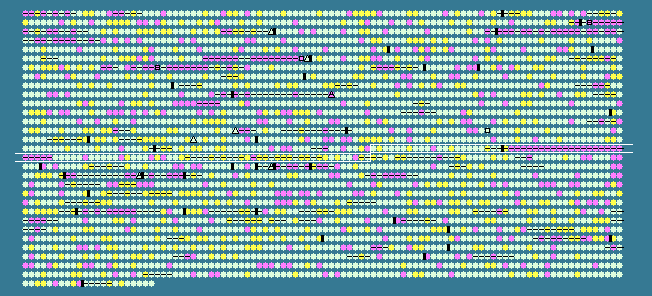

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1559	 66.74	0	1648123..1650981	-	952	77463524	uvrA	RSP_2966	-	excinuclease ABC subunit A
1560	 72.82	0	1651098..1652234	-	378	77463525	-	RSP_2967	-	major facilitator transporter
1561	 67.24	0	1652437..1653843	-	468	77463526	-	RSP_2968	-	dihydrolipoamide dehydrogenase
1562	 69.79	0	1653920..1654495	-	191	77463527	-	RSP_2969	-	hypothetical protein
1563	 66.98	0	1654702..1655958	-	418	77463528	-	RSP_2970	-	major facilitator transporter
1564	 71.66	0	1656038..1657078	-	346	77463529	-	RSP_2971	-	S-adenosylmethionine tRNA ribosyltransferase-isomerase
1565	 73.03	+1	1657164..1660448	-	1094	77463530	-	RSP_2972	-	hypothetical protein
1566	 65.80	0	1660539..1661000	+	153	77463531	-	RSP_2973	-	peroxiredoxin
1567	 67.34	0	1661411..1662754	+	447	77463532	-	RSP_2974	-	putative metalopeptidase
1568	 67.24	0	1662744..1663262	+	172	77463533	-	RSP_2975	-	hypothetical protein
1569	 62.16	-1	1663458..1664234	-	258	77463534	-	RSP_2976	-	hypothetical protein
1570	 66.67	0	1664604..1665731	-	375	77463535	prfB	RSP_2977	-	peptide chain release factor 2
1571	 67.45	0	1665840..1668389	-	849	77463536	mrcA	RSP_2978	-	penicillin-binding protein 1A (PBP-1a)
1572	 73.71	+1	1668481..1669716	-	411	77463537	amiC	RSP_2979	-	N-acetylmuramoyl-L-alanine amidase
1573	 69.97	0	1669765..1670916	-	383	77463538	aspAT	RSP_2980	-	aminotransferase
1574	 68.01	0	1671084..1671827	+	247	77463539	-	RSP_2981	-	putative protein-disulfide isomerase
1575	 67.20	0	1672163..1673296	-	377	77463540	ispG	RSP_2982	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1576	 70.74	0	1673427..1674554	-	375	77463541	-	RSP_2983	-	hypothetical protein
1577	 65.36	0	1674752..1675975	-	407	77463542	hemA	RSP_2984	-	5-aminolevulinate synthase
1578	 72.63	0	1676110..1676679	-	189	77463543	-	RSP_2985	-	hypothetical protein
1579	 69.36	0	1676870..1678282	+	470	77463544	-	RSP_2986	-	hypothetical protein
1580	 70.72	0	1678279..1678722	+	147	77463545	-	RSP_2987	-	acetyltransferase
1581	 72.81	0	1679197..1679961	-	254	77463546	-	RSP_2988	-	Pirin-related protein
1582	 41.52	-2	1680129..1680470	+	113	77463547	-	RSP_2989	-	hypothetical protein
1583	 50.35	-2	1680503..1683964	-	1153	77463548	-	RSP_2990	-	hypothetical protein
1584	 49.55	-2	1684120..1684452	-	110	77463549	-	RSP_2991	-	hypothetical protein
1585	 48.53	-2	1684595..1685206	-	203	77463550	-	RSP_2992	-	hypothetical protein
1586	 45.58	-2	1685278..1685922	-	214	77463551	-	RSP_2993	-	hypothetical protein
1587	 53.53	-2	1685926..1688079	-	717	77463552	-	RSP_2994	-	hypothetical protein
1588	 46.71	-2	1689113..1689598	-	161	77463553	-	RSP_6243	-	putative endonuclease
1589	 46.51	-2	1690255..1690626	-	123	77463554	-	RSP_6244	-	hypothetical protein
1590	 49.17	-2	1690672..1691094	-	140	77463555	-	RSP_6245	-	hypothetical protein
1591	 45.60	-2	1691095..1691412	-	105	77463556	-	RSP_6246	-	bacteriophage head-tail adaptor
1592	 43.57	-2	1691414..1691755	-	113	77463557	-	RSP_6247	-	Phage-related protein, DNA packing
1593	 53.60	-2	1691779..1692888	-	369	77463558	-	RSP_2995	-	phage major capsid protein, gp36
1594	 45.52	-2	1692961..1693485	-	174	77463559	-	RSP_2996	-	prohead peptidase
1595	 49.96	-2	1693482..1694708	-	408	77463560	-	RSP_2997	-	putative head portal protein
1596	 49.34	-2	1694748..1696334	-	528	77463561	-	RSP_2998	-	putative terminase large subunit
1597	 46.26	-2	1696321..1696761	-	146	77463562	-	RSP_2999	-	hypothetical protein
1598	 43.91	-2	1697025..1697336	-	103	77463563	-	RSP_3000	-	hypothetical protein
1599	 45.17	-2	1697390..1697896	-	168	77463564	-	RSP_3001	-	endonuclease
1600	 46.98	-2	1697978..1698358	-	126	77463565	-	RSP_6248	-	putative class I holin
1601	 51.40	-2	1698327..1698719	-	130	77463566	-	RSP_6249	-	hypothetical protein
1602	 46.30	-2	1699690..1700622	-	310	77463567	-	RSP_6250	-	hypothetical protein
1603	 56.06	-2	1704125..1704520	-	131	77463568	spbB	RSP_0002	-	histone-like nucleoid-structuring protein H-NS
1604	 51.24	-2	1704748..1706277	-	509	77463569	-	RSP_0003	-	putative site-specific recombinase
1605	 61.86	-1	1706240..1706530	-	96	77463570	-	RSP_0004	-	hypothetical protein
1606	 67.05	0	1706705..1708261	+	518	77463571	guaA	RSP_0005	-	bifunctional GMP synthase/glutamine amidotransferase protein
1607	 68.24	0	1708728..1709615	+	295	77463572	-	RSP_0006	-	DMT family permease
1608	 66.22	0	1709694..1710818	+	374	77463573	-	RSP_0007	-	putative outer membrane protein
1609	 71.95	0	1710871..1711836	+	321	77463574	-	RSP_0008	-	drug/metabolite exporter (DME) family protein
1610	 67.01	0	1711869..1712738	+	289	77463575	-	RSP_0009	-	hypothetical protein
1611	 63.73	-1	1712767..1713684	+	305	77463576	-	RSP_0010	-	homoserine O-succinyltransferase
1612	 70.65	0	1713674..1714627	+	317	77463577	-	RSP_0011	-	hydrolase or acyltransferase (alpha/beta hydrolase)
1613	 67.23	0	1714668..1715552	+	294	77463578	-	RSP_0013	-	hypothetical protein
1614	 70.39	0	1715549..1716166	+	205	77463579	-	RSP_0014	-	TetR family transcriptional regulator
1615	 68.40	0	1716318..1717415	-	365	77463580	-	RSP_0015	-	ABC spermidine/putrescine transporter, ATPase subunit
1616	 65.43	0	1717412..1718218	-	268	77463581	-	RSP_0016	-	ABC spermidine/putrescine transporter, inner membrane subunit
1617	 63.06	-1	1718215..1719102	-	295	77463582	-	RSP_0017	-	ABC spermidine/putrescine transporter, inner membrane subunit
1618	 72.29	0	1719530..1720933	-	467	77463583	-	RSP_0018	-	GntR family transcriptional regulator
1619	 71.49	0	1721018..1721245	+	75	77463584	-	RSP_0019	-	hypothetical protein
1620	 69.35	0	1721336..1722043	-	235	77463585	-	RSP_0020	-	hypothetical protein
1621	 66.87	0	1722384..1722866	-	160	77463586	rpsI	RSP_0021	-	30S ribosomal protein S9
1622	 63.01	-1	1722870..1723334	-	154	77463587	rplM	RSP_0022	-	50S ribosomal protein L13
1623	 74.12	+1	1723539..1724330	-	263	77463588	-	RSP_6083	-	hypothetical protein
1624	 64.98	0	1724906..1725439	+	177	77463589	rfbC	RSP_0024	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1625	 68.89	0	1725765..1727114	-	449	77463590	-	RSP_0025	-	NAD(P)-dependent oxidoreductase
1626	 66.10	0	1727111..1728166	-	351	77463591	-	RSP_0026	-	epimerase/dehydratase
1627	 76.14	+1	1728364..1729155	-	263	77463592	-	RSP_0027	-	hypothetical protein
1628	 74.47	+1	1729383..1730381	+	332	77463593	-	RSP_0028	-	short chain dehydrogenase
1629	 67.13	0	1730543..1732042	+	499	77463594	-	RSP_0029	-	acetyl-CoA hydrolase/transferase family protein
1630	 69.18	0	1732315..1734816	-	833	77463595	-	RSP_0030	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
1631	 67.82	0	1734863..1735036	-	57	77463596	-	RSP_6084	-	hypothetical protein
1632	 74.36	+1	1735288..1736106	+	272	77463597	-	RSP_6085	-	hypothetical protein
1633	 68.06	0	1736242..1736961	-	239	77463598	fliA	RSP_0032	-	sigma factor FliA (sigma-28 group, flagellar)
1634	 77.02	+1	1736958..1737971	-	337	77463599	-	RSP_0033	-	hypothetical protein
1635	 70.50	0	1737975..1740089	-	704	77463600	flhA	RSP_0034	-	flagellar biosynthesis protein, FlhA
1636	 71.14	0	1740409..1740810	+	133	77463601	-	RSP_0035	-	hypothetical protein
1637	 76.98	+1	1740807..1741892	+	361	77463602	-	RSP_6086	-	hypothetical protein
1638	 77.28	+2	1741889..1742557	+	222	77463603	flgA	RSP_0036	-	flagellar basal-body P-ring formation protein FlgA
1639	 65.08	0	1742579..1742893	+	104	77463604	flgM	RSP_0037	-	putative FlgM, negative regulator of flagellin synthesis
1640	 72.58	0	1742922..1743293	+	123	77463605	-	RSP_6087	-	hypothetical protein
1641	 76.78	+1	1743312..1743944	-	210	77463606	-	RSP_6088	-	Sel1 repeat-containing protein
1642	 69.54	0	1743941..1744393	-	150	77463607	-	RSP_6089	-	hypothetical protein
1643	 73.46	+1	1744503..1744988	+	161	77463608	-	RSP_6090	-	hypothetical protein
1644	 76.19	+1	1745042..1745230	+	62	77463609	-	RSP_0038	-	hypothetical protein
1645	 78.93	+2	1745558..1745875	-	105	77463610	-	RSP_0039	-	hypothetical protein
1646	 67.19	0	1745872..1746252	-	126	77463611	fliS	RSP_0040	-	putative flagellar protein FliS
1647	 76.98	+1	1746536..1747117	-	193	77463612	-	RSP_0041	-	hypothetical protein
1648	 73.42	+1	1747255..1750542	-	1095	77463613	cheA3	RSP_0042	-	chemotaxis histidine protein kinase, CheA3
1649	 66.17	0	1750569..1750973	-	134	77463614	cheY6	RSP_0043	-	chemotaxis response regulator, CheY6
1650	 73.36	+1	1751177..1752880	-	567	77463615	tlpT	RSP_0044	-	putative cytoplasmic chemoreceptor, TlpT
1651	 74.06	+1	1752877..1753593	-	238	77463616	slp	RSP_0045	-	Slp
1652	 70.20	0	1753606..1754115	-	169	77463617	cheW4	RSP_0046	-	CheW protein
1653	 74.59	+1	1754134..1755231	-	365	77463618	cheB2	RSP_0047	-	chemotaxis methylesterase, CheB2
1654	 70.00	0	1755231..1756040	-	269	77463619	cheR3	RSP_0048	-	MCP methyltransferase, CheR-type
1655	 71.42	0	1756037..1757236	-	399	77463620	cheA4	RSP_0049	-	chemotaxis histidine protein kinase, CheA4
1656	 57.52	-2	1757381..1757686	-	101	77463621	-	RSP_6091	-	hypothetical protein
1657	 72.56	0	1758112..1759248	+	378	77463622	torF	RSP_0051	-	Torf protein
1658	 70.68	0	1759262..1759585	+	107	77463623	fliE	RSP_0052	-	flagellar protein FliE
68.78	MEAN

4.15	STD DEV
