IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

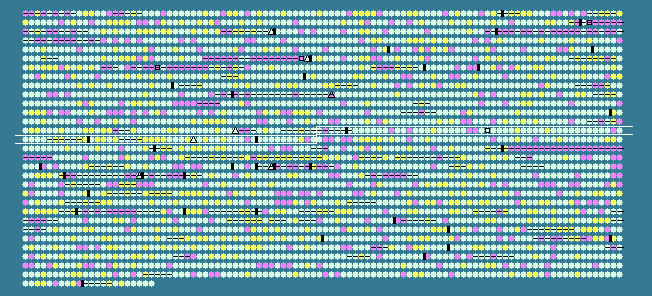

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1350	 67.23	0	1409510..1409863	-	117	77463315	-	RSP_2762	-	hypothetical protein
1351	 60.24	-2	1410065..1410313	+	82	77463316	-	RSP_2763	-	hypothetical protein
1352	 66.99	0	1410310..1410615	+	101	77463317	-	RSP_2764	-	hypothetical protein
1353	 71.79	0	1411144..1411416	+	90	77463318	-	RSP_2765	-	hypothetical protein
1354	 70.07	0	1412708..1413001	+	97	77463319	-	RSP_6070	-	hypothetical protein
1355	 69.95	0	1413396..1413761	-	121	77463320	-	RSP_6242	-	hypothetical protein
1356	 70.33	0	1413841..1415862	-	673	77463321	-	RSP_2766	-	hypothetical protein
1357	 68.72	0	1415997..1416971	-	324	77463322	-	RSP_2768	-	methyltetrahydrofolate:corrinoid/iron-sulfur protein methyltransferase
1358	 67.59	0	1416968..1417939	-	323	77463323	-	RSP_2769	-	5,10-methylenetetrahydrofolate reductase
1359	 69.73	0	1417926..1418219	-	97	77463324	-	RSP_2770	-	hypothetical protein
1360	 68.51	0	1418489..1419625	+	378	77463325	-	RSP_2771	-	putative exopolyphosphatase
1361	 68.03	0	1419622..1420356	+	244	77463326	ftsJ	RSP_2772	-	23S rRNA methylase
1362	 64.63	-1	1420507..1421145	-	212	77463327	-	RSP_2773	-	hypothetical protein
1363	 69.53	0	1421362..1423002	+	546	77463328	-	RSP_2774	-	hypothetical protein
1364	 70.79	0	1423051..1424142	+	363	77463329	lpxD	RSP_2775	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1365	 62.92	-1	1424176..1424442	+	88	77463330	acpP	RSP_2776	-	Acyl carrier protein, AcpP
1366	 68.07	0	1424454..1425662	+	402	77463331	-	RSP_2777	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1367	 68.91	0	1425730..1426398	-	222	77463332	-	RSP_2778	-	hypothetical protein
1368	 66.94	0	1426933..1428399	-	488	77463333	catA	RSP_2779	-	catalase
1369	 73.57	+1	1428501..1429427	+	308	77463334	oxyR	RSP_2780	-	LysR family transcriptional regulator
1370	 67.40	0	1429456..1430004	-	182	77463335	-	RSP_2781	-	peroxiredoxin/glutaredoxin family protein
1371	 68.85	0	1430166..1430897	-	243	77463336	aqpZ	RSP_2782	-	aquaporin z, major Intrinsic protein (MIP) family
1372	 67.81	0	1431034..1431996	+	320	77463337	lipA	RSP_2783	-	lipoyl synthase
1373	 70.15	0	1432069..1432959	-	296	77463338	cycG	RSP_2784	-	diheme class I cytochrome c
1374	 67.75	0	1432963..1433424	-	153	77463339	CycF	RSP_2785	-	cytochrome c-554
1375	 64.10	-1	1433831..1434376	-	181	77463340	HPRT	RSP_2786	-	hypoxanthine phosphoribosyltransferase
1376	 64.24	-1	1434468..1434920	+	150	77463341	-	RSP_2787	-	hypothetical protein
1377	 68.40	0	1434945..1435232	+	95	77463342	-	RSP_2788	-	hypothetical protein
1378	 68.12	0	1435363..1436742	-	459	77463343	-	RSP_2865	-	putative transposase
1379	 67.37	0	1436969..1437679	+	236	77463344	cbbE	RSP_2864	-	ribulose-5-phosphate 3-epimerase
1380	 68.95	0	1437761..1438945	-	394	77463345	-	RSP_2862	-	glycine/D-amino acid oxidase (deaminating)
1381	 66.33	0	1439332..1440228	-	298	77463346	tsf	RSP_2861	-	elongation factor Ts
1382	 66.27	0	1440310..1441071	-	253	77463347	rpsB	RSP_2860	-	30S ribosomal protein S2
1383	 75.96	+1	1441320..1442234	+	304	77463348	-	RSP_6216	-	carbohydrate kinase PfkB family
1384	 71.60	0	1442231..1443142	+	303	77463349	-	RSP_2858	-	IndA involved in pigment biosynthesis
1385	 68.05	0	1443169..1443966	-	265	77463350	-	RSP_2857	-	D-beta-hydroxybutyrate dehydrogenase
1386	 67.99	0	1444233..1446044	+	603	77463351	-	RSP_2856	-	putative oligopeptide ABC transporter, periplasmic-binding protein
1387	 69.05	0	1446268..1449534	-	1088	77463352	-	RSP_2855	-	cation efflux transporter
1388	 73.39	+1	1449545..1450705	-	386	77463353	-	RSP_2854	-	cation efflux transporter
1389	 69.47	0	1450705..1451346	-	213	77463354	-	RSP_2853	-	TetR family transcriptional regulator
1390	 70.39	0	1451545..1452189	+	214	77463355	-	RSP_2852	-	polyketide biosynthesis associated protein
1391	 70.28	0	1452186..1453403	+	405	77463356	-	RSP_2851	-	major facilitator superfamily multidrug-efflux transporter
1392	 68.35	0	1453666..1457163	-	1165	77463357	mfd	RSP_2850	-	transcription-repair coupling factor (helicase)
1393	 66.86	0	1457240..1457755	-	171	77463358	-	RSP_2849	-	hypothetical protein
1394	 67.76	0	1457899..1458903	+	334	77463359	hemB	RSP_2848	-	delta-aminolevulinic acid dehydratase
1395	 68.42	0	1459018..1459587	+	189	77463360	-	RSP_2847	-	hypothetical protein
1396	 70.03	0	1459785..1460675	-	296	77463361	-	RSP_2846	-	putative 3-hydroxyisobutyrate dehydrogenase
1397	 69.01	0	1460728..1463199	+	823	77463362	-	RSP_2845	-	putative penicillin acylase (penicillin amidase)
1398	 69.86	0	1463661..1464911	-	416	77463363	-	RSP_2844	-	putative GTP-binding protein
1399	 53.42	-2	1465006..1465239	-	77	77463364	hfq	RSP_2843	-	RNA-binding protein Hfq
1400	 69.84	0	1465397..1466908	-	503	77463365	trkH1	RSP_2842	-	potassium uptake transporter, transmembrane subunit, TrkH
1401	 67.68	0	1466910..1468286	-	458	77463366	trkA	RSP_2841	-	potassium transporter peripheral membrane component
1402	 68.13	0	1468341..1469771	-	476	77463367	ntrX	RSP_2840	-	nitrogen assimilation transcriptional regulator, NtrX
1403	 68.92	0	1469768..1472077	-	769	77463368	ntrY	RSP_2839	-	nitrogen regulation protein, NtrY, Signal transduction histidine kinase
1404	 68.64	0	1472129..1473496	-	455	77463369	ntrC	RSP_2838	-	nitrogen metabolism transcriptional regulator, NtrC
1405	 67.21	0	1473496..1474602	-	368	77463370	ntrB	RSP_2837	-	nitrogen regulation protein, NtrB signal transduction histidine kinase
1406	 74.01	+1	1474599..1475579	-	326	77463371	nifR3	RSP_2836	-	tRNA-dihydrouridine synthase, nifR3
1407	 75.07	+1	1475793..1476470	+	225	77463372	ispD	RSP_2835	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1408	 69.38	0	1476579..1477058	+	159	77463373	ispF	RSP_6071	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1409	 71.49	0	1477055..1477552	+	165	77463374	pgpA	RSP_2834	-	putative phosphatidylglycerophosphatase A
1410	 74.07	+1	1477549..1478034	+	161	77463375	cinA	RSP_2833	-	putative competence-damaged inducible protein
1411	 72.86	0	1478069..1479247	-	392	77463376	-	RSP_2832	-	flavoprotein
1412	 66.17	0	1479750..1480358	-	202	77463377	cobO	RSP_2831	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1413	 73.66	+1	1480355..1481584	-	409	77463378	-	RSP_2830	-	hypothetical protein
1414	 73.61	+1	1481992..1482351	+	119	77463379	-	RSP_2829	-	hypothetical protein
1415	 71.87	0	1482348..1483385	+	345	77463380	cobW	RSP_2828	-	cobalamin synthesis protein CobW
1416	 73.37	+1	1483389..1486625	+	1078	77463381	cobN	RSP_2827	-	cobaltochelatase
1417	 71.75	0	1486625..1487254	+	209	77463382	cobH	RSP_6217	-	precorrin-8X methylmutase
1418	 70.36	0	1487254..1487985	+	243	77463383	cobI	RSP_2826	-	precorrin-2 C20-methyltransferase
1419	 71.56	0	1487982..1488716	+	244	77463384	cobJ	RSP_2824	-	precorrin-3 methyltransferase
1420	 75.13	+1	1488692..1489435	-	247	77463385	cobK	RSP_2825	-	cobalt-precorrin-6x reductase
1421	 76.46	+1	1489434..1490597	+	387	77463386	cobL	RSP_2823	-	putative precorrin-6y C5,15-methyltransferase
1422	 77.07	+1	1490594..1490968	+	124	77463387	cobE	RSP_2822	-	putative precorrin methylase
1423	 72.67	0	1490965..1491747	+	260	77463388	cobM	RSP_2821	-	precorrin-4 C11-methyltransferase
1424	 73.14	+1	1491744..1492469	+	241	77463389	cobA	RSP_2820	-	uroporphyrin-III C-methyltransferase
1425	 71.63	0	1492560..1493324	+	254	77463390	cobF	RSP_2819	-	precorrin 6A synthase
1426	 72.24	0	1493773..1494885	-	370	77463391	aroB	RSP_2818	-	3-dehydroquinate synthase
1427	 70.51	0	1494882..1495427	-	181	77463392	aroK	RSP_2817	-	shikimate kinase
1428	 73.49	+1	1495740..1497308	+	522	77463393	-	RSP_2816	-	hypothetical protein
1429	 70.51	0	1497308..1498243	+	311	77463394	xerD	RSP_2815	-	integrase/recombinase XerD
1430	 66.67	0	1498312..1499640	+	442	77463395	corB	RSP_2814	-	hypothetical protein
1431	 73.88	+1	1499610..1500746	-	378	77463396	-	RSP_6073	-	hypothetical protein
1432	 72.22	0	1500964..1501341	+	125	77463397	-	RSP_6226	-	hypothetical protein
1433	 67.64	0	1501478..1503019	-	513	77463398	mttB	RSP_2813	-	putative trimethylamine methyltransferase protein
1434	 74.26	+1	1503135..1503740	-	201	77463399	-	RSP_2812	-	hypothetical protein
1435	 69.77	0	1503743..1504708	-	321	77463400	-	RSP_2811	-	ABC transporter periplasmic substrate-binding protein
1436	 67.18	0	1504712..1505485	-	257	77463401	-	RSP_2810	-	ABC transporter, ATPase subunit
1437	 67.76	0	1505485..1506585	-	366	77463402	-	RSP_2809	-	ABC transporter, inner membrane subunit
1438	 64.71	0	1507076..1507330	+	84	77463403	-	RSP_2808	-	hypothetical protein
1439	 71.36	0	1507335..1507973	+	212	77463404	-	RSP_2807	-	putative cytochrome b
1440	 65.63	0	1508872..1511280	-	802	77463405	lon	RSP_2806	-	Lon-A peptidase
1441	 69.15	0	1511542..1512630	-	362	77463406	nemA	RSP_2805	-	putative NADH-flavin oxidoreductase
1442	 69.23	0	1512737..1513867	-	376	77463407	tgt	RSP_2804	-	queuine tRNA-ribosyltransferase
1443	 66.28	0	1514033..1517110	-	1025	77463408	-	RSP_2803	-	RND family multidrug/cation transporter
1444	 69.22	0	1517118..1518293	-	391	77463409	-	RSP_2802	-	multidrug/cation efflux pump, membrane fusion protein subunit
1445	 71.23	0	1518439..1519008	+	189	77463410	tetR	RSP_2801	-	TetR family transcriptional regulator
1446	 71.10	0	1519588..1520061	+	157	77463411	-	RSP_6075	-	hypothetical protein
1447	 72.45	0	1520106..1522043	+	645	77463412	acoR	RSP_2800	-	putative AcoR, transcriptional activator of acetoin/glycerol metabolism
1448	 65.11	0	1522085..1523179	-	364	77463413	-	RSP_2799	-	putative Zinc-containing alcohol dehydrogenase
1449	 71.69	0	1523230..1524861	-	543	77463414	groEL	RSP_2798	-	chaperonin GroEL
68.78	MEAN

4.15	STD DEV
