IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

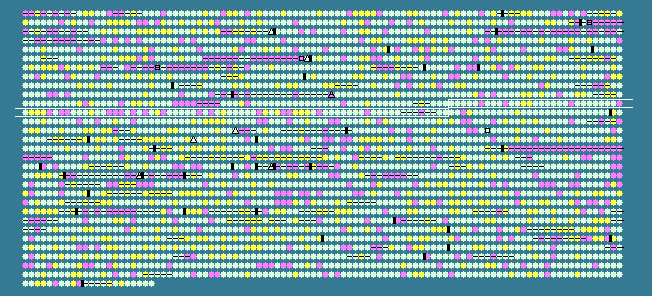

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1072	 69.44	0	1116439..1120329	+	1296	77463037	-	RSP_2479	-	putative phage host specificity protein
1073	 69.32	0	1120333..1120746	+	137	77463038	-	RSP_2480	-	hypothetical protein
1074	 66.79	0	1120739..1121545	+	268	77463039	cysE	RSP_2481	-	serine O-acetyltransferase
1075	 69.30	0	1121645..1122973	-	442	77463040	pdhB	RSP_4050	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1076	 66.74	0	1122984..1124375	-	463	77463041	pdhAb	RSP_4049	-	pyruvate dehydrogenase subunit beta
1077	 65.15	0	1124389..1125378	-	329	77463042	pdhAa	RSP_4047	-	pyruvate dehydrogenase E1 component, alpha subunit
1078	 66.01	0	1125601..1125903	-	100	77463043	-	RSP_4046	-	hypothetical protein
1079	 66.56	0	1126182..1127111	-	309	77463044	fbaB	RSP_4045	-	fructose-bisphosphate aldolase
1080	 68.68	0	1127213..1128406	-	397	77463045	pgk	RSP_4044	-	phosphoglycerate kinase
1081	 64.90	0	1128555..1129064	+	169	77463046	-	RSP_4043	-	peptidylprolyl isomerase
1082	 68.69	0	1129054..1129647	+	197	77463047	-	RSP_4042	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
1083	 66.19	0	1129891..1131141	-	416	77463048	tyrS	RSP_4041	-	tyrosyl-tRNA synthetase
1084	 74.91	+1	1131217..1132332	+	371	77463049	anmK	RSP_6056	-	anhydro-N-acetylmuramic acid kinase
1085	 74.23	+1	1132370..1132792	-	140	77463050	-	RSP_2490	-	hypothetical protein
1086	 68.78	0	1132955..1133191	+	78	77463051	-	RSP_6057	-	hypothetical protein
1087	 65.41	0	1133262..1134539	-	425	77463052	eno	RSP_2491	-	enolase
1088	 70.40	0	1134574..1135458	-	294	77463053	-	RSP_2492	-	RhaT family protein
1089	 67.39	0	1135523..1135936	-	137	77463054	fur	RSP_2494	-	FUR family manganese uptake regulator
1090	 66.20	0	1136518..1140174	+	1218	77463055	nrd	RSP_2495	-	ribonucleotide-diphosphate reductase subunit alpha
1091	 66.47	0	1140547..1141047	+	166	77463056	-	RSP_2496	-	hypothetical protein
1092	 64.37	-1	1141281..1141934	-	217	77463057	-	RSP_2497	-	ATPase
1093	 66.08	0	1143090..1144292	+	400	77463058	-	RSP_2500	-	hypothetical protein
1094	 71.31	0	1144947..1145786	-	279	77463059	-	RSP_2501	-	hypothetical protein
1095	 68.98	0	1146147..1147958	-	603	77463060	glmS	RSP_2502	-	D-fructose-6-phosphate amidotransferase
1096	 69.30	0	1147958..1149322	-	454	77463061	glmU	RSP_2503	-	UDP-N-acetylglucosamine pyrophosphorylase / glucosamine-1-phosphate N-acetyltransferase
1097	 70.14	0	1149423..1150112	+	229	77463062	gph	RSP_2504	-	phosphoglycolate phosphatase
1098	 66.84	0	1150144..1150704	-	186	77463063	creA	RSP_2505	-	CreA family protein
1099	 66.58	0	1150728..1151885	+	385	77463064	ivdH	RSP_2506	-	isovaleryl-CoA dehydrogenase
1100	 65.20	0	1151976..1152587	-	203	77463065	ompW	RSP_2507	-	outer membrane protein
1101	 70.48	0	1152653..1154329	+	558	77463066	mccB	RSP_2508	-	methylcrotonyl-CoA carboxylase beta chain
1102	 73.62	+1	1154426..1156366	+	646	77463067	mccA	RSP_2509	-	3-methylcrotonoyl-CoA carboxylase, alpha subunit
1103	 73.90	+1	1156359..1157243	+	294	77463068	hmgL	RSP_2510	-	hydroxymethylglutaryl-CoA lyase
1104	 72.62	0	1157256..1158044	+	262	77463069	-	RSP_2511	-	enoyl-CoA hydratase
1105	 59.84	-2	1158265..1158630	+	121	77463070	nuoA	RSP_2512	-	NADH dehydrogenase subunit A
1106	 67.24	0	1158627..1159151	+	174	77463071	nuoB	RSP_2513	-	NADH dehydrogenase subunit B
1107	 64.84	0	1159162..1159764	+	200	77463072	nuoC	RSP_2514	-	NADH dehydrogenase subunit C
1108	 65.27	0	1159769..1160983	+	404	77463073	nuoD	RSP_2515	-	NADH dehydrogenase subunit D
1109	 70.07	0	1160983..1161894	+	303	77463074	nuoE	RSP_2516	-	NADH dehydrogenase subunit E
1110	 69.95	0	1161894..1162106	+	70	77463075	-	RSP_2517	-	hypothetical protein
1111	 67.28	0	1162117..1163412	+	431	77463076	nuoF	RSP_2518	-	NADH dehydrogenase I subunit F
1112	 78.89	+2	1163417..1163776	+	119	77463077	-	RSP_2519	-	hypothetical protein
1113	 69.57	0	1163936..1165900	+	654	77463078	nuoG	RSP_2521	-	NADH dehydrogenase subunit G
1114	 68.61	0	1165904..1166314	+	136	77463079	-	RSP_2520	-	hypothetical protein
1115	 63.20	-1	1166342..1167379	+	345	77463080	nuoH	RSP_2522	-	NADH dehydrogenase subunit H
1116	 64.09	-1	1167381..1167884	+	167	77463081	nuoI	RSP_2523	-	NADH dehydrogenase subunit I
1117	 63.02	-1	1167881..1168291	+	136	77463082	-	RSP_2524	-	carboxymuconolactone decarboxylase family protein
1118	 65.85	0	1168288..1168902	+	204	77463083	nuoJ	RSP_2525	-	NADH dehydrogenase subunit J
1119	 60.78	-1	1169062..1169367	+	101	77463084	nuoK	RSP_2526	-	NADH dehydrogenase subunit K
1120	 65.83	0	1169373..1171535	+	720	77463085	nuoL	RSP_2527	-	NADH dehydrogenase subunit L
1121	 64.20	-1	1171535..1173076	+	513	77463086	nuoM	RSP_2529	-	NADH dehydrogenase subunit M
1122	 66.46	0	1173087..1174523	+	478	77463087	nuoN	RSP_2530	-	NADH dehydrogenase subunit N
1123	 73.25	+1	1174540..1175268	+	242	77463088	birA	RSP_2532	-	putative biotin protein ligase
1124	 64.47	-1	1175279..1176052	+	257	77463089	-	RSP_2533	-	pantothenate kinase
1125	 68.10	0	1176049..1177722	+	557	77463090	-	RSP_2534	-	metallo-beta-lactamase superfamily hydrolase
1126	 69.11	0	1178520..1180076	-	518	77463091	rhlE	RSP_2536	-	ATP-dependent helicase, DEAD-box
1127	 66.42	0	1180302..1181906	-	534	77463092	prfC	RSP_2537	-	peptide chain release factor 3
1128	 71.67	0	1182066..1182845	+	259	77463093	fabG	RSP_2538	-	Short-chain dehydrogenase/reductase
1129	 70.36	0	1182882..1184018	+	378	77463094	-	RSP_2539	-	ABC transporter, ATPase subunit
1130	 61.50	-1	1184186..1184398	+	70	77463095	tatA	RSP_2540	-	twin-arginine translocation system protein, TatA
1131	 71.70	0	1184409..1184885	+	158	77463096	tatB	RSP_6059	-	twin-arginine translocation system protein, TatB
1132	 63.10	-1	1184882..1185751	+	289	77463097	tatC	RSP_2541	-	twin-arginine translocation system protein, TatC
1133	 68.45	0	1185748..1186587	+	279	77463098	-	RSP_2542	-	ATPase
1134	 72.50	0	1186682..1187881	-	399	77463099	-	RSP_2543	-	peptidoglycan-binding LysM ( peptidase)
1135	 68.33	0	1188005..1188664	-	219	77463100	-	RSP_2544	-	protein-L-isoaspartate O-methyltransferase
1136	 71.25	0	1188661..1189446	-	261	77463101	surE	RSP_2545	-	5'-nucleotidase / 3'-nucleotidase / exopolyphosphatase
1137	 69.93	0	1190333..1190944	+	203	77463102	exoY	RSP_2547	-	exopolysaccharide production protein exoY
1138	 69.99	0	1191016..1192248	+	410	77463103	exoF	RSP_2548	-	Outer membrane polysaccharide export protein, exoF
1139	 69.46	0	1192424..1193713	-	429	77463104	exoQ	RSP_2549	-	putative polysaccharide polymerase
1140	 65.01	0	1193730..1194512	-	260	77463105	exoK	RSP_2550	-	endo-beta-1,3-1,4-glycanase protein
1141	 72.75	0	1194718..1196148	+	476	77463106	exoO	RSP_2551	-	glycosyl transferase family protein
1142	 72.10	0	1196164..1197120	-	318	77463107	exoU	RSP_2552	-	glycosyl transferase family protein
1143	 72.47	0	1197117..1198253	-	378	77463108	-	RSP_2553	-	hypothetical protein
1144	 63.40	-1	1198599..1198751	+	50	77463109	-	RSP_2554	-	hypothetical protein
1145	 64.75	0	1198838..1199098	+	86	77463110	-	RSP_2555	-	hypothetical protein
1146	 72.78	0	1199109..1199582	+	157	77463111	-	RSP_2556	-	hypothetical protein
1147	 72.73	0	1199579..1201459	+	626	77463112	asnB	RSP_2557	-	putative asparagine synthetase
1148	 72.75	0	1201456..1202376	+	306	77463113	-	RSP_2558	-	Hpr(Ser) kinase/phosphatase
1149	 69.74	0	1202442..1204229	+	595	77463114	-	RSP_2559	-	ABC transporter, fused ATPase and inner membrane subunits
1150	 62.79	-1	1204363..1204620	-	85	77463115	-	RSP_6060	-	hypothetical protein
1151	 68.61	0	1204993..1207308	-	771	77463116	exoP	RSP_2561	-	putative succinoglycan biosynthesis transport protein ExoP
1152	 69.11	0	1207359..1208339	-	326	77463117	exoM	RSP_2562	-	succinoglycan biosynthesis protein exoM
1153	 70.10	0	1208336..1209325	-	329	77463118	exoA	RSP_2563	-	glycosyl transferase family protein
1154	 70.94	0	1209322..1210491	-	389	77463119	exoL	RSP_2564	-	glycosyltransferase, succinoglycan biosynthesis protein exoL
1155	 68.37	0	1210513..1211451	-	312	77463120	ugpG	RSP_2565	-	UDP-glucose pyrophosphorylase
1156	 71.69	0	1211807..1212622	-	271	77463121	sqdC	RSP_2567	-	putative sulfolipid biosynthesis protein
1157	 67.82	0	1212607..1213389	-	260	77463122	sqdD	RSP_2568	-	glycosyl transferase (sulfolipid biosynthesis) protein
1158	 64.94	0	1213444..1214658	-	404	77463123	sqdB	RSP_2569	-	UDP-sulfoquinovose synthase
1159	 68.42	0	1214805..1215374	-	189	77463124	pfpI	RSP_2570	-	protease I
1160	 70.42	0	1215772..1216809	+	345	77463125	-	RSP_2571	-	putative oxidoreductase protein
1161	 67.05	0	1216964..1217755	+	263	77463126	crpK	RSP_2572	-	crpK, Fnr-type transcriptional regulator
1162	 71.41	0	1217909..1218667	+	252	77463127	-	RSP_2573	-	hypothetical protein
1163	 68.70	0	1218791..1219282	-	163	77463128	-	RSP_2574	-	hypothetical protein
1164	 67.51	0	1219513..1220103	+	196	77463129	-	RSP_2575	-	glutathione-dependent formaldehyde-activating enzyme
1165	 66.31	0	1220336..1221466	+	376	77463130	adhI	RSP_2576	-	alcohol dehydrogenase class III
1166	 69.43	0	1221596..1222030	+	144	77463131	cycI	RSP_2577	-	isocytochrome c2
1167	 64.67	0	1222240..1224042	+	600	77463132	xoxF	RSP_2578	-	putative PQQ dehydrogenase protein
1168	 67.04	0	1224206..1224736	+	176	77463133	cycB	RSP_2579	-	cytochrome c553i
1169	 69.21	0	1224724..1225548	+	274	77463134	xoxJ	RSP_2580	-	putative methanol oxidation protein
1170	 70.64	0	1225545..1226072	+	175	77463135	-	RSP_2581	-	rhodanese
1171	 70.00	0	1226181..1227290	+	369	77463136	-	RSP_2582	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
