IslandPathversion 1.0

IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

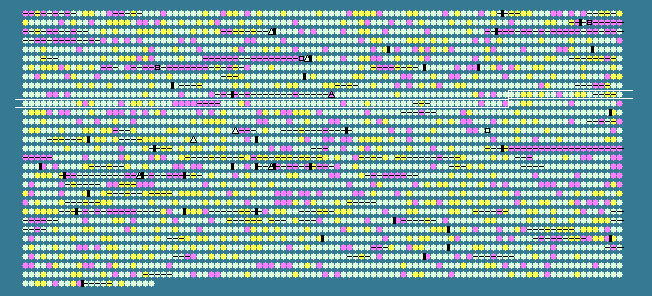

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
982	 69.86	0	1017366..1017866	-	166	77462947	-	RSP_2388	-	hypothetical protein
983	 69.11	0	1018151..1018681	+	176	77462948	-	RSP_2389	-	putative glutathione peroxidase
984	 74.41	+1	1018710..1019819	+	369	77462949	acuC1	RSP_2390	-	putative acetoin utilization protein
985	 74.41	+1	1019816..1020370	+	184	77462950	-	RSP_2391	-	2'-5' RNA ligase
986	 65.41	0	1020381..1020938	-	185	77462951	-	RSP_2392	-	putative membrane protein, periplasmic nitrate reductase NnuR
987	 75.00	+1	1021231..1022454	-	407	77462952	kdtA	RSP_2394	-	putative 3-deoxy-D-manno-octulosonic-acid transferase (KDO transferase)
988	 68.77	0	1022619..1023662	+	347	77462953	-	RSP_2395	-	BCCP, cytochrome c peroxidase
989	 70.06	0	1023737..1024738	-	333	77462954	-	RSP_2396	-	hypothetical protein
990	 65.10	0	1025030..1026049	-	339	77462955	-	RSP_2397	-	ABC putrescine transporter, periplasmic substrate-binding subunit
991	 66.54	0	1026077..1026877	-	266	77462956	-	RSP_2398	-	ABC putrescine transporter, inner membrane subunit
992	 65.77	0	1026870..1027763	-	297	77462957	-	RSP_2399	-	ABC putrescine transporter, inner membrane subunit
993	 72.44	0	1027765..1028769	-	334	77462958	-	RSP_2400	-	ABC putrescine transporter, ATPase subunit
994	 74.07	+1	1028860..1030317	-	485	77462959	-	RSP_2401	-	putative 6-aminohexanoate-cyclic-dimer hydrolase
995	 69.50	0	1030777..1032612	+	611	77462960	-	RSP_2402	-	putative TonB dependent vitamin B12 outer membrane receptor
996	 71.54	0	1032599..1033459	+	286	77462961	-	RSP_2403	-	ABC cobalamin/Fe3+-siderophore transporter, periplasmic substrate-binding subunit
997	 72.12	0	1033456..1034445	+	329	77462962	-	RSP_2404	-	ABC cobalamin/Fe3+-siderophore transporter, inner membrane subunit
998	 74.10	+1	1034442..1035194	+	250	77462963	-	RSP_2405	-	ABC cobalamin/Fe3+-siderophore transporter, ATPase subunit
999	 75.76	+1	1035191..1035850	+	219	77462964	-	RSP_2406	-	hypothetical protein
1000	 71.51	0	1035995..1037728	-	577	77462965	-	RSP_2407	-	periplasmic sensor hybrid histidine kinase
1001	 70.73	0	1037772..1038017	-	81	77462966	-	RSP_2408	-	hypothetical protein
1002	 71.33	0	1038091..1039140	+	349	77462967	rluD	RSP_2409	-	ribosomal large subunit pseudouridine synthase D
1003	 66.11	0	1039301..1040197	+	298	77462968	rpoH1	RSP_2410	-	RNA polymerase factor sigma-32
1004	 70.79	0	1040755..1041555	-	266	77462969	-	RSP_2411	-	hypothetical protein
1005	 66.06	0	1041640..1043460	-	606	77462970	pepF	RSP_2412	-	oligoendopeptidase F
1006	 70.35	0	1043632..1045233	-	533	77462971	lig2	RSP_2413	-	ATP-dependent DNA ligase
1007	 71.88	0	1045230..1046381	-	383	77462972	-	RSP_2414	-	hypothetical protein
1008	 66.24	0	1046578..1047969	+	463	77462973	-	RSP_2415	-	hypothetical protein
1009	 65.93	0	1047977..1048927	+	316	77462974	-	RSP_2416	-	hypothetical protein
1010	 72.47	0	1048924..1049733	+	269	77462975	-	RSP_2417	-	hypothetical protein
1011	 65.15	0	1049765..1050490	+	241	77462976	-	RSP_2420	-	hypothetical protein
1012	 72.85	0	1050480..1051433	-	317	77462977	pldB	RSP_2418	-	putative esterase/lipase/thioesterase
1013	 65.61	0	1051430..1051714	-	94	77462978	-	RSP_2419	-	hypothetical protein
1014	 68.24	0	1051790..1052362	+	190	77462979	-	RSP_2421	-	hypothetical protein
1015	 69.96	0	1052447..1055239	+	930	77462980	mgpS	RSP_2422	-	putative ATP-dependent helicase, MgpS
1016	 71.04	0	1055245..1055541	+	98	77462981	-	RSP_2423	-	putative heat shock protein 15 (HSP15)
1017	 62.24	-1	1055596..1055934	+	112	77462982	-	RSP_2424	-	ferredoxin II
1018	 65.69	0	1056214..1056723	+	169	77462983	-	RSP_2425	-	CarD family transcriptional regulator
1019	 77.87	+2	1056911..1057660	-	249	77462984	cobV	RSP_2427	-	cobalamin-5'-phosphate synthase
1020	 73.25	+1	1057742..1058758	+	338	77462985	cobT	RSP_2428	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
1021	 69.67	0	1058814..1060742	-	642	77462986	-	RSP_2429	-	glutathione-regulated potassium-efflux system protein, kefB
1022	 73.83	+1	1060857..1063733	-	958	77462987	-	RSP_6052	-	hypothetical protein
1023	 69.25	0	1063855..1064589	+	244	77462988	-	RSP_2430	-	hypothetical protein
1024	 66.74	0	1064635..1065927	-	430	77462989	-	RSP_2431	-	putative O-acetylhomoserine sulfhydrylase
1025	 65.52	0	1066170..1066517	-	115	77462990	-	RSP_2432	-	hypothetical protein
1026	 57.11	-2	1066514..1066900	-	128	77462991	cheY2	RSP_2433	-	chemotaxis response regulator, CheY2
1027	 62.31	-1	1066878..1067795	-	305	77462992	cheR1	RSP_2434	-	putative MCP methyltransferase, CheR1
1028	 61.44	-1	1067792..1068250	-	152	77462993	cheW1	RSP_2435	-	putative chemotaxis scaffold protein, CheW1
1029	 63.85	-1	1068252..1070312	-	686	77462994	cheA1	RSP_2436	-	chemotaxis histidine protein kinase, CheA1
1030	 63.41	-1	1070320..1070688	-	122	77462995	cheY1	RSP_2437	-	chemotaxis response regulator, CheY1
1031	 62.46	-1	1070679..1070963	-	94	77462996	cheX	RSP_2438	-	putative CheX protein
1032	 61.17	-1	1070960..1071559	-	199	77462997	cheD	RSP_2439	-	chemoreceptor glutamine deamidase CheD
1033	 64.16	-1	1071682..1073994	-	770	77462998	mcpA	RSP_2440	-	methyl accepting chemotaxis protein
1034	 67.17	0	1074101..1075888	-	595	77462999	tlpS	RSP_2441	-	methyl-accepting chemotaxis sensory transducer
1035	 68.09	0	1075992..1077674	-	560	77463000	mcpB	RSP_2442	-	methyl accepting chemotaxis protein, McpB
1036	 65.31	0	1077763..1078131	-	122	77463001	cheY5	RSP_2443	-	putative chemotaxis response regulator, CheY5
1037	 74.85	+1	1078128..1078457	-	109	77463002	-	RSP_2444	-	hypothetical protein
1038	 64.90	0	1078538..1080742	+	734	77463003	-	RSP_2445	-	putative Alpha amylase
1039	 67.82	0	1080739..1084047	+	1102	77463004	-	RSP_2446	-	putative trehalose synthase
1040	 67.95	0	1084044..1086230	+	728	77463005	glgB1	RSP_2448	-	glycogen branching enzyme
1041	 67.05	0	1086227..1088293	+	688	77463006	-	RSP_2449	-	putative glycosyl hydrolase
1042	 68.75	0	1088290..1090068	+	592	77463007	-	RSP_2450	-	putative Alpha-amylase
1043	 70.96	0	1090065..1091882	+	605	77463008	-	RSP_2451	-	putative 4-alpha-glucanotransferase
1044	 69.46	0	1091879..1094494	+	871	77463009	-	RSP_2452	-	alpha amylase domain-containing protein
1045	 71.17	0	1094553..1095218	-	221	77463010	-	RSP_2453	-	putative oxidoreductase (NAD/NADP dependent)
1046	 67.14	0	1095338..1096801	-	487	77463011	purF	RSP_2454	-	amidophosphoribosyltransferase
1047	 69.59	0	1096886..1097500	-	204	77463012	-	RSP_2455	-	putative colicin V production protein, dedE
1048	 70.64	0	1097519..1098877	-	452	77463013	radA	RSP_2456	-	DNA repair protein RadA
1049	 68.78	0	1099010..1099435	-	141	77463014	-	RSP_2457	-	hypothetical protein
1050	 67.07	0	1099436..1100182	-	248	77463015	-	RSP_2458	-	ABC transporter, ATPase subunit
1051	 70.11	0	1100179..1100961	-	260	77463016	-	RSP_2459	-	ABC transporter, inner membrane subunit
1052	 71.33	0	1100958..1102007	-	349	77463017	alr	RSP_2460	-	alanine racemase
1053	 69.24	0	1102236..1102973	+	245	77463018	fabG	RSP_2461	-	3-oxoacyl-[acyl-carrier-protein] reductase
1054	 60.26	-2	1103152..1103385	+	77	77463019	acpP	RSP_2463	-	acyl carrier protein
1055	 69.20	0	1103882..1105144	+	420	77463020	fabF	RSP_2464	-	3-oxoacyl-(acyl carrier protein) synthase II
1056	 70.73	0	1105141..1106322	+	393	77463021	-	RSP_2465	-	hypothetical protein
1057	 67.41	0	1106432..1106836	+	134	77463022	-	RSP_2466	-	hypothetical protein
1058	 73.98	+1	1106883..1108127	+	414	77463023	-	RSP_2467	-	putative large terminase
1059	 70.41	0	1108200..1109375	+	391	77463024	-	RSP_2468	-	putative portal protein
1060	 67.95	0	1109377..1109610	+	77	77463025	-	RSP_2469	-	hypothetical protein
1061	 70.92	0	1109615..1110178	+	187	77463026	-	RSP_2470	-	prohead peptidase
1062	 66.50	0	1110244..1111440	+	398	77463027	-	RSP_2471	-	phage phi-C31 gp36 major capsid-like protein
1063	 69.83	0	1111535..1112134	+	199	77463028	-	RSP_2472	-	hypothetical protein
1064	 71.73	0	1112134..1112469	+	111	77463029	-	RSP_6053	-	putative phage tail-head adaptor
1065	 71.93	0	1112466..1112864	+	132	77463030	-	RSP_6054	-	hypothetical protein
1066	 67.63	0	1112902..1113315	+	137	77463031	-	RSP_2473	-	hypothetical protein
1067	 73.41	+1	1113315..1113833	+	172	77463032	-	RSP_2474	-	hypothetical protein
1068	 71.50	0	1113856..1114476	+	206	77463033	-	RSP_2475	-	putative phage tail minor protein
1069	 67.77	0	1114486..1115118	+	210	77463034	-	RSP_2476	-	hypothetical protein
1070	 66.55	0	1115118..1116002	+	294	77463035	-	RSP_2477	-	hypothetical protein
1071	 68.25	0	1115999..1116439	+	146	77463036	-	RSP_2478	-	hypothetical protein
1072	 69.44	0	1116439..1120329	+	1296	77463037	-	RSP_2479	-	putative phage host specificity protein
1073	 69.32	0	1120333..1120746	+	137	77463038	-	RSP_2480	-	hypothetical protein
1074	 66.79	0	1120739..1121545	+	268	77463039	cysE	RSP_2481	-	serine O-acetyltransferase
1075	 69.30	0	1121645..1122973	-	442	77463040	pdhB	RSP_4050	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1076	 66.74	0	1122984..1124375	-	463	77463041	pdhAb	RSP_4049	-	pyruvate dehydrogenase subunit beta
1077	 65.15	0	1124389..1125378	-	329	77463042	pdhAa	RSP_4047	-	pyruvate dehydrogenase E1 component, alpha subunit
1078	 66.01	0	1125601..1125903	-	100	77463043	-	RSP_4046	-	hypothetical protein
1079	 66.56	0	1126182..1127111	-	309	77463044	fbaB	RSP_4045	-	fructose-bisphosphate aldolase
1080	 68.68	0	1127213..1128406	-	397	77463045	pgk	RSP_4044	-	phosphoglycerate kinase
1081	 64.90	0	1128555..1129064	+	169	77463046	-	RSP_4043	-	peptidylprolyl isomerase
68.78	MEAN

4.15	STD DEV
