IslandPath Analysis: Rhodobacter sphaeroides 2.4.1

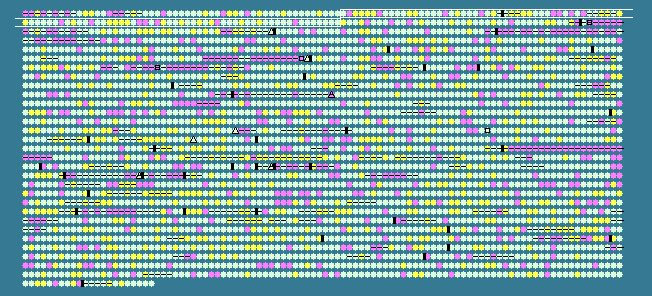

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.78 STD DEV: 4.15
Rhodobacter sphaeroides 2.4.1 chromosome 1, complete sequence - 1..3188609
3022 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
54	 66.88	0	66162..67085	-	307	77462019	OppB	RSP_1480	-	ABC oligopeptide transporter, inner membrane subunit OppB
55	 65.28	0	67142..68731	-	529	77462020	OppA	RSP_1481	-	ABC oligopeptide transporter, perplasmic substrate-binding protein OppA
56	 73.33	+1	69574..69933	+	119	77462021	-	RSP_1483	-	hypothetical protein
57	 77.33	+2	70003..70527	-	174	77462022	-	RSP_1484	-	hypothetical protein
58	 72.69	0	70529..72337	-	602	77462023	-	RSP_1485	-	ATP-dependent RNA helicase
59	 72.77	0	72528..73133	+	201	77462024	-	RSP_1486	-	TetR family transcriptional regulator
60	 63.51	-1	73200..73547	+	115	77462025	-	RSP_1487	-	hypothetical protein
61	 72.18	0	73549..74292	+	247	77462026	-	RSP_1488	-	glyoxalase
62	 68.52	0	74424..75338	+	304	77462027	-	RSP_1489	-	thioredoxin domain-containing protein
63	 66.97	0	75342..76010	+	222	77462028	-	RSP_1490	-	putative ATP-dependent protease La, LON
64	 67.22	0	76007..76186	+	59	77462029	-	RSP_1491	-	hypothetical protein
65	 73.82	+1	76263..77492	-	409	77462030	-	RSP_1492	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase / 2-octaprenyl-6-methoxyphenol hydroxylase
66	 74.68	+1	77589..78899	+	436	77462031	-	RSP_1493	-	amidase
67	 70.06	0	79022..80200	+	392	77462032	-	RSP_1494	-	aminotransferase
68	 70.14	0	80211..83495	+	1094	77462033	-	RSP_1495	-	DNA translocase FtsK
69	 66.67	0	83627..84265	+	212	77462034	-	RSP_1497	-	putative outer membrane lipoprotein carrier protein
70	 66.84	0	84326..84907	-	193	77462035	-	RSP_1496	-	hypothetical protein
71	 60.66	-1	85139..85504	+	121	77462036	-	RSP_1498	-	hypothetical protein
72	 69.90	0	85545..87122	-	525	77462037	-	RSP_1499	-	gamma-glutamyltransferase 2
73	 72.38	0	87234..87776	-	180	77462038	-	RSP_1500	-	anti-sigma regulatory kinase
74	 67.24	0	87766..88113	-	115	77462039	-	RSP_1501	-	anti-sigma-factor antagonist domain-containing protein
75	 69.09	0	88207..88659	+	150	77462040	-	RSP_1502	-	GAF domain-containing protein
76	 68.44	0	88711..89049	+	112	77462041	-	RSP_1503	-	hypothetical protein
77	 62.84	-1	89065..89325	-	86	77462042	-	RSP_1504	-	hypothetical protein
78	 68.83	0	89409..90056	+	215	77462043	-	RSP_1506	-	ribosomal large subunit pseudouridine synthase A
79	 72.88	0	90032..90787	-	251	77462044	-	RSP_1505	-	putative metallo-phosphoesterase
80	 69.34	0	90784..92244	-	486	77462045	-	RSP_1507	-	aldehyde dehydrogenase
81	 68.88	0	92948..94396	-	482	77462046	-	RSP_1508	-	hypothetical protein
82	 75.96	+1	94407..95708	-	433	77462047	-	RSP_6207	-	hypothetical protein
83	 76.34	+1	95776..96519	-	247	77462048	-	RSP_6208	-	hypothetical protein
84	 74.25	+1	96592..97686	+	364	77462049	-	RSP_1509	-	O-sialoglycoprotein endopeptidase
85	 74.51	+1	97683..98600	+	305	77462050	-	RSP_1510	-	putative glycerol-3-phosphate dehydrogenase (NAD(P)+)
86	 68.86	0	98604..98876	+	90	77462051	-	RSP_1511	-	YciI-like protein
87	 68.12	0	98876..99289	+	137	77462052	-	RSP_1512	-	hypothetical protein
88	 67.83	0	99597..100802	+	401	77462053	trpB	RSP_1513	-	tryptophan synthase subunit beta
89	 64.80	0	100961..102352	-	463	77462054	ahcY	RSP_1514	-	S-adenosyl-L-homocysteine hydrolase
90	 64.16	-1	102475..103431	+	318	77462055	-	RSP_1515	-	hypothetical protein
91	 67.18	0	103428..104012	+	194	77462056	-	RSP_1516	-	putative S-adenosyl L-homocystein hydrolase
92	 62.22	-1	104024..104338	-	104	77462057	spbA	RSP_1517	-	HNS family histone-like protein
93	 68.11	0	104574..105128	-	184	77462058	prrA	RSP_1518	-	PrrA (RegA), response regulator involved in oxygen regulation of photosynthesis genes
94	 62.93	-1	105121..105816	-	231	77462059	prrC	RSP_1519	-	PrrC
95	 68.11	0	105908..107296	+	462	77462060	prrB	RSP_1520	-	sensor histidine kinase PrrB (RegB)
96	 71.47	0	107423..108985	+	520	77462061	-	RSP_1521	-	hypothetical protein
97	 74.28	+1	109269..109754	+	161	77462062	-	RSP_1522	-	hypothetical protein
98	 76.02	+1	109747..110772	+	341	77462063	-	RSP_1523	-	hypothetical protein
99	 71.32	0	110754..111419	+	221	77462064	-	RSP_1524	-	nucleotidyltransferase family protein
100	 74.82	+1	111412..114405	+	997	77462065	-	RSP_1525	-	putative helicase/exonuclease
101	 72.87	0	114434..117754	+	1106	77462066	-	RSP_1527	-	UvrD/Rep family helicase
102	 66.04	0	117813..118133	+	106	77462067	trxA	RSP_1529	-	thioredoxin
103	 67.22	0	118266..119174	-	302	77462068	-	RSP_1530	-	hypothetical protein
104	 69.53	0	119311..119868	+	185	77462069	-	RSP_1531	-	ATP-dependent protease peptidase subunit
105	 66.59	0	119865..121166	+	433	77462070	hslU	RSP_1532	-	ATP-dependent protease ATP-binding subunit
106	 65.56	0	121217..122749	-	510	77462071	-	RSP_1533	-	putative alginate O-acetyltransferase
107	 61.79	-1	122749..122994	-	81	77462072	-	RSP_1534	-	putative acyl carrier protein
108	 71.16	0	123055..124968	-	637	77462073	-	RSP_1535	-	hypothetical protein
109	 76.65	+1	124949..125689	-	246	77462074	-	RSP_6005	-	putative short chain dehydrogenase
110	 68.15	0	125686..126090	-	134	77462075	-	RSP_1536	-	hypothetical protein
111	 66.12	0	126368..127282	+	304	77462076	-	RSP_1537	-	hypothetical protein
112	 63.44	-1	127361..128134	+	257	77462077	-	RSP_1538	-	glucose-1-phosphate cytidylyltransferase
113	 68.95	0	128370..129377	-	335	77462078	-	RSP_1539	-	glycosyl transferase family protein
114	 71.51	0	129719..130813	-	364	77462079	-	RSP_1540	-	secreted hydrolase
115	 73.37	+1	130803..133190	-	795	77462080	-	RSP_1541	-	ABC transporter inner membrane protein
116	 72.39	0	133187..133867	-	226	77462081	-	RSP_1542	-	ABC transporter, ATPase subunit
117	 74.22	+1	134153..135211	-	352	77462082	-	RSP_1543	-	hypothetical protein
118	 74.44	+1	135213..136202	-	329	77462083	-	RSP_1544	-	signal peptide protein
119	 71.31	0	136202..137710	-	502	77462084	-	RSP_1545	-	thiol oxidoreductase with 2 cytochrome c heme-binding sites
120	 61.93	-1	137889..138374	-	161	77462085	bfr	RSP_1546	-	bacterioferritin
121	 64.31	-1	138364..138618	-	84	77462086	-	RSP_1547	-	bacterioferritin-associated ferredoxin
122	 69.03	0	138700..139968	-	422	77462087	-	RSP_1548	-	imelysin
123	 63.58	-1	140022..140183	-	53	77462088	-	RSP_6006	-	hypothetical protein
124	 73.83	+1	140534..141217	+	227	77462089	-	RSP_1549	-	hypothetical protein
125	 71.60	0	141230..142060	-	276	77462090	-	RSP_1550	-	IclR family transcriptional regulator
126	 68.50	0	142328..142708	+	126	77462091	-	RSP_1551	-	putative glyoxalase family protein
127	 73.98	+1	142826..143317	-	163	77462092	-	RSP_1552	-	ureidoglycolate hydrolase
128	 69.30	0	143434..144270	-	278	77462093	-	RSP_1553	-	hypothetical protein
129	 68.36	0	144267..145682	-	471	77462094	-	RSP_1554	-	polysaccharide deacetylase
130	 72.32	0	145829..146182	+	117	77462095	-	RSP_1555	-	transthyretin-like protein
131	 66.67	0	146426..146581	+	51	77462096	puc2B	RSP_1556	-	light-harvesting complex, beta subunit
132	 72.47	0	146595..147386	+	263	77462097	puc2A	RSP_6158	-	light-harvesting complex alpha subunit
133	 64.86	0	147831..149045	+	404	77462098	icd	RSP_1559	-	isocitrate dehydrogenase
134	 71.58	0	148997..150340	-	447	77462099	-	RSP_1558	-	2-dehydropantoate 2-reductase
135	 71.16	0	150337..151872	-	511	77462100	-	RSP_1561	-	AMP-forming acyl-CoA synthetase/ligase
136	 69.29	0	152005..152691	-	228	77462101	-	RSP_1562	-	fumarylacetoacetate hydrolase family protein
137	 72.32	0	152758..153765	-	335	77462102	-	RSP_1563	-	putative oxidoreductase
138	 68.22	0	153818..155038	-	406	77462103	-	RSP_1564	-	putative transmembrane transport protein
139	 70.58	0	155130..156482	-	450	77462104	appA	RSP_1565	-	AppA, antirepressor of ppsR, sensor of blue light
140	 75.36	+1	156951..157640	+	229	77462105	-	RSP_1566	-	hypothetical protein
141	 71.42	0	157676..160243	-	855	77462106	-	RSP_1567	-	sensory transduction histidine kinase
142	 69.30	0	160311..161717	-	468	77462107	-	RSP_1568	-	L-glutamine synthetase
143	 71.32	0	161714..163087	-	457	77462108	-	RSP_1569	-	aminotransferase
144	 70.64	0	163084..164166	-	360	77462109	purK	RSP_1570	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
145	 70.37	0	164159..164644	-	161	77462110	purE	RSP_1571	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
146	 63.01	-1	164880..165098	-	72	77462111	-	RSP_6218	-	hypothetical protein
147	 65.60	0	165426..165893	+	155	77462112	-	RSP_1572	-	HSP20 family protein
148	 65.33	0	165890..166114	+	74	77462113	-	RSP_1573	-	hypothetical protein
149	 67.09	0	166389..166865	+	158	77462114	-	RSP_1574	-	cytochrome b562
150	 65.87	0	166955..168718	-	587	77462115	sopT	RSP_1575	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
151	 68.76	0	168853..169806	-	317	77462116	trxB	RSP_1576	-	thioredoxin reductase
152	 67.27	0	170014..170514	+	166	77462117	putR	RSP_1577	-	AsnC family transcriptional regulator
153	 72.24	0	170637..171389	-	250	77462118	-	RSP_1578	-	hypothetical protein
68.78	MEAN

4.15	STD DEV
