IslandPathversion 1.0

IslandPath Analysis: Rhodopseudomonas palustris BisB5

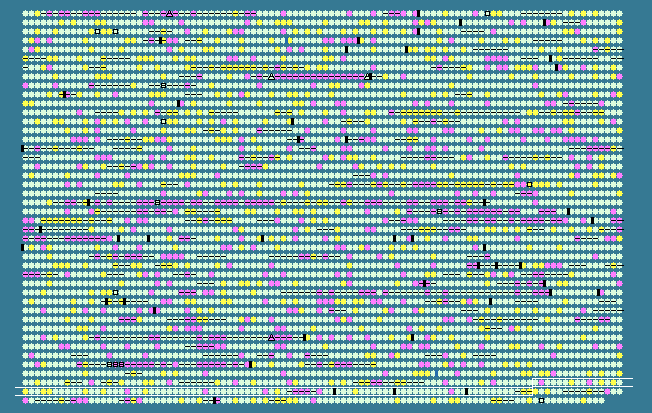

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4186	 65.83	0	4675090..4676283	+	397	91978668	-	RPD_4209	-	peptidase M48, Ste24p
4187	 61.50	-1	4676457..4677230	+	257	91978669	-	RPD_4210	-	hypothetical protein
4188	 63.73	0	4677384..4678097	+	237	91978670	-	RPD_4211	-	hypothetical protein
4189	 66.30	0	4678267..4678812	-	181	91978671	-	RPD_4212	-	adenine phosphoribosyltransferase
4190	 67.41	0	4678953..4681115	-	720	91978672	-	RPD_4213	-	anthranilate synthase
4191	 66.18	0	4681439..4681645	+	68	91978673	-	RPD_4214	-	hypothetical protein
4192	 69.06	+1	4681667..4682293	-	208	91978674	-	RPD_4215	-	methyltransferase type 12
4193	 68.09	0	4682317..4683726	-	469	91978675	-	RPD_4216	-	hypothetical protein
4194	 67.23	0	4684132..4684308	+	58	91978676	-	RPD_4217	-	hypothetical protein
4195	 60.27	-1	4684438..4684656	-	72	91978677	-	RPD_4218	-	PhnA protein
4196	 64.35	0	4684794..4685483	-	229	91978678	-	RPD_4219	-	OmpW
4197	 68.97	+1	4685704..4685964	-	86	91978679	-	RPD_4220	-	hypothetical protein
4198	 66.41	0	4686158..4688068	-	636	91978680	-	RPD_4221	-	AMP-dependent synthetase and ligase
4199	 69.15	+1	4688242..4689006	-	254	91978681	-	RPD_4222	-	tetratricopeptide TPR_2
4200	 66.29	0	4689160..4689963	-	267	91978682	-	RPD_4223	-	short-chain dehydrogenase/reductase SDR
4201	 70.67	+1	4690277..4690651	-	124	91978683	-	RPD_4224	-	hypothetical protein
4202	 66.15	0	4690648..4692768	-	706	91978684	-	RPD_4225	-	TRAP transporter, 4TM/12TM fusion protein
4203	 62.37	0	4692917..4693870	-	317	91978685	-	RPD_4226	-	TRAP transporter solute receptor TAXI family protein
4204	 68.70	+1	4694026..4695303	+	425	91978686	-	RPD_4227	-	major facilitator transporter
4205	 68.59	+1	4695402..4697009	+	535	91978687	-	RPD_4228	-	twin-arginine translocation pathway signal
4206	 67.06	0	4697380..4698387	+	335	91978688	-	RPD_4229	-	twin-arginine translocation pathway signal
4207	 67.00	0	4698651..4699868	+	405	91978689	-	RPD_4230	-	putative cylclic diguanylate phosphodiesterase
4208	 63.39	0	4700003..4700704	-	233	91978690	-	RPD_4231	-	hypothetical protein
4209	 63.73	0	4700832..4701137	+	101	91978691	-	RPD_4232	-	hypothetical protein
4210	 67.57	0	4701164..4702384	-	406	91978692	-	RPD_4233	-	hypothetical protein
4211	 70.18	+1	4702474..4703100	-	208	91978693	-	RPD_4234	-	NUDIX hydrolase
4212	 66.43	0	4703176..4703595	+	139	91978694	-	RPD_4235	-	thioesterase superfamily protein
4213	 67.38	0	4703609..4704874	-	421	91978695	-	RPD_4236	-	hypothetical protein
4214	 68.54	+1	4704959..4705705	-	248	91978696	-	RPD_4237	-	HAD family hydrolase
4215	 63.97	0	4706117..4707376	-	419	91978697	-	RPD_4238	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
4216	 67.45	0	4707376..4708014	-	212	91978698	bioD	RPD_4239	-	dithiobiotin synthetase
4217	 68.46	+1	4708011..4709237	-	408	91978699	-	RPD_4240	-	8-amino-7-oxononanoate synthase
4218	 60.30	-1	4709400..4709933	+	177	91978700	-	RPD_4241	-	hypothetical protein
4219	 67.96	0	4709984..4711375	-	463	91978701	-	RPD_4242	-	ATP-binding region, ATPase-like
4220	 68.18	0	4711372..4712031	-	219	91978702	-	RPD_4243	-	response regulator receiver
4221	 69.50	+1	4712135..4713937	+	600	91978703	-	RPD_4244	-	protein-disulfide reductase
4222	 63.35	0	4713964..4714596	+	210	91978704	-	RPD_4245	-	DSBA oxidoreductase
4223	 65.33	0	4714602..4715276	+	224	91978705	-	RPD_4246	-	ErfK/YbiS/YcfS/YnhG
4224	 67.33	0	4715292..4716650	-	452	91978706	-	RPD_4247	-	twin-arginine translocation pathway signal
4225	 63.34	0	4716619..4717881	-	420	91978707	-	RPD_4248	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
4226	 66.22	0	4717878..4718324	-	148	91978708	-	RPD_4249	-	putative cytochrome subunit of sulfide dehydrogenase
4227	 67.03	0	4718369..4719460	-	363	91978709	-	RPD_4250	-	protein of unknown function DUF395, YeeE/YedE
4228	 64.75	0	4719644..4720372	-	242	91978710	-	RPD_4251	-	putative cytochrome
4229	 64.95	0	4720356..4721633	-	425	91978711	-	RPD_4252	-	twin-arginine translocation pathway signal
4230	 64.43	0	4721690..4723387	-	565	91978712	-	RPD_4253	-	twin-arginine translocation pathway signal
4231	 59.70	-1	4723533..4723862	-	109	91978713	-	RPD_4254	-	putative sulfur oxidation protein SoxZ
4232	 61.72	0	4723904..4724368	-	154	91978714	-	RPD_4255	-	sulfur oxidation protein SoxY
4233	 64.22	0	4724545..4725363	+	272	91978715	-	RPD_4256	-	hypothetical protein
4234	 61.87	0	4725377..4726147	+	256	91978716	-	RPD_4257	-	hypothetical protein
4235	 68.24	0	4726175..4726681	+	168	91978717	-	RPD_4258	-	hypothetical protein
4236	 62.77	0	4726820..4727410	-	196	91978718	-	RPD_4259	-	hypothetical protein
4237	 63.98	0	4727434..4728177	-	247	91978719	-	RPD_4260	-	cytochrome c biogenesis protein, transmembrane region
4238	 62.04	0	4728218..4728649	+	143	91978720	-	RPD_4261	-	hypothetical protein
4239	 61.90	0	4728655..4729032	+	125	91978721	-	RPD_4262	-	ArsR family transcriptional regulator
4240	 67.66	0	4729102..4730304	+	400	91978722	-	RPD_4263	-	protein of unknown function DUF395, YeeE/YedE
4241	 61.15	-1	4730219..4730671	-	150	91978723	-	RPD_4264	-	hypothetical protein
4242	 65.87	0	4731063..4731563	+	166	91978724	-	RPD_4265	-	hypothetical protein
4243	 69.73	+1	4731628..4731921	+	97	91978725	-	RPD_4266	-	hypothetical protein
4244	 65.64	0	4731930..4733396	+	488	91978726	-	RPD_4267	-	copper tolerance protein
4245	 62.61	0	4733410..4734789	+	459	91978727	-	RPD_4268	-	twin-arginine translocation pathway signal
4246	 60.70	-1	4734840..4735325	+	161	91978728	-	RPD_4269	-	blue (type1) copper domain-containing protein
4247	 59.67	-1	4735348..4735647	+	99	91978729	-	RPD_4270	-	hypothetical protein
4248	 60.70	-1	4735773..4736141	+	122	91978730	-	RPD_4271	-	copper resistance protein CopC
4249	 66.02	0	4736141..4737073	+	310	91978731	-	RPD_4272	-	copper resistance D
4250	 60.49	-1	4737121..4737363	-	80	91978732	-	RPD_4273	-	hypothetical protein
4251	 65.88	0	4737622..4738254	-	210	91978733	-	RPD_4274	-	hypothetical protein
4252	 63.04	0	4738251..4738802	-	183	91978734	-	RPD_4275	-	RNA polymerase sigma factor
4253	 67.79	0	4739792..4740415	-	207	91978735	-	RPD_4276	-	Maf-like protein
4254	 63.56	0	4740774..4741223	-	149	91978736	-	RPD_4277	-	protein tyrosine phosphatase
4255	 62.80	0	4741352..4741843	-	163	91978737	-	RPD_4278	-	hypothetical protein
4256	 68.48	+1	4741840..4743165	-	441	91978738	hisD	RPD_4279	-	histidinol dehydrogenase
4257	 65.32	0	4743273..4743719	-	148	91978739	-	RPD_4280	-	hypothetical protein
4258	 66.51	0	4743740..4745029	-	429	91978740	-	RPD_4281	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
4259	 64.60	0	4745198..4745488	-	96	91978741	-	RPD_4282	-	hypothetical protein
4260	 66.67	0	4745740..4746033	+	97	91978742	-	RPD_4283	-	hypothetical protein
4261	 62.45	0	4746265..4746525	-	86	91978743	-	RPD_4284	-	hypothetical protein
4262	 61.74	0	4746543..4746989	+	148	91978744	-	RPD_4285	-	hypothetical protein
4263	 66.10	0	4747345..4748745	-	466	91978745	-	RPD_4286	-	amidase
4264	 64.83	0	4748831..4749592	-	253	91978746	-	RPD_4287	-	short-chain dehydrogenase/reductase SDR
4265	 63.36	0	4749678..4750403	-	241	91978747	-	RPD_4288	-	ABC transporter related
4266	 64.44	0	4750393..4751112	-	239	91978748	-	RPD_4289	-	ABC transporter related
4267	 64.25	0	4751116..4752189	-	357	91978749	-	RPD_4290	-	inner-membrane translocator
4268	 63.44	0	4752202..4753068	-	288	91978750	-	RPD_4291	-	inner-membrane translocator
4269	 61.99	0	4753184..4754422	-	412	91978751	-	RPD_4292	-	putative urea/short-chain amide transport system substrate-binding protein
4270	 63.36	0	4754452..4755450	-	332	91978752	-	RPD_4293	-	acetamidase/formamidase
4271	 66.74	0	4755467..4756867	-	466	91978753	-	RPD_4294	-	amidase
4272	 61.18	-1	4757280..4758446	+	388	91978754	-	RPD_4295	-	putative aliphatic amidase expression-regulating protein, AmiC
4273	 65.47	0	4758443..4759027	+	194	91978755	-	RPD_4296	-	ANTAR
4274	 64.94	0	4759052..4760206	-	384	91978756	-	RPD_4297	-	ribonuclease BN, putative
4275	 67.23	0	4760743..4762524	+	593	91978757	-	RPD_4298	-	acyl-CoA dehydrogenase-like
4276	 65.62	0	4762720..4763481	+	253	91978758	-	RPD_4299	-	enoyl-CoA hydratase/isomerase
4277	 68.02	0	4763521..4766484	-	987	91978759	-	RPD_4300	-	Outer membrane autotransporter barrel
4278	 67.19	0	4766704..4767276	-	190	91978760	-	RPD_4301	-	hypothetical protein
4279	 66.56	0	4767472..4769295	+	607	91978761	-	RPD_4302	-	5'-nucleotidase-like
4280	 67.31	0	4769506..4770435	+	309	91978762	-	RPD_4303	-	histone deacetylase superfamily protein
4281	 63.89	0	4770504..4770755	+	83	91978763	-	RPD_4304	-	exodeoxyribonuclease VII small subunit
4282	 65.99	0	4771250..4773166	+	638	91978764	-	RPD_4305	-	1-deoxy-D-xylulose-5-phosphate synthase
4283	 67.37	0	4773346..4773915	+	189	91978765	-	RPD_4306	-	nucleoside 2-deoxyribosyltransferase
4284	 70.31	+1	4773918..4774658	+	246	91978766	-	RPD_4307	-	hemolysin A
4285	 70.77	+1	4774824..4776236	+	470	91978767	-	RPD_4308	-	MATE efflux family protein
64.98	MEAN

3.46	STD DEV
