IslandPath Analysis: Rhodopseudomonas palustris BisB5

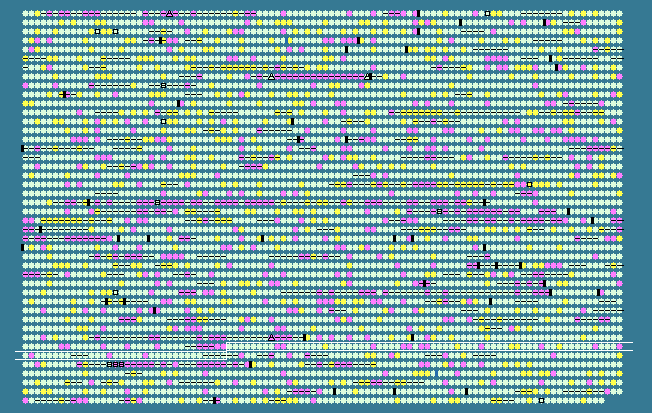

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3735	 63.71	0	4190097..4191548	-	483	91978217	-	RPD_3754	-	chlorophyllide reductase subunit Z
3736	 65.56	0	4191548..4193170	-	540	91978218	-	RPD_3755	-	chlorophyllide reductase subunit Y
3737	 62.16	0	4193196..4194194	-	332	91978219	-	RPD_3756	-	chlorophyllide reductase iron protein subunit X
3738	 64.96	0	4194194..4195132	-	312	91978220	-	RPD_3757	-	chlorophyll synthesis pathway protein BchC
3739	 65.00	0	4195201..4196343	-	380	91978221	-	RPD_3758	-	O-methyltransferase family protein
3740	 67.82	0	4196484..4197350	-	288	91978222	-	RPD_3759	-	polyprenyl synthetase
3741	 65.84	0	4197472..4199046	+	524	91978223	-	RPD_3760	-	FAD dependent oxidoreductase
3742	 65.51	0	4199053..4200006	+	317	91978224	-	RPD_3761	-	hydroxyneurosporene synthase
3743	 53.59	-2	4200062..4200214	-	50	91978225	-	RPD_3762	-	hypothetical protein
3744	 60.74	-1	4200211..4200345	-	44	91978226	-	RPD_3763	-	hypothetical protein
3745	 65.06	0	4200367..4201299	-	310	91978227	-	RPD_3764	-	coproporphyrinogen III oxidase
3746	 66.10	0	4201498..4202547	-	349	91978228	-	RPD_3765	-	squalene/phytoene synthase
3747	 63.15	0	4202544..4204079	-	511	91978229	-	RPD_3766	-	amine oxidase
3748	 65.32	0	4204157..4205047	-	296	91978230	-	RPD_3767	-	alpha/beta hydrolase fold
3749	 62.79	0	4205058..4206011	-	317	91978231	-	RPD_3768	-	alpha/beta hydrolase fold
3750	 65.43	0	4206123..4207169	+	348	91978232	hemE	RPD_3769	-	uroporphyrinogen decarboxylase
3751	 70.35	+1	4207334..4209100	-	588	91978233	bchD	RPD_3770	-	magnesium chelatase subunit D
3752	 66.47	0	4209097..4210119	-	340	91978234	-	RPD_3771	-	magnesium chelatase ATPase subunit I
3753	 65.66	0	4210128..4211120	-	330	91978235	-	RPD_3772	-	porphobilinogen deaminase
3754	 67.50	0	4211369..4212682	+	437	91978236	-	RPD_3773	-	hypothetical protein
3755	 65.79	0	4212682..4214283	+	533	91978237	-	RPD_3774	-	hypothetical protein
3756	 66.26	0	4214283..4214771	+	162	91978238	-	RPD_3775	-	hypothetical protein
3757	 67.47	0	4214835..4215332	+	165	91978239	-	RPD_3776	-	hypothetical protein
3758	 64.31	0	4215326..4216558	+	410	91978240	-	RPD_3777	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit-like
3759	 61.29	-1	4216665..4217129	+	154	91978241	-	RPD_3778	-	hypothetical protein
3760	 64.16	0	4217206..4217643	-	145	91978242	-	RPD_3779	-	hypothetical protein
3761	 62.81	0	4217749..4220913	-	1054	91978243	-	RPD_3780	-	hydrophobe/amphiphile efflux-1 HAE1
3762	 66.25	0	4220922..4222118	-	398	91978244	-	RPD_3781	-	secretion protein HlyD
3763	 63.04	0	4222451..4223995	-	514	91978245	-	RPD_3782	-	putative monooxygenase
3764	 58.42	-1	4224233..4224523	-	96	91978246	-	RPD_3783	-	hypothetical protein
3765	 60.18	-1	4224535..4225197	-	220	91978247	-	RPD_3784	-	hypothetical protein
3766	 66.46	0	4225216..4226643	-	475	91978248	-	RPD_3785	-	PUCC protein
3767	 58.89	-1	4226832..4227011	-	59	91978249	-	RPD_3786	-	antenna complex, alpha/beta subunit
3768	 59.62	-1	4227024..4227179	-	51	91978250	-	RPD_3787	-	antenna complex, alpha/beta subunit
3769	 65.93	0	4227536..4229854	+	772	91978251	-	RPD_3788	-	phytochrome
3770	 66.67	0	4229858..4230544	+	228	91978252	-	RPD_3789	-	response regulator receiver
3771	 66.67	0	4230685..4230933	-	82	91978253	-	RPD_3790	-	hypothetical protein
3772	 67.56	0	4230972..4232201	-	409	91978254	-	RPD_3791	-	NnrS
3773	 68.54	+1	4232329..4233021	-	230	91978255	-	RPD_3792	-	NnrU
3774	 66.30	0	4233210..4234862	-	550	91978256	-	RPD_3793	-	phosphoglucomutase
3775	 65.86	0	4235125..4236360	+	411	91978257	-	RPD_3794	-	FAD dependent oxidoreductase
3776	 61.75	0	4236368..4237201	-	277	91978258	-	RPD_3795	-	hypothetical protein
3777	 60.53	-1	4237352..4237726	-	124	91978259	-	RPD_3796	-	response regulator receiver
3778	 63.08	0	4237857..4238693	-	278	91978260	-	RPD_3797	-	metallophosphoesterase
3779	 62.02	0	4238714..4238971	-	85	91978261	-	RPD_3798	-	putative transport system ATP-binding protein
3780	 64.44	0	4239355..4239624	+	89	91978262	-	RPD_3799	-	hypothetical protein
3781	 63.89	0	4239893..4240360	+	155	91978263	-	RPD_3800	-	hypothetical protein
3782	 68.63	+1	4240707..4241420	+	237	91978264	-	RPD_3801	-	GntR-like
3783	 69.44	+1	4241433..4243232	+	599	91978265	-	RPD_3802	-	amidase
3784	 65.55	0	4243434..4244237	+	267	91978266	-	RPD_3803	-	peptidase C26
3785	 65.48	0	4244391..4246250	-	619	91978267	-	RPD_3804	-	dihydroxy-acid dehydratase
3786	 62.37	0	4246588..4247379	-	263	91978268	-	RPD_3805	-	cyclic nucleotide-binding
3787	 59.15	-1	4247418..4247723	+	101	91978269	-	RPD_3806	-	hypothetical protein
3788	 65.81	0	4247765..4248229	-	154	91978270	-	RPD_3807	-	hypothetical protein
3789	 64.18	0	4248464..4249990	+	508	91978271	-	RPD_3808	-	AMP-dependent synthetase and ligase
3790	 69.50	+1	4250100..4250876	-	258	91978272	-	RPD_3809	-	enoyl-CoA hydratase/isomerase
3791	 63.09	0	4250921..4252066	-	381	91978273	-	RPD_3810	-	acyl-CoA dehydrogenase-like
3792	 64.73	0	4252077..4252904	-	275	91978274	-	RPD_3811	-	short-chain dehydrogenase/reductase SDR
3793	 63.12	0	4252932..4253354	-	140	91978275	-	RPD_3812	-	MaoC-like dehydratase
3794	 63.09	0	4253351..4253797	-	148	91978276	-	RPD_3813	-	hypothetical protein
3795	 66.75	0	4253808..4254992	-	394	91978277	-	RPD_3814	-	lipid-transfer protein
3796	 61.13	-1	4255032..4255790	+	252	91978278	-	RPD_3815	-	regulatory protein, TetR
3797	 67.50	0	4255787..4257343	+	518	91978279	-	RPD_3816	-	AMP-dependent synthetase and ligase
3798	 64.68	0	4257364..4258068	-	234	91978280	-	RPD_3817	-	hypothetical protein
3799	 66.50	0	4258090..4259283	-	397	91978281	-	RPD_3818	-	phosphonate metabolism PhnM
3800	 61.26	-1	4259280..4260056	-	258	91978282	-	RPD_3819	-	putative acetyltransferase (virginiamycin, streptogramin A, chloramphenicol)
3801	 64.70	0	4260113..4260925	+	270	91978283	-	RPD_3820	-	phosphonate ABC transporter ATP-binding
3802	 60.83	-1	4261010..4261951	+	313	91978284	-	RPD_3821	-	phosphonate-binding periplasmic protein
3803	 62.79	0	4262001..4262903	+	300	91978285	-	RPD_3822	-	phosphonate ABC transporter permease
3804	 63.72	0	4262900..4263748	+	282	91978286	-	RPD_3823	-	phosphonate ABC transporter permease
3805	 66.12	0	4263760..4264488	-	242	91978287	-	RPD_3824	-	GntR family transcriptional regulator
3806	 65.67	0	4264565..4265068	+	167	91978288	-	RPD_3825	-	phosphonate metabolism PhnG
3807	 66.67	0	4265071..4265679	+	202	91978289	phnH	RPD_3826	-	carbon-phosphorus lyase complex subunit
3808	 66.12	0	4265679..4266785	+	368	91978290	-	RPD_3827	-	phosphonate metabolism
3809	 63.49	0	4266782..4267663	+	293	91978291	-	RPD_3828	-	phosphonate metabolism PhnJ
3810	 65.67	0	4267656..4268456	+	266	91978292	phnK	RPD_3829	-	phosphonates transport ATP-binding protein
3811	 65.54	0	4268453..4269163	+	236	91978293	-	RPD_3830	-	phosphonate C-P lyase system, PhnL
3812	 66.41	0	4269179..4270333	+	384	91978294	-	RPD_3831	-	phosphonate metabolism PhnM
3813	 66.84	0	4270330..4270923	+	197	91978295	-	RPD_3832	-	phosphonate metabolism, 1,5-bisphosphokinase (PRPP-forming) PhnN
3814	 61.81	0	4270932..4271549	+	205	91978296	-	RPD_3833	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
3815	 59.28	-1	4271613..4272140	-	175	91978297	-	RPD_3834	-	Ferritin and Dps
3816	 63.79	0	4272420..4273115	+	231	91978298	-	RPD_3835	-	methyltransferase type 12
3817	 65.61	0	4273282..4275267	+	661	91978299	-	RPD_3836	-	Cache, type 2
3818	 64.99	0	4275356..4276549	-	397	91978300	-	RPD_3837	-	putative deoxyribonuclease
3819	 63.89	0	4276641..4277468	-	275	91978301	-	RPD_3838	-	transglutaminase-like
3820	 64.81	0	4277761..4278030	+	89	91978302	-	RPD_3839	-	hypothetical protein
3821	 60.51	-1	4278070..4278345	+	91	91978303	-	RPD_3840	-	hypothetical protein
3822	 62.18	0	4278483..4278638	+	51	91978304	-	RPD_3841	-	hypothetical protein
3823	 68.12	0	4278720..4280099	-	459	91978305	-	RPD_3842	-	two component, sigma54 specific, transcriptional regulator, Fis family
3824	 63.82	0	4280149..4280499	-	116	91978306	-	RPD_3843	-	flagellar motor switch protein
3825	 67.15	0	4280518..4281135	-	205	91978307	fliH	RPD_3844	-	flagellar assembly protein H
3826	 62.81	0	4281135..4282223	-	362	91978308	fliG	RPD_3845	-	flagellar motor switch protein G
3827	 65.35	0	4282230..4283828	-	532	91978309	fliF	RPD_3846	-	flagellar MS-ring protein
3828	 62.32	0	4284003..4284278	-	91	91978310	-	RPD_3847	-	hypothetical protein
3829	 67.54	0	4284555..4286153	-	532	91978311	-	RPD_3848	-	FAD linked oxidase-like
3830	 64.04	0	4286381..4288435	-	684	91978312	-	RPD_3849	-	Outer membrane autotransporter barrel
3831	 66.85	0	4288582..4289115	-	177	91978313	-	RPD_3850	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
3832	 68.39	0	4289118..4290629	-	503	91978314	-	RPD_3851	-	NADH-ubiquinone oxidoreductase, chain 49kDa
3833	 64.53	0	4290646..4292097	-	483	91978315	-	RPD_3852	-	hydrogenase 4 subunit F
3834	 63.95	0	4292094..4292756	-	220	91978316	-	RPD_3853	-	hypothetical protein
64.98	MEAN

3.46	STD DEV
