IslandPath Analysis: Rhodopseudomonas palustris BisB5

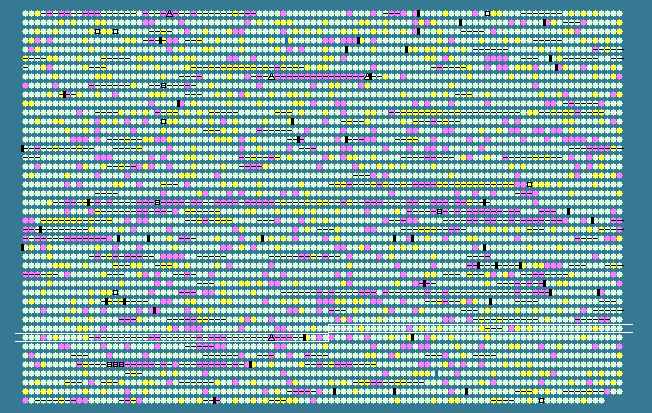

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3552	 64.86	0	3972036..3974642	-	868	91978034	-	RPD_3569	-	hypothetical protein
3553	 63.28	0	3974943..3975887	+	314	91978035	ispH	RPD_3570	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
3554	 62.70	0	3975928..3977088	+	386	91978036	-	RPD_3571	-	radical SAM family protein
3555	 67.48	0	3977017..3977757	-	246	91978037	-	RPD_3572	-	hypothetical protein
3556	 65.19	0	3977754..3979718	-	654	91978038	-	RPD_3573	-	squalene cyclase
3557	 69.13	+1	3979758..3981014	-	418	91978039	-	RPD_3574	-	amine oxidase
3558	 67.26	0	3981014..3981853	-	279	91978040	-	RPD_3575	-	squalene/phytoene synthase
3559	 65.98	0	3981850..3982728	-	292	91978041	-	RPD_3576	-	squalene/phytoene synthase
3560	 62.96	0	3982981..3983223	-	80	91978042	-	RPD_3577	-	hypothetical protein
3561	 65.26	0	3983641..3984138	+	165	91978043	-	RPD_3578	-	hypothetical protein
3562	 65.91	0	3984365..3986731	-	788	91978044	-	RPD_3579	-	RND superfamily transporter
3563	 62.31	0	3987142..3988725	-	527	91978045	-	RPD_3580	-	radical SAM family protein
3564	 66.31	0	3989044..3990747	-	567	91978046	-	RPD_3581	-	methyl-accepting chemotaxis sensory transducer
3565	 60.31	-1	3990812..3991267	-	151	91978047	-	RPD_3582	-	Cache, type 2
3566	 66.89	0	3991491..3992369	-	292	91978048	-	RPD_3583	-	transglutaminase-like
3567	 70.38	+1	3992366..3994867	-	833	91978049	-	RPD_3584	-	hypothetical protein
3568	 66.55	0	3994892..3998278	-	1128	91978050	-	RPD_3585	-	transglutaminase-like
3569	 63.42	0	3998440..3999270	-	276	91978051	-	RPD_3586	-	HpcH/HpaI aldolase
3570	 68.85	+1	3999364..4000464	-	366	91978052	-	RPD_3587	-	malate/L-lactate dehydrogenase
3571	 64.65	0	4000578..4001072	-	164	91978053	-	RPD_3588	-	homoprotocatechuate degradation transcriptional regulator HpaR
3572	 66.29	0	4001289..4002095	+	268	91978054	-	RPD_3589	-	2-oxo-hepta-3-ene-1,7-dioic acid hydratase
3573	 65.66	0	4002115..4002513	+	132	91978055	-	RPD_3590	-	5-carboxymethyl-2-hydroxymuconate isomerase
3574	 67.82	0	4002506..4004062	+	518	91978056	-	RPD_3591	-	5-carboxymethyl-2-hydroxymuconate semialdehyde dehydrogenase
3575	 64.93	0	4004229..4005206	+	325	91978057	-	RPD_3592	-	3,4-dihydroxyphenylacetate 2,3-dioxygenase HpaD
3576	 67.35	0	4005364..4006239	+	291	91978058	-	RPD_3593	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
3577	 69.43	+1	4006270..4007895	+	541	91978059	-	RPD_3594	-	hypothetical protein
3578	 69.57	+1	4007919..4008572	-	217	91978060	-	RPD_3595	-	2OG-Fe(II) oxygenase
3579	 67.89	0	4008926..4009252	+	108	91978061	-	RPD_3596	-	hypothetical protein
3580	 66.91	0	4009266..4009676	-	136	91978062	-	RPD_3597	-	hypothetical protein
3581	 65.12	0	4009907..4010293	+	128	91978063	-	RPD_3598	-	hypothetical protein
3582	 60.49	-1	4010376..4010780	-	134	91978064	-	RPD_3599	-	hypothetical protein
3583	 69.20	+1	4011106..4011972	-	288	91978065	-	RPD_3600	-	hypothetical protein
3584	 62.67	0	4012014..4012688	-	224	91978066	-	RPD_3601	-	cyclic nucleotide-binding
3585	 69.73	+1	4013020..4013802	+	260	91978067	-	RPD_3602	-	enoyl-CoA hydratase/isomerase
3586	 68.24	0	4013828..4014526	-	232	91978068	-	RPD_3603	-	nitroreductase
3587	 65.38	0	4014693..4015937	-	414	91978069	-	RPD_3604	-	acyl-CoA dehydrogenase-like
3588	 66.03	0	4016118..4017365	-	415	91978070	-	RPD_3605	-	acyl-CoA dehydrogenase-like
3589	 67.46	0	4017376..4018503	-	375	91978071	-	RPD_3606	-	acyl-CoA dehydrogenase-like
3590	 66.93	0	4018649..4020523	-	624	91978072	-	RPD_3607	-	acyl-CoA synthetase
3591	 66.17	0	4020582..4021388	-	268	91978073	-	RPD_3608	-	enoyl-CoA hydratase/isomerase
3592	 67.85	0	4021580..4022338	-	252	91978074	-	RPD_3609	-	short-chain dehydrogenase/reductase SDR
3593	 61.74	0	4022820..4023509	-	229	91978075	-	RPD_3610	-	TetR family transcriptional regulator
3594	 66.84	0	4023640..4024815	+	391	91978076	-	RPD_3611	-	acetyl-CoA acetyltransferase
3595	 64.72	0	4024975..4026519	+	514	91978077	-	RPD_3612	-	acyl-CoA synthetase
3596	 69.62	+1	4026680..4027594	+	304	91978078	-	RPD_3613	-	hypothetical protein
3597	 64.97	0	4027823..4028530	-	235	91978079	-	RPD_3614	-	putative outer membrane protein
3598	 65.16	0	4028661..4030319	-	552	91978080	-	RPD_3615	-	hypothetical protein
3599	 62.15	0	4030424..4030711	-	95	91978081	-	RPD_3616	-	twin-arginine translocation pathway signal
3600	 67.86	0	4031300..4033315	-	671	91978082	-	RPD_3617	-	autotransporter beta-domain-containing protein
3601	 65.43	0	4033900..4035756	-	618	91978083	-	RPD_3618	-	acyl-CoA dehydrogenase-like
3602	 67.48	0	4035844..4036332	+	162	91978084	-	RPD_3619	-	CinA-like
3603	 64.27	0	4036339..4036713	-	124	91978085	-	RPD_3620	-	crcB protein
3604	 58.63	-1	4036876..4037472	-	198	91978086	-	RPD_3621	-	superoxide dismutase
3605	 65.70	0	4037649..4038884	-	411	91978087	-	RPD_3622	-	major facilitator transporter
3606	 69.36	+1	4039143..4040516	+	457	91978088	-	RPD_3623	-	MATE efflux family protein
3607	 66.67	0	4040638..4041081	+	147	91978089	-	RPD_3624	-	hypothetical protein
3608	 67.36	0	4041207..4042358	-	383	91978090	-	RPD_3625	-	hypothetical protein
3609	 61.81	0	4042436..4042579	-	47	91978091	-	RPD_3626	-	hypothetical protein
3610	 63.81	0	4042795..4044018	+	407	91978092	-	RPD_3627	-	metallophosphoesterase
3611	 68.72	+1	4044015..4047470	+	1151	91978093	-	RPD_3628	-	hypothetical protein
3612	 62.52	0	4048610..4049380	+	256	91978094	-	RPD_3629	-	hypothetical protein
3613	 61.47	-1	4049364..4052885	+	1173	91978095	-	RPD_3630	-	DEAD/DEAH box helicase-like
3614	 61.55	0	4052958..4054481	-	507	91978096	-	RPD_3631	-	hypothetical protein
3615	 61.62	0	4054478..4055923	-	481	91978097	-	RPD_3632	-	hypothetical protein
3616	 64.46	0	4056261..4056668	+	135	91978098	-	RPD_3633	-	hypothetical protein
3617	 63.33	0	4056712..4057161	+	149	91978099	-	RPD_3634	-	hypothetical protein
3618	 63.64	0	4057164..4057889	+	241	91978100	-	RPD_3635	-	hypothetical protein
3619	 63.56	0	4058037..4059227	+	396	91978101	-	RPD_3636	-	DNA polymerase IV
3620	 64.21	0	4059446..4061440	-	664	91978102	-	RPD_3637	-	iron permease FTR1
3621	 63.40	0	4061600..4062580	-	326	91978103	-	RPD_3638	-	bile acid:sodium symporter
3622	 57.00	-2	4062666..4063058	+	130	91978104	-	RPD_3639	-	regulatory protein, ArsR
3623	 60.64	-1	4063165..4063413	-	82	91978105	-	RPD_3640	-	putative silver efflux pump-like
3624	 62.86	0	4063410..4063724	-	104	91978106	-	RPD_3641	-	putative silver efflux pump-like
3625	 62.44	0	4063699..4064598	-	299	91978107	-	RPD_3642	-	cation diffusion facilitator family transporter
3626	 65.93	0	4064637..4066817	-	726	91978108	-	RPD_3643	-	heavy metal translocating P-type ATPase
3627	 61.67	0	4066954..4068093	-	379	91978109	-	RPD_3644	-	hypothetical protein
3628	 62.33	0	4068142..4068510	-	122	91978110	-	RPD_3645	-	hypothetical protein
3629	 63.89	0	4068553..4071723	-	1056	91978111	-	RPD_3646	-	heavy metal efflux pump CzcA
3630	 61.02	-1	4071826..4072782	-	318	91978112	-	RPD_3647	-	secretion protein HlyD
3631	 66.75	0	4072779..4074053	-	424	91978113	-	RPD_3648	-	outer membrane efflux protein
3632	 60.10	-1	4074112..4074507	-	131	91978114	-	RPD_3649	-	hypothetical protein
3633	 58.13	-1	4074626..4075597	-	323	91978115	-	RPD_3650	-	hypothetical protein
3634	 56.25	-2	4076753..4076944	-	63	91978116	-	RPD_3651	-	hypothetical protein
3635	 65.02	0	4077202..4077807	+	201	91978117	-	RPD_3652	-	hypothetical protein
3636	 67.78	0	4077817..4078356	+	179	91978118	-	RPD_3653	-	hypothetical protein
3637	 64.54	0	4078362..4079159	+	265	91978119	-	RPD_3654	-	metallophosphoesterase
3638	 66.50	0	4079247..4079837	+	196	91978120	-	RPD_3655	-	hypothetical protein
3639	 63.26	0	4079834..4081918	+	694	91978121	-	RPD_3656	-	AAA ATPase, central region
3640	 61.80	0	4081934..4082200	+	88	91978122	-	RPD_3657	-	hypothetical protein
3641	 63.68	0	4082312..4083148	+	278	91978123	-	RPD_3658	-	hypothetical protein
3642	 60.43	-1	4083145..4085502	+	785	91978124	-	RPD_3659	-	integrase catalytic subunit
3643	 57.78	-2	4085511..4086500	+	329	91978125	-	RPD_3660	-	hypothetical protein
3644	 60.82	-1	4086497..4088977	+	826	91978126	-	RPD_3661	-	hypothetical protein
3645	 54.55	-2	4088978..4089703	-	241	91978127	-	RPD_3662	-	hypothetical protein
3646	 66.29	0	4089859..4090125	-	88	91978128	-	RPD_3663	-	hypothetical protein
3647	 64.20	0	4090348..4091076	+	242	91978129	-	RPD_3664	-	hypothetical protein
3648	 68.51	+1	4091510..4092757	-	415	91978130	-	RPD_3665	-	major facilitator transporter
3649	 66.58	0	4092920..4095154	+	744	91978131	flhA	RPD_3666	-	flagellar biosynthesis protein FlhA
3650	 59.70	-1	4095480..4095680	+	66	91978132	-	RPD_3667	-	hypothetical protein
3651	 67.67	0	4095925..4096824	-	299	91978133	-	RPD_3668	-	hypothetical protein
64.98	MEAN

3.46	STD DEV
