IslandPath Analysis: Rhodopseudomonas palustris BisB5

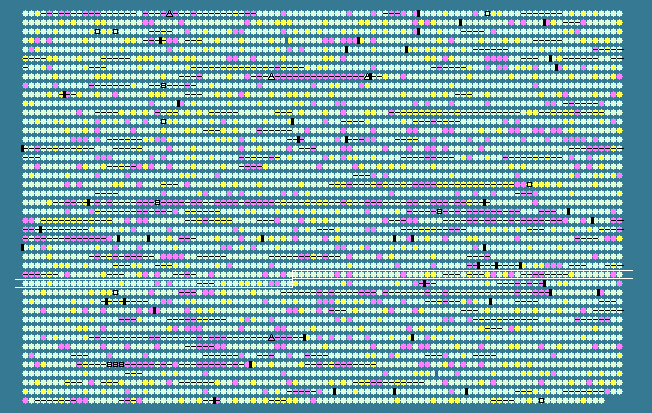

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2946	 63.02	0	3297342..3297752	-	136	91977428	-	RPD_2960	-	hypothetical protein
2947	 63.36	0	3298043..3298465	-	140	91977429	-	RPD_2961	-	nucleoside-diphosphate kinase
2948	 66.51	0	3298641..3300500	+	619	91977430	-	RPD_2962	-	ABC transporter related
2949	 68.32	0	3300541..3301086	-	181	91977431	-	RPD_2963	-	hypothetical protein
2950	 64.24	0	3301206..3301658	-	150	91977432	-	RPD_2964	-	DNA polymerase III subunit chi
2951	 64.74	0	3301674..3303176	-	500	91977433	-	RPD_2965	-	leucyl aminopeptidase
2952	 62.21	0	3303598..3304764	+	388	91977434	-	RPD_2966	-	permease YjgP/YjgQ
2953	 60.59	-1	3304778..3305863	+	361	91977435	-	RPD_2967	-	permease YjgP/YjgQ
2954	 62.07	0	3305869..3308370	+	833	91977436	-	RPD_2968	-	organic solvent tolerance protein
2955	 59.57	-1	3308439..3309368	+	309	91977437	-	RPD_2969	-	hypothetical protein
2956	 67.66	0	3309468..3310472	+	334	91977438	pdxA	RPD_2970	-	4-hydroxythreonine-4-phosphate dehydrogenase
2957	 66.67	0	3310469..3311332	+	287	91977439	ksgA	RPD_2971	-	dimethyladenosine transferase
2958	 63.55	0	3311348..3312406	+	352	91977440	-	RPD_2972	-	alcohol dehydrogenase GroES-like protein
2959	 64.81	0	3312588..3313613	+	341	91977441	-	RPD_2973	-	hypothetical protein
2960	 64.24	0	3313669..3314328	-	219	91977442	gmk	RPD_2974	-	guanylate kinase
2961	 63.51	0	3314331..3315218	-	295	91977443	-	RPD_2975	-	hypothetical protein
2962	 64.08	0	3315413..3316690	-	425	91977444	-	RPD_2976	-	aminodeoxychorismate lyase
2963	 63.82	0	3316893..3318158	-	421	91977445	-	RPD_2977	-	3-oxoacyl-(acyl carrier protein) synthase II
2964	 55.00	-2	3318255..3318494	-	79	91977446	acpP	RPD_2978	-	acyl carrier protein
2965	 65.85	0	3318794..3319531	-	245	91977447	-	RPD_2979	-	3-oxoacyl-(acyl-carrier-protein) reductase
2966	 62.21	0	3319712..3321124	+	470	91977448	-	RPD_2980	-	ethanolamine permease
2967	 64.44	0	3321148..3322542	+	464	91977449	-	RPD_2981	-	ethanolamine ammonia lyase large subunit
2968	 68.50	+1	3322539..3323354	+	271	91977450	-	RPD_2982	-	ethanolamine ammonia-lyase small subunit
2969	 70.44	+1	3323479..3324432	-	317	91977451	-	RPD_2983	-	malonyl CoA-acyl carrier protein transacylase
2970	 64.94	0	3324546..3325997	+	483	91977452	-	RPD_2984	-	GGDEF domain-containing protein
2971	 64.39	0	3326284..3326766	+	160	91977453	rpsF	RPD_2985	-	30S ribosomal protein S6
2972	 63.75	0	3326772..3327011	+	79	91977454	rpsR	RPD_2986	-	30S ribosomal protein S18
2973	 67.62	0	3327142..3328089	+	315	91977455	-	RPD_2987	-	hypothetical protein
2974	 65.47	0	3328125..3328709	+	194	91977456	rplI	RPD_2988	-	50S ribosomal protein L9
2975	 70.14	+1	3328784..3329905	-	373	91977457	-	RPD_2989	-	hypothetical protein
2976	 62.19	0	3330275..3330475	-	66	91977458	-	RPD_2990	-	hypothetical protein
2977	 62.99	0	3330985..3332481	+	498	91977459	-	RPD_2991	-	replicative DNA helicase
2978	 68.86	+1	3332532..3333761	+	409	91977460	-	RPD_2992	-	alanine racemase
2979	 61.18	-1	3333793..3334047	-	84	91977461	-	RPD_2993	-	hypothetical protein
2980	 64.85	0	3334063..3335274	-	403	91977462	-	RPD_2994	-	hypothetical protein
2981	 68.62	+1	3335356..3336843	+	495	91977463	-	RPD_2995	-	DNA repair protein RadA
2982	 60.35	-1	3337057..3337689	+	210	91977464	-	RPD_2996	-	colicin V production protein
2983	 64.66	0	3337713..3339257	+	514	91977465	-	RPD_2997	-	amidophosphoribosyltransferase
2984	 66.40	0	3339430..3340173	+	247	91977466	-	RPD_2998	-	short-chain dehydrogenase/reductase SDR
2985	 62.67	0	3340256..3341482	+	408	91977467	-	RPD_2999	-	putative urea/short-chain binding protein of ABC transporter
2986	 61.45	-1	3341569..3341913	-	114	91977468	-	RPD_3000	-	GCN5-related N-acetyltransferase
2987	 60.93	-1	3342311..3342589	+	92	91977469	-	RPD_3001	-	hypothetical protein
2988	 62.88	0	3342670..3343302	-	210	91977470	-	RPD_3002	-	phage tail Collar
2989	 66.92	0	3343763..3348850	+	1695	91977471	-	RPD_3003	-	Outer membrane autotransporter barrel
2990	 67.30	0	3348891..3350156	-	421	91977472	-	RPD_3004	-	major facilitator transporter
2991	 65.22	0	3350153..3351535	-	460	91977473	engA	RPD_3005	-	GTP-binding protein EngA
2992	 69.63	+1	3351609..3352148	-	179	91977474	-	RPD_3006	-	hypothetical protein
2993	 64.22	0	3352203..3352856	-	217	91977475	-	RPD_3007	-	hypothetical protein
2994	 66.79	0	3353018..3353842	-	274	91977476	panB	RPD_3008	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2995	 63.93	0	3353846..3354430	-	194	91977477	-	RPD_3009	-	NnrU
2996	 67.16	0	3354571..3355575	+	334	91977478	-	RPD_3010	-	twin-arginine translocation pathway signal
2997	 62.19	0	3355642..3356088	-	148	91977479	-	RPD_3011	-	hypothetical protein
2998	 64.87	0	3356225..3356503	-	92	91977480	-	RPD_3012	-	hypothetical protein
2999	 53.11	-2	3357197..3357373	-	58	91977481	-	RPD_3013	-	hypothetical protein
3000	 61.82	0	3357832..3359316	-	494	91977482	gatB	RPD_3014	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
3001	 63.58	0	3359446..3360546	-	366	91977483	-	RPD_3015	-	histidine kinase, dimerisation/phosphoacceptor
3002	 66.60	0	3360632..3362110	-	492	91977484	gatA	RPD_3016	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
3003	 62.32	0	3362250..3362456	-	68	91977485	-	RPD_3017	-	hypothetical protein
3004	 63.89	0	3362534..3362821	-	95	91977486	gatC	RPD_3018	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
3005	 68.71	+1	3362909..3363985	-	358	91977487	-	RPD_3019	-	2-nitropropane dioxygenase, NPD
3006	 62.50	0	3364326..3365261	+	311	91977488	-	RPD_3020	-	putative cyclase
3007	 64.40	0	3365300..3365917	-	205	91977489	-	RPD_3021	-	regulatory protein, TetR
3008	 61.58	0	3365987..3367972	-	661	91977490	-	RPD_3022	-	67 kDa myosin-cross-reactive antigen like
3009	 67.91	0	3368197..3368679	+	160	91977491	-	RPD_3023	-	Holliday junction resolvase YqgF
3010	 63.57	0	3368726..3369112	+	128	91977492	-	RPD_3024	-	SEC-C protein
3011	 66.73	0	3369205..3370860	-	551	91977493	-	RPD_3025	-	acyl-CoA dehydrogenase-like
3012	 65.83	0	3370980..3371696	-	238	91977494	-	RPD_3026	-	peptidase M15D, vanX D-ala-D-ala dipeptidase
3013	 66.30	0	3371750..3373381	-	543	91977495	-	RPD_3027	-	thiamine pyrophosphate enzyme-like TPP binding region
3014	 65.93	0	3373564..3374517	+	317	91977496	pyrB	RPD_3028	-	aspartate carbamoyltransferase catalytic subunit
3015	 67.59	0	3374537..3375838	+	433	91977497	-	RPD_3029	-	dihydroorotase
3016	 65.48	0	3375858..3376448	+	196	91977498	-	RPD_3030	-	putative glycerol-3-phosphate acyltransferase PlsY
3017	 69.74	+1	3376534..3377802	+	422	91977499	-	RPD_3031	-	DNA processing protein DprA, putative
3018	 64.29	0	3378375..3378584	-	69	91977500	-	RPD_3032	-	hypothetical protein
3019	 65.87	0	3378832..3381576	+	914	91977501	-	RPD_3033	-	DNA topoisomerase I
3020	 67.05	0	3381579..3383924	+	781	91977502	-	RPD_3034	-	ribonuclease R
3021	 61.57	0	3383921..3384352	+	143	91977503	-	RPD_3035	-	hypothetical protein
3022	 66.40	0	3384458..3385213	+	251	91977504	-	RPD_3036	-	NUDIX hydrolase
3023	 54.17	-2	3385444..3385611	+	55	91977505	rpmG	RPD_3037	-	50S ribosomal protein L33
3024	 65.79	0	3385864..3387237	-	457	91977506	pleD	RPD_3038	-	response regulator PleD
3025	 57.65	-2	3387247..3387612	-	121	91977507	-	RPD_3039	-	response regulator receiver
3026	 64.00	0	3387755..3388054	+	99	91977508	-	RPD_3040	-	hypothetical protein
3027	 67.21	0	3388051..3389340	+	429	91977509	-	RPD_3041	-	DNA polymerase IV
3028	 63.38	0	3389501..3390322	-	273	91977510	-	RPD_3042	-	hypothetical protein
3029	 67.09	0	3390659..3391126	+	155	91977511	-	RPD_3043	-	endoribonuclease L-PSP
3030	 67.60	0	3391142..3391894	+	250	91977512	-	RPD_3044	-	glycerophosphoryl diester phosphodiesterase
3031	 64.97	0	3391988..3393223	+	411	91977513	-	RPD_3045	-	hypothetical protein
3032	 65.73	0	3393272..3393700	+	142	91977514	-	RPD_3046	-	histidine triad (HIT) protein
3033	 66.23	0	3393710..3394171	-	153	91977515	-	RPD_3047	-	hypothetical protein
3034	 68.99	+1	3394251..3394595	-	114	91977516	-	RPD_3048	-	hypothetical protein
3035	 67.21	0	3394592..3395332	-	246	91977517	-	RPD_3049	-	AzlC-like
3036	 62.50	0	3395483..3395842	+	119	91977518	-	RPD_3050	-	type IV pilus assembly PilZ
3037	 68.49	+1	3395860..3396903	-	347	91977519	-	RPD_3051	-	lytic transglycosylase, catalytic
3038	 68.70	+1	3396994..3397926	+	310	91977520	-	RPD_3052	-	hypothetical protein
3039	 64.93	0	3398035..3398379	+	114	91977521	-	RPD_3053	-	type IV pilus assembly PilZ
3040	 68.68	+1	3398496..3400430	+	644	91977522	-	RPD_3054	-	glycosyltransferase
3041	 63.76	0	3400601..3403006	-	801	91977523	-	RPD_3055	-	ATPase AAA-2
3042	 57.27	-2	3403204..3403533	-	109	91977524	-	RPD_3056	-	ATP-dependent Clp protease adaptor protein ClpS
3043	 60.43	-1	3403994..3405388	+	464	91977525	-	RPD_3057	-	hypothetical protein
3044	 67.24	0	3405827..3407563	+	578	91977526	-	RPD_3058	-	Serine-type D-Ala-D-Ala carboxypeptidase
3045	 66.26	0	3407808..3408536	-	242	91977527	-	RPD_3059	-	heat shock protein DnaJ-like
64.98	MEAN

3.46	STD DEV
