IslandPathversion 1.0

IslandPath Analysis: Rhodopseudomonas palustris BisB5

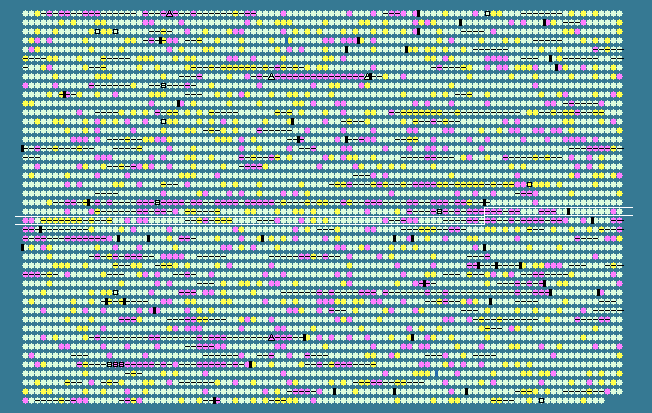

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2278	 60.81	-1	2549448..2550506	+	352	91976760	-	RPD_2286	-	hypothetical protein
2279	 61.46	-1	2550620..2550907	+	95	91976761	-	RPD_2287	-	hypothetical protein
2280	 58.13	-1	2550900..2552528	+	542	91976762	-	RPD_2288	-	hypothetical protein
2281	 61.82	0	2552543..2554171	-	542	91976763	-	RPD_2289	-	superfamily I DNA/RNA helicase-like protein
2282	 60.20	-1	2554273..2556282	-	669	91976764	-	RPD_2290	-	ATP-dependent OLD family endonuclease
2283	 58.45	-1	2556737..2557174	+	145	91976765	-	RPD_2291	-	hypothetical protein
2284	 62.71	0	2557198..2558232	-	344	91976766	-	RPD_2292	-	patatin
2285	 63.99	0	2558229..2558639	-	136	91976767	-	RPD_2293	-	hypothetical protein
2286	 63.38	0	2558681..2559928	-	415	91976768	-	RPD_2294	-	hypothetical protein
2287	 60.44	-1	2560110..2560430	+	106	91976769	-	RPD_2295	-	transcriptional regulator
2288	 60.82	-1	2560427..2561350	+	307	91976770	-	RPD_2296	-	hypothetical protein
2289	 59.56	-1	2561370..2562002	+	210	91976771	-	RPD_2297	-	hypothetical protein
2290	 62.86	0	2562005..2563999	+	664	91976772	-	RPD_2298	-	tetratricopeptide TPR_2
2291	 65.15	0	2564406..2565329	-	307	91976773	-	RPD_2299	-	hypothetical protein
2292	 64.22	0	2566056..2567240	-	394	91976774	-	RPD_2300	-	acetylornithine and succinylornithine aminotransferases
2293	 62.24	0	2567237..2568502	-	421	91976775	-	RPD_2301	-	5-aminolevulinate synthase
2294	 65.17	0	2568499..2569365	-	288	91976776	-	RPD_2302	-	pyridoxal kinase
2295	 64.06	0	2569362..2570627	-	421	91976777	-	RPD_2303	-	benzoate transporter
2296	 65.27	0	2570747..2572174	+	475	91976778	-	RPD_2304	-	regulatory protein GntR, HTH
2297	 63.75	0	2572328..2573632	+	434	91976779	-	RPD_2305	-	serine hydroxymethyltransferase
2298	 62.87	0	2573651..2574466	+	271	91976780	-	RPD_2306	-	hypothetical protein
2299	 60.40	-1	2574611..2575009	-	132	91976781	-	RPD_2307	-	Cu(I)-responsive transcriptional regulator
2300	 64.09	0	2575121..2577646	-	841	91976782	-	RPD_2308	-	heavy metal translocating P-type ATPase
2301	 60.78	-1	2577884..2578087	+	67	91976783	-	RPD_2309	-	heavy metal transport/detoxification protein
2302	 60.30	-1	2578292..2581480	-	1062	91976784	-	RPD_2310	-	hydrophobe/amphiphile efflux-1 HAE1
2303	 62.72	0	2581477..2582718	-	413	91976785	-	RPD_2311	-	secretion protein HlyD
2304	 69.71	+1	2582974..2583729	-	251	91976786	-	RPD_2312	-	uroporphyrin-III C-methyltransferase
2305	 70.26	+1	2583729..2585090	-	453	91976787	-	RPD_2313	-	cobyrinic acid a,c-diamide synthase
2306	 70.26	+1	2585077..2585856	-	259	91976788	-	RPD_2314	-	precorrin-4 C11-methyltransferase
2307	 73.03	+2	2585853..2586245	-	130	91976789	-	RPD_2315	-	cobalamin biosynthesis protein G; CbiG
2308	 71.80	+1	2586242..2587351	-	369	91976790	-	RPD_2316	-	precorrin-6y C5,15-methyltransferase, subunit CbiE
2309	 71.47	+1	2587497..2588246	+	249	91976791	-	RPD_2317	-	cobalt-precorrin-6x reductase
2310	 69.69	+1	2588213..2588974	-	253	91976792	-	RPD_2318	-	precorrin-3B C17-methyltransferase
2311	 68.04	0	2588971..2589699	-	242	91976793	-	RPD_2319	-	precorrin-2 C20-methyltransferase
2312	 70.00	+1	2589696..2590325	-	209	91976794	cobH	RPD_2320	-	precorrin-8X methylmutase
2313	 64.12	0	2590322..2590909	-	195	91976795	-	RPD_2321	-	hypothetical protein
2314	 67.29	0	2591366..2592496	-	376	91976796	-	RPD_2322	-	citrate utilization protein B
2315	 68.59	+1	2592483..2593781	-	432	91976797	-	RPD_2323	-	tricarballylate dehydrogenase
2316	 67.65	0	2594293..2595405	+	370	91976798	-	RPD_2324	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
2317	 66.80	0	2595402..2596178	+	258	91976799	-	RPD_2325	-	cobalamin 5'-phosphate synthase
2318	 61.42	-1	2596247..2597008	+	253	91976800	-	RPD_2326	-	precorrin 6A synthase
2319	 67.00	0	2597048..2598526	-	492	91976801	-	RPD_2327	-	pyruvate kinase
2320	 60.63	-1	2598754..2599101	+	115	91976802	-	RPD_2328	-	hypothetical protein
2321	 60.98	-1	2599330..2600085	+	251	91976803	-	RPD_2329	-	ABC transporter related
2322	 65.06	0	2600078..2600824	+	248	91976804	-	RPD_2330	-	ABC transporter related
2323	 61.64	0	2600864..2601739	+	291	91976805	-	RPD_2331	-	inner-membrane translocator
2324	 63.59	0	2601741..2602715	+	324	91976806	-	RPD_2332	-	inner-membrane translocator
2325	 65.83	0	2603101..2605623	-	840	91976807	-	RPD_2333	-	hypothetical protein
2326	 62.33	0	2606211..2606855	+	214	91976808	-	RPD_2334	-	hypothetical protein
2327	 67.36	0	2606870..2607880	+	336	91976809	-	RPD_2335	-	phosphate transporter
2328	 62.86	0	2608101..2608415	-	104	91976810	-	RPD_2336	-	small multidrug resistance protein
2329	 65.31	0	2608618..2610243	+	541	91976811	-	RPD_2337	-	peptide chain release factor 3
2330	 68.73	+1	2610357..2610695	+	112	91976812	-	RPD_2338	-	hypothetical protein
2331	 47.76	-2	2610904..2612463	+	519	91976813	-	RPD_2339	-	hypothetical protein
2332	 68.40	0	2612477..2612881	-	134	91976814	-	RPD_2340	-	integral membrane protein
2333	 70.79	+1	2612912..2613736	-	274	91976815	-	RPD_2341	-	NmrA-like
2334	 69.28	+1	2613835..2614485	+	216	91976816	-	RPD_2342	-	regulatory protein, TetR
2335	 70.94	+1	2614703..2615428	+	241	91976817	-	RPD_2343	-	hypothetical protein
2336	 63.82	0	2615672..2617006	+	444	91976818	-	RPD_2344	-	hypothetical protein
2337	 65.64	0	2617018..2618763	+	581	91976819	-	RPD_2345	-	hypothetical protein
2338	 67.89	0	2619049..2621331	+	760	91976820	-	RPD_2346	-	CHASE2
2339	 65.54	0	2621445..2622860	-	471	91976821	-	RPD_2347	-	multi-sensor signal transduction histidine kinase
2340	 65.52	0	2623195..2623980	-	261	91976822	-	RPD_2348	-	hemin importer ATP-binding subunit
2341	 67.86	0	2623977..2625062	-	361	91976823	-	RPD_2349	-	transport system permease protein
2342	 65.23	0	2625059..2626030	-	323	91976824	-	RPD_2350	-	periplasmic binding protein
2343	 56.67	-2	2626027..2626236	-	69	91976825	-	RPD_2351	-	hypothetical protein
2344	 67.50	0	2626562..2628004	+	480	91976826	-	RPD_2352	-	coproporphyrinogen III oxidase
2345	 68.15	0	2628066..2628737	+	223	91976827	-	RPD_2353	-	NmrA-like
2346	 63.63	0	2628950..2631286	+	778	91976828	-	RPD_2354	-	TonB-dependent haem/haemoglobin receptor
2347	 60.91	-1	2631279..2631695	+	138	91976829	-	RPD_2355	-	antibiotic biosynthesis monooxygenase
2348	 64.77	0	2631716..2632243	+	175	91976830	-	RPD_2356	-	hypothetical protein
2349	 70.43	+1	2632236..2633033	+	265	91976831	-	RPD_2357	-	MotA/TolQ/ExbB proton channel
2350	 64.84	0	2633043..2633480	+	145	91976832	-	RPD_2358	-	biopolymer transport protein ExbD/TolR
2351	 71.45	+1	2633477..2634313	+	278	91976833	-	RPD_2359	-	TonB-like
2352	 63.64	0	2634347..2635138	-	263	91976834	-	RPD_2360	-	regulatory proteins, IclR
2353	 62.93	0	2635313..2636464	+	383	91976835	-	RPD_2361	-	extracellular ligand-binding receptor
2354	 63.47	0	2636529..2637404	+	291	91976836	-	RPD_2362	-	inner-membrane translocator
2355	 64.52	0	2637409..2638386	+	325	91976837	-	RPD_2363	-	inner-membrane translocator
2356	 64.77	0	2638383..2639120	+	245	91976838	-	RPD_2364	-	ABC transporter related
2357	 65.40	0	2639107..2639814	+	235	91976839	-	RPD_2365	-	ABC transporter related
2358	 64.77	0	2639835..2641151	+	438	91976840	-	RPD_2366	-	aminotransferase class-III
2359	 66.23	0	2641306..2642898	+	530	91976841	-	RPD_2367	-	5-oxoprolinase (ATP-hydrolyzing)
2360	 66.57	0	2642910..2644952	+	680	91976842	-	RPD_2368	-	5-oxoprolinase (ATP-hydrolyzing)
2361	 61.06	-1	2645423..2645779	-	118	91976843	-	RPD_2369	-	hypothetical protein
2362	 64.32	0	2645785..2647998	+	737	91976844	-	RPD_2370	-	flagellin
2363	 62.43	0	2648071..2648637	+	188	91976845	-	RPD_2371	-	hypothetical protein
2364	 60.11	-1	2648768..2649514	+	248	91976846	-	RPD_2372	-	regulatory protein, LuxR
2365	 60.76	-1	2649869..2650477	+	202	91976847	-	RPD_2373	-	regulatory protein, LuxR
2366	 59.81	-1	2650805..2651767	-	320	91976848	-	RPD_2374	-	beta-lactamase-like
2367	 63.66	0	2652083..2652514	+	143	91976849	-	RPD_2375	-	thioredoxin-related
2368	 64.78	0	2652637..2653218	+	193	91976850	-	RPD_2376	-	cytochrome c family protein
2369	 64.30	0	2653481..2655760	+	759	91976851	-	RPD_2377	-	ATP-binding region, ATPase-like
2370	 64.76	0	2655841..2657568	+	575	91976852	-	RPD_2378	-	TrkA-N
2371	 64.46	0	2658828..2660144	+	438	91976853	-	RPD_2380	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2372	 61.87	0	2660157..2660531	+	124	91976854	-	RPD_2381	-	hypothetical protein
2373	 63.50	0	2660672..2661145	+	157	91976855	-	RPD_2382	-	thioesterase superfamily protein
2374	 65.09	0	2662006..2662641	+	211	91976856	-	RPD_2383	-	transcriptional regulator PadR-like
2375	 59.84	-1	2662843..2663457	+	204	91976857	-	RPD_2384	-	4-hydroxybenzoyl-CoA thioesterase
2376	 58.15	-1	2663451..2663720	+	89	91976858	-	RPD_2385	-	hypothetical protein
2377	 63.17	0	2663804..2664289	+	161	91976859	-	RPD_2386	-	hypothetical protein
64.98	MEAN

3.46	STD DEV
