IslandPath Analysis: Rhodopseudomonas palustris BisB5

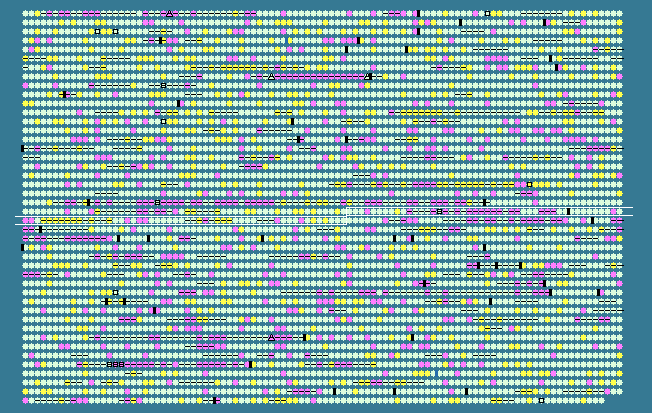

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2255	 65.74	0	2525043..2526557	-	504	91976737	-	RPD_2260	-	major facilitator transporter
2256	 66.27	0	2526669..2526917	+	82	91976738	-	RPD_2261	-	hypothetical protein
2257	 66.67	0	2526972..2527292	+	106	91976739	-	RPD_2262	-	hypothetical protein
2258	 60.66	-1	2527276..2527941	+	221	91976740	-	RPD_2263	-	hypothetical protein
2259	 67.40	0	2528129..2529625	+	498	91976741	-	RPD_2264	-	inositol-5-monophosphate dehydrogenase
2260	 66.28	0	2529876..2530901	+	341	91976742	-	RPD_2265	-	zinc-binding alcohol dehydrogenase
2261	 66.55	0	2530882..2531715	+	277	91976743	-	RPD_2266	-	hypothetical protein
2262	 65.01	0	2531747..2532169	+	140	91976744	-	RPD_2267	-	hypothetical protein
2263	 71.11	+1	2532202..2533506	+	434	91976745	-	RPD_2268	-	Fmu (Sun)
2264	 66.37	0	2533666..2535336	+	556	91976746	guaA	RPD_2269	-	bifunctional GMP synthase/glutamine amidotransferase protein
2265	 57.28	-2	2537864..2538502	-	212	91976747	-	RPD_2273	-	hypothetical protein
2266	 61.80	0	2538801..2539067	-	88	91976748	-	RPD_2274	-	conjugal transfer TraD
2267	 64.56	0	2539069..2539401	-	110	91976749	-	RPD_2275	-	hypothetical protein
2268	 66.50	0	2539567..2542587	+	1006	91976750	-	RPD_2276	-	MobA/MobL protein
2269	 58.33	-1	2542706..2542921	+	71	91976751	-	RPD_2277	-	prophage CP4-57 regulatory
2270	 61.51	-1	2543178..2543468	+	96	91976752	-	RPD_2278	-	transposase IS3/IS911
2271	 59.51	-1	2543646..2544050	-	134	91976753	-	RPD_2279	-	hypothetical protein
2272	 62.31	0	2544190..2545107	-	305	91976754	-	RPD_2280	-	transcriptional regulator-like
2273	 59.76	-1	2545104..2545697	-	197	91976755	-	RPD_2281	-	hypothetical protein
2274	 65.50	0	2545778..2546719	-	313	91976756	-	RPD_2282	-	antirestriction protein; ArdC
2275	 58.97	-1	2546920..2547426	-	168	91976757	-	RPD_2283	-	hypothetical protein
2276	 57.70	-2	2547486..2548076	+	196	91976758	-	RPD_2284	-	hypothetical protein
2277	 57.10	-2	2548132..2549448	+	438	91976759	-	RPD_2285	-	hypothetical protein
2278	 60.81	-1	2549448..2550506	+	352	91976760	-	RPD_2286	-	hypothetical protein
2279	 61.46	-1	2550620..2550907	+	95	91976761	-	RPD_2287	-	hypothetical protein
2280	 58.13	-1	2550900..2552528	+	542	91976762	-	RPD_2288	-	hypothetical protein
2281	 61.82	0	2552543..2554171	-	542	91976763	-	RPD_2289	-	superfamily I DNA/RNA helicase-like protein
2282	 60.20	-1	2554273..2556282	-	669	91976764	-	RPD_2290	-	ATP-dependent OLD family endonuclease
2283	 58.45	-1	2556737..2557174	+	145	91976765	-	RPD_2291	-	hypothetical protein
2284	 62.71	0	2557198..2558232	-	344	91976766	-	RPD_2292	-	patatin
2285	 63.99	0	2558229..2558639	-	136	91976767	-	RPD_2293	-	hypothetical protein
2286	 63.38	0	2558681..2559928	-	415	91976768	-	RPD_2294	-	hypothetical protein
2287	 60.44	-1	2560110..2560430	+	106	91976769	-	RPD_2295	-	transcriptional regulator
2288	 60.82	-1	2560427..2561350	+	307	91976770	-	RPD_2296	-	hypothetical protein
2289	 59.56	-1	2561370..2562002	+	210	91976771	-	RPD_2297	-	hypothetical protein
2290	 62.86	0	2562005..2563999	+	664	91976772	-	RPD_2298	-	tetratricopeptide TPR_2
2291	 65.15	0	2564406..2565329	-	307	91976773	-	RPD_2299	-	hypothetical protein
2292	 64.22	0	2566056..2567240	-	394	91976774	-	RPD_2300	-	acetylornithine and succinylornithine aminotransferases
2293	 62.24	0	2567237..2568502	-	421	91976775	-	RPD_2301	-	5-aminolevulinate synthase
2294	 65.17	0	2568499..2569365	-	288	91976776	-	RPD_2302	-	pyridoxal kinase
2295	 64.06	0	2569362..2570627	-	421	91976777	-	RPD_2303	-	benzoate transporter
2296	 65.27	0	2570747..2572174	+	475	91976778	-	RPD_2304	-	regulatory protein GntR, HTH
2297	 63.75	0	2572328..2573632	+	434	91976779	-	RPD_2305	-	serine hydroxymethyltransferase
2298	 62.87	0	2573651..2574466	+	271	91976780	-	RPD_2306	-	hypothetical protein
2299	 60.40	-1	2574611..2575009	-	132	91976781	-	RPD_2307	-	Cu(I)-responsive transcriptional regulator
2300	 64.09	0	2575121..2577646	-	841	91976782	-	RPD_2308	-	heavy metal translocating P-type ATPase
2301	 60.78	-1	2577884..2578087	+	67	91976783	-	RPD_2309	-	heavy metal transport/detoxification protein
2302	 60.30	-1	2578292..2581480	-	1062	91976784	-	RPD_2310	-	hydrophobe/amphiphile efflux-1 HAE1
2303	 62.72	0	2581477..2582718	-	413	91976785	-	RPD_2311	-	secretion protein HlyD
2304	 69.71	+1	2582974..2583729	-	251	91976786	-	RPD_2312	-	uroporphyrin-III C-methyltransferase
2305	 70.26	+1	2583729..2585090	-	453	91976787	-	RPD_2313	-	cobyrinic acid a,c-diamide synthase
2306	 70.26	+1	2585077..2585856	-	259	91976788	-	RPD_2314	-	precorrin-4 C11-methyltransferase
2307	 73.03	+2	2585853..2586245	-	130	91976789	-	RPD_2315	-	cobalamin biosynthesis protein G; CbiG
2308	 71.80	+1	2586242..2587351	-	369	91976790	-	RPD_2316	-	precorrin-6y C5,15-methyltransferase, subunit CbiE
2309	 71.47	+1	2587497..2588246	+	249	91976791	-	RPD_2317	-	cobalt-precorrin-6x reductase
2310	 69.69	+1	2588213..2588974	-	253	91976792	-	RPD_2318	-	precorrin-3B C17-methyltransferase
2311	 68.04	0	2588971..2589699	-	242	91976793	-	RPD_2319	-	precorrin-2 C20-methyltransferase
2312	 70.00	+1	2589696..2590325	-	209	91976794	cobH	RPD_2320	-	precorrin-8X methylmutase
2313	 64.12	0	2590322..2590909	-	195	91976795	-	RPD_2321	-	hypothetical protein
2314	 67.29	0	2591366..2592496	-	376	91976796	-	RPD_2322	-	citrate utilization protein B
2315	 68.59	+1	2592483..2593781	-	432	91976797	-	RPD_2323	-	tricarballylate dehydrogenase
2316	 67.65	0	2594293..2595405	+	370	91976798	-	RPD_2324	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
2317	 66.80	0	2595402..2596178	+	258	91976799	-	RPD_2325	-	cobalamin 5'-phosphate synthase
2318	 61.42	-1	2596247..2597008	+	253	91976800	-	RPD_2326	-	precorrin 6A synthase
2319	 67.00	0	2597048..2598526	-	492	91976801	-	RPD_2327	-	pyruvate kinase
2320	 60.63	-1	2598754..2599101	+	115	91976802	-	RPD_2328	-	hypothetical protein
2321	 60.98	-1	2599330..2600085	+	251	91976803	-	RPD_2329	-	ABC transporter related
2322	 65.06	0	2600078..2600824	+	248	91976804	-	RPD_2330	-	ABC transporter related
2323	 61.64	0	2600864..2601739	+	291	91976805	-	RPD_2331	-	inner-membrane translocator
2324	 63.59	0	2601741..2602715	+	324	91976806	-	RPD_2332	-	inner-membrane translocator
2325	 65.83	0	2603101..2605623	-	840	91976807	-	RPD_2333	-	hypothetical protein
2326	 62.33	0	2606211..2606855	+	214	91976808	-	RPD_2334	-	hypothetical protein
2327	 67.36	0	2606870..2607880	+	336	91976809	-	RPD_2335	-	phosphate transporter
2328	 62.86	0	2608101..2608415	-	104	91976810	-	RPD_2336	-	small multidrug resistance protein
2329	 65.31	0	2608618..2610243	+	541	91976811	-	RPD_2337	-	peptide chain release factor 3
2330	 68.73	+1	2610357..2610695	+	112	91976812	-	RPD_2338	-	hypothetical protein
2331	 47.76	-2	2610904..2612463	+	519	91976813	-	RPD_2339	-	hypothetical protein
2332	 68.40	0	2612477..2612881	-	134	91976814	-	RPD_2340	-	integral membrane protein
2333	 70.79	+1	2612912..2613736	-	274	91976815	-	RPD_2341	-	NmrA-like
2334	 69.28	+1	2613835..2614485	+	216	91976816	-	RPD_2342	-	regulatory protein, TetR
2335	 70.94	+1	2614703..2615428	+	241	91976817	-	RPD_2343	-	hypothetical protein
2336	 63.82	0	2615672..2617006	+	444	91976818	-	RPD_2344	-	hypothetical protein
2337	 65.64	0	2617018..2618763	+	581	91976819	-	RPD_2345	-	hypothetical protein
2338	 67.89	0	2619049..2621331	+	760	91976820	-	RPD_2346	-	CHASE2
2339	 65.54	0	2621445..2622860	-	471	91976821	-	RPD_2347	-	multi-sensor signal transduction histidine kinase
2340	 65.52	0	2623195..2623980	-	261	91976822	-	RPD_2348	-	hemin importer ATP-binding subunit
2341	 67.86	0	2623977..2625062	-	361	91976823	-	RPD_2349	-	transport system permease protein
2342	 65.23	0	2625059..2626030	-	323	91976824	-	RPD_2350	-	periplasmic binding protein
2343	 56.67	-2	2626027..2626236	-	69	91976825	-	RPD_2351	-	hypothetical protein
2344	 67.50	0	2626562..2628004	+	480	91976826	-	RPD_2352	-	coproporphyrinogen III oxidase
2345	 68.15	0	2628066..2628737	+	223	91976827	-	RPD_2353	-	NmrA-like
2346	 63.63	0	2628950..2631286	+	778	91976828	-	RPD_2354	-	TonB-dependent haem/haemoglobin receptor
2347	 60.91	-1	2631279..2631695	+	138	91976829	-	RPD_2355	-	antibiotic biosynthesis monooxygenase
2348	 64.77	0	2631716..2632243	+	175	91976830	-	RPD_2356	-	hypothetical protein
2349	 70.43	+1	2632236..2633033	+	265	91976831	-	RPD_2357	-	MotA/TolQ/ExbB proton channel
2350	 64.84	0	2633043..2633480	+	145	91976832	-	RPD_2358	-	biopolymer transport protein ExbD/TolR
2351	 71.45	+1	2633477..2634313	+	278	91976833	-	RPD_2359	-	TonB-like
2352	 63.64	0	2634347..2635138	-	263	91976834	-	RPD_2360	-	regulatory proteins, IclR
2353	 62.93	0	2635313..2636464	+	383	91976835	-	RPD_2361	-	extracellular ligand-binding receptor
2354	 63.47	0	2636529..2637404	+	291	91976836	-	RPD_2362	-	inner-membrane translocator
64.98	MEAN

3.46	STD DEV
