IslandPathversion 1.0

IslandPath Analysis: Rhodopseudomonas palustris BisB5

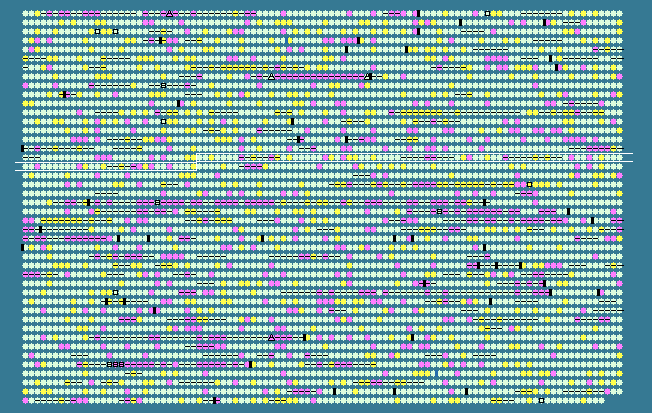

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.98 STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1630	 67.74	0	1830823..1832319	-	498	91976112	-	RPD_1633	-	hypothetical protein
1631	 66.83	0	1832347..1833555	+	402	91976113	-	RPD_1634	-	major facilitator transporter
1632	 70.28	+1	1833525..1834520	-	331	91976114	-	RPD_1635	-	mandelate racemase/muconate lactonizing enzyme
1633	 65.71	0	1834627..1835778	+	383	91976115	-	RPD_1636	-	hypothetical protein
1634	 66.15	0	1835781..1836551	+	256	91976116	-	RPD_1637	-	ABC transporter related
1635	 66.88	0	1836634..1837587	+	317	91976117	-	RPD_1638	-	hypothetical protein
1636	 63.87	0	1838455..1840776	-	773	91976118	-	RPD_1639	-	tetratricopeptide TPR_2
1637	 60.47	-1	1841631..1844099	+	822	91976119	-	RPD_1640	-	sulfatase
1638	 68.04	0	1844370..1850717	-	2115	91976120	-	RPD_1641	-	hypothetical protein
1639	 70.14	+1	1851135..1851479	+	114	91976121	-	RPD_1642	-	hypothetical protein
1640	 63.55	0	1851621..1851941	+	106	91976122	-	RPD_1643	-	ferredoxin
1641	 65.13	0	1852095..1852550	-	151	91976123	-	RPD_1644	-	thioesterase superfamily protein
1642	 61.22	-1	1852711..1853739	+	342	91976124	-	RPD_1645	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1643	 72.48	+2	1853844..1854824	-	326	91976125	-	RPD_1646	-	NAD-dependent epimerase/dehydratase
1644	 65.65	0	1854824..1855810	-	328	91976126	-	RPD_1647	-	GDP-mannose 4,6-dehydratase
1645	 70.53	+1	1856004..1857089	-	361	91976127	-	RPD_1648	-	glycosyl transferase family protein
1646	 66.74	0	1857299..1858648	+	449	91976128	-	RPD_1649	-	glycosyl transferase, group 1
1647	 67.51	0	1858656..1859963	+	435	91976129	-	RPD_1650	-	hypothetical protein
1648	 66.82	0	1860031..1860687	+	218	91976130	-	RPD_1651	-	hypothetical protein
1649	 64.10	0	1860803..1863412	-	869	91976131	-	RPD_1652	-	hypothetical protein
1650	 64.96	0	1863431..1864252	-	273	91976132	-	RPD_1653	-	hypothetical protein
1651	 59.22	-1	1864347..1864601	+	84	91976133	-	RPD_1654	-	hypothetical protein
1652	 71.76	+1	1864673..1866676	-	667	91976134	-	RPD_1655	-	hypothetical protein
1653	 64.60	0	1866753..1867814	-	353	91976135	-	RPD_1656	-	hypothetical protein
1654	 60.36	-1	1868212..1868718	+	168	91976136	-	RPD_1657	-	hypothetical protein
1655	 70.75	+1	1868925..1869365	-	146	91976137	-	RPD_1658	-	hypothetical protein
1656	 71.07	+1	1869541..1870131	+	196	91976138	-	RPD_1659	-	hypothetical protein
1657	 67.36	0	1870279..1870710	-	143	91976139	-	RPD_1660	-	hypothetical protein
1658	 67.23	0	1870914..1871444	-	176	91976140	-	RPD_1661	-	putative phosphohistidine phosphatase, SixA
1659	 71.66	+1	1871538..1872998	+	486	91976141	-	RPD_1662	-	FAD dependent oxidoreductase
1660	 68.27	0	1873139..1873636	+	165	91976142	-	RPD_1663	-	methionine sulfoxide reductase B
1661	 66.87	0	1873798..1875309	+	503	91976143	-	RPD_1664	-	hypothetical protein
1662	 66.67	0	1875326..1875598	-	90	91976144	-	RPD_1665	-	hypothetical protein
1663	 67.86	0	1875805..1880088	-	1427	91976145	-	RPD_1666	-	ATP-binding region, ATPase-like
1664	 65.47	0	1880370..1882202	+	610	91976146	-	RPD_1667	-	hypothetical protein
1665	 64.58	0	1882247..1884118	+	623	91976147	-	RPD_1668	-	flagellar hook-associated protein
1666	 65.73	0	1884126..1885733	+	535	91976148	-	RPD_1669	-	hypothetical protein
1667	 64.13	0	1886025..1888313	+	762	91976149	-	RPD_1670	-	flagellin
1668	 53.81	-2	1891184..1891564	+	126	91976150	flbT	RPD_1672	-	flagellar biosynthesis repressor FlbT
1669	 59.89	-1	1891567..1891935	+	122	91976151	flaF	RPD_1673	-	flagellar biosynthesis regulatory protein FlaF
1670	 63.68	0	1892033..1892467	-	144	91976152	-	RPD_1674	-	hypothetical protein
1671	 66.26	0	1892614..1893099	-	161	91976153	-	RPD_1675	-	hypothetical protein
1672	 64.06	0	1893117..1893461	-	114	91976154	-	RPD_1676	-	chemotactic signal-response protein CheL
1673	 67.20	0	1893458..1894579	-	373	91976155	flgI	RPD_1677	-	flagellar basal body P-ring protein
1674	 70.98	+1	1894890..1895306	+	138	91976156	fliX	RPD_1678	-	flagellar assembly regulator FliX
1675	 57.31	-2	1895455..1895871	+	138	91976157	-	RPD_1679	-	transcriptional regulators, TraR/DksA family
1676	 63.67	0	1895991..1896257	-	88	91976158	-	RPD_1680	-	hypothetical protein
1677	 64.82	0	1896545..1897303	-	252	91976159	flgH	RPD_1681	-	flagellar basal body L-ring protein
1678	 70.12	+1	1897309..1898409	-	366	91976160	flgA	RPD_1682	-	flagellar basal body P-ring biosynthesis protein FlgA
1679	 65.27	0	1898423..1899211	-	262	91976161	flgG	RPD_1683	-	flagellar basal body rod protein FlgG
1680	 63.12	0	1899223..1899984	-	253	91976162	flgF	RPD_1684	-	flagellar basal body rod protein FlgF
1681	 60.91	-1	1900346..1900849	+	167	91976163	fliL	RPD_1685	-	flagellar basal body-associated protein FliL
1682	 64.67	0	1900856..1902058	+	400	91976164	fliM	RPD_1686	-	flagellar motor switch protein FliM
1683	 66.90	0	1902055..1902489	+	144	91976165	-	RPD_1687	-	hypothetical protein
1684	 66.15	0	1902486..1903253	+	255	91976166	-	RPD_1688	-	hypothetical protein
1685	 62.42	0	1903346..1903675	-	109	91976167	-	RPD_1689	-	hypothetical protein
1686	 69.35	+1	1903925..1907767	+	1280	91976168	-	RPD_1690	-	hypothetical protein
1687	 64.84	0	1907818..1908585	-	255	91976169	fliP	RPD_1691	-	flagellar biosynthesis protein FliP
1688	 74.14	+2	1908582..1909625	-	347	91976170	-	RPD_1692	-	hypothetical protein
1689	 63.02	0	1909962..1910372	+	136	91976171	flgB	RPD_1693	-	flagellar basal body rod protein FlgB
1690	 65.26	0	1910398..1910823	+	141	91976172	flgC	RPD_1694	-	flagellar basal body rod protein FlgC
1691	 64.38	0	1910849..1911154	+	101	91976173	fliE	RPD_1695	-	flagellar hook-basal body protein FliE
1692	 60.98	-1	1911295..1911558	+	87	91976174	fliQ	RPD_1696	-	flagellar biosynthesis protein FliQ
1693	 63.93	0	1911668..1912435	+	255	91976175	fliR	RPD_1697	-	flagellar biosynthesis protein FliR
1694	 62.01	0	1912462..1913535	+	357	91976176	flhB	RPD_1698	-	flagellar biosynthesis protein FlhB
1695	 52.25	-2	1913590..1914234	-	214	91976177	-	RPD_1699	-	hypothetical protein
1696	 67.49	0	1914476..1917028	+	850	91976178	-	RPD_1700	-	multi-sensor hybrid histidine kinase
1697	 69.68	+1	1917189..1918184	+	331	91976179	-	RPD_1701	-	import inner membrane translocase, subunit Tim44
1698	 67.39	0	1918353..1919039	+	228	91976180	-	RPD_1702	-	hypothetical protein
1699	 63.85	0	1919106..1919816	+	236	91976181	-	RPD_1703	-	glutathione S-transferase-like
1700	 62.50	0	1919832..1920191	-	119	91976182	-	RPD_1704	-	glutathione-dependent formaldehyde-activating, GFA
1701	 67.28	0	1920728..1921216	-	162	91976183	-	RPD_1705	-	hypothetical protein
1702	 61.97	0	1921431..1921664	+	77	91976184	-	RPD_1706	-	hypothetical protein
1703	 59.95	-1	1921610..1921981	-	123	91976185	-	RPD_1707	-	hypothetical protein
1704	 65.04	0	1922059..1923714	+	551	91976186	-	RPD_1708	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
1705	 67.54	0	1923877..1924560	+	227	91976187	-	RPD_1709	-	hypothetical protein
1706	 67.46	0	1924573..1925580	-	335	91976188	-	RPD_1710	-	hypothetical protein
1707	 65.32	0	1925990..1926286	-	98	91976189	-	RPD_1711	-	hypothetical protein
1708	 67.94	0	1926538..1927245	+	235	91976190	-	RPD_1712	-	hypothetical protein
1709	 66.32	0	1927267..1927839	-	190	91976191	-	RPD_1713	-	hypothetical protein
1710	 60.35	-1	1928169..1929071	+	300	91976192	-	RPD_1714	-	nuclear protein SET
1711	 68.92	+1	1929078..1929476	-	132	91976193	-	RPD_1715	-	hypothetical protein
1712	 67.40	0	1929590..1930411	+	273	91976194	-	RPD_1716	-	transcriptional regulator
1713	 66.52	0	1930484..1931149	+	221	91976195	-	RPD_1717	-	DSBA oxidoreductase
1714	 70.61	+1	1931214..1932380	-	388	91976196	-	RPD_1718	-	hypothetical protein
1715	 68.15	0	1932558..1934105	+	515	91976197	-	RPD_1719	-	peptidase C14, caspase catalytic subunit p20
1716	 65.83	0	1934152..1934391	-	79	91976198	-	RPD_1720	-	type IV pilus assembly PilZ
1717	 68.60	+1	1934541..1935005	-	154	91976199	-	RPD_1721	-	thioesterase superfamily protein
1718	 62.15	0	1935313..1935600	+	95	91976200	-	RPD_1722	-	hypothetical protein
1719	 61.43	-1	1935866..1936552	+	228	91976201	-	RPD_1723	-	cyclic nucleotide-binding
1720	 59.65	-1	1936772..1936942	-	56	91976202	-	RPD_1724	-	hypothetical protein
1721	 69.44	+1	1937172..1937531	-	119	91976203	-	RPD_1725	-	hypothetical protein
1722	 60.99	-1	1938124..1938264	-	46	91976204	-	RPD_1726	-	hypothetical protein
1723	 62.16	0	1938459..1938857	-	132	91976205	-	RPD_1727	-	response regulator receiver
1724	 62.30	0	1939032..1939214	+	60	91976206	-	RPD_1728	-	hypothetical protein
1725	 61.30	-1	1939301..1939561	-	86	91976207	-	RPD_1729	-	hypothetical protein
1726	 64.29	0	1940264..1941355	+	363	91976208	recA	RPD_1730	-	recombinase A
1727	 67.15	0	1941809..1944703	-	964	91976209	-	RPD_1731	-	glycine dehydrogenase
1728	 63.39	0	1944873..1945238	-	121	91976210	-	RPD_1732	-	glycine cleavage system protein H
1729	 69.45	+1	1945247..1946395	-	382	91976211	-	RPD_1733	-	glycine cleavage system aminomethyltransferase T
64.98	MEAN

3.46	STD DEV
