IslandPath Analysis: Rhodopseudomonas palustris BisB5

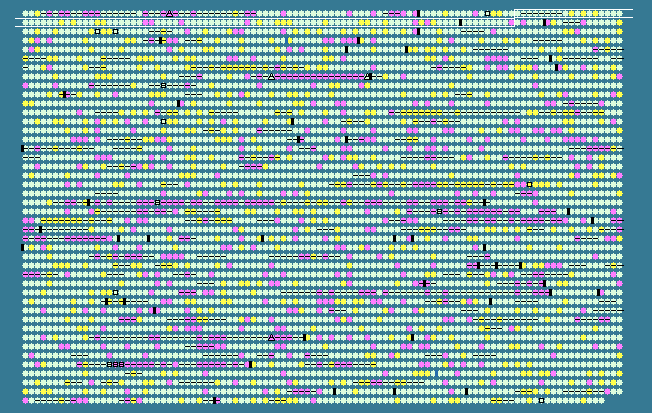

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.98   STD DEV: 3.46
Rhodopseudomonas palustris BisB5, complete genome - 1..4892717
4397 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
83	 67.83	0	98724..100097	+	457	91974565	-	RPD_0083	-	major facilitator transporter
84	 67.13	0	100126..100554	-	142	91974566	-	RPD_0084	-	hypothetical protein
85	 67.66	0	100574..101179	-	201	91974567	recR	RPD_0085	-	recombination protein RecR
86	 67.29	0	101293..101613	-	106	91974568	-	RPD_0086	-	hypothetical protein
87	 67.79	0	101648..103522	-	624	91974569	-	RPD_0087	-	DNA polymerase III subunits gamma and tau
88	 64.81	0	103996..104481	+	161	91974570	-	RPD_0088	-	histidine triad (HIT) protein
89	 66.67	0	104486..105418	+	310	91974571	-	RPD_0089	-	NUDIX hydrolase
90	 67.53	0	105415..106344	+	309	91974572	-	RPD_0090	-	PfkB
91	 64.96	0	106399..107100	-	233	91974573	-	RPD_0091	-	hypothetical protein
92	 71.10	+1	107176..107604	-	142	91974574	-	RPD_0092	-	hypothetical protein
93	 65.10	0	107613..108380	-	255	91974575	-	RPD_0093	-	hydroxyacylglutathione hydrolase
94	 70.07	+1	108557..109321	+	254	91974576	-	RPD_0094	-	methyltransferase type 11
95	 66.25	0	109382..110107	-	241	91974577	-	RPD_0095	-	hypothetical protein
96	 69.97	+1	110600..111478	-	292	91974578	-	RPD_0096	-	HemK family modification methylase
97	 66.11	0	111521..112606	-	361	91974579	prfA	RPD_0097	-	peptide chain release factor 1
98	 67.90	0	112658..114925	-	755	91974580	-	RPD_0098	-	PTSINtr with GAF domain, PtsP
99	 66.19	0	115231..116484	-	417	91974581	-	RPD_0099	-	aspartate kinase
100	 65.62	0	116843..117604	+	253	91974582	-	RPD_0100	-	3-demethylubiquinone-9 3-methyltransferase
101	 66.42	0	117713..118528	-	271	91974583	-	RPD_0101	-	hypothetical protein
102	 68.33	0	118681..119580	+	299	91974584	-	RPD_0102	-	hypothetical protein
103	 65.75	0	119581..120015	-	144	91974585	-	RPD_0103	-	hypothetical protein
104	 65.67	0	120224..120727	-	167	91974586	-	RPD_0104	-	hypothetical protein
105	 66.55	0	120724..121599	-	291	91974587	-	RPD_0105	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
106	 64.26	0	121596..121886	-	96	91974588	-	RPD_0106	-	glutaredoxin GrxC
107	 69.47	+1	121938..122756	-	272	91974589	-	RPD_0107	-	phosphoribosyltransferase
108	 66.01	0	122868..123170	+	100	91974590	-	RPD_0108	-	hypothetical protein
109	 70.26	+1	123232..124065	+	277	91974591	-	RPD_0109	-	methyltransferase type 11
110	 66.42	0	124127..124528	-	133	91974592	-	RPD_0110	-	NUDIX hydrolase
111	 68.28	0	124701..125942	-	413	91974593	argJ	RPD_0111	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
112	 68.24	0	126213..126722	-	169	91974594	-	RPD_0112	-	OsmC-like protein
113	 70.48	+1	126781..127566	-	261	91974595	-	RPD_0113	-	ABC transporter related
114	 68.87	+1	127566..128426	-	286	91974596	-	RPD_0114	-	binding-protein-dependent transport systems inner membrane component
115	 64.74	0	128620..129606	-	328	91974597	-	RPD_0115	-	ABC transporter, substrate-binding protein, aliphatic sulphonates
116	 65.77	0	129849..132650	+	933	91974598	-	RPD_0116	-	PII uridylyl-transferase
117	 68.25	0	132778..133347	+	189	91974599	-	RPD_0117	-	putative threonine efflux protein-like
118	 65.62	0	133645..135261	-	538	91974600	-	RPD_0118	-	HWE histidine kinase
119	 66.19	0	135398..138127	-	909	91974601	-	RPD_0119	-	sensor histidine kinase with PAS/PAC
120	 63.17	0	138274..138702	-	142	91974602	-	RPD_0120	-	hypothetical protein
121	 60.77	-1	138971..140191	+	406	91974603	-	RPD_0121	-	extracellular ligand-binding receptor
122	 60.24	-1	140396..140815	+	139	91974604	-	RPD_0122	-	hypothetical protein
123	 65.48	0	140960..141211	-	83	91974605	-	RPD_0123	-	hypothetical protein
124	 67.64	0	141403..143565	+	720	91974606	-	RPD_0124	-	penicillin-binding protein 1A
125	 66.80	0	143897..144667	-	256	91974607	-	RPD_0125	-	hypothetical protein
126	 62.97	0	144990..146315	-	441	91974608	-	RPD_0126	-	polyhydroxyalkanoate depolymerase, intracellular
127	 61.11	-1	146905..147660	+	251	91974609	-	RPD_0127	-	methyltransferase type 12
128	 61.85	0	147710..148540	-	276	91974610	-	RPD_0128	-	hypothetical protein
129	 68.18	0	148537..149331	-	264	91974611	-	RPD_0129	-	ABC transporter related
130	 65.99	0	149441..150763	+	440	91974612	-	RPD_0130	-	periplasmic sensor signal transduction histidine kinase
131	 67.57	0	150866..151420	+	184	91974613	-	RPD_0131	-	response regulator receiver
132	 64.79	0	151611..152090	-	159	91974614	-	RPD_0132	-	hypothetical protein
133	 66.13	0	152241..153359	+	372	91974615	-	RPD_0133	-	von Willebrand factor, type A
134	 64.87	0	153579..154247	+	222	91974616	-	RPD_0134	-	beta-lactamase-like
135	 63.94	0	154717..155706	+	329	91974617	-	RPD_0135	-	helix-turn-helix, AraC type
136	 66.43	0	155814..156233	-	139	91974618	-	RPD_0136	-	hypothetical protein
137	 66.07	0	156463..157641	-	392	91974619	-	RPD_0137	-	esterase, PHB depolymerase
138	 58.94	-1	157856..158101	-	81	91974620	-	RPD_0138	-	hypothetical protein
139	 68.18	0	158217..159605	-	462	91974621	-	RPD_0139	-	chromate transporter
140	 69.28	+1	159602..160213	-	203	91974622	-	RPD_0140	-	hypothetical protein
141	 65.12	0	160419..160742	-	107	91974623	-	RPD_0141	-	hypothetical protein
142	 64.14	0	160993..161466	+	157	91974624	-	RPD_0142	-	hypothetical protein
143	 68.78	+1	161499..161972	+	157	91974625	-	RPD_0143	-	hypothetical protein
144	 69.95	+1	161969..162517	+	182	91974626	-	RPD_0144	-	hypothetical protein
145	 70.97	+1	162595..163710	-	371	91974627	-	RPD_0145	-	hypothetical protein
146	 68.27	0	163879..165252	+	457	91974628	-	RPD_0146	-	MmgE/PrpD
147	 61.74	0	165321..165929	+	202	91974629	-	RPD_0147	-	hypothetical protein
148	 67.09	0	166201..167619	+	472	91974630	-	RPD_0148	-	malonyl-CoA decarboxylase
149	 66.99	0	167670..168587	+	305	91974631	-	RPD_0149	-	Pirin-like
150	 67.65	0	168656..169573	+	305	91974632	-	RPD_0150	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
151	 69.86	+1	169820..170602	+	260	91974633	-	RPD_0151	-	enoyl-CoA hydratase
152	 65.97	0	170705..171424	-	239	91974634	radC	RPD_0152	-	DNA repair protein RadC
153	 64.07	0	171562..173370	-	602	91974635	-	RPD_0153	-	chemotaxis sensory transducer
154	 62.41	0	173763..174749	+	328	91974636	-	RPD_0154	-	hypothetical protein
155	 64.85	0	175023..175847	-	274	91974637	-	RPD_0155	-	methionine aminopeptidase, type I
156	 64.84	0	175945..177258	-	437	91974638	-	RPD_0156	-	MscS mechanosensitive ion channel
157	 68.62	+1	177483..179273	+	596	91974639	-	RPD_0157	-	potassium/proton antiporter
158	 71.07	+1	179274..180227	-	317	91974640	mepA	RPD_0158	-	penicillin-insensitive murein endopeptidase
159	 66.62	0	180631..182859	+	742	91974641	-	RPD_0159	-	GGDEF domain-containing protein
160	 64.44	0	183064..184008	-	314	91974642	-	RPD_0160	-	hypothetical protein
161	 72.56	+2	184346..185770	+	474	91974643	-	RPD_0161	-	twin-arginine translocation pathway signal
162	 68.36	0	185997..188471	-	824	91974644	pheT	RPD_0162	-	phenylalanyl-tRNA synthetase subunit beta
163	 66.67	0	188553..189137	-	194	91974645	-	RPD_0163	-	hypothetical protein
164	 64.64	0	189275..190357	-	360	91974646	pheS	RPD_0164	-	phenylalanyl-tRNA synthetase subunit alpha
165	 64.72	0	190501..190860	-	119	91974647	rplT	RPD_0165	-	50S ribosomal protein L20
166	 58.21	-1	190948..191148	-	66	91974648	rpmI	RPD_0166	-	50S ribosomal protein L35
167	 74.88	+2	191512..191937	+	141	91974649	-	RPD_0167	-	hypothetical protein
168	 58.90	-1	192320..192718	-	132	91974650	infC	RPD_0168	-	translation initiation factor IF-3
169	 70.18	+1	193195..193992	+	265	91974651	-	RPD_0169	-	hypothetical protein
170	 66.93	0	194098..195240	-	380	91974652	-	RPD_0170	-	4Fe-4S ferredoxin, iron-sulfur binding
171	 64.50	0	195300..195992	-	230	91974653	-	RPD_0171	-	glutathione S-transferase-like
172	 61.59	0	196204..197010	+	268	91974654	-	RPD_0172	-	undecaprenyl pyrophosphate phosphatase
173	 67.39	0	197071..198036	-	321	91974655	-	RPD_0173	-	3-beta hydroxysteroid dehydrogenase/isomerase
174	 63.74	0	198454..199068	+	204	91974656	-	RPD_0174	-	3'-5' exonuclease
175	 64.85	0	199311..200081	+	256	91974657	-	RPD_0175	-	hypothetical protein
176	 64.41	0	200078..200743	+	221	91974658	-	RPD_0176	-	OstA-like protein
177	 66.46	0	200801..201754	+	317	91974659	-	RPD_0177	-	ABC transporter related
178	 64.17	0	201922..203562	+	546	91974660	-	RPD_0178	-	RNA polymerase factor sigma-54
179	 64.04	0	203618..204226	+	202	91974661	-	RPD_0179	-	sigma 54 modulation protein/ribosomal protein S30EA
180	 66.67	0	204510..204971	+	153	91974662	-	RPD_0180	-	PTS IIA-like nitrogen-regulatory protein PtsN
181	 62.92	0	205475..205741	-	88	91974663	-	RPD_0181	-	hypothetical protein
182	 58.92	-1	205792..206217	-	141	91974664	-	RPD_0182	-	heat shock protein Hsp20
64.98	MEAN

3.46	STD DEV
