IslandPath Analysis: Rhodopseudomonas palustris CGA009

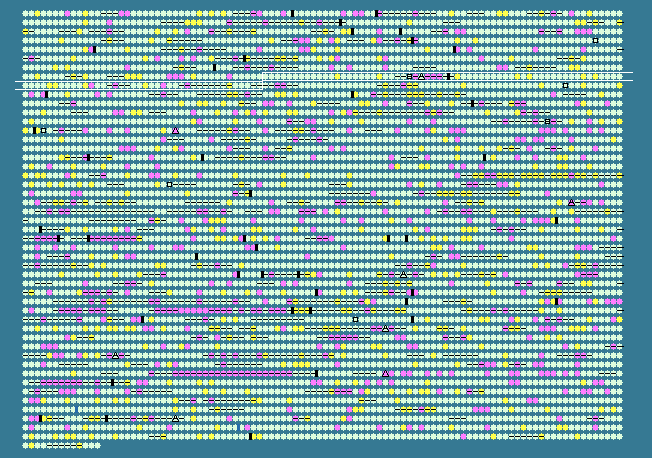

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.23   STD DEV: 3.17
Rhodopseudomonas palustris CGA009, complete genome - 1..5459213
4813 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
741	 67.72	0	821440..821724	-	94	39933821	-	RPA0744	-	putative high potential iron sulfur protein (HiPIP)
742	 61.98	-1	821865..824297	-	810	39933822	-	RPA0745	-	outer membrane protein precursor
743	 67.73	0	824397..826001	-	534	39933823	-	RPA0746	-	deca-heme c-type cytochrome
744	 65.62	0	826776..827822	-	348	39933824	cysA	RPA0747	-	sulphate transport system permease protein 1
745	 64.04	0	827812..828726	-	304	39933825	cysW	RPA0748	-	sulfate ABC transporter, permease component
746	 64.76	0	828731..829567	-	278	39933826	cysT	RPA0749	-	putative sulfate ABC transporter, permease component
747	 62.63	0	829860..830849	-	329	39933827	sbp	RPA0750	-	thiosulphate-binding protein
748	 64.10	0	830974..831714	-	246	39933828	cysH	RPA0751	-	phosphoadenosine phosphosulfate reductase
749	 65.06	0	832014..832883	+	289	39933829	cysD	RPA0752	-	sulfate adenylyltransferase subunit 2
750	 68.66	+1	832905..834815	+	636	39933830	cysN	RPA0753	-	putative CysN/CysC bifunctional enzyme, ATP-sulfurylase large subunit and adenylyl sulfate kinase
751	 63.95	0	834822..836258	-	478	39933831	-	RPA0754	-	signal transduction histidine kinase
752	 68.51	+1	836321..837298	-	325	39933832	-	RPA0755	-	putative oligopeptide ABC transporter, ATP-binding component
753	 68.93	+1	837299..838711	-	470	39933833	-	RPA0756	-	putative amidase
754	 62.56	0	838708..838902	-	64	39933834	-	RPA0757	-	hypothetical protein
755	 66.57	0	838916..839974	-	352	39933835	-	RPA0758	-	putative oligopeptide ABC transporter, ATP-binding component
756	 66.34	0	839979..840884	-	301	39933836	-	RPA0759	-	putative oligopeptide ABC transporter, permease component
757	 67.61	0	840889..841842	-	317	39933837	-	RPA0760	-	putative oligopeptide ABC transporter, permease component
758	 63.90	0	842040..843701	-	553	39933838	-	RPA0761	-	oligopeptide ABC transporter, periplasmic binding protein component
759	 62.35	0	843889..845487	+	532	39933839	-	RPA0762	-	oligopeptide ABC transporter, periplasmic binding protein component
760	 68.93	+1	845640..846434	+	264	39933840	-	RPA0763	-	methyltransferase
761	 64.14	0	846490..846924	-	144	39933841	-	RPA0764	-	hypothetical protein
762	 67.26	0	846945..849308	-	787	39933842	-	RPA0765	-	putative outer membrane receptor for iron transport
763	 66.24	0	849702..850409	+	235	39933843	-	RPA0766	-	Crp/FNR family transcriptional regulator
764	 66.77	0	850515..851456	+	313	39933844	-	RPA0767	-	diguanylate cyclase
765	 65.92	0	851947..852750	+	267	39933845	-	RPA0768	-	transposase
766	 47.08	-2	853002..853823	+	273	39933846	-	RPA0769	-	hypothetical protein
767	 63.74	0	853839..854762	-	307	39933847	-	RPA0770	-	integrase catalytic subunit
768	 58.05	-2	854756..855022	-	88	39933848	-	RPA0771	-	protein commonly found in insertion elements
769	 52.21	-2	855099..856412	+	437	39933849	-	RPA0772	-	pentapeptide repeat-containing protein
770	 52.94	-2	856721..857179	-	152	39933850	-	RPA0773	-	hypothetical protein
771	 65.49	0	857784..858209	+	141	39933851	-	RPA0774	-	hypothetical protein
772	 63.16	0	858557..859069	+	170	39933852	-	RPA0775	-	hypothetical protein
773	 70.18	+1	859102..860694	-	530	39933853	-	RPA0776	-	gamma-glutamyltranspeptidase precursor
774	 65.16	0	860813..863527	-	904	39933854	-	RPA0777	-	diguanylate cyclase/phosphodiesterase
775	 64.68	0	863776..864177	-	133	39933855	-	RPA0778	-	hypothetical protein
776	 67.69	0	864609..864803	+	64	39933856	-	RPA0779	-	hypothetical protein
777	 64.85	0	864804..866069	-	421	39933857	-	RPA0780	-	acyl-CoA dehydrogenase
778	 64.67	0	866150..866500	-	116	39933858	-	RPA0781	-	putative cytochrome c552 precursor
779	 65.29	0	866503..866937	-	144	39933859	-	RPA0782	-	hypothetical protein
780	 64.85	0	867126..868943	-	605	39933860	-	RPA0783	-	putative diguanylate cyclase (GGDEF)/phosphodiesterase (EAL)
781	 66.79	0	869122..869964	+	280	39933861	-	RPA0784	-	short-chain dehydrogenase/reductase SDR
782	 66.23	0	870091..871470	-	459	39933862	-	RPA0785	-	cytochrome P450
783	 68.75	+1	871591..872985	-	464	39933863	-	RPA0786	-	putative adenylate/guanylate cyclase
784	 67.90	0	873042..874016	+	324	39933864	-	RPA0787	-	heat shock protein HtpX
785	 69.42	+1	874269..875684	+	471	39933865	-	RPA0788	-	major facilitator superfamily drug efflux transporter
786	 68.35	0	875681..876868	-	395	39933866	-	RPA0789	-	putative serine-glyoxylate aminotransferase
787	 66.32	0	876924..877778	-	284	39933867	-	RPA0790	-	hypothetical protein
788	 65.33	0	877812..878633	-	273	39933868	exoI1	RPA0791	-	nuclease
789	 65.17	0	878657..880396	-	579	39933869	-	RPA0792	-	hypothetical protein
790	 67.70	0	880850..881716	+	288	39933870	-	RPA0793	-	peptidase C14, caspase catalytic subunit p20
791	 64.03	0	881807..882565	-	252	39933871	acaP	RPA0794	-	carbonate dehydratase
792	 63.82	0	882652..883284	-	210	39933872	-	RPA0795	-	S24 family peptidase
793	 67.68	0	883368..883958	+	196	39933873	-	RPA0796	-	hypothetical protein
794	 68.77	+1	883955..885049	+	364	39933874	uraI	RPA0797	-	dihydroorotate dehydrogenase 2
795	 63.13	0	885190..885924	-	244	39933875	-	RPA0798	-	Beta-lactamase-like
796	 69.52	+1	886068..886733	-	221	39933876	-	RPA0799	-	putative carbonic anhydrase
797	 66.97	0	886913..888235	-	440	39933877	matE1	RPA0800	-	MATE efflux family protein
798	 63.99	0	888254..888589	-	111	39933878	-	RPA0801	-	hypothetical protein
799	 66.93	0	888628..890493	-	621	39933879	-	RPA0802	-	ATP-dependent DNA ligase
800	 68.67	+1	890490..891536	-	348	39933880	-	RPA0803	-	putative mRNA 3-end processing factor
801	 68.48	+1	891595..892530	+	311	39933881	-	RPA0804	-	hypothetical protein
802	 65.41	0	892683..894032	-	449	39933882	-	RPA0805	-	outer membrane protein
803	 63.06	0	894376..895596	+	406	39933883	-	RPA0806	-	high-affinity branched-chain amino acid transport system substrate-binding protein
804	 67.14	0	895772..898489	+	905	39933884	-	RPA0807	-	ATP dependent DNA helicase
805	 70.90	+1	898734..899276	+	180	39933885	-	RPA0808	-	hypothetical protein
806	 68.75	+1	899416..900279	-	287	39933886	-	RPA0809	-	LysR family transcriptional regulator
807	 68.62	+1	900378..901298	+	306	39933887	-	RPA0810	-	DMT family permease
808	 65.92	0	901384..902730	+	448	39933888	-	RPA0811	-	putative manganese transp
809	 65.17	0	902897..903697	-	266	39933889	-	RPA0812	-	hypothetical protein
810	 67.39	0	903694..904656	-	320	39933890	-	RPA0813	-	hypothetical protein
811	 70.35	+1	904892..908287	-	1131	39933891	-	RPA0814	-	hypothetical protein
812	 60.34	-1	909116..909763	+	215	39933892	-	RPA0815	-	hypothetical protein
813	 65.94	0	909857..911647	+	596	39933893	-	RPA0816	-	putative acyl-CoA dehydrogenase
814	 66.17	0	911818..913026	+	402	39933894	-	RPA0817	-	acetyl-CoA acetyltransferase
815	 63.96	0	913151..915367	+	738	39933895	-	RPA0818	-	3-hydroxyacyl-CoA dehydrogenase
816	 49.34	-2	915791..917596	+	601	39933896	-	RPA0819	-	hypothetical protein
817	 63.56	0	917708..918319	-	203	39933897	gst2	RPA0820	-	putative glutathionine S-transferase
818	 64.73	0	918366..918932	+	188	39933898	-	RPA0821	-	MarR family transcriptional regulator
819	 66.25	0	918960..920396	+	478	39933899	gshA	RPA0822	-	glutamate--cysteine ligase
820	 65.94	0	920542..921093	+	183	39933900	-	RPA0823	-	hypothetical protein
821	 68.87	+1	921127..921897	-	256	39933901	lepB1	RPA0824	-	signal peptidase I
822	 66.88	0	921894..923321	-	475	39933902	-	RPA0825	-	peptidase U62, modulator of DNA gyrase
823	 63.06	0	923443..923664	+	73	39933903	-	RPA0826	-	hypothetical protein
824	 56.67	-2	923664..923993	+	109	39933904	-	RPA0827	-	hypothetical protein
825	 63.91	0	924075..924545	+	156	39933905	-	RPA0828	-	MarR family transcriptional regulator
826	 66.43	0	924660..925085	+	141	39933906	ohr	RPA0829	-	organic hydroperoxide resistance protein
827	 67.86	0	925367..926035	-	222	39933907	-	RPA0830	-	hypothetical protein
828	 61.54	-1	926324..927181	+	285	39933908	coxB	RPA0831	-	cytochrome-c oxidase
829	 62.05	-1	927249..928874	+	541	39933909	coxA	RPA0832	-	cytochrome-c oxidase
830	 66.67	0	928920..929885	+	321	39933910	coxE	RPA0833	-	protoheme IX farnesyltransferase
831	 65.56	0	929885..930064	+	59	39933911	CoxF	RPA0834	-	putative CoxF
832	 64.50	0	930061..930705	+	214	39933912	coxG	RPA0835	-	cytochrome C oxidase assembly protein
833	 62.92	0	930777..931631	+	284	39933913	coxC	RPA0836	-	cytochrome c oxidase, subunit III
834	 65.66	0	931794..932189	+	131	39933914	-	RPA0837	-	hypothetical protein
835	 68.78	+1	932186..932989	+	267	39933915	-	RPA0838	-	surfeit 1
836	 65.90	0	933124..934554	+	476	161610777	thrC	RPA0839	-	threonine synthase
837	 65.74	0	934551..935840	+	429	39933917	mpp	RPA0840	-	putative protease
838	 67.17	0	935893..936489	+	198	39933918	-	RPA0841	-	GCN5-related N-acetyltransferase
839	 66.51	0	936587..937240	+	217	39933919	-	RPA0842	-	hypothetical protein
840	 66.87	0	937373..937864	-	163	39933920	atpF1	RPA0843	-	H+-transporting two-sector ATPase, B/B' subunit
65.23	MEAN

3.17	STD DEV
