IslandPath Analysis: Rhodopseudomonas palustris CGA009

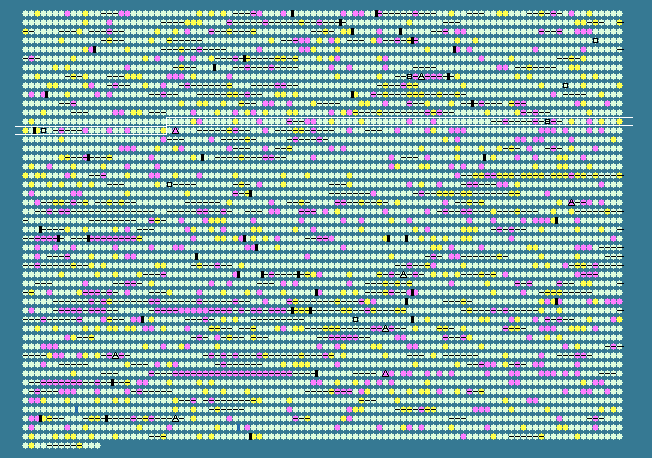

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.23 STD DEV: 3.17
Rhodopseudomonas palustris CGA009, complete genome - 1..5459213
4813 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1225	 63.23	0	1347482..1348354	+	290	39934305	-	RPA1230	-	putative ABC transporter, permease protein
1226	 63.44	0	1348357..1349502	+	381	39934306	-	RPA1231	-	ABC transporter permease
1227	 63.78	0	1349499..1350260	+	253	39934307	-	RPA1232	-	putative branched-chain amino acid transport system ATP-binding protein
1228	 62.53	0	1350264..1351013	+	249	39934308	-	RPA1233	-	putative branched-chain amino acid transport system ATP-binding protein
1229	 70.14	+1	1350997..1352697	+	566	39934309	-	RPA1234	-	long-chain-fatty-acid--CoA ligase
1230	 61.69	-1	1352737..1353942	+	401	39934310	-	RPA1235	-	leucine-binding protein (LBP)
1231	 65.66	0	1354133..1355329	-	398	39934311	-	RPA1236	-	putative acyl-CoA dehydrogenase
1232	 68.16	0	1355348..1356484	-	378	39934312	-	RPA1237	-	acyl-CoA dehydrogenase
1233	 63.37	0	1356488..1357336	-	282	39934313	-	RPA1238	-	enoyl-CoA hydratase
1234	 68.19	0	1357474..1358460	+	328	39934314	exbB1	RPA1239	-	putative biopolymer transport protein ExbB
1235	 66.44	0	1358465..1358902	+	145	39934315	exbD1	RPA1240	-	biopolymer transport protein ExbD
1236	 69.99	+1	1358899..1359771	+	290	39934316	-	RPA1241	-	tonB transport protein
1237	 66.01	0	1359791..1361302	-	503	39934317	fadD1	RPA1242	-	AMP-dependent synthetase and ligase
1238	 66.58	0	1361637..1362803	+	388	39934318	-	RPA1243	-	late embryogenesis abundant protein
1239	 64.69	0	1362819..1363424	+	201	39934319	-	RPA1244	-	hypothetical protein
1240	 60.56	-1	1363411..1363803	+	130	39934320	-	RPA1245	-	hypothetical protein
1241	 66.24	0	1363800..1364501	+	233	39934321	-	RPA1246	-	hypothetical protein
1242	 63.53	0	1364565..1365647	+	360	39934322	rbn2	RPA1247	-	ribonuclease BN
1243	 66.99	0	1365644..1366570	-	308	39934323	-	RPA1248	-	two-component LuxR family transcriptional regulator
1244	 64.02	0	1366560..1369928	-	1122	39934324	-	RPA1249	-	sensor histidine kinase
1245	 60.89	-1	1370185..1371447	+	420	39934325	-	RPA1250	-	amide-urea binding protein
1246	 62.35	0	1371614..1372540	+	308	39934326	-	RPA1251	-	putative branched-chain amino acid transport system permease protein
1247	 62.33	0	1372555..1373706	+	383	39934327	-	RPA1252	-	putative high-affinity branched-chain amino acid transport system permease protein
1248	 59.92	-1	1373717..1374472	+	251	39934328	-	RPA1253	-	branched-chain amino acid transport system ATP-binding protein
1249	 61.74	-1	1374483..1375172	+	229	39934329	-	RPA1254	-	putative ATP-binding component of ABC transporter
1250	 62.93	0	1375209..1376438	+	409	39934330	fmdA	RPA1255	-	formamide amidohydrolase
1251	 64.06	0	1376627..1376971	+	114	39934331	fmdB	RPA1256	-	putative formamidase regulatory protein FmdB
1252	 70.05	+1	1377086..1377883	-	265	39934332	cobS	RPA1257	-	cobalamin (5`-phosphate) synthase
1253	 65.72	0	1378063..1378485	+	140	39934333	-	RPA1258	-	hypothetical protein
1254	 66.27	0	1378745..1381489	+	914	39934334	-	RPA1259	-	putative cation-transporting P-type ATPase
1255	 66.23	0	1381578..1382483	+	301	39934335	-	RPA1260	-	universal stress protein
1256	 66.92	0	1382580..1384175	+	531	39934336	-	RPA1261	-	FAD linked oxidase, C-terminal:FAD linked oxidase, N-terminal
1257	 70.11	+1	1384147..1384611	-	154	39934337	-	RPA1262	-	hypothetical protein
1258	 64.13	0	1384843..1385118	+	91	39934338	-	RPA1263	-	hypothetical protein
1259	 66.36	0	1385318..1386934	+	538	161610775	fliF	RPA1264	-	flagellar MS-ring protein
1260	 62.99	0	1386941..1388029	+	362	39934340	fliG	RPA1265	-	flagellar motor switch protein G
1261	 67.30	0	1388029..1388655	+	208	39934341	fliH	RPA1266	-	flagellar assembly protein H
1262	 64.37	0	1388673..1389020	+	115	39934342	fliY	RPA1267	-	flagellar motor switch protein
1263	 66.88	0	1389068..1390447	+	459	39934343	flbD	RPA1268	-	two component, sigma54 specific, transcriptional regulator, Fis family
1264	 62.18	0	1390811..1390966	-	51	39934344	-	RPA1269	-	hypothetical protein
1265	 60.57	-1	1391021..1391299	-	92	39934345	-	RPA1270	-	hypothetical protein
1266	 62.96	0	1391337..1391768	-	143	39934346	-	RPA1271	-	hypothetical protein
1267	 63.89	0	1391835..1392662	+	275	39934347	-	RPA1272	-	transglutaminase-like domain-containing protein
1268	 64.86	0	1392794..1393903	+	369	39934348	-	RPA1273	-	deoxyribonuclease
1269	 61.22	-1	1394619..1395500	+	293	39934349	-	RPA1274	-	Dps protein family starvation-inducible DNA-binding protein
1270	 63.62	0	1395763..1396287	-	174	39934350	-	RPA1275	-	hypothetical protein
1271	 65.16	0	1396520..1397713	-	397	39934351	carA	RPA1276	-	carbamoyl phosphate synthase small subunit
1272	 67.80	0	1397862..1398566	+	234	39934352	-	RPA1277	-	beta-ketoadipate enol-lactone hydrolase
1273	 62.06	-1	1398724..1399179	+	151	39934353	-	RPA1278	-	hypothetical protein
1274	 64.72	0	1399267..1399575	-	102	39934354	-	RPA1279	-	hypothetical protein
1275	 64.31	0	1399766..1400614	+	282	39934355	-	RPA1280	-	hypothetical protein
1276	 61.81	-1	1400728..1401201	-	157	39934356	-	RPA1281	-	hypothetical protein
1277	 62.86	0	1401194..1401508	-	104	39934357	-	RPA1282	-	ArsR family transcriptional regulator
1278	 66.34	0	1401637..1402254	+	205	39934358	-	RPA1283	-	homoserine/homoserine lactone/threonine efflux protein
1279	 66.29	0	1402378..1403175	-	265	39934359	-	RPA1284	-	N-formylglutamate amidohydrolase
1280	 65.69	0	1403337..1403744	+	135	39934360	-	RPA1285	-	hypothetical protein
1281	 61.73	-1	1403761..1404003	-	80	39934361	-	RPA1286	-	hypothetical protein
1282	 67.71	0	1404459..1406468	+	669	39934362	dnaG	RPA1287	-	DNA primase
1283	 63.90	0	1406728..1408824	+	698	39934363	rpoD	RPA1288	-	RNA polymerase sigma factor RpoD
1284	 62.76	0	1408843..1409175	+	110	39934364	-	RPA1289	-	hypothetical protein
1285	 64.20	0	1409572..1409895	-	107	39934365	-	RPA1290	-	plasmid maintenance system antidote protein
1286	 58.42	-2	1409905..1410195	-	96	39934366	-	RPA1291	-	putative proteic killer suppression protein
1287	 63.59	0	1410470..1410664	-	64	39934367	-	RPA1292	-	hypothetical protein
1288	 64.43	0	1410628..1411431	-	267	39934368	-	RPA1293	-	putative IS5 transposase
1289	 50.96	-2	1411896..1413359	+	487	39934369	-	RPA1294	-	hypothetical protein
1290	 67.33	0	1413532..1414743	+	403	39934370	-	RPA1295	-	putative signal transduction histidine kinase
1291	 66.16	0	1414958..1416721	+	587	39934371	-	RPA1296	-	diguanylate cyclase
1292	 69.25	+1	1416913..1417764	-	283	39934372	-	RPA1297	-	Short-chain dehydrogenase/reductase SDR:glucose/ribitol dehydrogenase
1293	 64.70	0	1417955..1419070	-	371	39934373	-	RPA1298	-	3-oxoacyl-(acyl carrier protein) synthase III
1294	 67.82	0	1419368..1419715	+	115	39934374	-	RPA1299	-	hypothetical protein
1295	 59.85	-1	1419941..1420894	+	317	39934375	-	RPA1300	-	restriction system protein
1296	 63.30	0	1421072..1421635	+	187	39934376	pfpI	RPA1301	-	intracellular protease
1297	 69.09	+1	1421829..1422200	-	123	39934377	-	RPA1302	-	hypothetical protein
1298	 67.03	0	1422427..1423245	+	272	39934378	-	RPA1303	-	lytic murein transglycosylase
1299	 61.90	-1	1423276..1423989	-	237	39934379	-	RPA1304	-	flagellar hook capping protein
1300	 71.00	+1	1424002..1425594	-	530	39934380	-	RPA1305	-	flagellar hook-length control protein
1301	 68.99	+1	1425895..1427100	+	401	39934381	trmU	RPA1306	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1302	 65.73	0	1427120..1427758	+	212	39934382	-	RPA1307	-	phosphatidylethanolamine N-methyltransferase
1303	 69.32	+1	1428428..1428691	-	87	39934383	-	RPA1308	-	hypothetical protein
1304	 64.63	0	1429578..1429871	+	97	39934384	-	RPA1309	-	transposase
1305	 62.72	0	1430328..1431443	+	371	39934385	-	RPA1310	-	putative NADH:flavin oxidoreductase
1306	 63.66	0	1431728..1432060	+	110	39934386	-	RPA1311	-	4-carboxymuconolactone decarboxylase
1307	 61.69	-1	1432289..1432831	+	180	39934387	-	RPA1312	-	hypothetical protein
1308	 65.24	0	1433238..1435136	+	632	39934388	-	RPA1313	-	sensor histidine kinase
1309	 63.43	0	1435192..1435623	+	143	39934389	-	RPA1314	-	response regulator receiver (CheY-like protein)
1310	 63.61	0	1435620..1436306	+	228	39934390	-	RPA1315	-	two-component LuxR family transcriptional regulator
1311	 59.61	-1	1436415..1436669	-	84	39934391	-	RPA1316	-	hypothetical protein
1312	 66.57	0	1437556..1438581	+	341	39934392	cioB	RPA1319	-	putative cytochrome bd-I oxidase subunit II
1313	 62.78	0	1438689..1438997	+	102	39934393	-	RPA1320	-	hypothetical protein
1314	 65.12	0	1439181..1440020	+	279	39934394	-	RPA1321	-	AraC family transcriptional regulator
1315	 58.23	-2	1440217..1440915	+	232	39934395	-	RPA1322	-	putative signal transduction histidine kinase
1316	 66.23	0	1441280..1441510	-	76	39934396	-	RPA1323	-	hypothetical protein
1317	 66.62	0	1441783..1443834	+	683	39934397	-	RPA1324	-	FusB/FusC fusaric acid resistance pump
1318	 60.39	-1	1443848..1444054	+	68	39934398	-	RPA1324a	-	hypothetical protein
1319	 67.94	0	1444051..1444992	+	313	39934399	-	RPA1325	-	FusE-MFP/HlyD family membrane fusion protein
1320	 62.50	0	1445131..1446114	-	327	39934400	-	RPA1326	-	AraC family transcriptional regulator
1321	 65.20	0	1446214..1447170	+	318	39934401	-	RPA1327	-	Ser/Thr protein kinase
1322	 65.99	0	1447208..1451350	+	1380	39934402	-	RPA1328	-	sensor histidine kinase
1323	 65.98	0	1451481..1452938	+	485	39934403	fumC	RPA1329	-	fumarate hydratase
1324	 69.71	+1	1452940..1454220	+	426	39934404	-	RPA1330	-	hypothetical protein
65.23	MEAN

3.17	STD DEV
